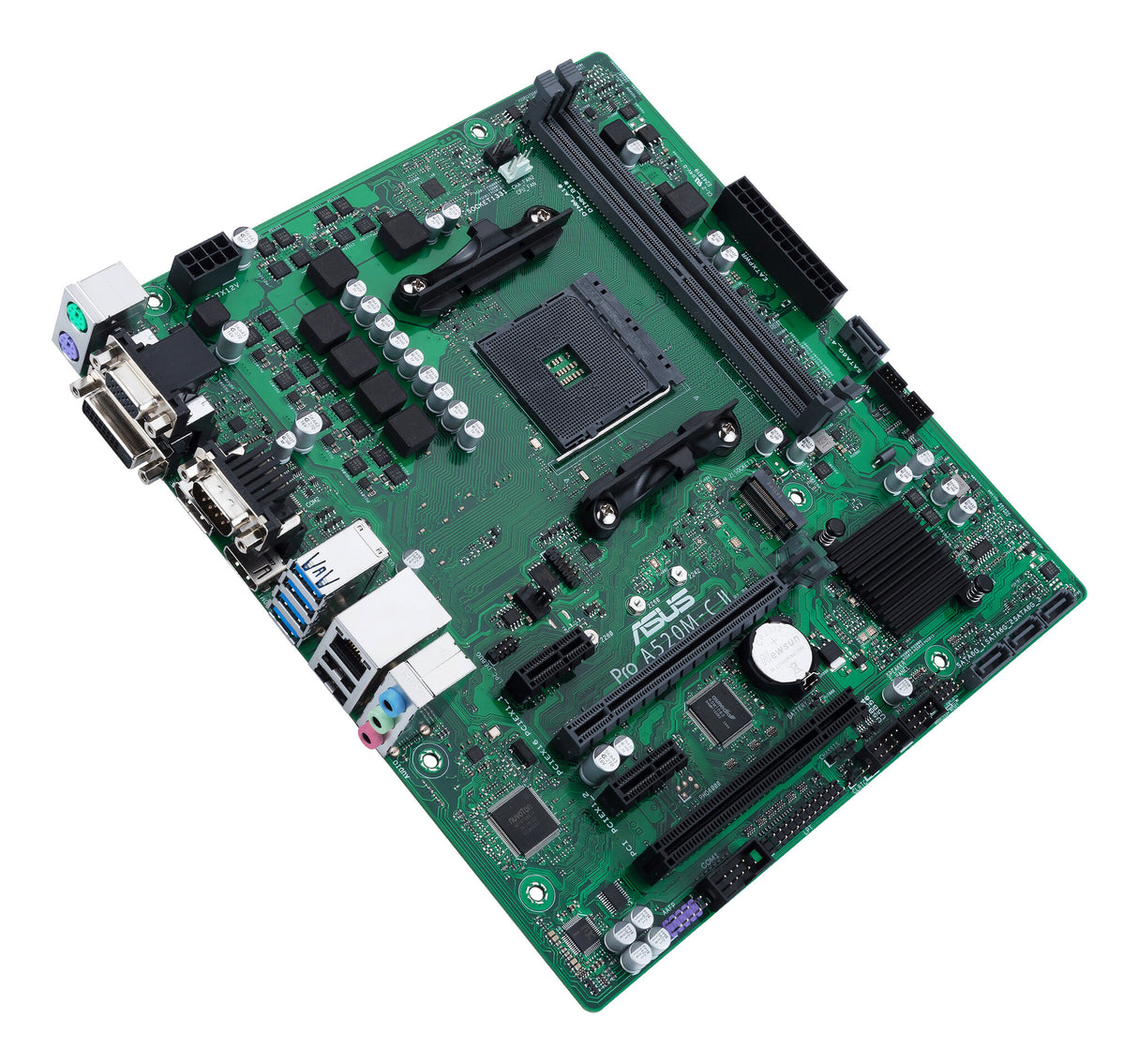

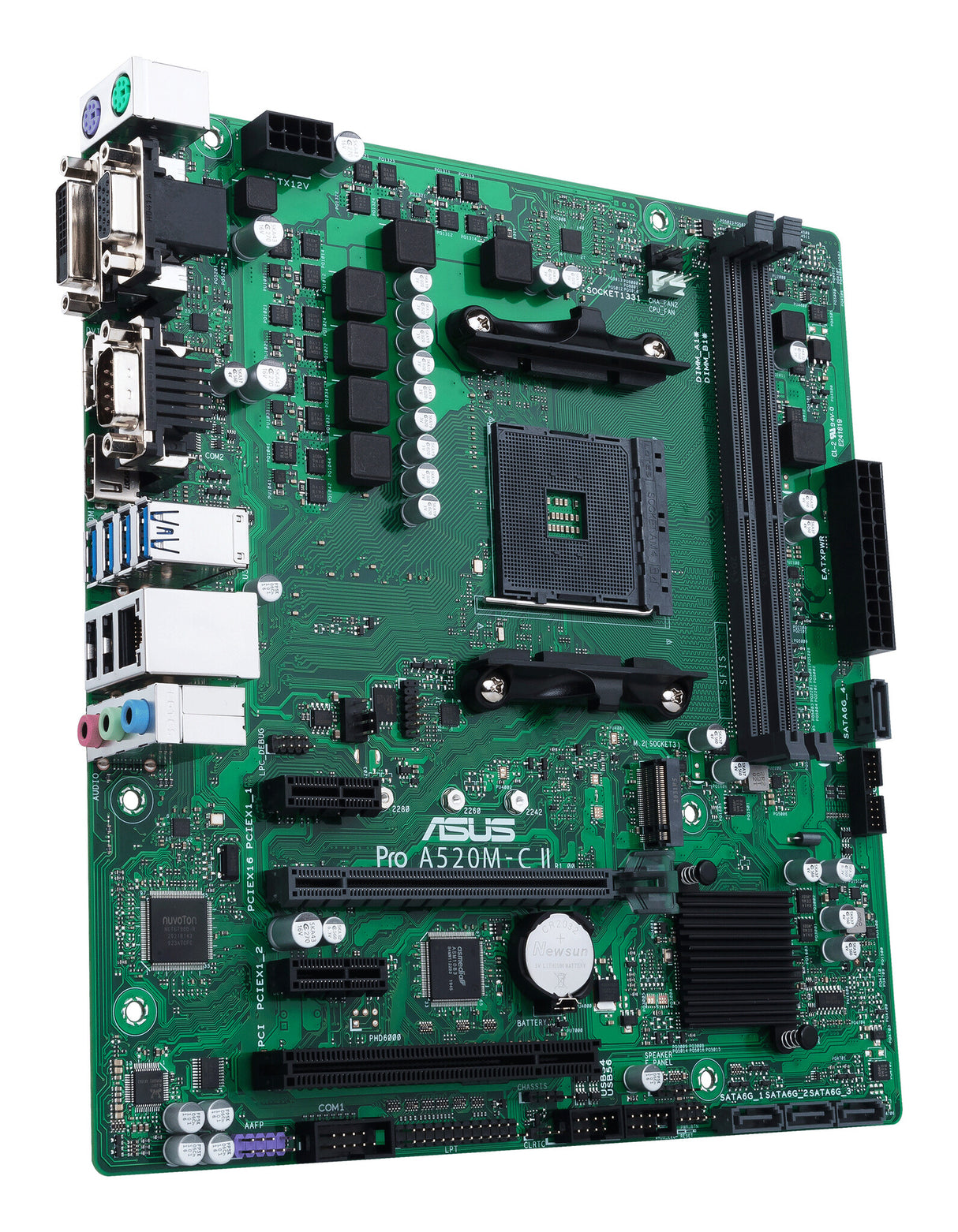

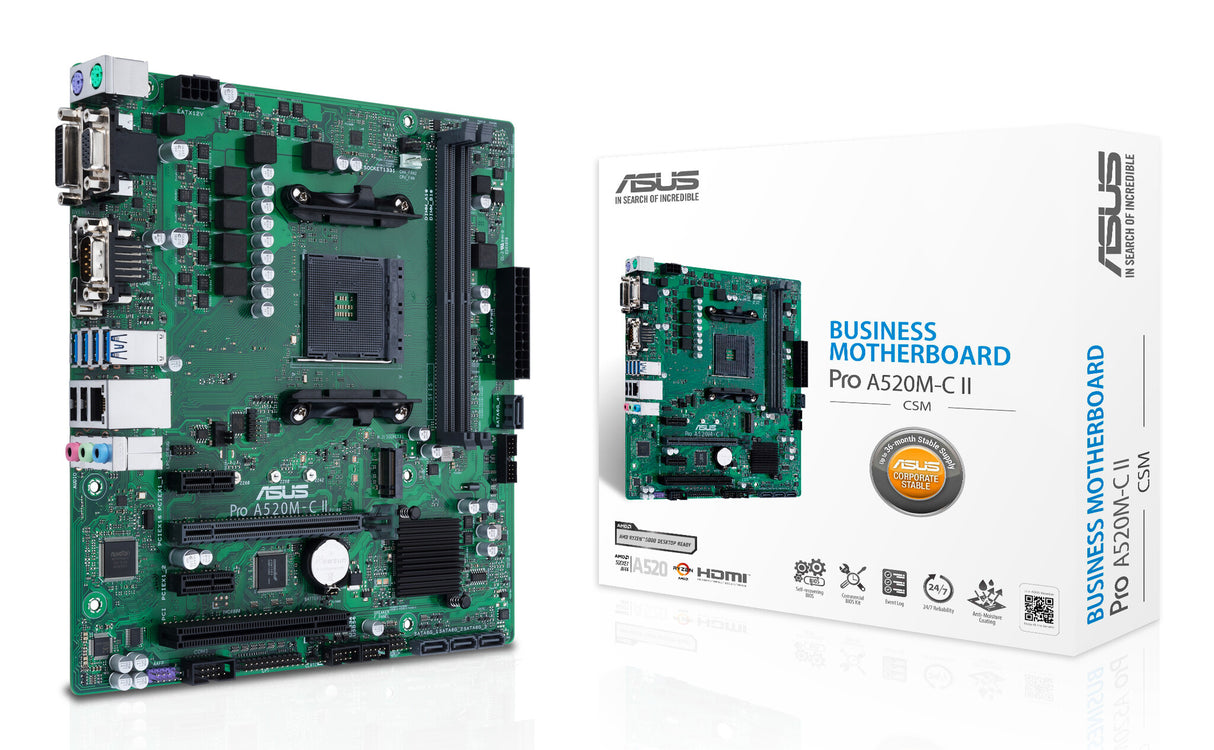

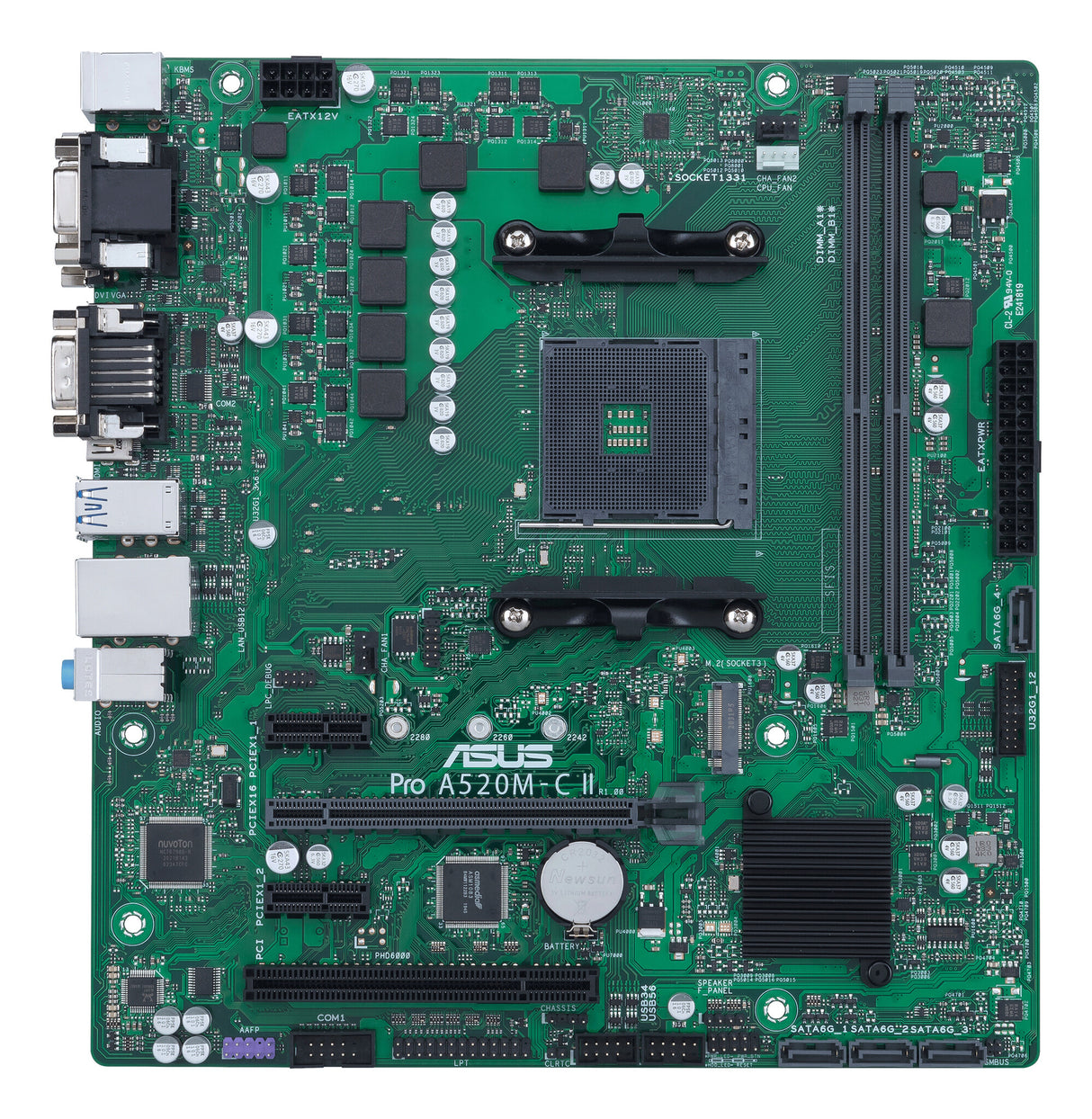

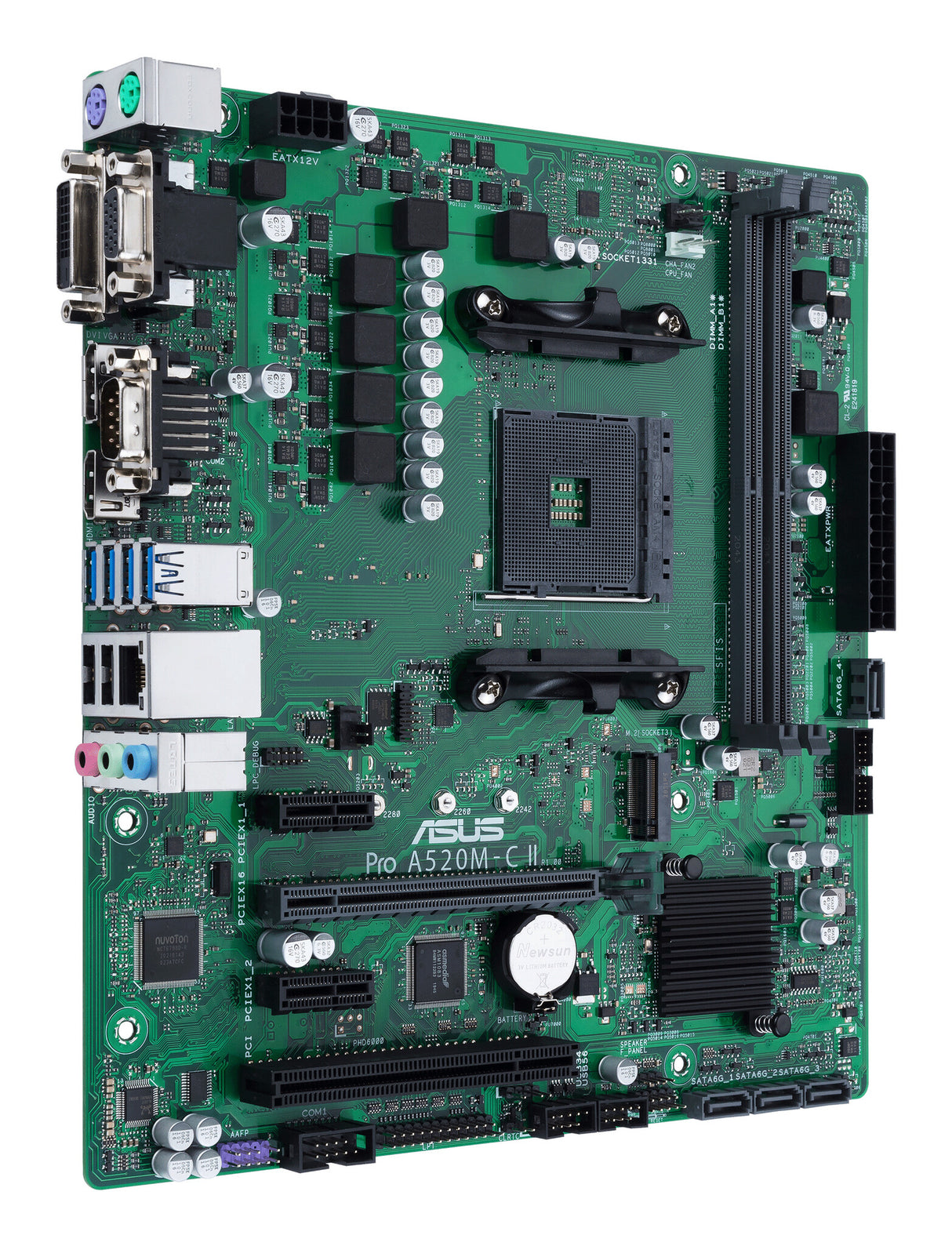

ASUS PRO A520M-C II/CSM AMD A520 Socket AM4 micro ATX
Key Details:
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- ASUS LPC debug header for more efficient troubleshooting
- Supports SMBUS header that connects to a DASH LAN for remote IT management
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Event log for capturing and managing detailed system information
- Commercial BIOS kit to make customization faster and more efficient
- ASUS Control Center Express(ACCE) to make IT endpoint management easier
ASUS PRO A520M-C II/CSM AMD A520 Socket AM4 micro ATX
Description
Description
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.
Internationally Certified Business Motherboard
ASUS business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business.
ASUS Trouble Shooting Solution
ASUS Debug header is a 10-1 pin low pin count (LPC) header for connecting to debug cards for faster, more efficient motherboard troubleshooting. When connected to an ASUS Debug Card, administrators can view error and debugging codes on the integrated LCD display, and get better idea of initialization and recovery processes. ASUS business motherboards provide a complete troubleshooting solution, making mass production faster and more cost effective.
Remote IT Management
The onboard SMBUS header* connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.
ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!
| Processor | |
|---|---|
| Supported processor sockets | Socket AM4 |
| Maximum number of SMP processors | 1 |
| Compatible processor series | AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| Processor socket | Socket AM4 |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4400,4600 MHz |
| ECC сompatibility | ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR4-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 10 |
| RAID support | Yes |
| Number of storage drives supported | 5 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Parallel connector | Yes |
| Serial port headers | 1 |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| Number of EATX power connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| USB connector type | USB Type-A |
| COM ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DisplayPorts quantity | 1 |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | AMD A520 |
| Motherboard chipset family | AMD |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| PCI slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| BIOS | |
|---|---|
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 910 g |
| Package height | 51.5 mm |
| Package depth | 263 mm |
| Package width | 270 mm |
| Weight & dimensions | |
|---|---|
| Depth | 229 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Cables included | SATA |
