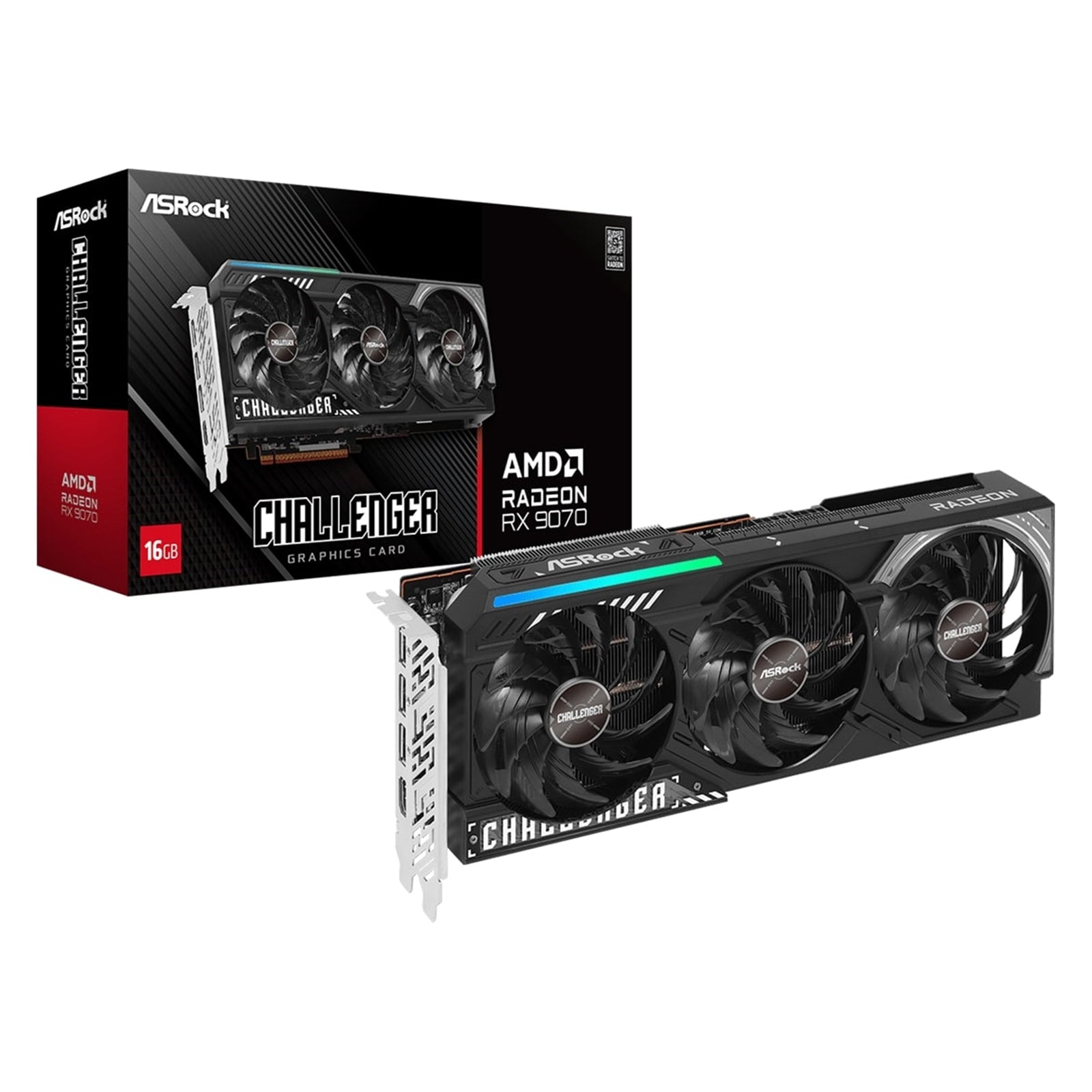

Asrock AMD Radeon RX 9070 Challenger 16GB GDDR6

ASROCK  |  SKU: RX9070 CL 16G  |  Condition: Brand New  |  Barcode: 4711581490475

MORE INFO

£690.99
£683.99 Save £7.00 £690.99
£569.99 excluding VAT @20%
iFrame
AMD Radeon RX 9070, 16GB GDDR6, 256 bit, PCI Express 5.0, 1 x HDMI (2.1b), 3 x DP (2.1a), DirectX 12 Ultimate, OpenGL 4.6

Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.

LED Indicator
More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.

LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.

Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.

High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

Processor
Graphics processor family AMD
Graphics processor Radeon RX 9070
Maximum resolution 7680 x 4320 pixels
CUDA No
Compute units 56
Processor boost clock speed 2520 MHz
Processor boost clock speed (Gaming mode) 2070 MHz
Stream processors 3584
Maximum displays per videocard 4
Memory
Discrete graphics card memory 16 GB
Graphics card memory type GDDR6
Memory bus 256 bit
Data transfer rate 20 Gbit/s
Ports & interfaces
Interface type PCI Express 5.0
HDMI ports quantity 1
DisplayPorts quantity 3
HDMI version 2.1b
DisplayPort version 2.1a
Performance
TV tuner integrated No
DirectX version 12 Ultimate
OpenGL version 4.6
HDCP Yes
Dual Link DVI No
Design
Cooling type Active
Number of fans 3 fan(s)
Illumination colour Blue, Green, Red
Illumination Yes
Product colour Black
Power
Minimum system power supply 700 W
Supplementary power connectors 2x 8-pin
Weight & dimensions
Weight 918 g
Length 290 mm
Height 123 mm
Depth 51 mm
Packaging data
Package type Box
