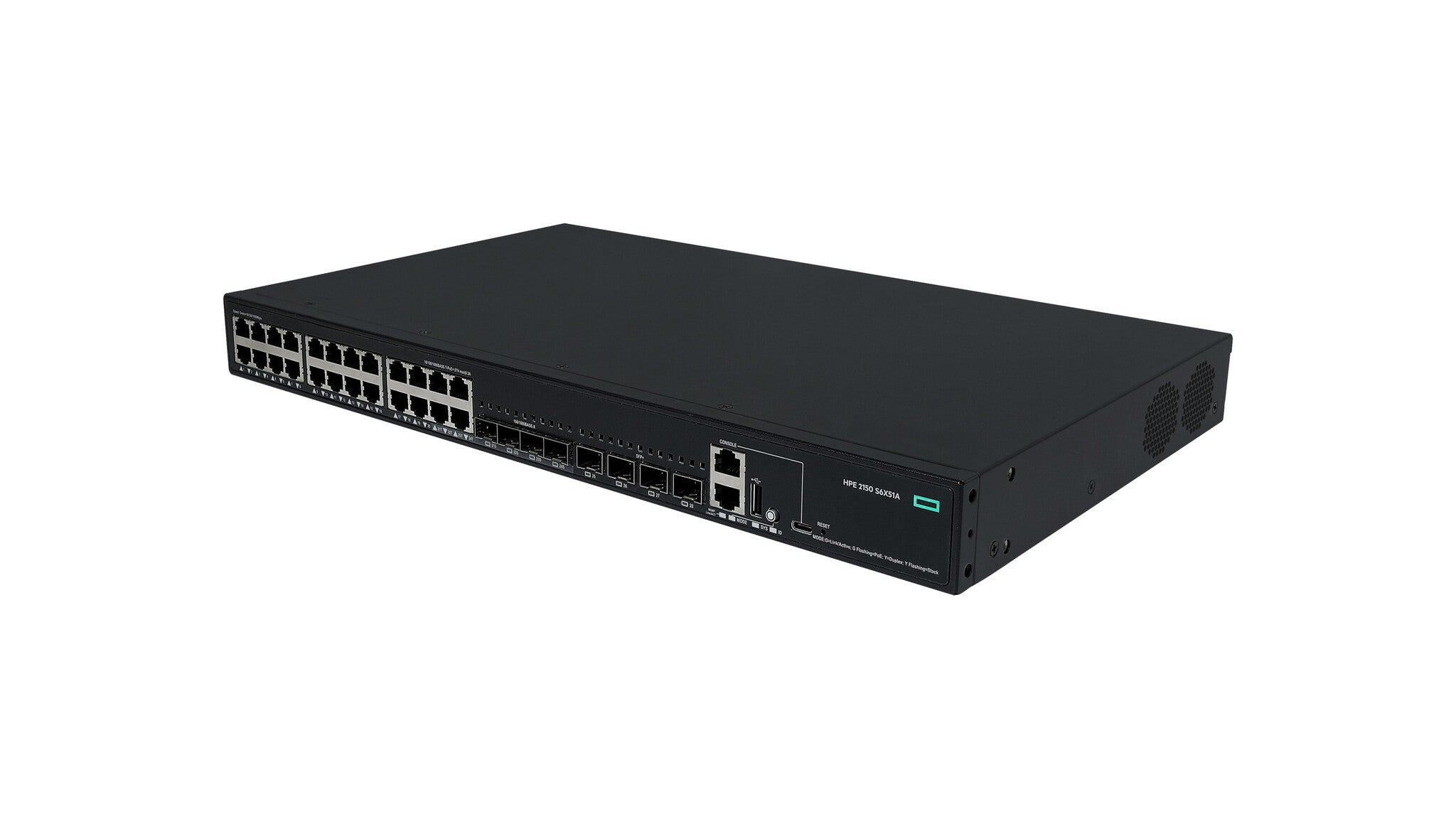

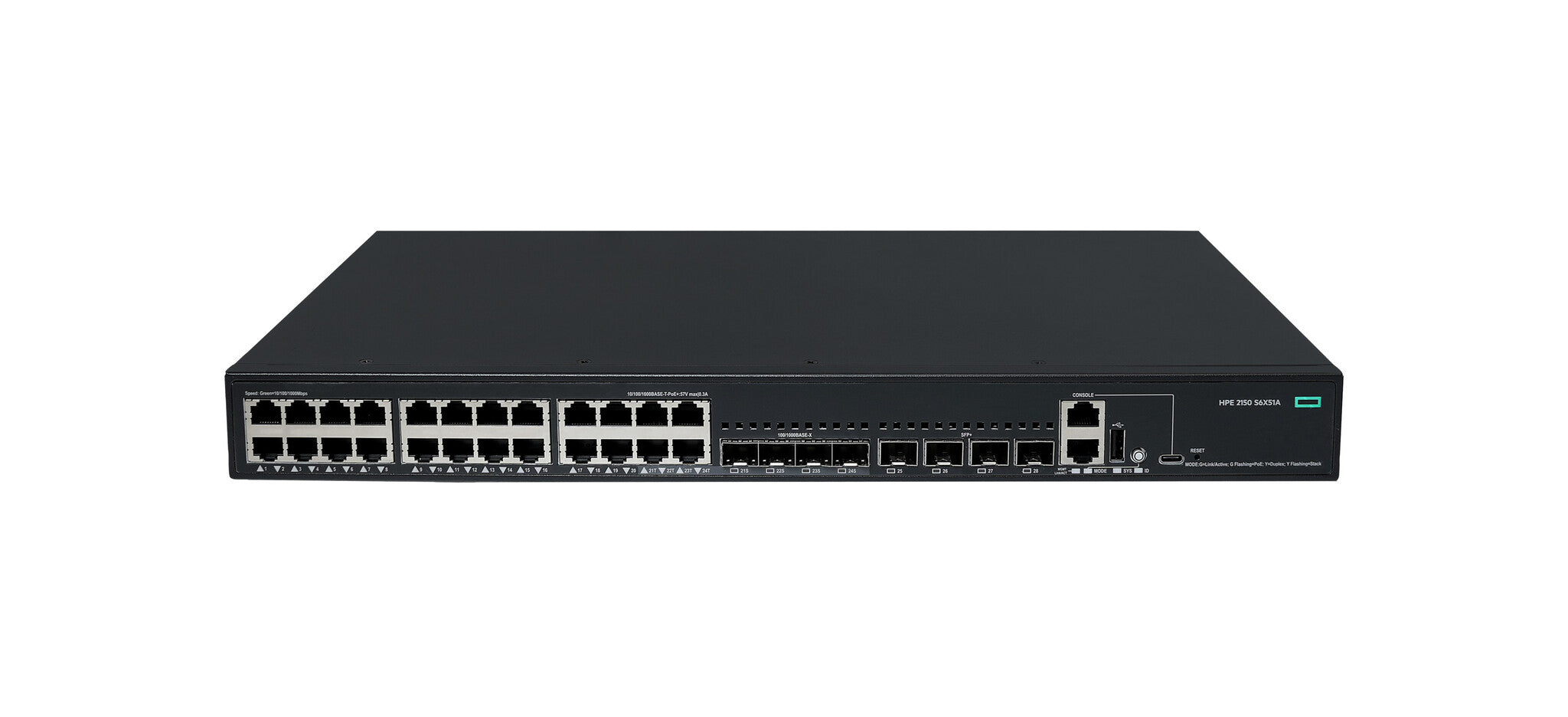

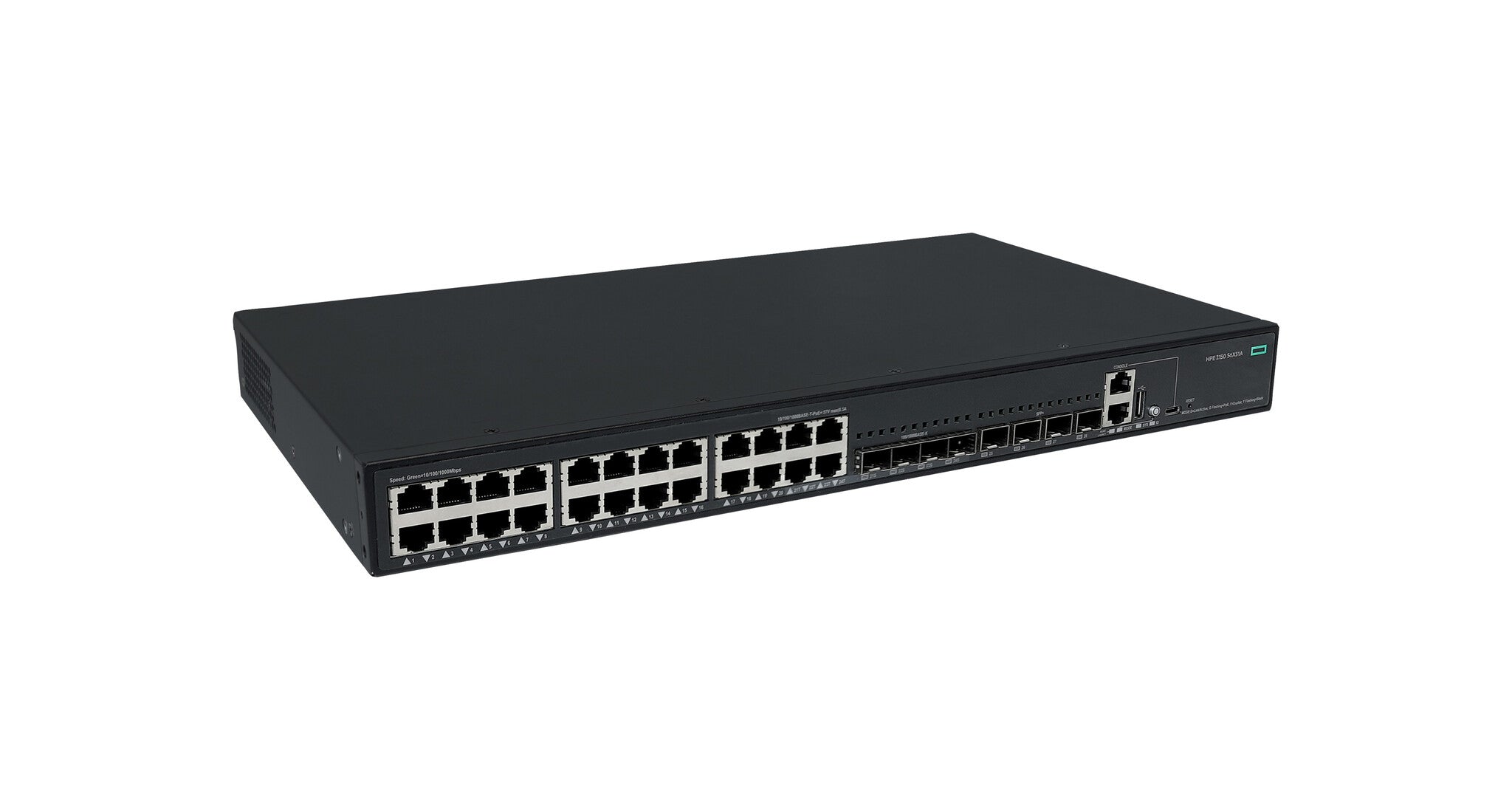

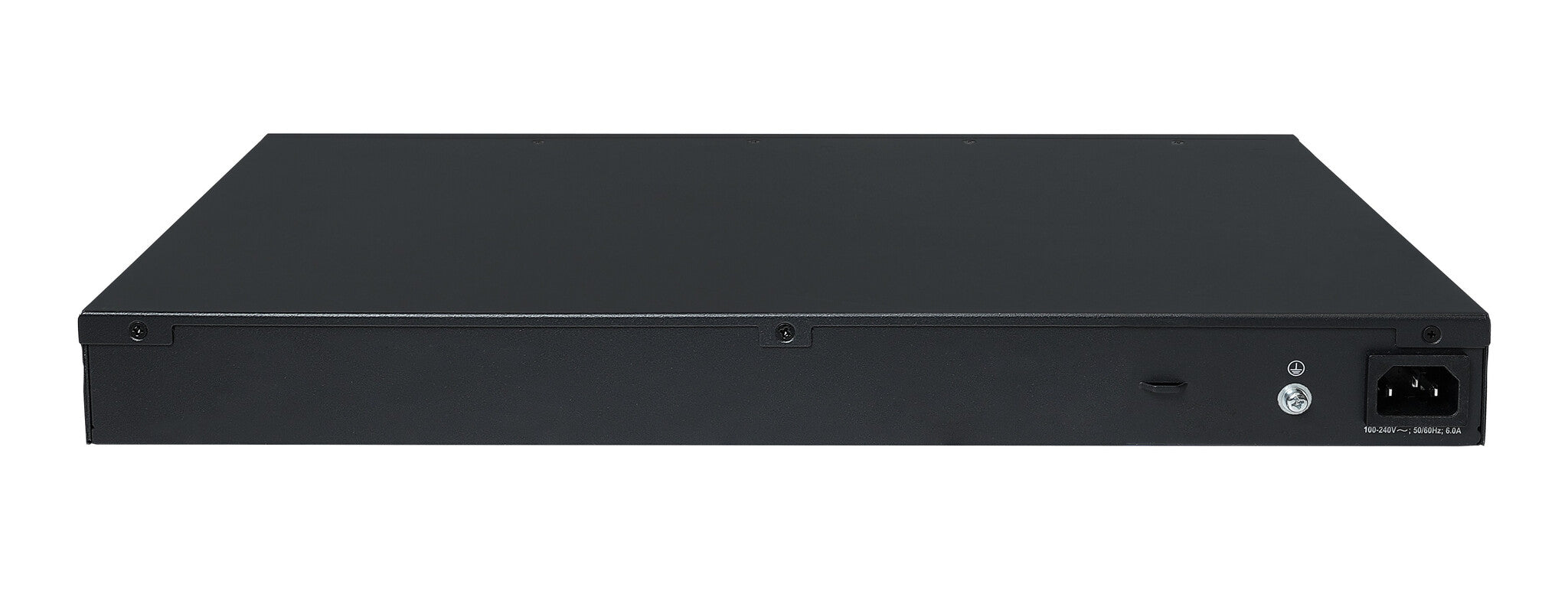

HPE Networking CW 2150 24p 10M/100M/1G PoE+ 4p SFP 1G Combo 4p SFP+ 1G/10G 405W Switch
HPE Networking CW 2150 24p 10M/100M/1G PoE+ 4p SFP 1G Combo 4p SFP+ 1G/10G 405W Switch is backordered and will ship as soon as it is back in stock.
HPE Networking CW 2150 24p 10M/100M/1G PoE+ 4p SFP 1G Combo 4p SFP+...
HPE Networking CW 2150 Switch Series empowers your business with reliable, high-performance networking tailored for small and medium-sized businesses and branch offices. These fully managed, stackable Layer 3 switches deliver enterprise-grade features without the complexity or high cost. With CW 2150 series, you get seamless management, robust security, and flexibility to scale as your needs grow. Designed for today’s evolving networks, these switches provide affordable excellence—enabling you to connect and protect your business with confidence. Upgrade to the CW 2150 series and experience secure, simple, and powerful networking for your organization.
What is new supporting point:
Flexible connectivity options with four 1G/10G SFP+ uplinks in the 16‑, 24‑, and 48‑port models and two 1G SFP and two 1G/10G SFP+ uplinks in the 8‑port model
Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity
Fanless design in the 8‑port and 24‑/48‑port non‑PoE models. Supports IEEE 802.3az standard for Energy Efficient Ethernet (EEE)
Managed by Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP, and REST APIs
Enterprise-class, fully managed, stackable Layer 3 switch series with 8‑, 16‑, 24‑, and 48‑port Class 4 PoE and non‑PoE models, four 1G/10G SFP+ uplinks, and up to 770W of Class 4 PoE
Up to 176 Gbps in nonblocking bandwidth, 130 Mpps in forwarding, and up to 9‑switch IRF stack
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP modules quantity | 4 |
| Installed SFP+ modules quantity | 4 |
| Combo SFP ports quantity | 8 |
| Fiber ports quantity | 8 |
| Console port | RJ-45/USB Type-C |
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| 10G support | Yes |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 1000BASE-X |
| Data transmission | |
|---|---|
| Switching capacity | 128 Gbit/s |
| Throughput | 95 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 3 µs |
| Design | |
|---|---|
| Stackable | Yes |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Performance | |
|---|---|
| Physical stacking (units) | 9 |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 35 W |
| Power consumption (max) | 465 W |
| Power consumption note | Idle: 23W Typical: 35W Full load: 465W (PoE 405W) |
| Power supply note | Fixed, 90–264V, single AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 4 |
| Total Power over Ethernet (PoE) budget | 405 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Heat dissipation | 1587 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 380 mm |
| Depth | 549.9 mm |
| Height | 125 mm |
| Weight | 4.95 kg |
| Other features | |
|---|---|
| Latency | 1 GE: < 5µs 10 GE: < 3µs (64-byte packets) |
| Fan | 2 |
| Performance management | Web GUI Command Line Interface (CLI) Smart Management Center (SmartMC) HPE Intelligence Management Center (IMC) HPE Networking Management Software (AirWave) REST API SNMP |
| Memory and processor | CPU: Dual-core Arm at 1.2 GHz Flash: 512 MB SDRAM: 1 GB |
| Weight (imperial) | 4.95 kg (10.9 lbs) |
| I/O ports | 24 x 10/100/1000BASE-T PoE+ ports 4 x 100/1000BASE-X SFP Combo ports 4 x 1/10GBASE-X SFP+ ports 1 x RJ-45 console, 1 x USB Type-C console, 1 x USB and 1 x OOBM management |
| Dimensions (W x D x H) (imperial) | 380 x 549.9 x 125 mm (15 x 21.6 x 4.92") |
-
