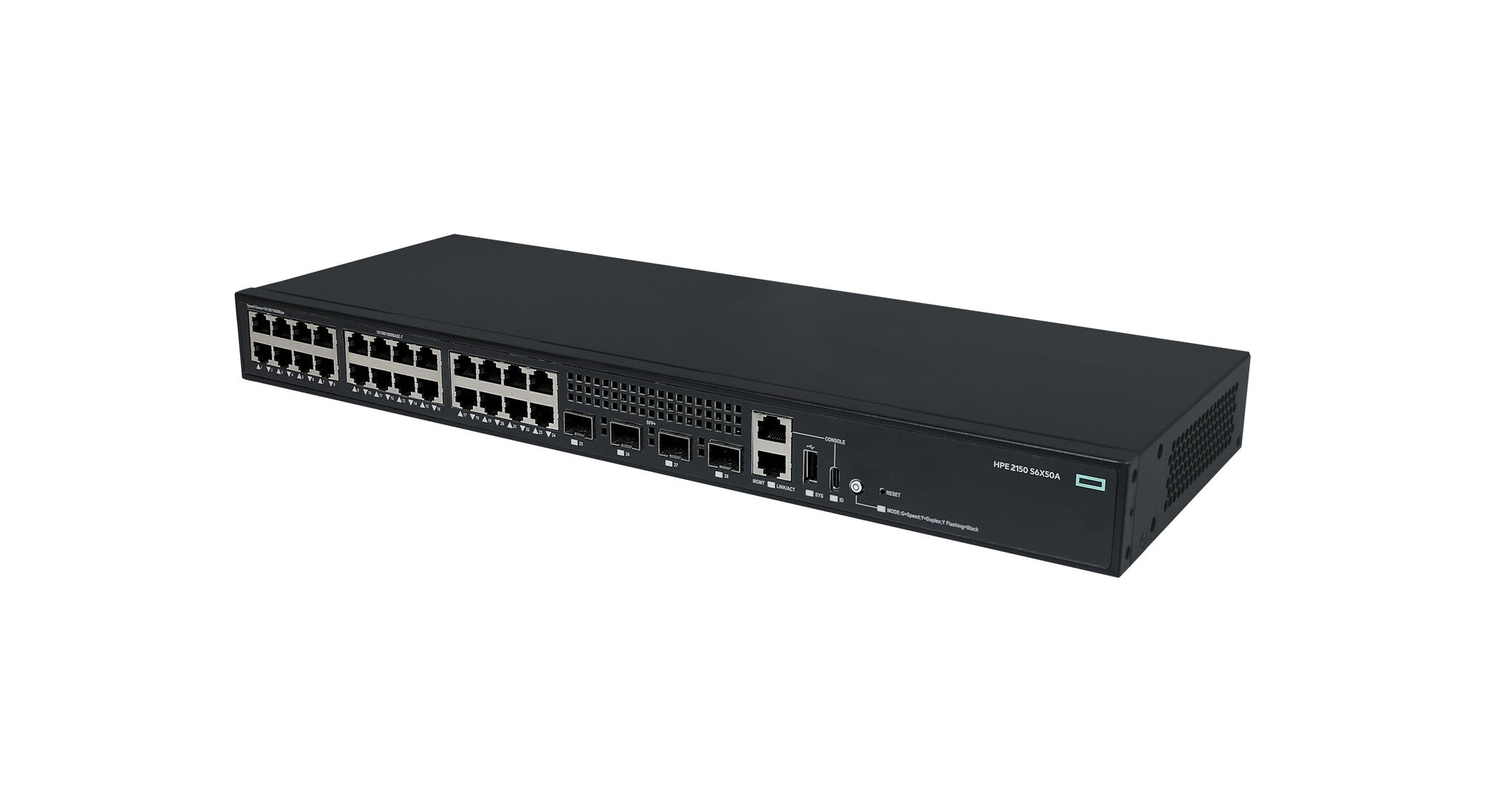

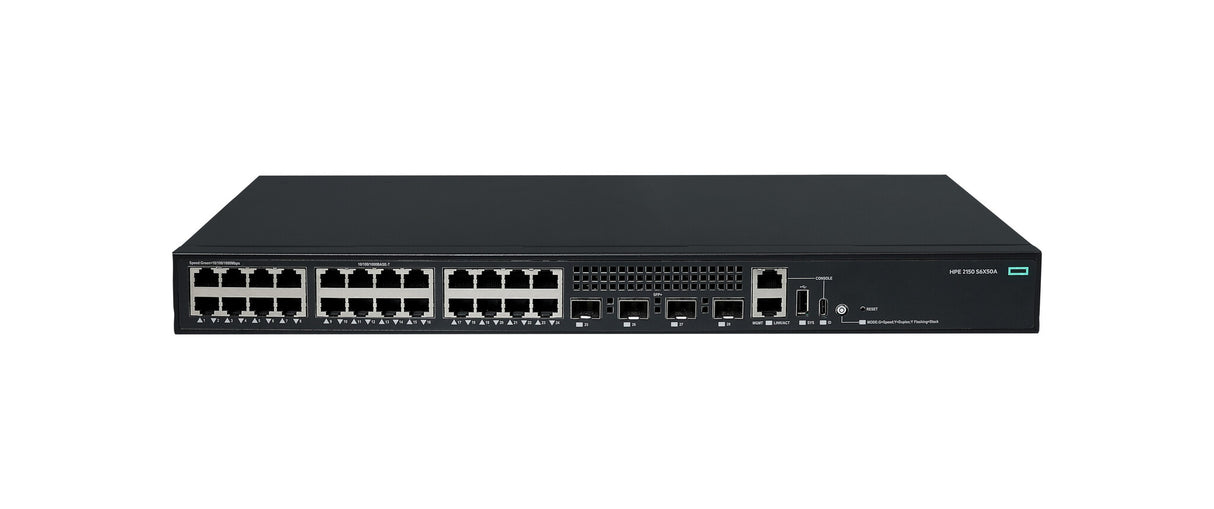

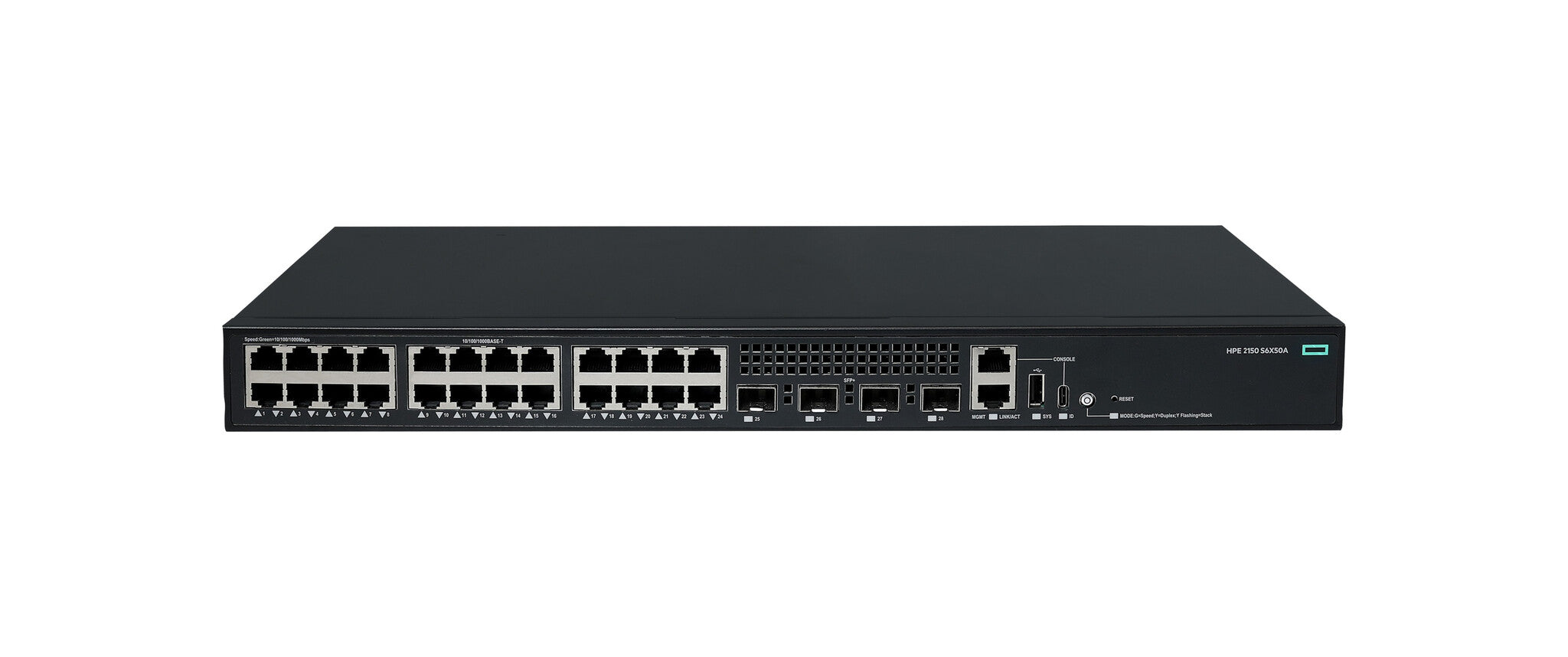

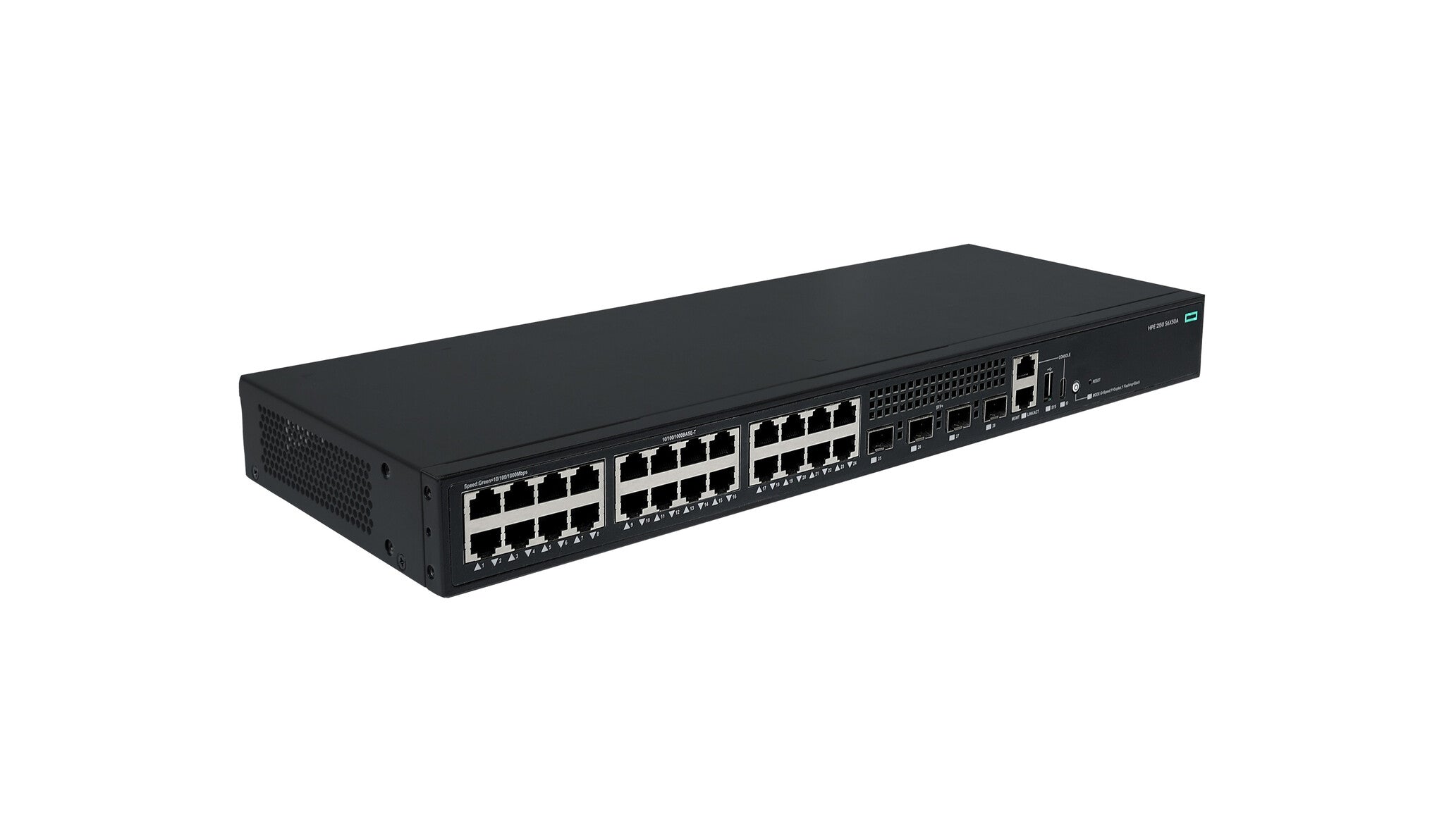

HPE Networking CW 2150 24p 10M/100M/1G 4p SFP+ 1G/10G Switch
HPE Networking CW 2150 Switch Series empowers your business with reliable, high-performance networking tailored for small and medium-sized businesses and branch offices. These fully managed, stackable Layer 3 switches deliver enterprise-grade features without the complexity or high cost. With CW 2150 series, you get seamless management, robust security, and flexibility to scale as your needs grow. Designed for today’s evolving networks, these switches provide affordable excellence—enabling you to connect and protect your business with confidence. Upgrade to the CW 2150 series and experience secure, simple, and powerful networking for your organization.
What is new supporting point:
Enterprise-class, fully managed, stackable Layer 3 switch series with 8‑, 16‑, 24‑, and 48‑port Class 4 PoE and non‑PoE models, four 1G/10G SFP+ uplinks, and up to 770W of Class 4 PoE
Up to 176 Gbps in nonblocking bandwidth, 130 Mpps in forwarding, and up to 9‑switch IRF stack
Flexible connectivity options with four 1G/10G SFP+ uplinks in the 16‑, 24‑, and 48‑port models and two 1G SFP and two 1G/10G SFP+ uplinks in the 8‑port model
Advanced Quality of Service (QoS), IPv6, and dynamic L3 protocols (RIP and OSPF) for reliable connectivity
Fanless design in the 8‑port and 24‑/48‑port non‑PoE models. Supports IEEE 802.3az standard for Energy Efficient Ethernet (EEE)
Managed by Web GUI, CLI, Smart Management Center (SmartMC) web dashboard, HPE Intelligent Management Center (IMC), SNMP, and REST APIs
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| Installed SFP+ modules quantity | 4 |
| SFP+ module slots quantity | 4 |
| USB Type-C ports quantity | 1 |
| Number of management ports | 2 pc(s) |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP+ |
| Console port | RJ-45/USB Type-C |
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| 10G support | Yes |
| Optical fiber | |
|---|---|
| Switching optical modules type | Gigabit Ethernet |
| Data transmission | |
|---|---|
| Switching capacity | 128 Gbit/s |
| Throughput | 95 Mpps |
| Forwarding rate | 95 Mpps |
| Latency (1 Gbps) | 5 µs |
| Latency (10 Gbps) | 3 µs |
| Security | |
|---|---|
| Security algorithms | SNMP |
| Protocols | |
|---|---|
| Management protocols | Web GUI; CLI; SmartMC; HPE IMC; AirWave; REST API; SNMP |
| Supported network protocols | SNMP, REST API, CLI, Web GUI |
| Design | |
|---|---|
| Rack mounting | No |
| Stackable | Yes |
| Product colour | Black |
| Wall mountable | Yes |
| Number of fans | 0 fan(s) |
| Performance | |
|---|---|
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 9 |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Processor frequency | 1200 MHz |
| Memory type | SDRAM |
| Internal memory | 512 MB |
| Flash memory | 512 MB |
| Fanless | Yes |
| Technical details | |
|---|---|
| Not classified as hazardous under GHS | Yes |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 16 W |
| Power consumption (max) | 21 W |
| Power consumption note | Idle: 6W Typical: 16W Full load: 21W |
| Power supply note | Fixed, 90–264V, single AC |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -5 - 50 °C |
| Heat dissipation | 65 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 275.1 mm |
| Depth | 540 mm |
| Height | 82 mm |
| Weight | 2.8 kg |
| Other features | |
|---|---|
| Latency | 1 GE: < 5µs 10 GE: < 3µs (64-byte packets) |
| Performance management | Web GUI Command Line Interface (CLI) Smart Management Center (SmartMC) HPE Intelligence Management Center (IMC) HPE Networking Management Software (AirWave) REST API SNMP |
| Memory and processor | CPU: Dual-core Arm at 1.2 GHz Flash: 512 MB SDRAM: 1 GB |
| Weight (imperial) | 2.8 kg (6.17 lbs) |
| I/O ports | 24 x 10/100/1000BASE-T ports 4 x 1/10GBASE-X SFP+ ports 1 x RJ-45 console, 1 x USB Type-C console, 1 x USB and 1 x OOBM management |
| Dimensions (W x D x H) (imperial) | 275.1 x 540 x 82 mm (10.8 x 21.3 x 3.23") |
-
