APC NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 530P6, 48 Outlet

APC  |  SKU : APDU11350ME  |  Condition: Brand New  |  Code-barres: 0731304752714

MORE INFO

£2,018.99
£2,014.99 Save £4.00 £2,018.99
£1,679.16 excluding VAT @20%
iFrame

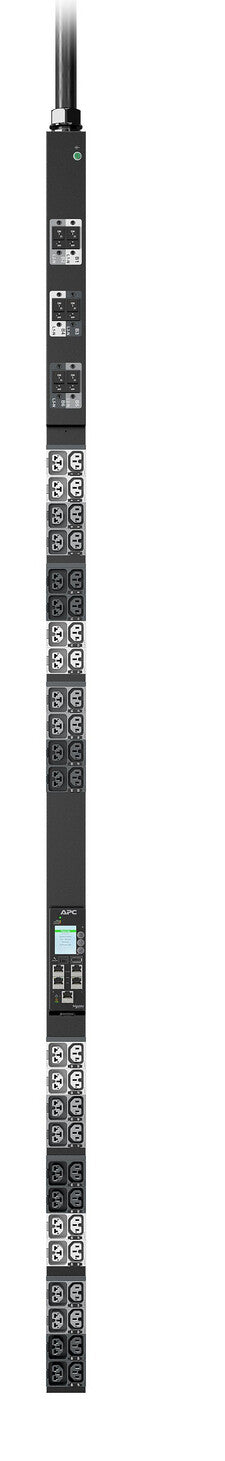

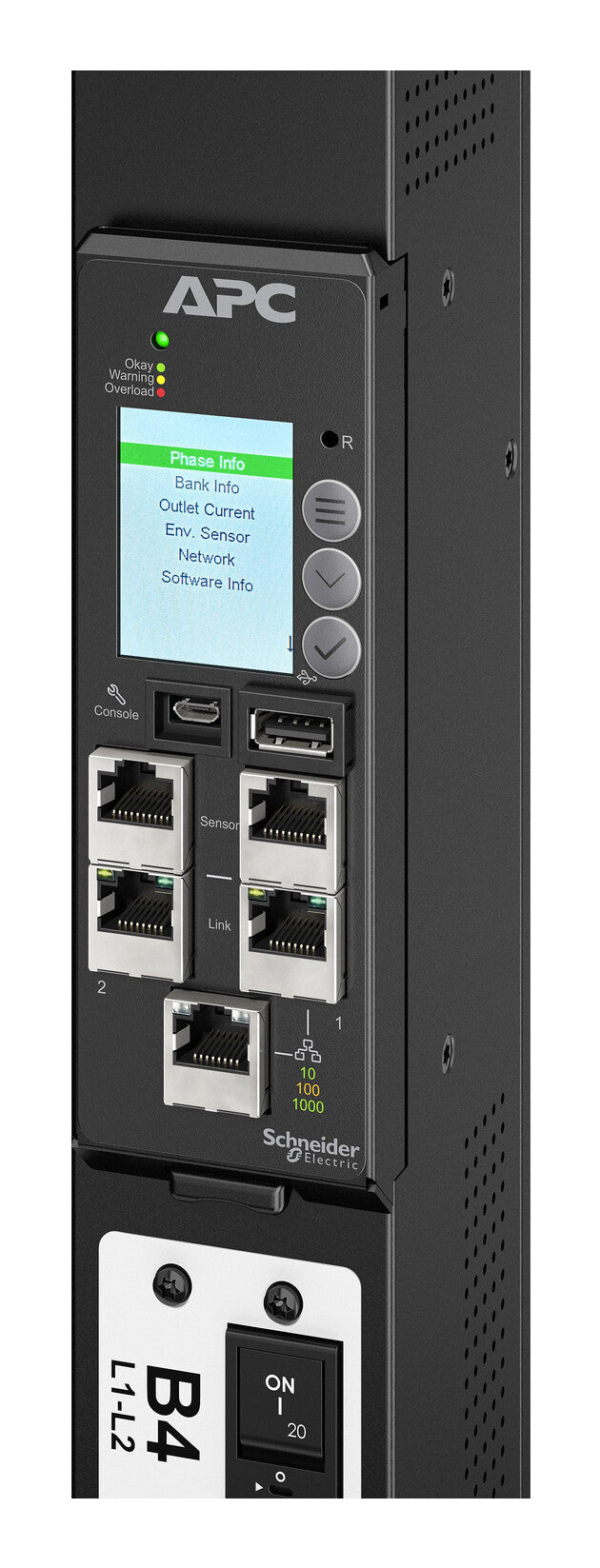

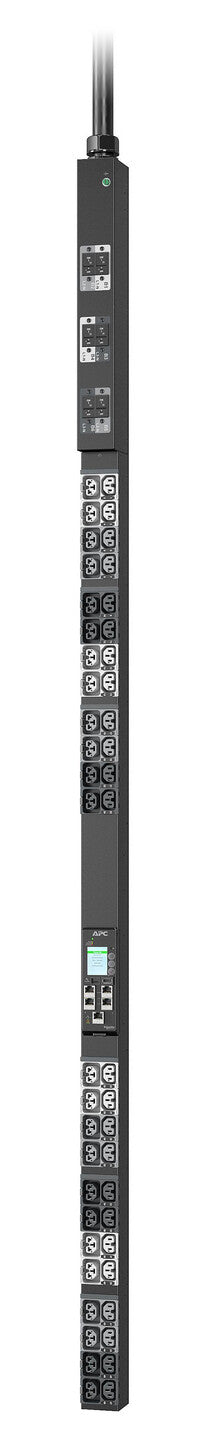

NetShelter Rack PDU Advanced Gen 2, Metered, 3Phase, 22.1kW 400V 32A or 17.3kW 415V 30A, 530P6, 48 Outlet

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. PDU level power metering provides power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 48 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A 3P+N+PE and features 24 count C13/C15/C19/C21 combo outlets and 24 count C13/C15 outlets.

Design
PDU types Metered
Type Three-phase
Rack capacity 0U
Product colour Black
Ports & interfaces
AC outlets quantity 48 AC outlet(s)
AC outlet types C13 coupler, C15 coupler, C19 coupler, C21 coupler
Ethernet LAN (RJ-45) ports 5
USB ports quantity 1
Features
Cable length 3 m
Certification UL 62368-1
CSA C22.2 No 62368-1
FCC part 15 Subpart B
CE
EN 62368-1
Management features

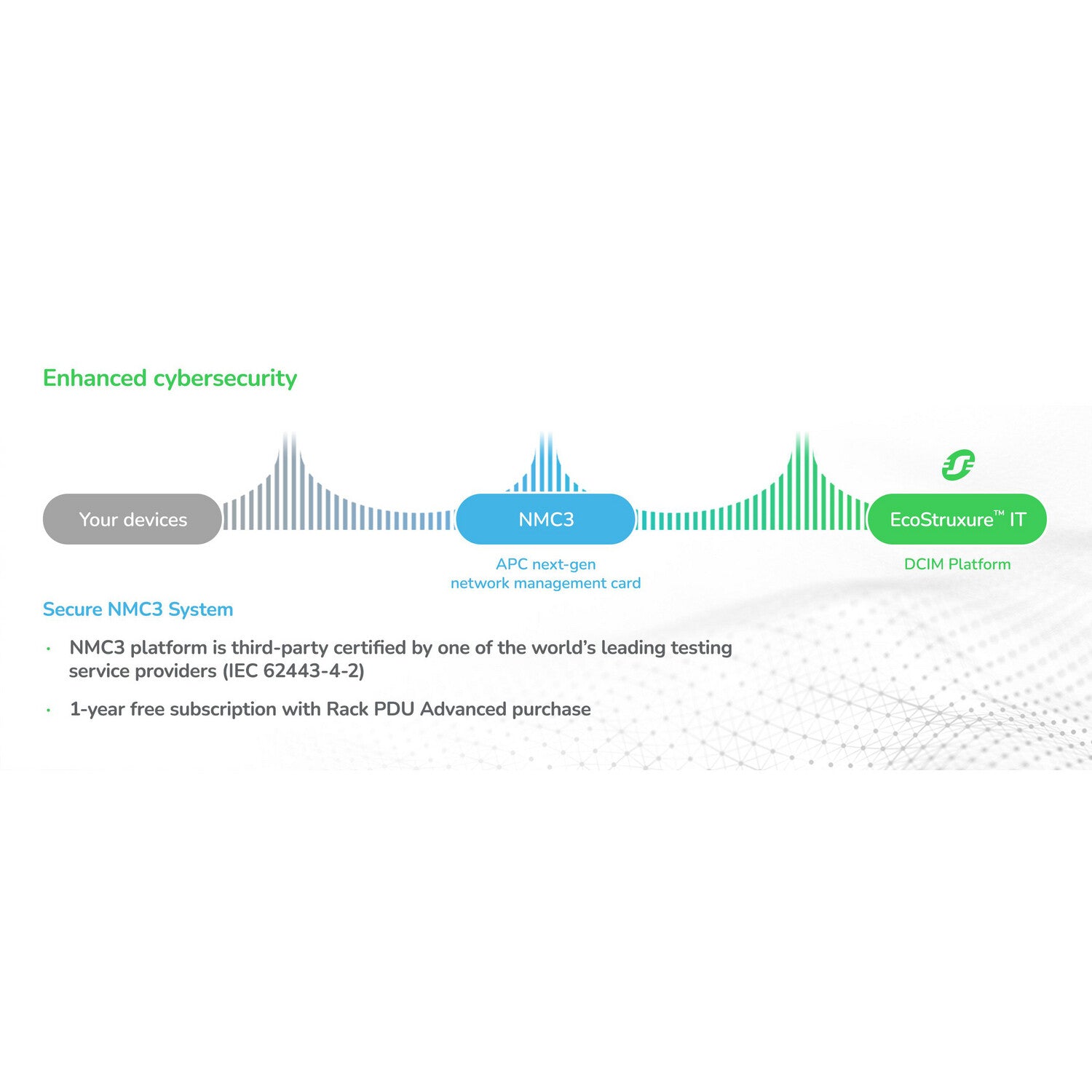

Management platform NMC3
Power
Nominal input voltage 400 V
AC input frequency 50/60 Hz
Maximum current 30 A
Nominal output voltage 400 V
Load capacity 17300 VA
Number of phases 3
Weight & dimensions
Width 56 mm
Depth 75 mm
Height 1826 mm
Weight 11.7 kg
Packaging data
Package weight 11.4 kg
Package width 132 mm
Package depth 262 mm
Package height 1980 mm
Technical details
Compliance certificates RoHS
