StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection
StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
StarTech.com 8 Port Serial Hub USB to RS232/RS485/RS422 Adapter - I...
Add eight ports supporting three serial protocols, to easily connect serial devices to your computer through USB, with 15kV ESD protection
Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
Supports multiple serial protocols

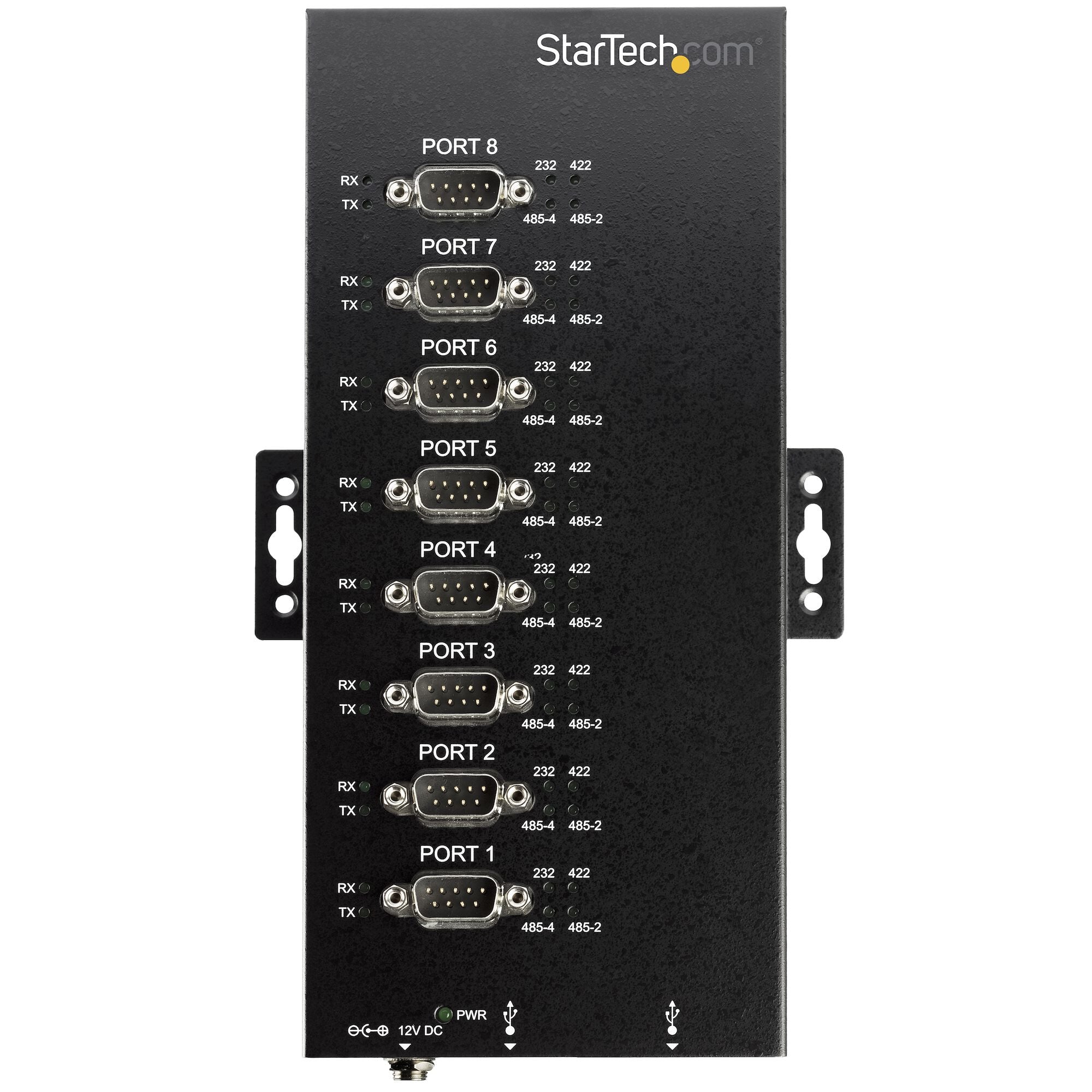

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.
Ideal for harsh environments

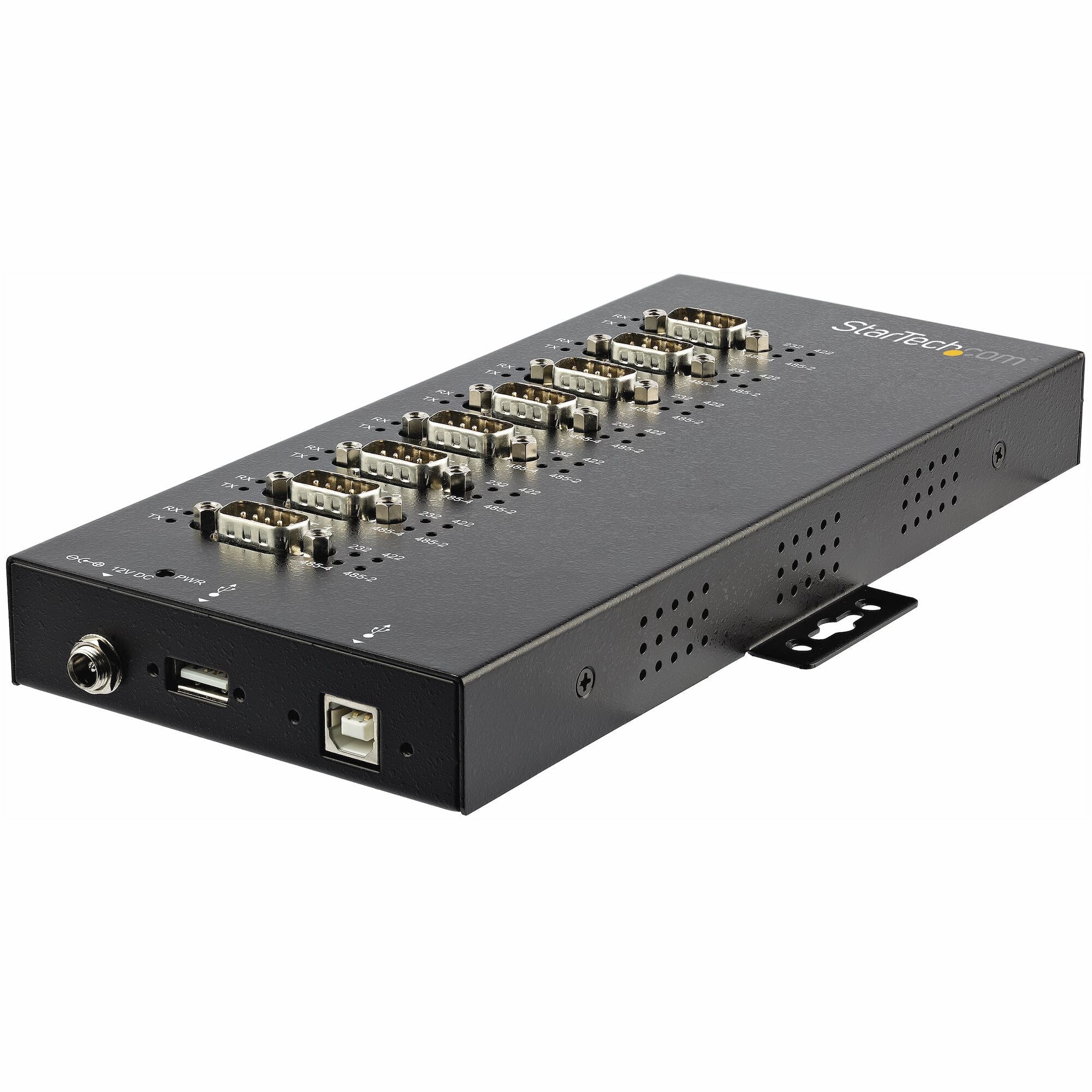

With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

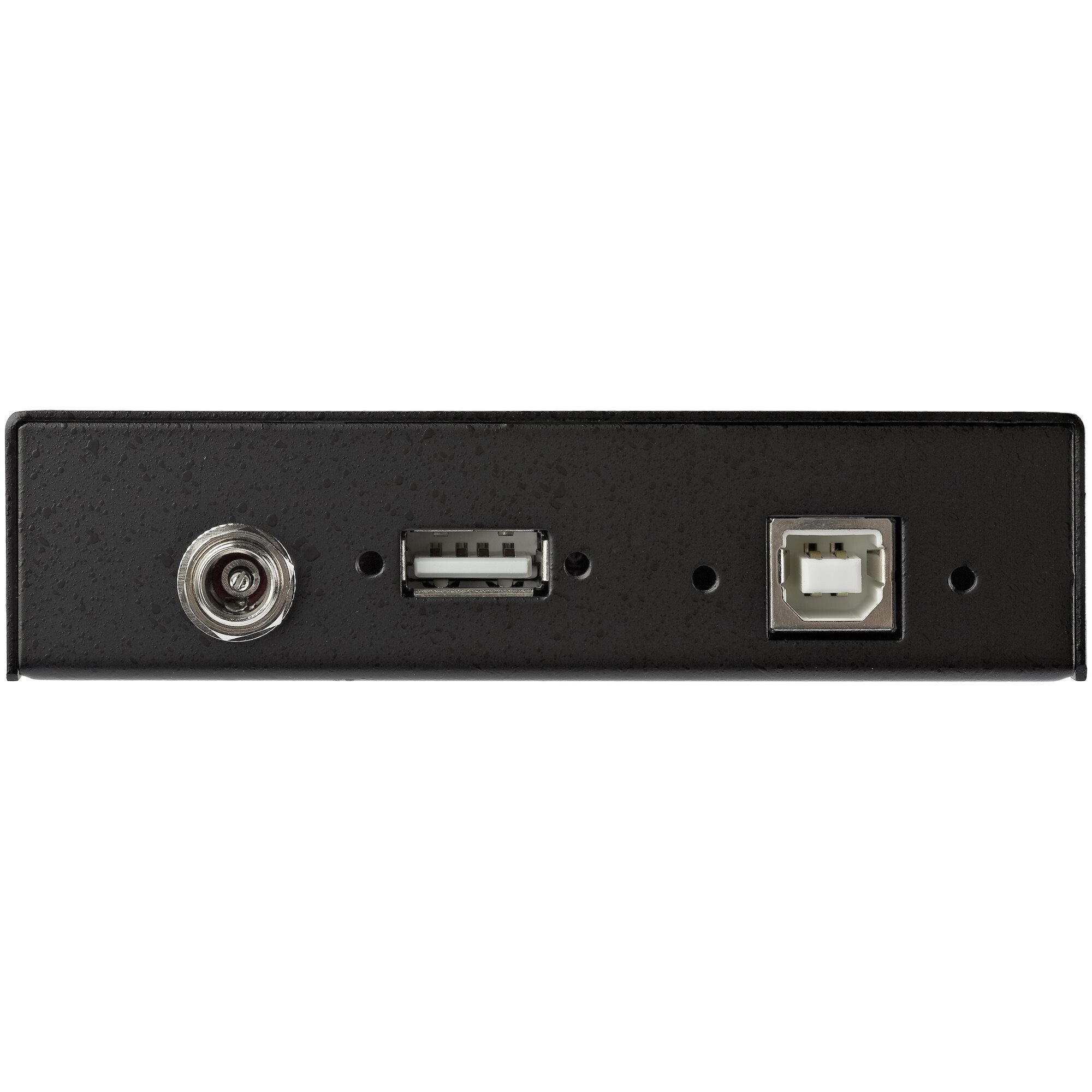

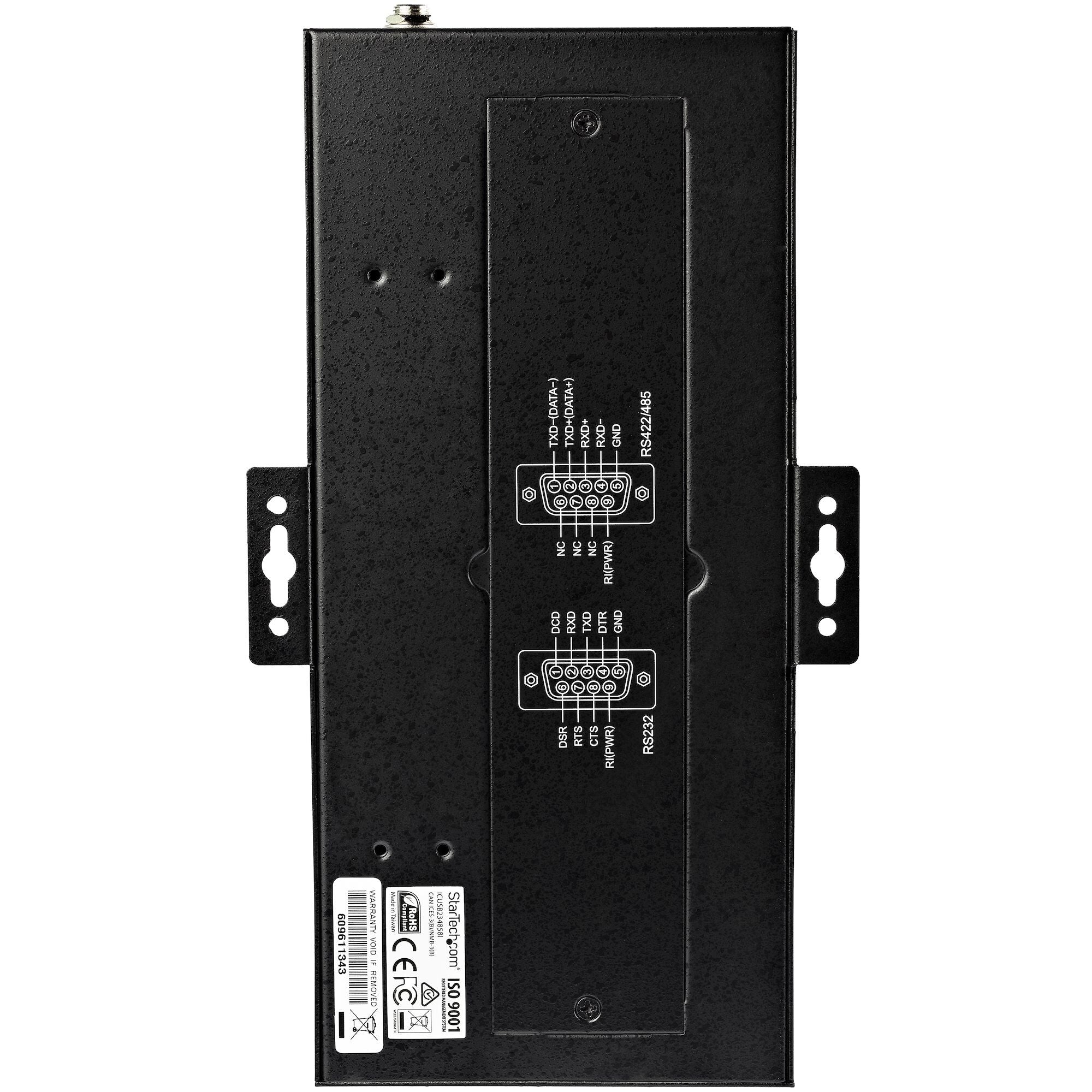

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.
Fast data transfers
The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.
The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| RS-232 ports | 8 |
| USB 2.0 ports quantity | 2 |
| Hub interfaces | Serial |
| Host interface | USB 2.0 |
| Ports quantity | 8 |
| Features | |
|---|---|
| LED indicators | Power |
| Surge protection | Yes |
| Product colour | Black |
| Housing material | Steel |
| Power | |
|---|---|
| Power plug type | Type M |
| Output current | 3 A |
| Output voltage | 12 V |
| Input current | 1 A |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 36 W |
| Power source type | AC |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Weight & dimensions | |
|---|---|
| Weight | 688 g |
| Height | 25 mm |
| Depth | 219 mm |
| Width | 128 mm |
| Packaging data | |
|---|---|
| Package weight | 1.6 kg |
| Package height | 67 mm |
| Package depth | 290 mm |
| Package width | 190 mm |
| Packaging content | |
|---|---|
| DIN rail kit included | Yes |
| Cables included | USB |
| Included power plug types | ANZ, EU, UK, US |
| AC adapter included | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Performance | |
|---|---|
| Baud rate | 921.6 Kbit/s |
| Parity bit | Even, Mark, No, Odd, Space |
| Stop bits | 1, 2 |
| Data bits | 7, 8 |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84719000 |
| Products per master (outer) case | 14 pc(s) |
| Master (outer) case height | 275 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case width | 410 mm |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Other features | |
|---|---|
| Chipset | FTDI - FT4232H, Genesys Logic - GL825 |
-
