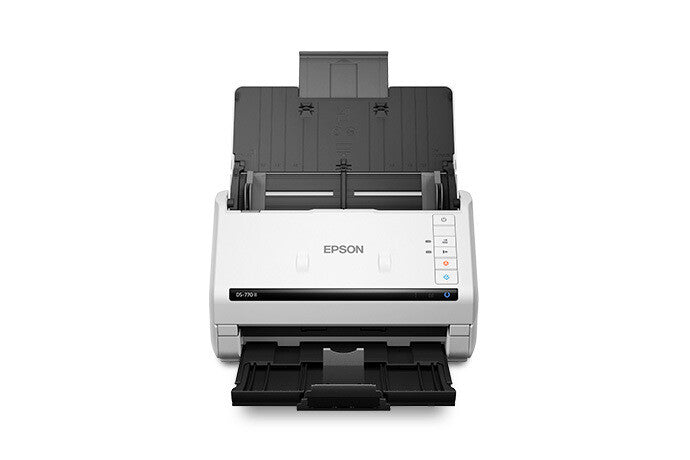

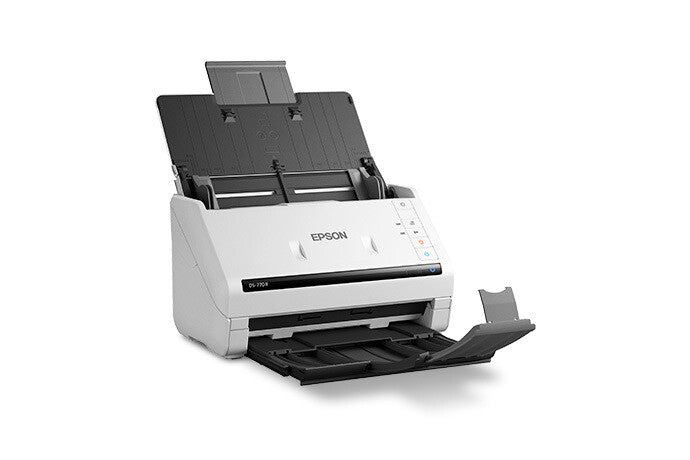

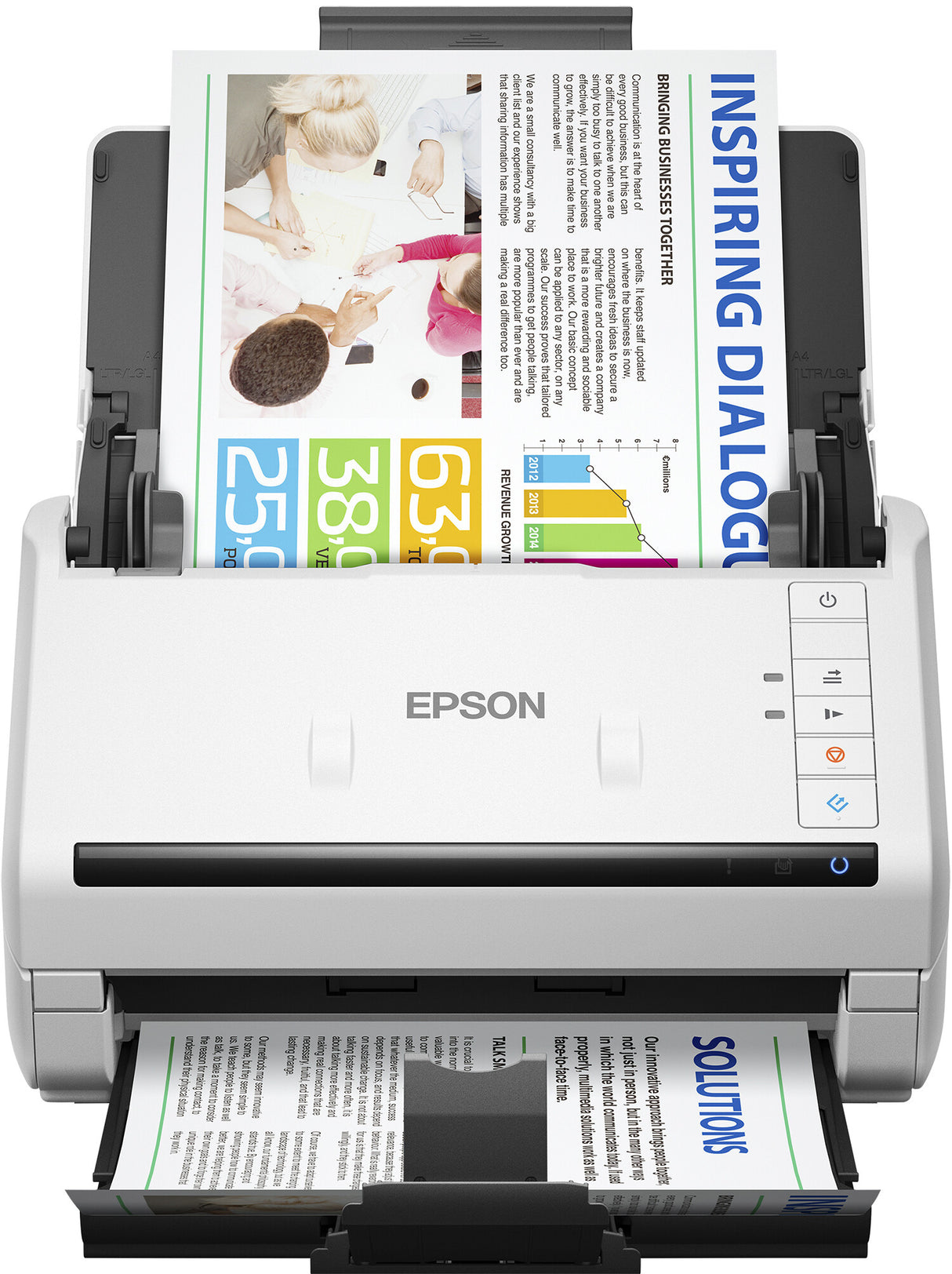

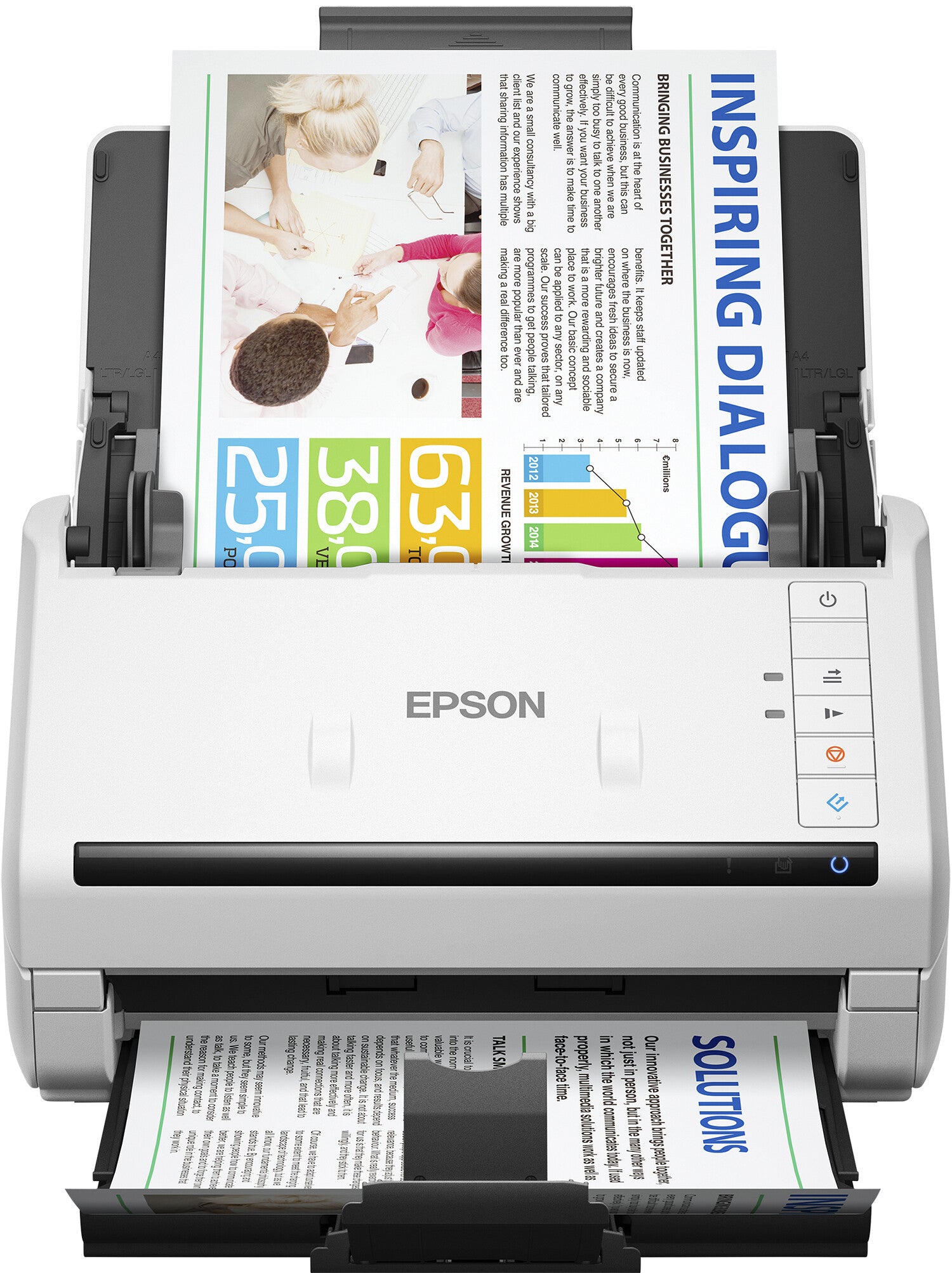

Epson WorkForce DS-770II

EPSON  |  SKU: B11B262401BY  |  Condition: Brand New  |  Código de barras: 8715946685977
£498.99
£493.99 Save £5.00 £498.99
£411.66 excluding VAT @20%
iFrame
A3, ReadyScan LED, 600 DPI x 600 DPI, USB 3.0

Innovative business scanner
With powerful media handling and innovative smart features to ensure a high level of data integrity, the WorkForce DS-770II is geared towards highly-efficient and simple integration into an organisation’s workflow. With a 100-page ADF and the ability to scan at up to 45ppm/90ipm, it offers a wide range of media handling options that enable you to rapidly capture, index, store and share business documents.

Intelligent features improve efficiency, accuracy and data reliability

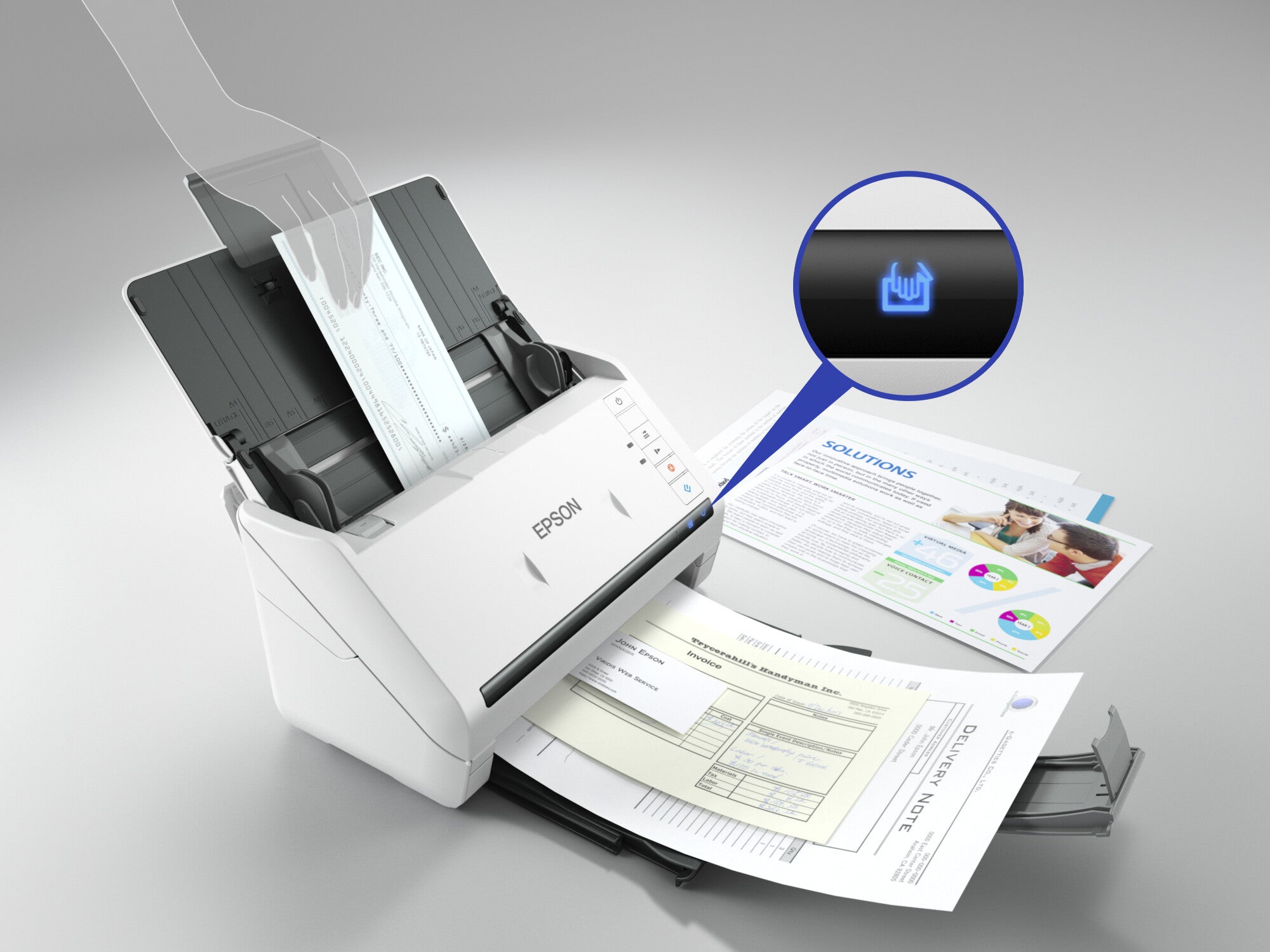

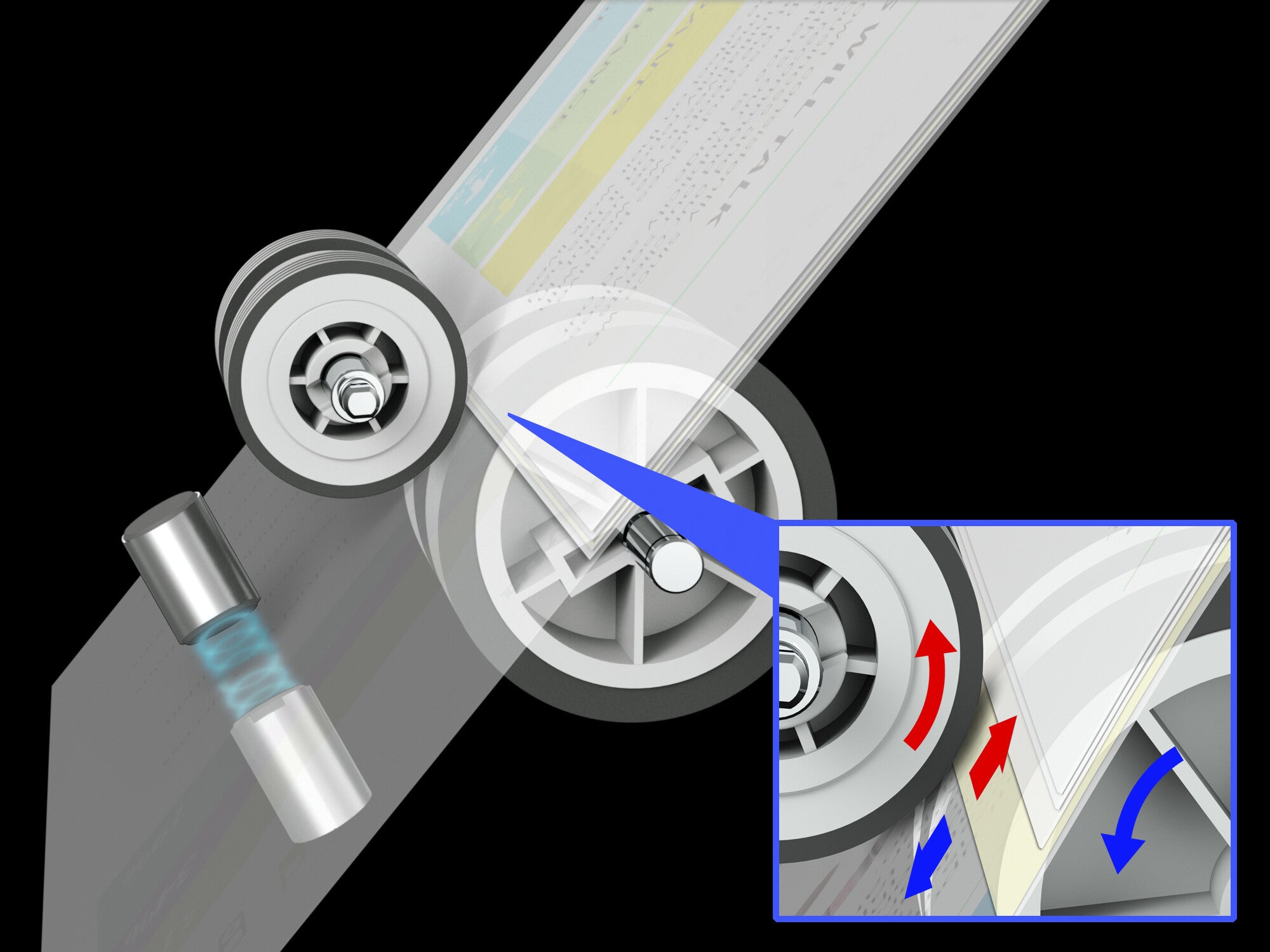

With an industry-first slow mode{s1 for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.

Highly versatile

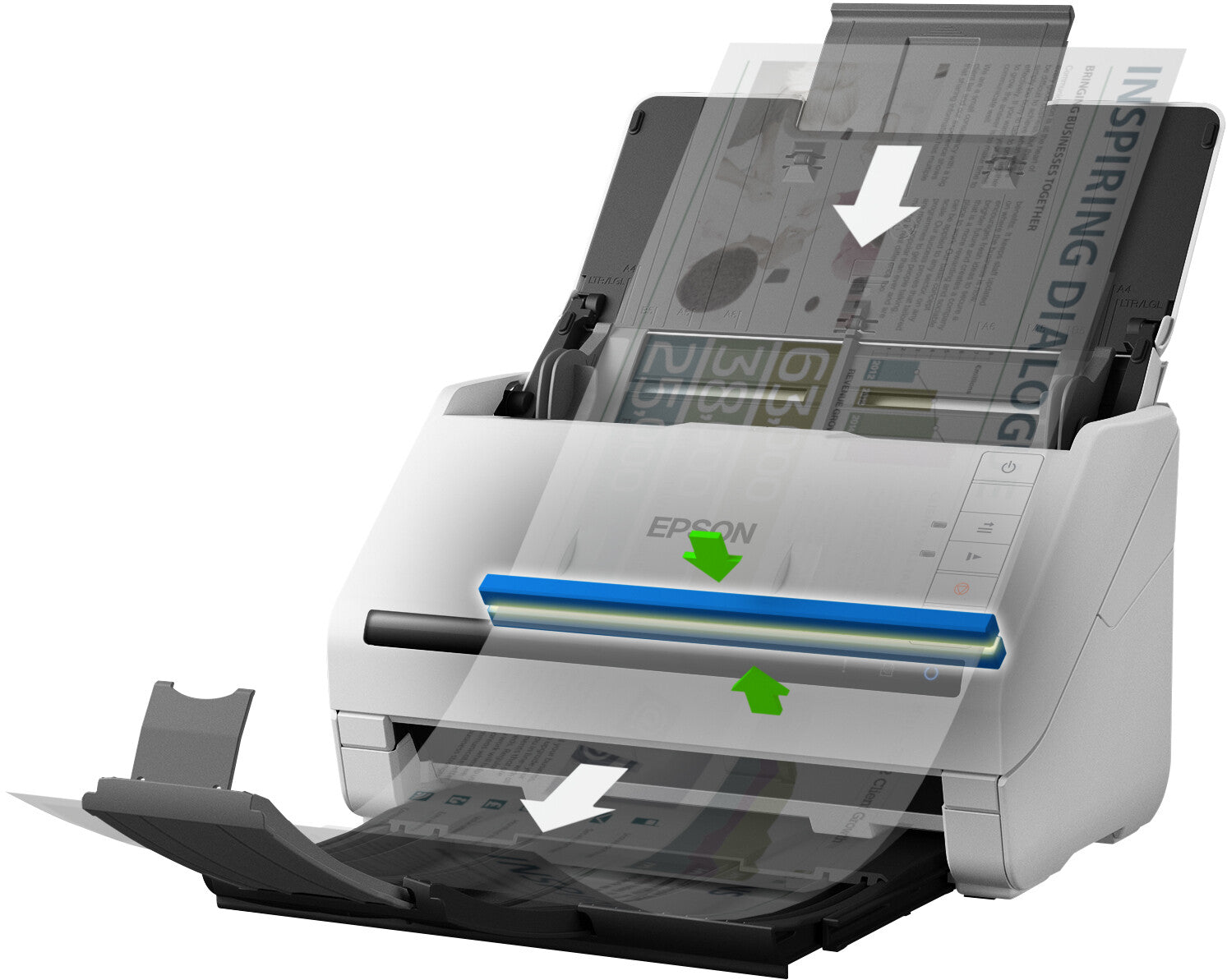

The optional flatbed scanner conversion kit allows effective document processing from stamps to passports and books. Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.

Flexible connectivity
High-speed USB 3.0 with TWAIN, WIA and ISIS drivers for enhanced compatibility with Document Management Systems.

Image enhancement and document management software
Epson Scan 2.0 software makes it easy to edit images with features such as de-skew and auto rotate, while Document Capture Pro is the easy to use solution for capturing and storing electronic documents at the touch of a button.

Scanning
Maximum scan size 215.9 x 6096 mm
Optical scanning resolution 600 x 600 DPI
Duplex scanning Yes
Input colour depth 30 bit
Output colour depth 24 bit
Output monochrome depth 8 bit
Design
Scanner type Sheet-fed scanner
Built-in display No
Product colour Black, White
Performance
Sensor type CIS
Light source ReadyScan LED
Scan file formats BMP, JPEG, PNG
Daily duty cycle (max) 7000 pages
Scan to E-mail, FTP, Print
Ultrasonic sensor Yes
Scan drivers TWAIN, SANE, WIA, ICA, ISIS
Scanning noise level 49 dB
Input capacity
Auto document feeder (ADF) input capacity 100 sheets
Paper handling
Maximum ISO A-series paper size A3
Paper tray media weight 27 - 413 g/m²
Maximum scan area (ADF) 50.8 x 50.8 mm
Ports & interfaces
USB port Yes
USB version 2.0/3.2 Gen 1 (3.1 Gen 1)
Power
AC input frequency 50 - 60 Hz
General
Product family WorkForce
Features
Country of origin Indonesia
Packaging data
Quantity per pack 1 pc(s)
Package width 250 mm
Package depth 365 mm
Package height 285 mm
Package weight 4.58 kg
System requirements
Compatible operating systems Citrix XenApp 5.0, Citrix XenApp 6.0, Citrix XenApp 7.6 and above, Linux, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 10, Windows 10 (32/64 bit), Windows 11, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8 RT, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows Server 2003 R2, XP Professional x64 Edition
Operational conditions
Operating temperature (T-T) 5 - 35 °C
Storage temperature (T-T) -25 - 60 °C
Operating relative humidity (H-H) 15 - 80%
Storage relative humidity (H-H) 15 - 85%
Weight & dimensions
Width 296 mm
Depth 169 mm
Height 176 mm
Weight 3.7 kg
Packaging content
Bundled software Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Scan 2, Presto! BizCard 5.6
Other features
Interface USB 3.2 Gen 1x1
Image formats supported BMP, JPEG, TIFF, MTIFF, PNG
Linear scan speed (metric) Monochrome:45 pages/min - Color:45 pages/min measured with Size: A4 , Resolution: 200 / 300 dpi, Monochrome:90 image/min - Color:90 image/min measured with Size: A4 , Resolution: 200 / 300 dpi
Scanner features RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Automatic de-skew, Automatic multi-document recognition, RGB colour enhance, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM), Descreening, Automatic Folder Creation, Barcode Recognition, Zonal OCR A & B support, Full Zonal OCR
Printer features RGB colour dropout, Advanced Colour Dropout / Enhance, Skip blank page, A3 stitching, Punch holes removal, Advanced editing, Automatic de-skew, Automatic multi-document recognition, RGB colour enhance, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Edge fill, Unsharp Mask (USM), Descreening, Automatic Folder Creation, Barcode Recognition, Zonal OCR A & B support, Full Zonal OCR
Box contents Driver and utilities, Main unit, Power cable, Setup guide, USB cable, Warranty document
Output resolutions 75, 100, 150, 200, 240, 300, 600, 1200 DPI
Technical details
Data compression Hardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression
Logistics data
Products per pallet 63 pc(s)
Products per pallet (UK) 84 pc(s)
