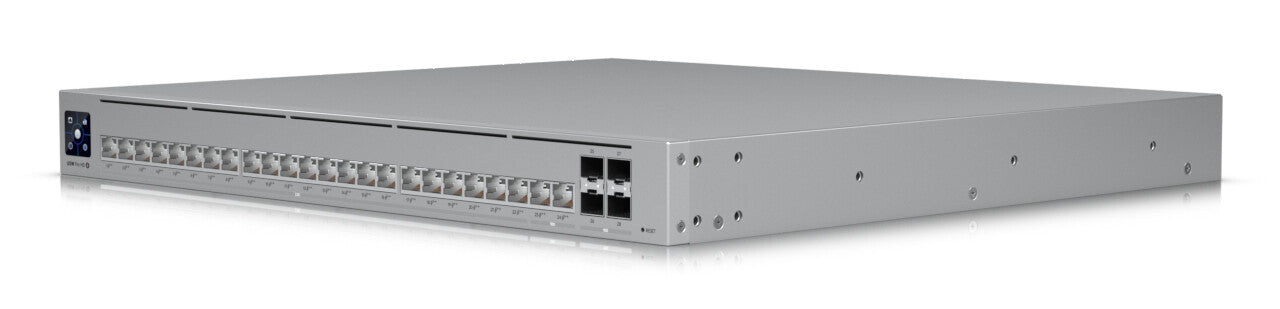

Ubiquiti UniFi Pro HD 24 PoE Managed L2/L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Grey

UBIQUITI  |  SKU: USW-Pro-HD-24-PoE  |  Condition: Brand New  |  Código de barras: 810084696637

MORE INFO

£1,052.99
£877.49 excluding VAT @20%
iFrame
230 Gbps, (24) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-), 56W, 22x 2.5/1 GbE, 100/10 MbE RJ45, 2x 10/5/2.5/1 GbE, 100 MbE RJ45, 4x 10/1G SFP+, SGCC steel, 442.4 x 400 x 44 mm

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE PoE++, (22) 2.5 GbE PoE++, and (4) 10G SFP+ ports.

Management features
Switch type Managed
Switch layer L2/L3
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 22
Basic switching RJ-45 Ethernet ports type 2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity 22
10G Ethernet (copper) ports quantity 2
SFP+ module slots quantity 4
Power connector AC/DC
Network
Networking standards IEEE 802.1x
10G support Yes
Port mirroring Yes
IPv4 routes 12000
Rate limiting Yes
Broadcast storm control Yes
Flow control support Yes
VLAN support Yes
Virtual LAN features Voice VLAN
Number of VLANs 1000
Data transmission
MAC address table 32000 entries
Switching capacity 230 Gbit/s
Throughput 115 Gbit/s
Forwarding rate 171 Mpps
Static route Yes
Jumbo frames support Yes
Packet buffer memory 2 MB
Security
DHCP features DHCP guarding, DHCP relay, DHCP server, DHCP snooping
IGMP snooping Yes
Loop protection Yes
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Grey
Housing material SGCC
Reset button Yes
LED indicators Link, Speed, Status
Display type LCM
General
Product family UniFi
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), Industry Canada (IC)
Power
Power source AC/DC/PoE
Power supply included Yes
Redundant power supply (RPS) support Yes
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Power consumption (max) 60 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet 4PPoE (PoE++) ports quantity 24
Power over Ethernet (PoE) power per port 15.4 W
Total Power over Ethernet (PoE) budget 600 W
Operational conditions
Operating temperature (T-T) -5 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 442.4 mm
Depth 400 mm
Height 44 mm
Weight 6.2 kg
Packaging data

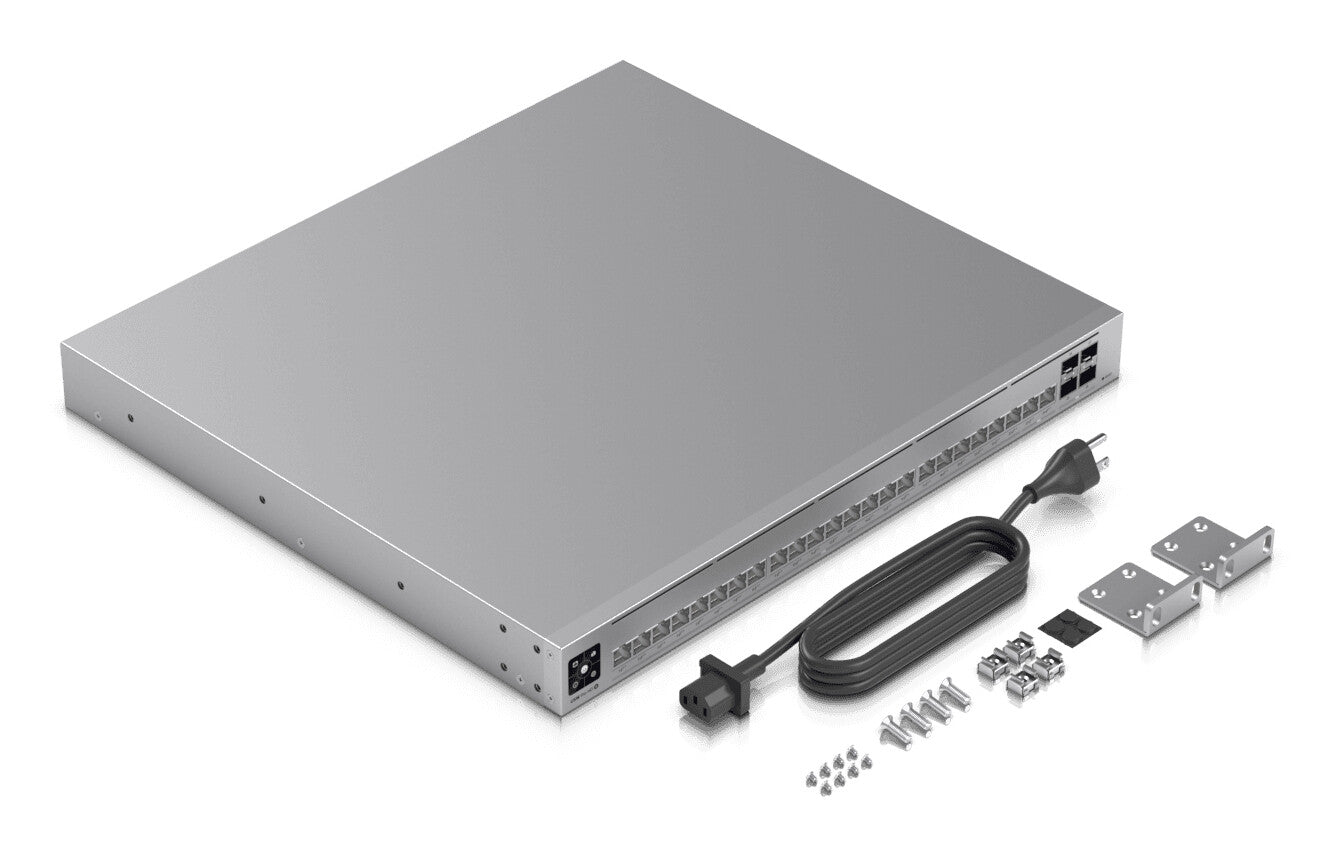

Cables included Power
Rack mount kit Yes
