Ubiquiti UNVR-Instant-Kit video surveillance kit Wired

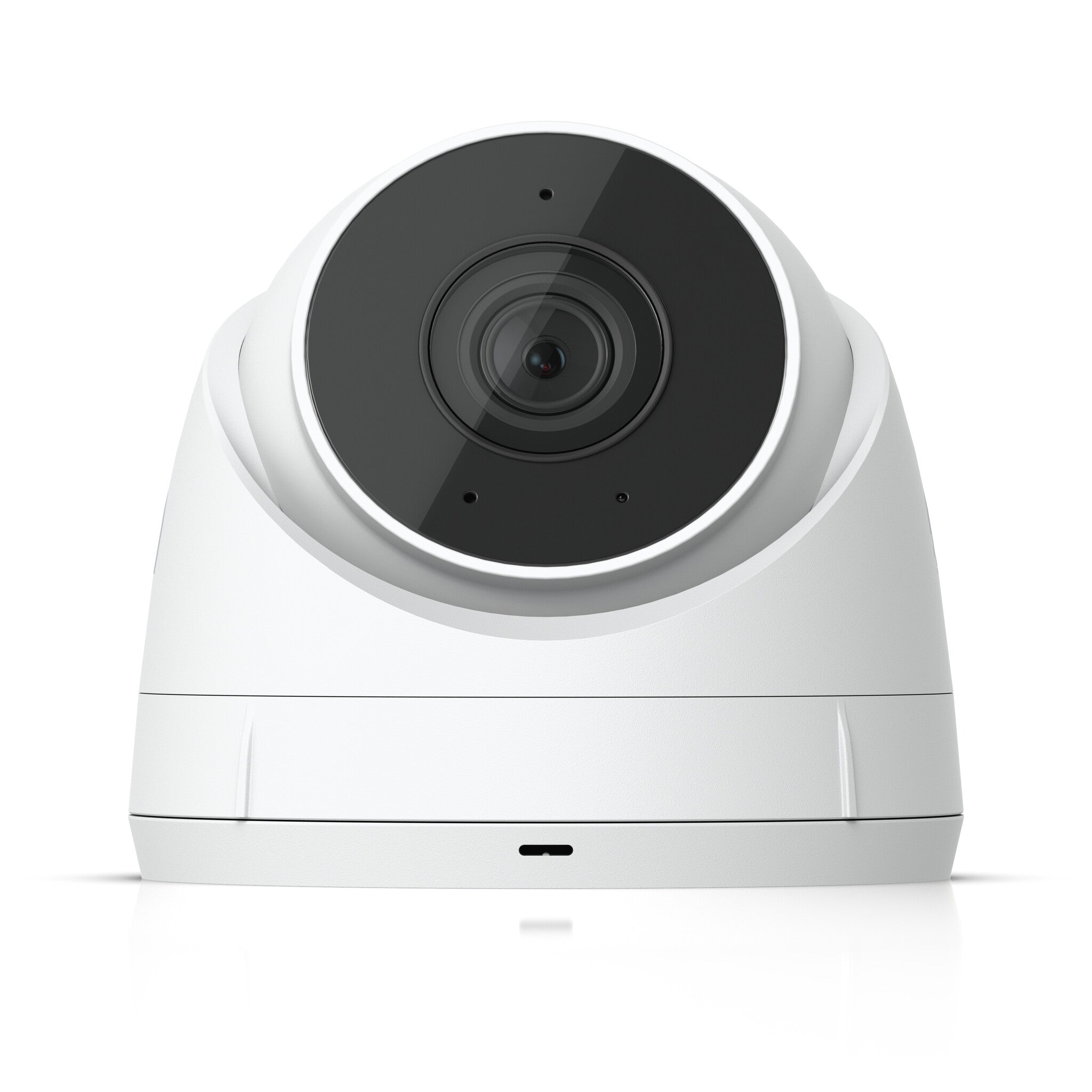

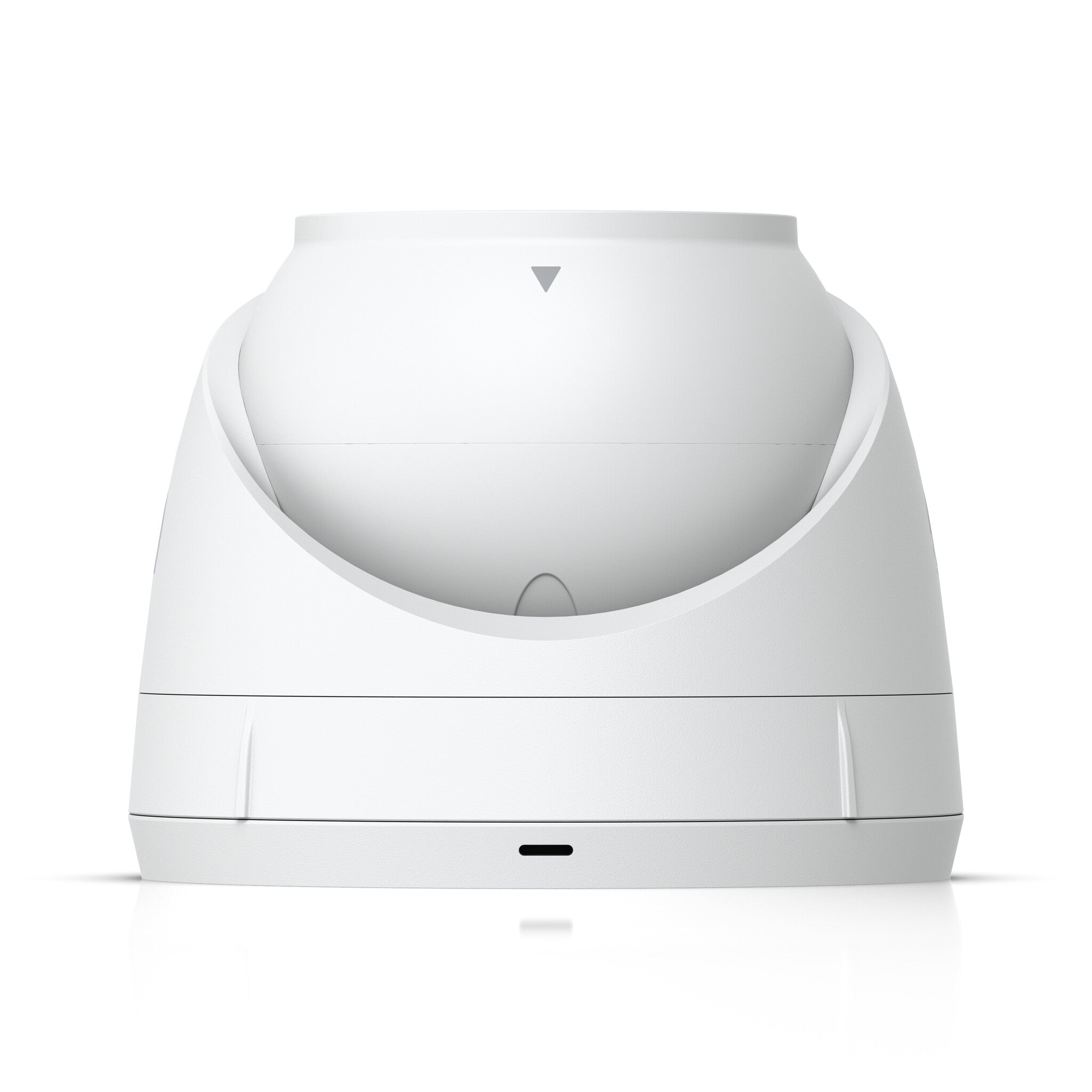

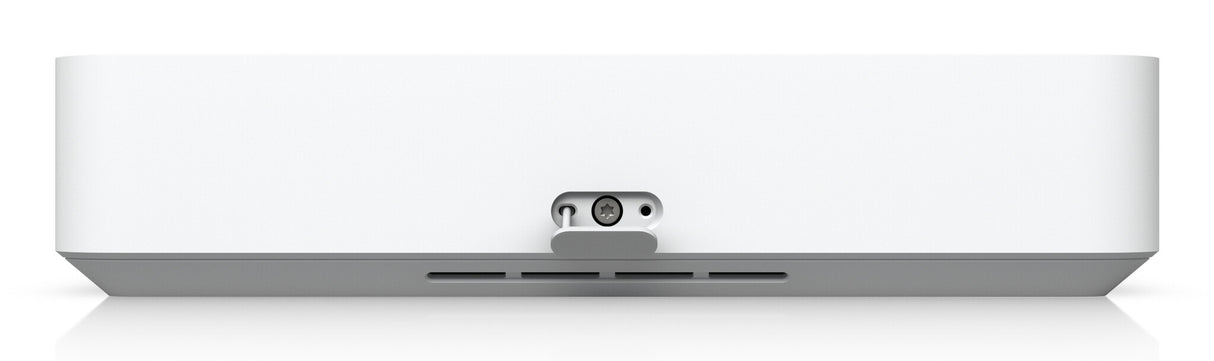

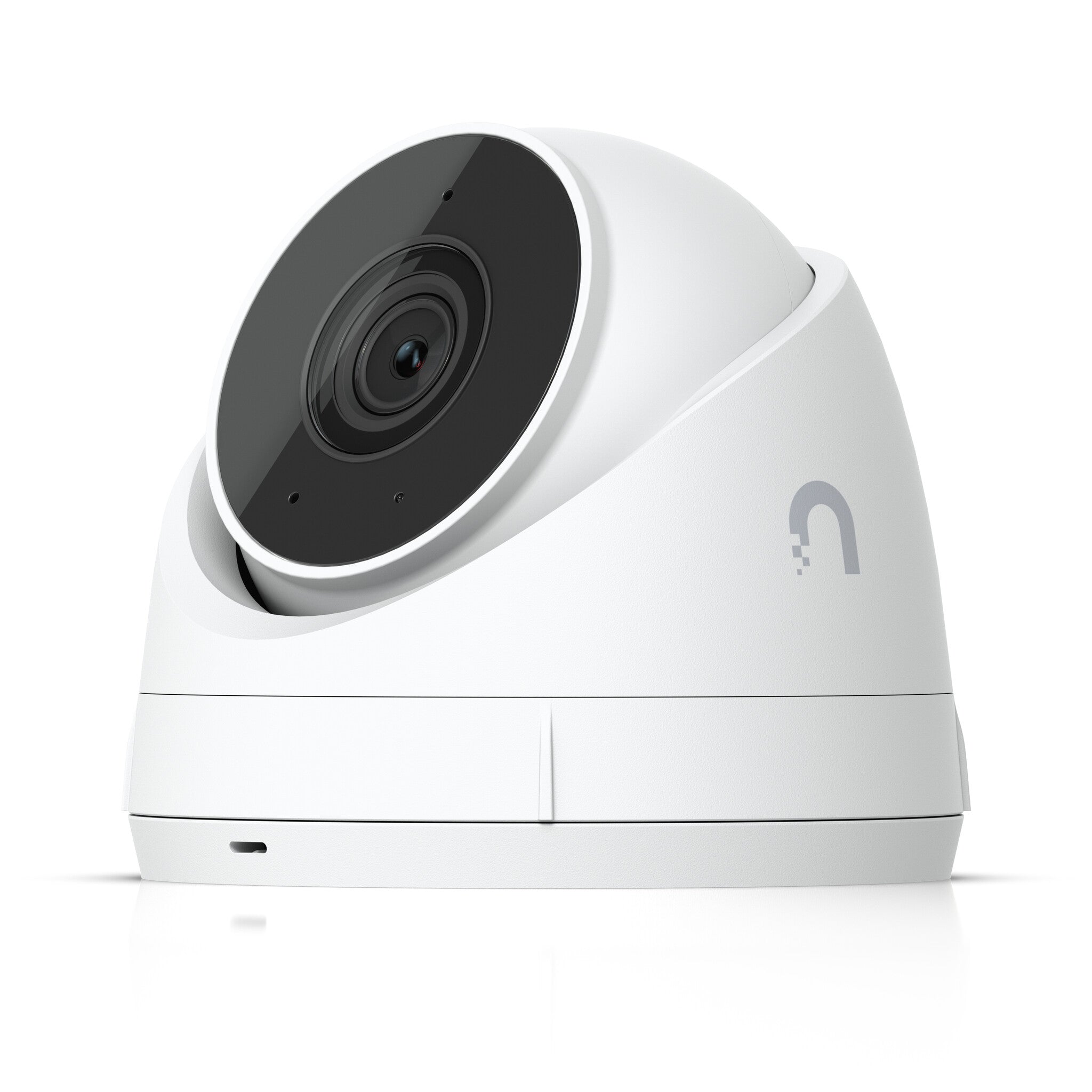

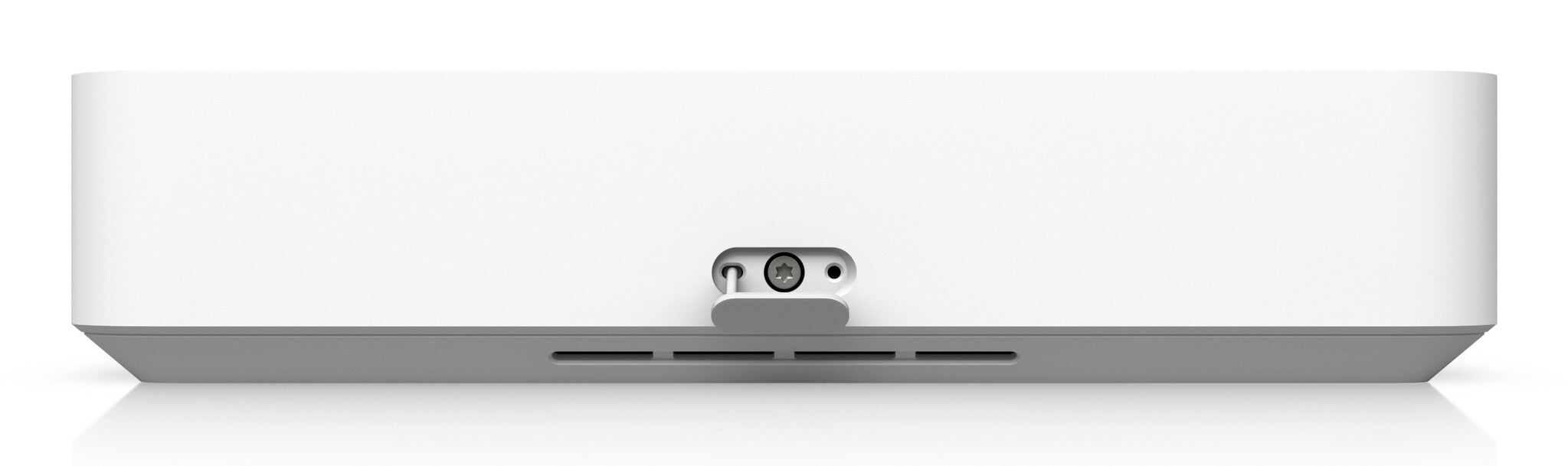

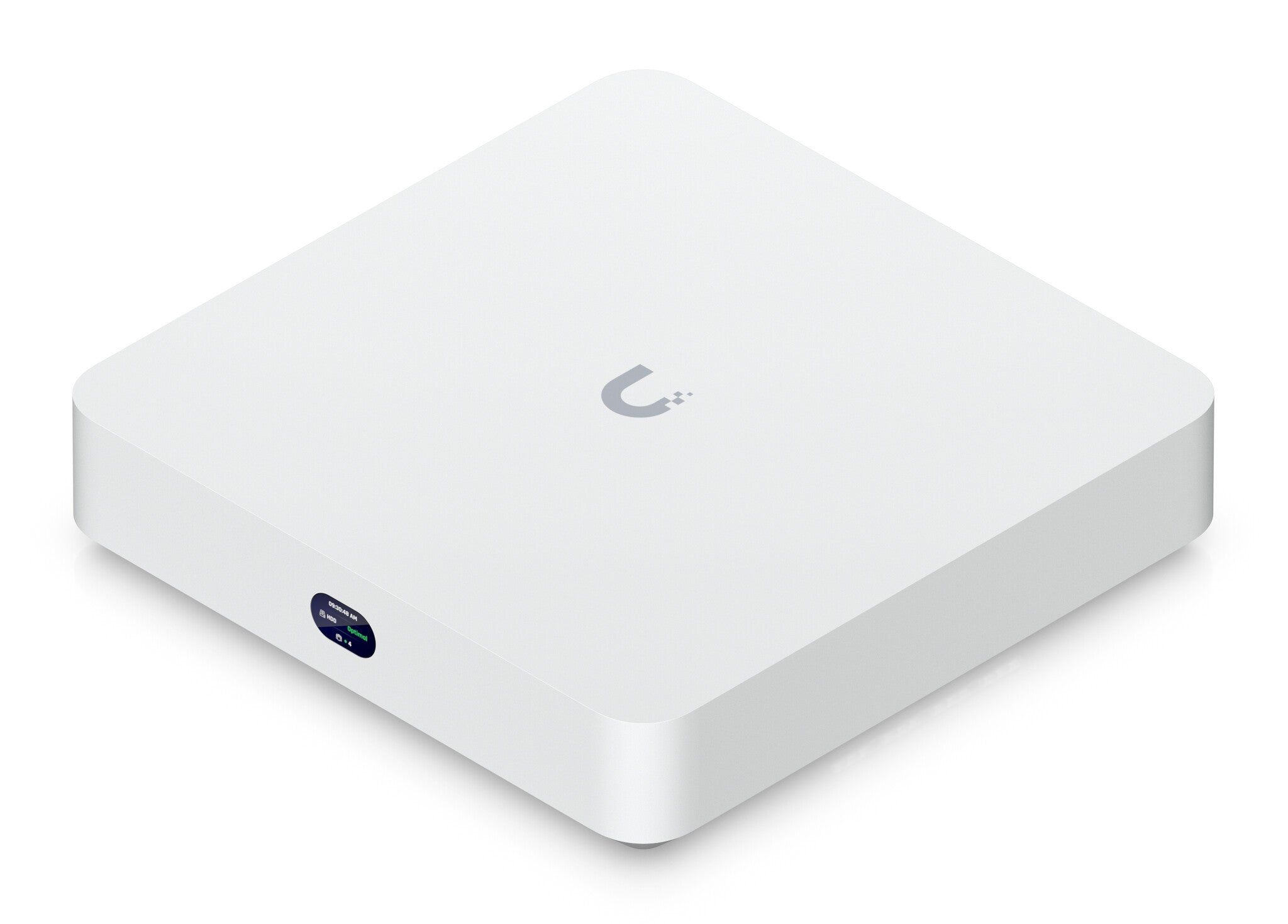

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
| Camera | |
|---|---|
| Connectivity technology | Wired |
| Camera included | Yes |
| Colour | Yes |
| Surveillance camera form factor | Turret |
| Camera interface | RJ-45 |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Night mode | Yes |
| Placement supported | Indoor/outdoor |
| Viewing angle, diagonal | 120.6° |
| Viewing angle, vertical | 54.9° |
| Viewing angle, horizontal | 102.4° |
| Megapixel (approx.) | 4 MP |
| Camera resolution | 2688 x 1512 pixels |
| LED type | IR |
| Optical sensor size | 25.4 / 2.4 mm (1 / 2.4") |
| Sensor type | CMOS |
| Night vision distance | 30 m |
| Housing material | Polycarbonate (PC) |
| Number of cameras | 4 |
| International Protection (IP) code | IP66 |
| Weatherproof | Yes |
| Recorder | |
|---|---|
| Recorder included | Yes |
| Storage media type | HDD |
| Total storage capacity | 1 TB |
| Total Power over Ethernet (PoE) budget | 40 W |
| Power over Ethernet (PoE) power per port | 15.4 W |
| Power over Ethernet (PoE) ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 7 |
| HDMI ports quantity | 1 |
| LED indicators | LAN, PoE |
| HDD capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD size | 3.5" |
| HDD interface | SATA |
| Card reader integrated | No |
| Display | |
|---|---|
| Display diagonal | 2.9 cm (1.14") |
| Display type | LCM |
| Placement | Desk, Wall |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 9 W |
| Power over Ethernet (PoE) | Yes |
| Audio | |
|---|---|
| Built-in microphone | Yes |
| Operational conditions | |
|---|---|
| Camera operating temperature (T-T) | -30 - 50 °C |
| Camera operating relative humidity (H-H) | 0 - 90% |
| Recorder operating temperature (T-T) | 0 - 40 °C |
| Recorder operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, CE, Federal Communications Commission (FCC), Industry Canada (IC), KC, National Defense Authorization Act (NDAA), RCM, TÜV mark, UL |
| Reset button | Yes |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| Width | 220 mm |
| Depth | 220 mm |
| Height | 47 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85219000 |
| Packaging content | |
|---|---|
| Cables included | Power |
-
