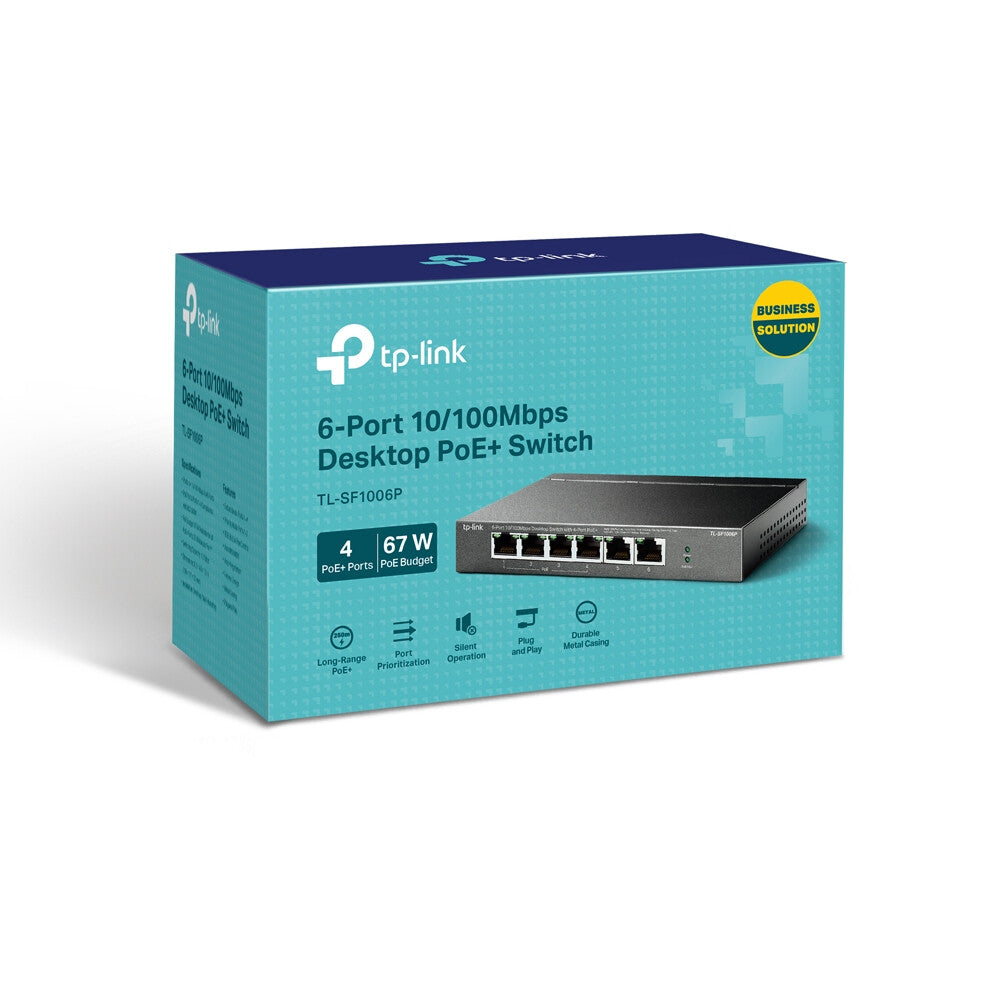

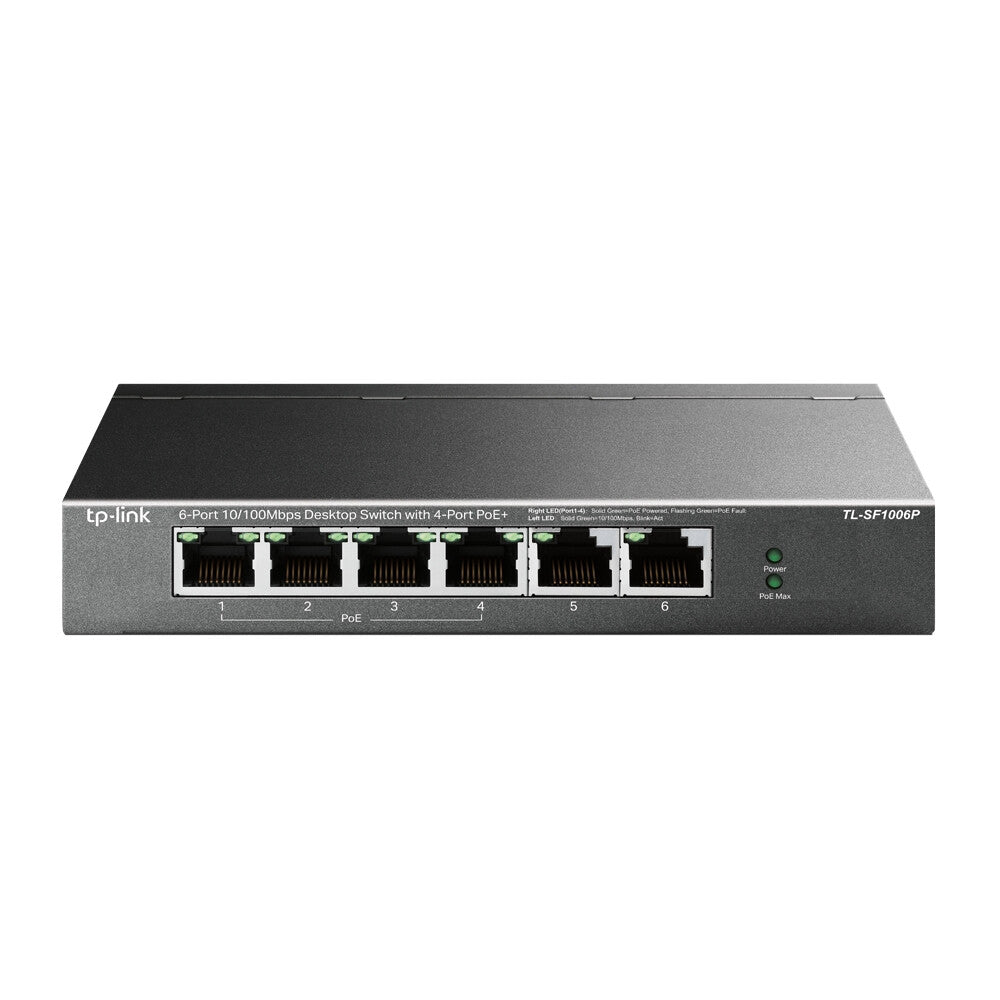

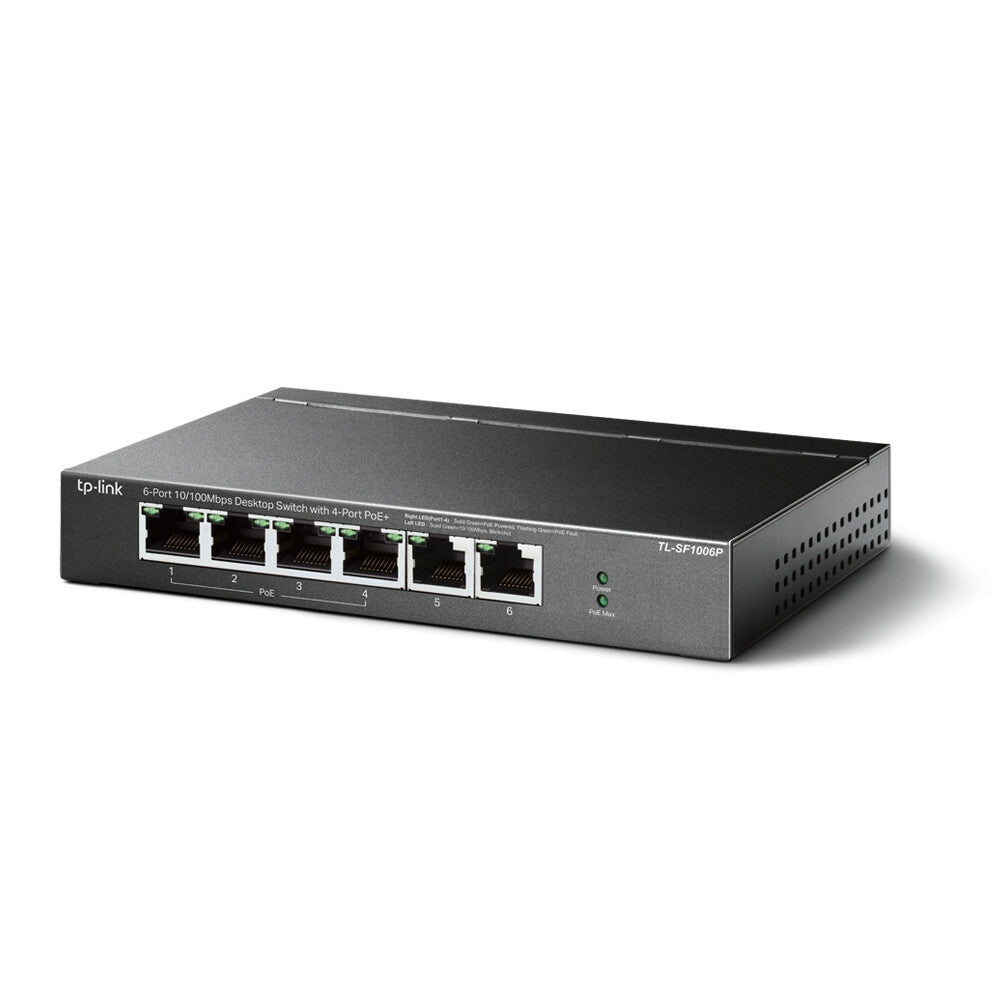

TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Black
Key Details:
- 6× 10/100 Mbps RJ45 ports
- 4× PoE+ ports transfer data and power on individual cables
- Works with IEEE 802.3af/at compliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 67 W for all PoE ports*
- Plug and play with no configuration required
TP-Link TL-SF1006P network switch Unmanaged Fast Ethernet (10/100) ...
Descripción
Descripción
Professional High-Power Switch with 4 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Network | |
|---|---|
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 100BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Data transmission | |
|---|---|
| Jumbo frames | 2000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Forwarding rate | 0.8928 Mpps |
| Switching capacity | 1.2 Gbit/s |
| MAC address table | 2000 entries |
| Design | |
|---|---|
| Certification | FCC, CE, RoHS |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Performance | |
|---|---|
| Fanless | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Power | |
|---|---|
| Power consumption (max) | 74 W |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| AC input frequency | 50 Hz |
| AC input voltage | 220 V |
| Power supply included | Yes |
| Power source | DC/PoE |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 67 W |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Heat dissipation | 252.34 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 25 mm |
| Depth | 101 mm |
| Width | 158 mm |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Packaging data | |
|---|---|
| Package weight | 870 g |
| Package height | 121 mm |
| Package depth | 196 mm |
| Package width | 131 mm |
| AC adapter included | Yes |
| User guide | Yes |
| Package type | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
