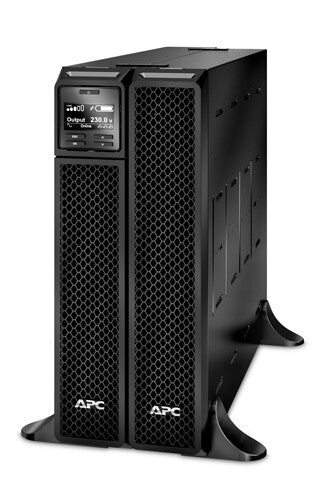

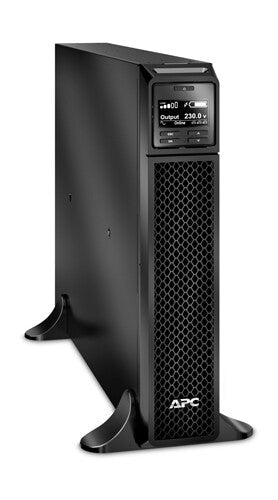

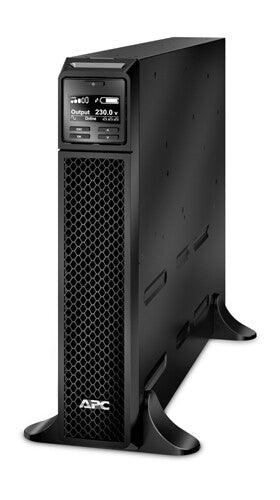

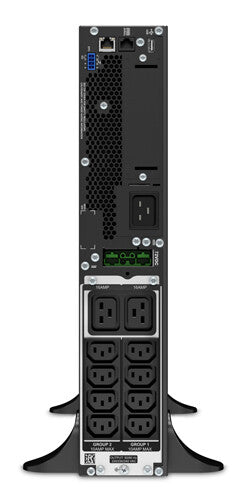

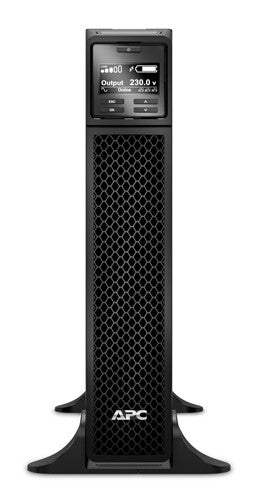

APC Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

APC  |  SKU: SRT2200XLI  |  Condition: Brand New  |  Código de barras: 0731304317630

MORE INFO

£2,074.99
£1,729.16 excluding VAT @20%
iFrame
Smart-UPS On-Line, 2200VA, Tower, 230V, 8x C13+2x C19 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with BS1363A British, IEC 320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13 and 2x IEC 320 C19 outlets. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 8x IEC 320 C13/60320 C13 and 2x IEC 320 C19/60320 C19 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK4 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features
UPS topology Double-conversion (Online)
Output power capacity 2.2 kVA
Output power 1980 W
Waveform Sine
Input operation voltage (min) 100 V
Input operation voltage (max) 275 V
Input frequency 40/70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency 50/60 Hz
Surge energy rating 340 J
Efficiency 92.2%
Crest factor 3:1
Emergency Power Off (EPO) Yes
Noise level 55 dB
Surge protection Yes
Web-based management Yes
Audible alarm(s) Yes
Auto-restart Yes
Ports & interfaces
AC outlet types C13 coupler, C19 coupler
Power plug C20 coupler
AC outlets quantity 10 AC outlet(s)
Number of output IEC jumpers 2
USB port Yes
Serial interface Yes
Serial interface type RJ-45
SmartSlot Yes
SmartConnect port No
Battery
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 367 VAh
Number of batteries supported 1

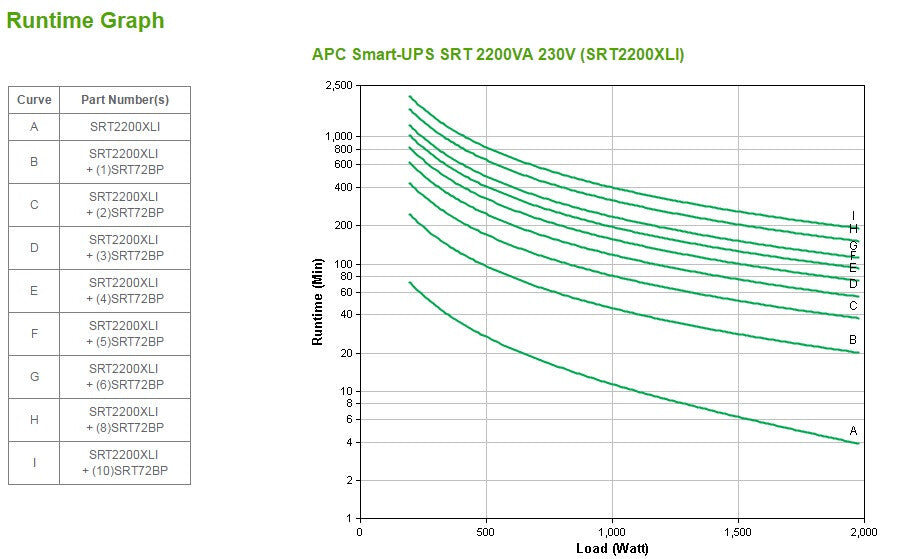

Typical backup time at full load 3.9 min
Typical backup time at half load 11.6 min
Battery life (max) 5 year(s)
Battery recharge time 3 h
Hot-swap battery Yes
Automatic battery test Yes
Cold start Yes
Design
Form factor Rackmount/Tower
Product colour Black
Cable length 2.44 m

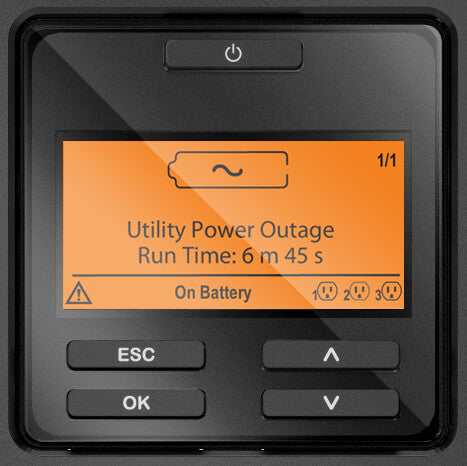

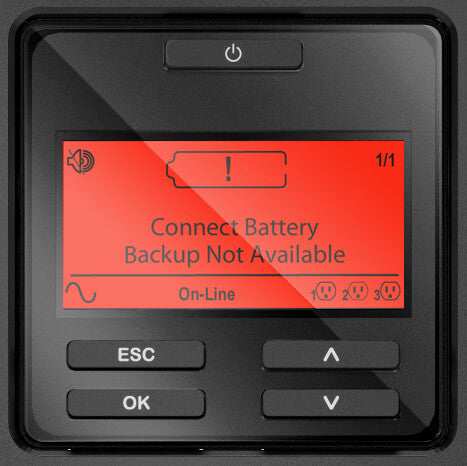

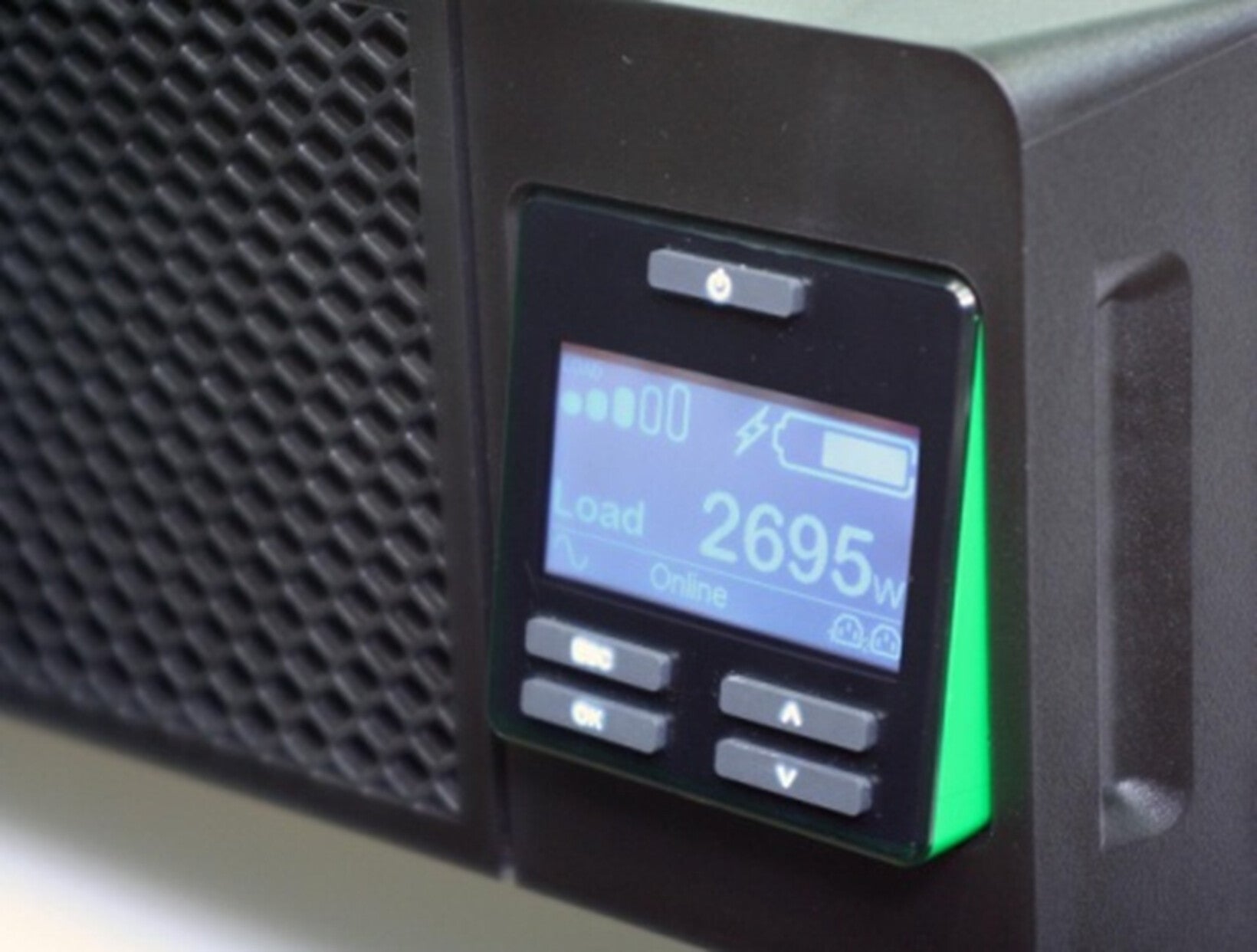

Display type LCD
LED indicators Yes
International Protection (IP) code IP20
Certification CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Technical details
Total carbon footprint 3634.43
Compliance certificates RoHS
Sustainability certificates ENERGY STAR, Green Premium
Weight & dimensions
Width 85 mm
Depth 584 mm
Height 432 mm
Weight 25 kg
Package width 599 mm
Package depth 810 mm
Package height 246 mm
Package weight 30.8 kg
Packaging data
Bracket Yes
Management card included No
Cables included USB cable
Quick installation guide Yes
Warranty card Yes
Software CD Yes
Logistics data
Products per pallet 12 pc(s)
Harmonized System (HS) code 85078000
Other features
Interface SmartSlot
Nominal input voltage 230 V
Nominal output voltage 230 V
Packaging content Power cord
Removable support feet
