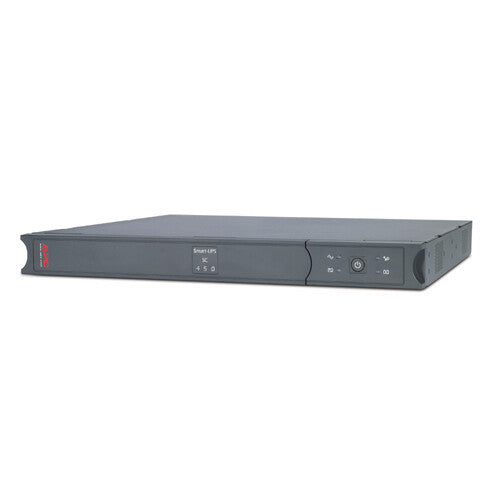

APC Smart-UPS SC 450VA 230V - 1U Rackmount/Tower
Descripción
Descripción
This product is part of the Smart-UPS range, an intelligent and efficient network power protection offer from entry-level to scalable runtime. This 450VA/280W line-interactive UPS provides pure sine wave power to support critical electronics during power disruptions. The 1U rackmount SC features network grade protection, live swappable batteries, and built-in data line protection. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets and 2x IEC jumpers. The UPS has a 2-year warranty. Its dimensions are 383mm (depth) x 44mm (height) x 432mm (width) and weighs 10.18kg. Ideal for networking equipment and POS devices. It conforms to C-Tick, CE, EAC, GOST, TISI, and VDE. Designed for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages.
| Features | |
|---|---|
| Auto-restart | Yes |
| Audible alarm modes | Low battery alarm, Overload alarm |
| Audible alarm(s) | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network |
| Surge protection | Yes |
| Noise level | 38 dB |
| Hold time (min) | 4 ms |
| Hold time (max) | 8 ms |
| Surge energy rating | 320 J |
| Automatic Voltage Regulation (AVR) | Yes |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Waveform | Sine |
| Output power | 280 W |
| Output power capacity | 0.45 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| Number of output IEC jumpers | 2 |
| AC outlets quantity | 4 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Automatic battery test | Yes |
| Hot-swap battery | Yes |
| Battery recharge time | 5 h |
| Battery life (max) | 5 year(s) |
| Typical backup time at half load | 19.4 min |
| Typical backup time at full load | 5.9 min |
| Battery capacity | 108 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Certification | C-tick, CE, GOST, VDE, PEP, EOLI |
| LED indicators | Battery replacement |
| Rack capacity | 1U |
| Product colour | Grey |
| Form factor | Rackmount/Tower |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Package weight | 11.7 kg |
| Package height | 164 mm |
| Package depth | 589 mm |
| Package width | 476 mm |
| Weight | 10.2 kg |
| Height | 44 mm |
| Depth | 383 mm |
| Width | 432 mm |
| Packaging data | |
|---|---|
| Software CD | Yes |
| Manual | Yes |
| Cables included | RS-232 |
| Rack mount kit | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Products per pallet | 24 pc(s) |
| Other features | |
|---|---|
| Nominal output voltage | 230 V |
