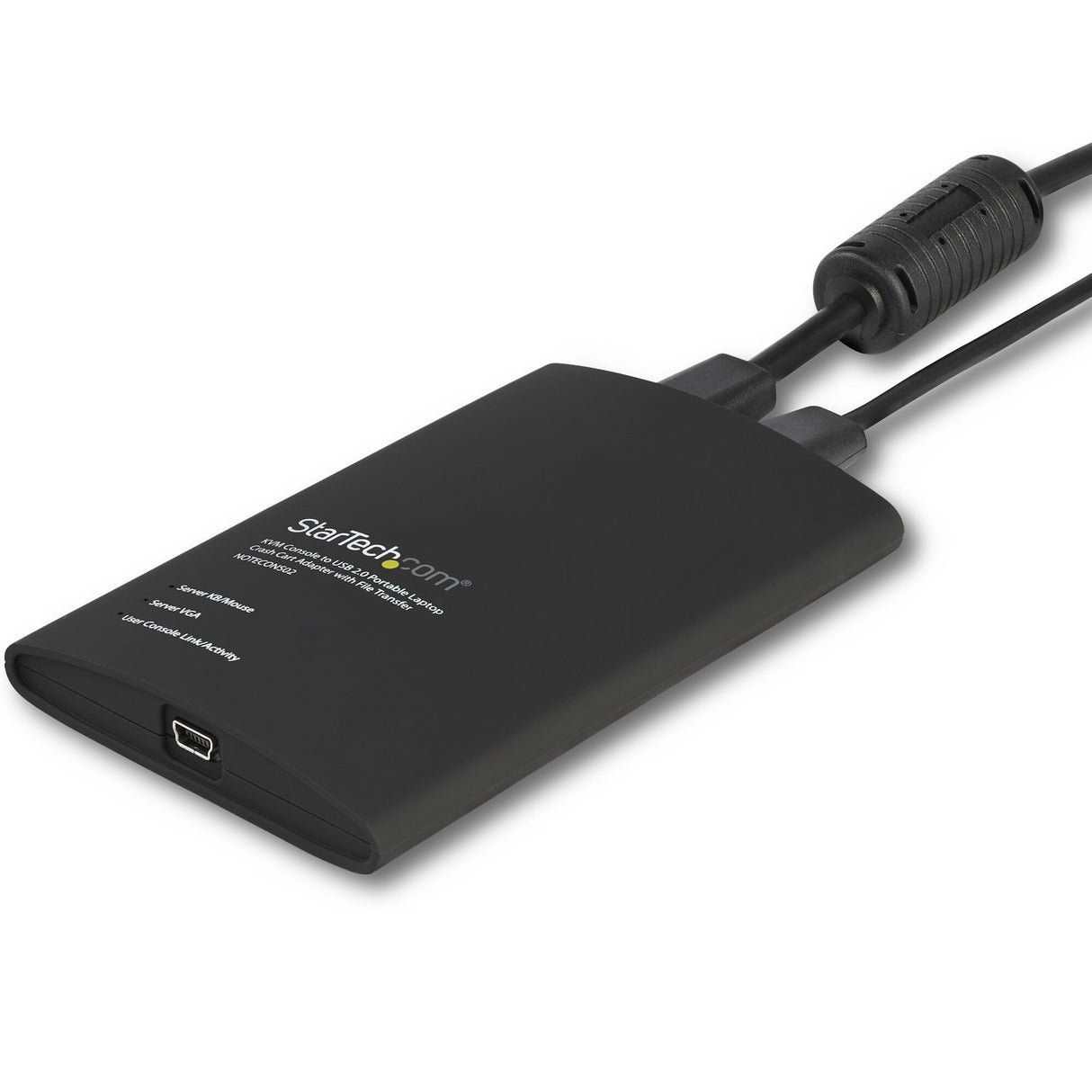

StarTech.com USB Crash Cart Adapter with File Transfer & Video ...
Portable KVM Console | VGA Video | 1920 x 1200 60Hz | Cables Included

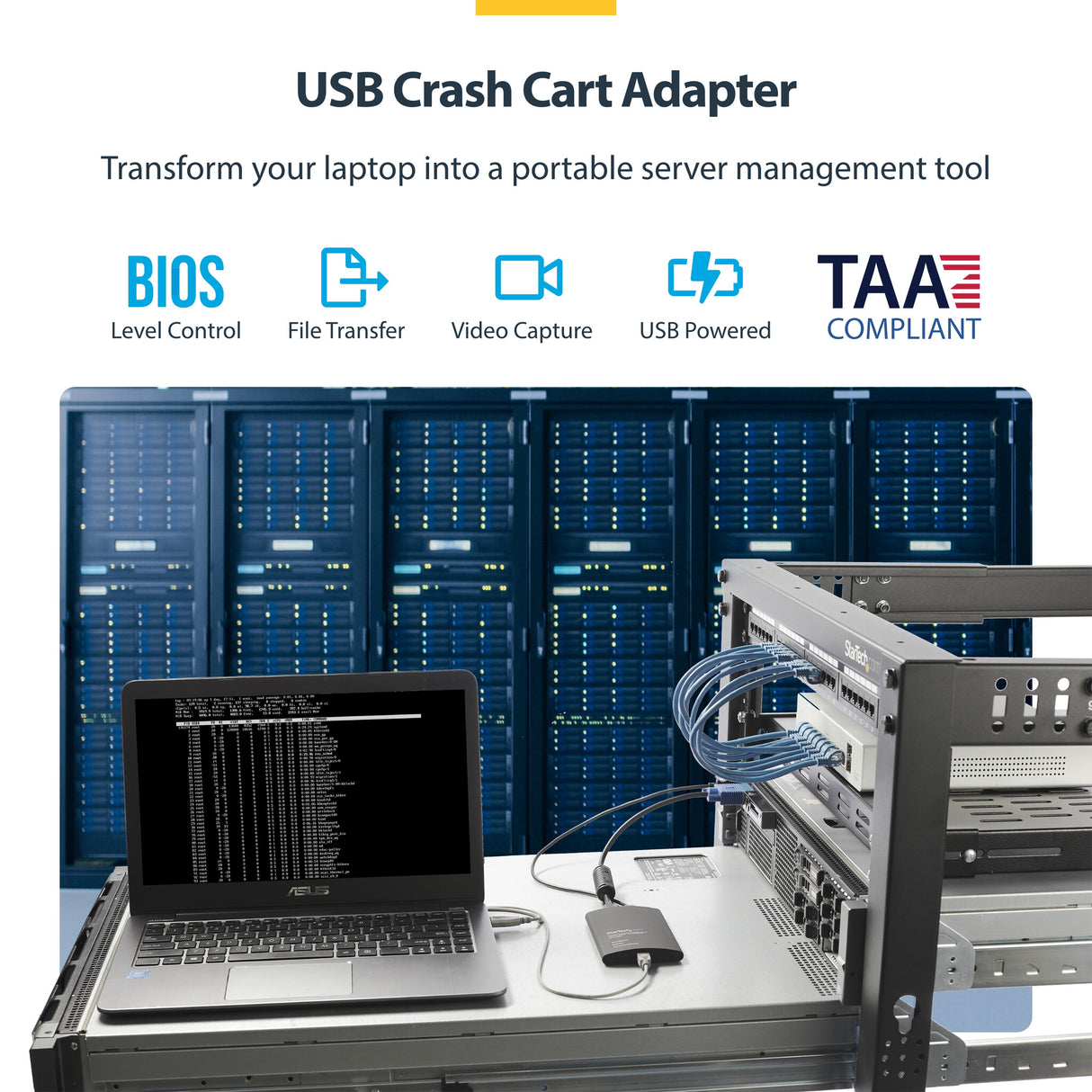

The USB crash cart adapter gives you control of a headless system, turning your laptop into a portable crash cart for rack servers, PCs, ATMs, kiosks, and more.
Instant System Access

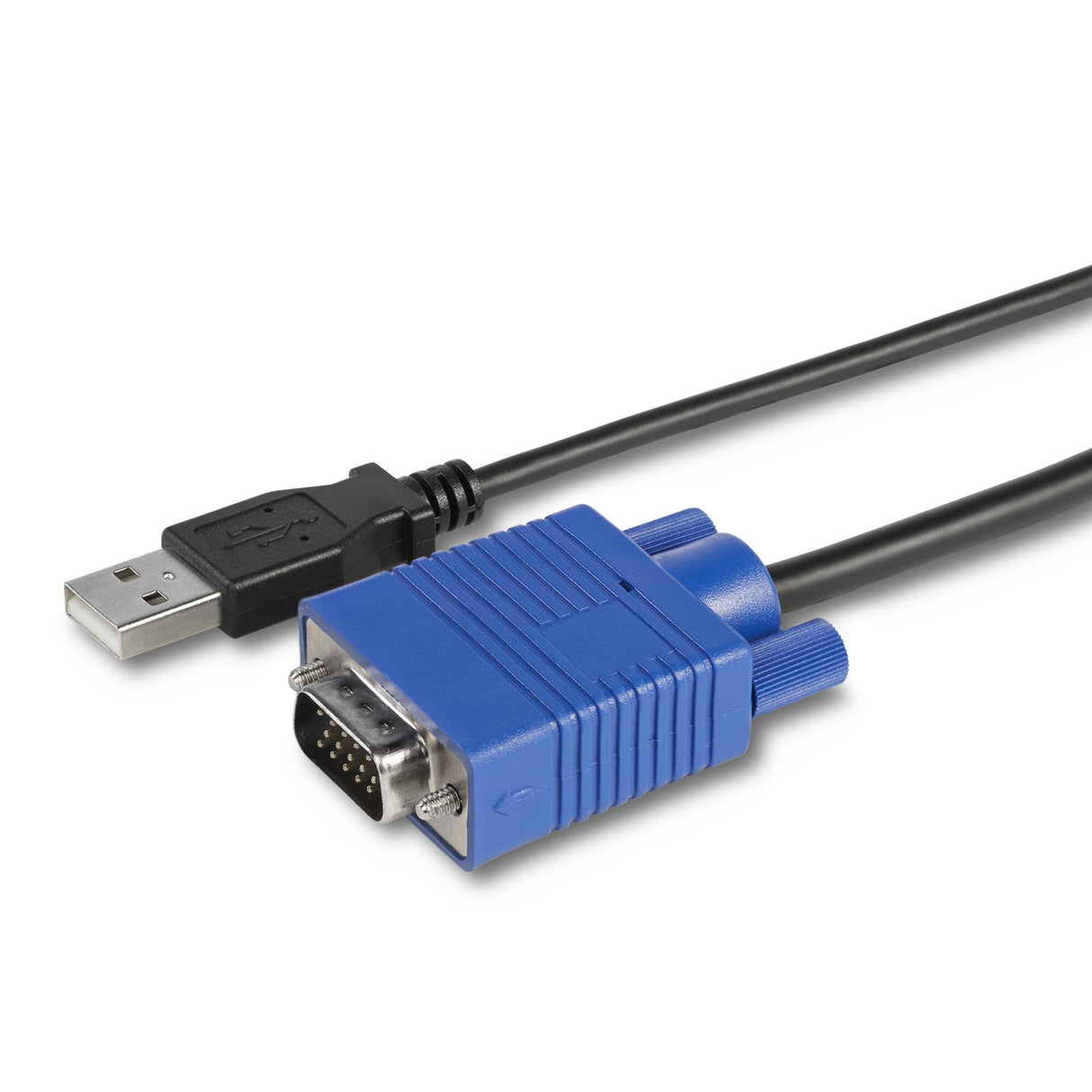

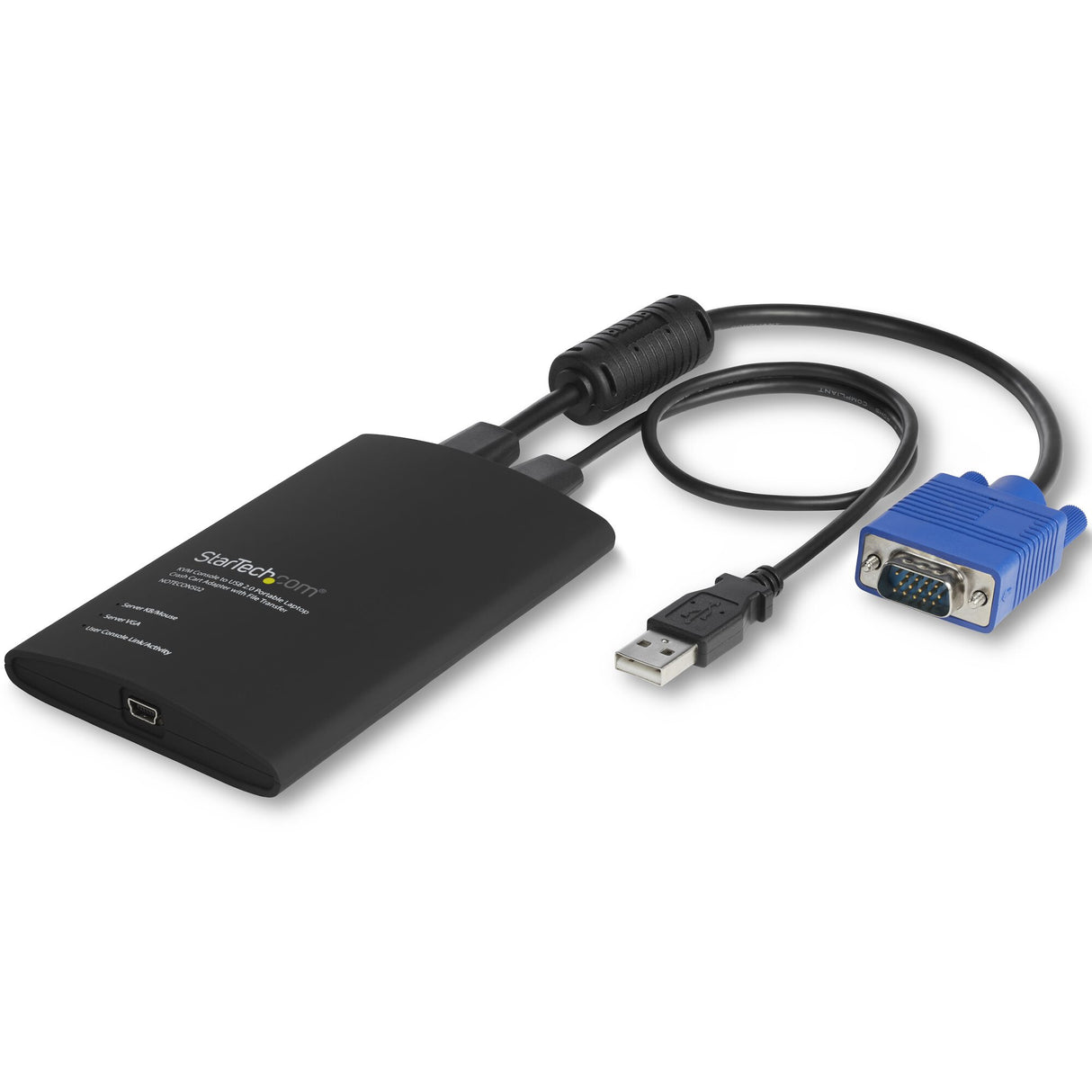

Simply connect the laptop crash cart adapter to your computer using the included USB cable, then connect the integrated USB and VGA cables to your server for instant BIOS-level control. With no server-side software required, you can be up and running instantly.
Troubleshoot More Efficiently
With the flexible software interface, you can transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars helping you to troubleshoot faster.
Self-Powered Reliability
Powered from the server-side USB connection, the KVM adapter doesn't require an AC outlet so you can connect to any PC or device that has a VGA and USB port, even if there’s no power outlet available.

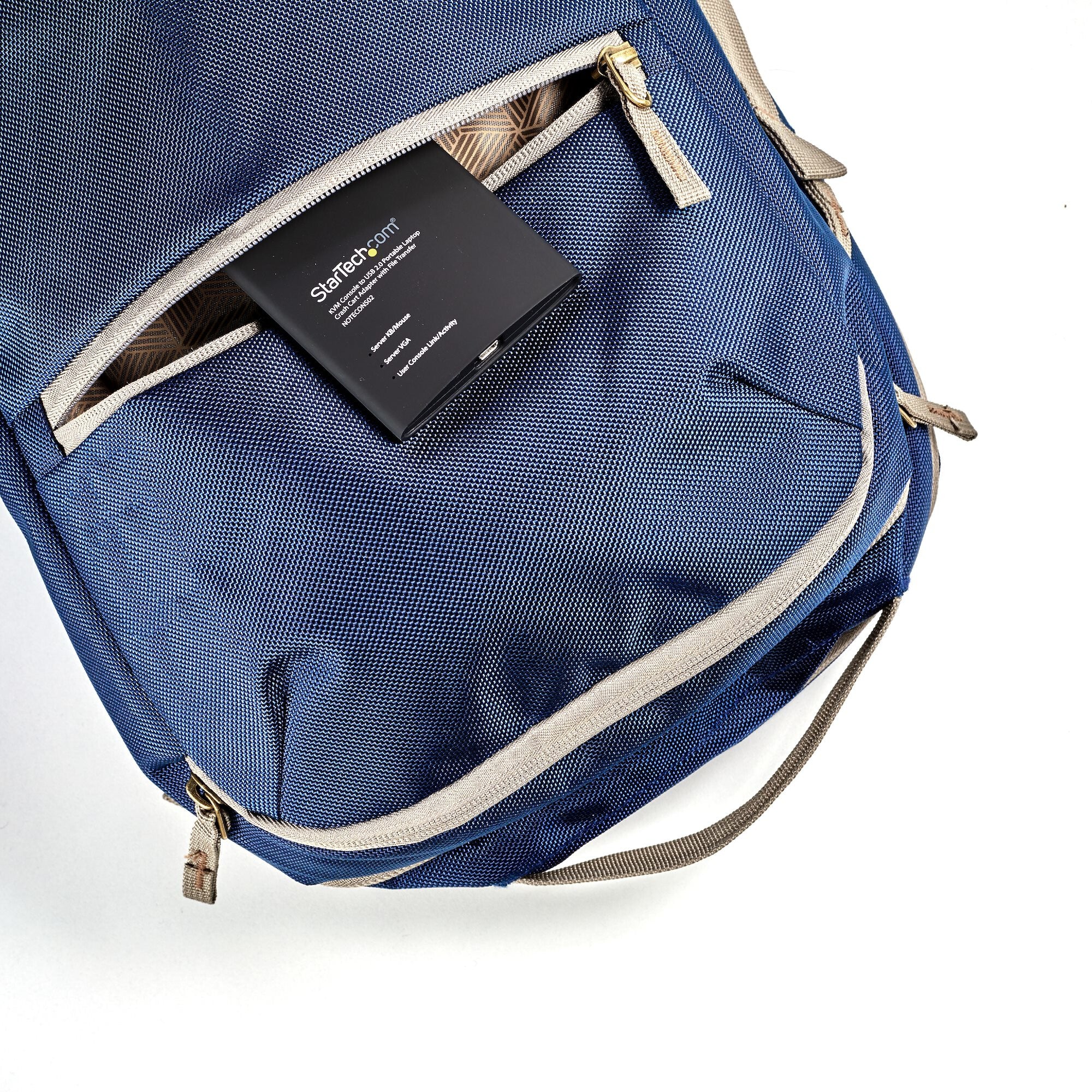

Take It Anywhere

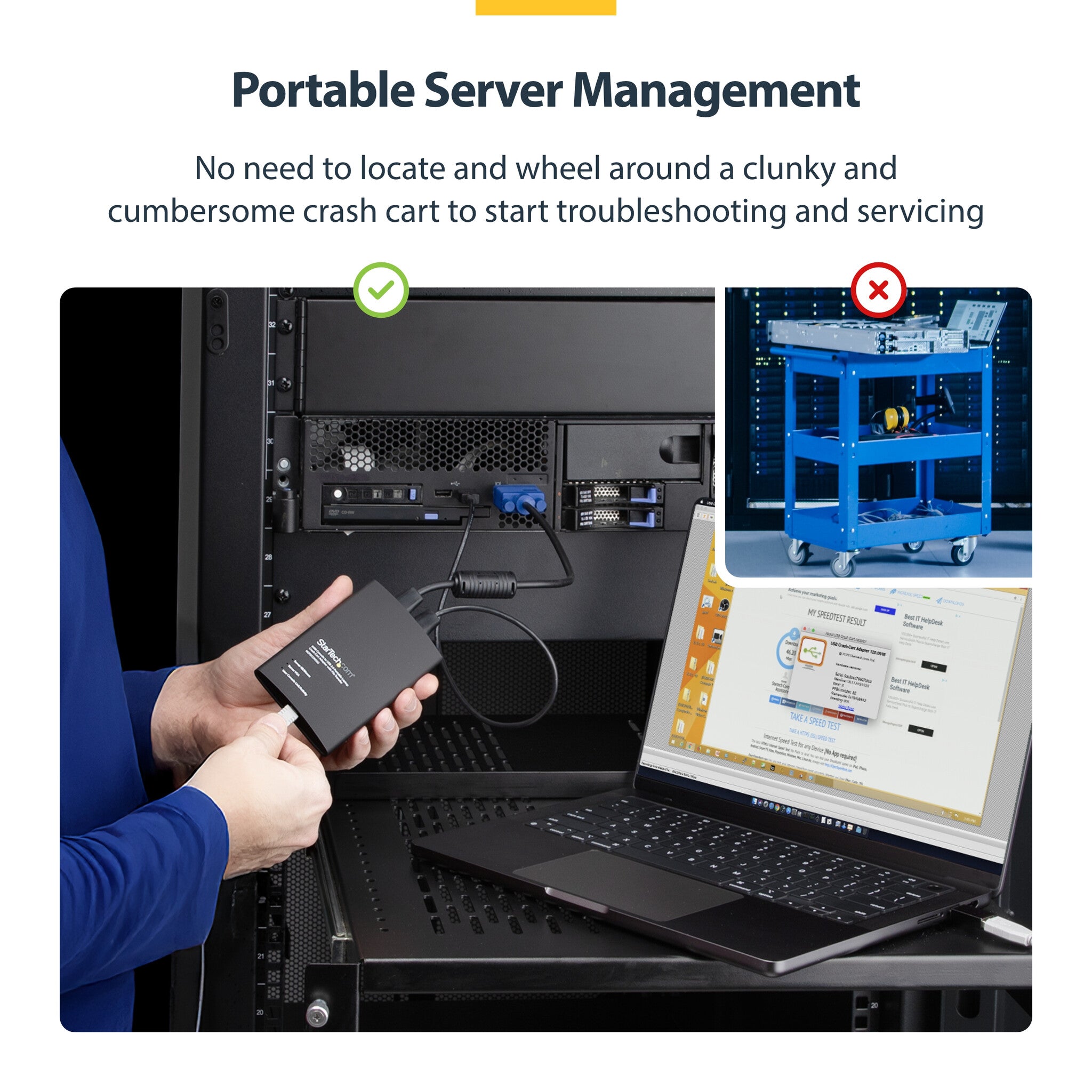

This pocket-sized adapter features a compact design that easily fits inside your laptop bag and requires no additional accessories to connect, eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems.
StarTech.com offers a wide selection of high-quality KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors. This USB KVM crash cart adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage

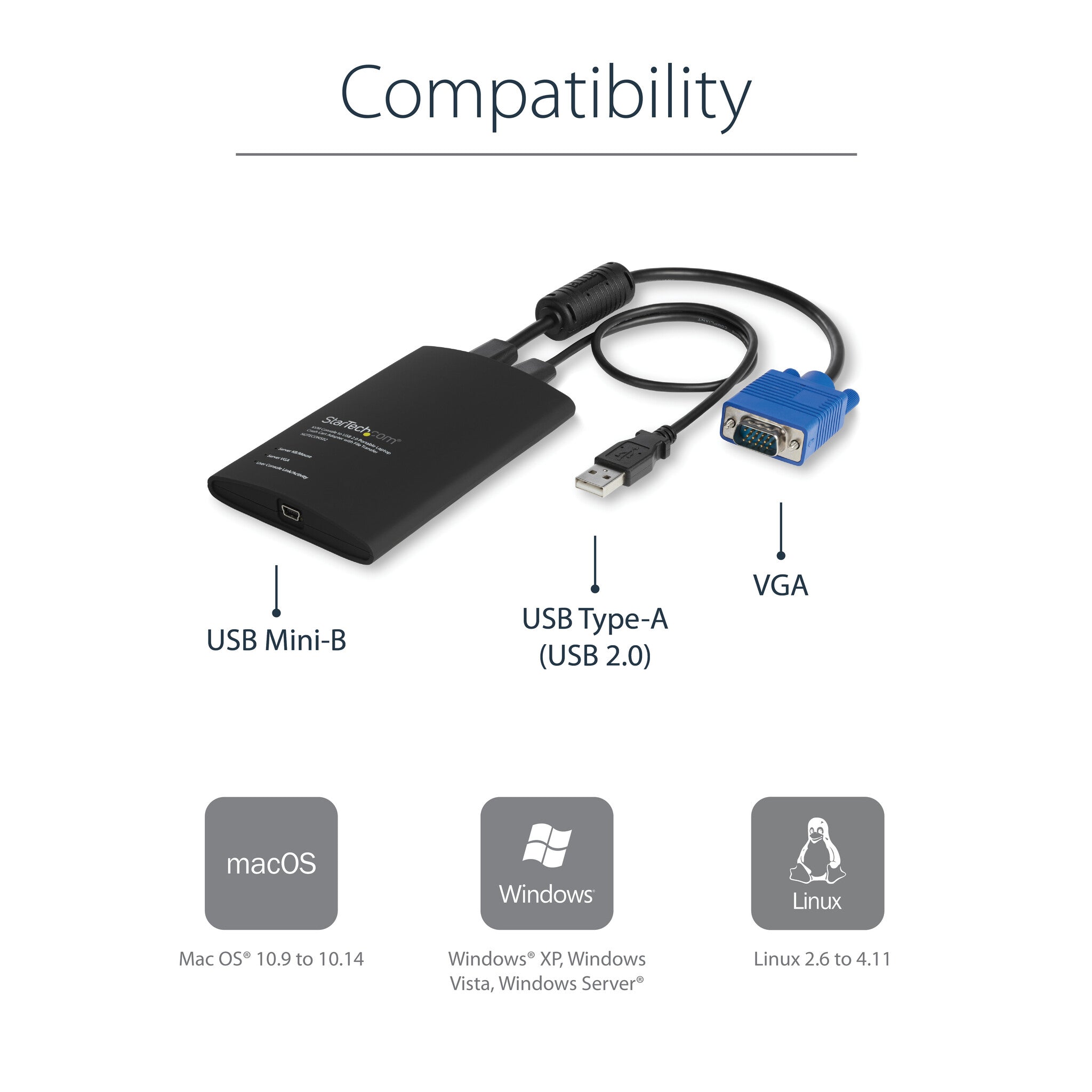

| Ports & interfaces | |
|---|---|
| Audio connections | No |
| USB connector type | Mini-USB B |
| Console USB ports quantity | 1 |
| Video port type | VGA |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 1 |
| Performance | |
|---|---|
| Number of users | 1 user(s) |
| Daisy chain | No |
| Plug and Play | Yes |
| Video bandwidth | 60 Hz |
| Maximum resolution | 1920 x 1200 pixels |
| HD type | Full HD |
| Design | |
|---|---|
| Certification | CE, FCC, TAA, UL |
| Mean time between failures (MTBF) | 909000 h |
| LED indicators | Yes |
| Cable length | 0.416 m |
| Housing material | Plastic |
| Product colour | Black |
| Rack mounting | No |
| Display | |
|---|---|
| On Screen Display (OSD) | No |
| Built-in display | No |
| Power | |
|---|---|
| Power source | USB |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Sustainability | |
|---|---|
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 170 g |
| Height | 15 mm |
| Depth | 115 mm |
| Width | 74 mm |
| Packaging data | |
|---|---|
| Package weight | 363 g |
| Package height | 46 mm |
| Package depth | 303 mm |
| Package width | 166 mm |

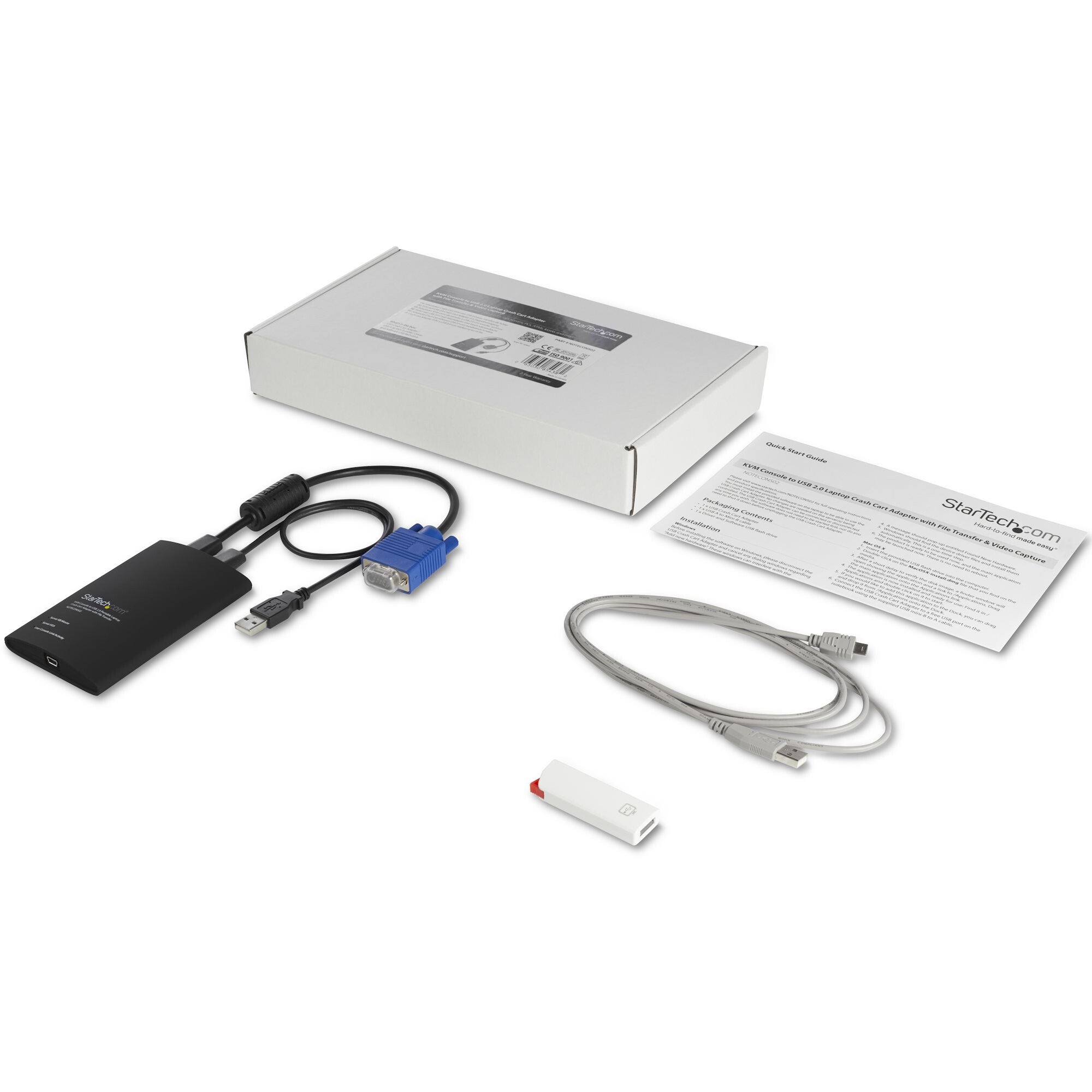

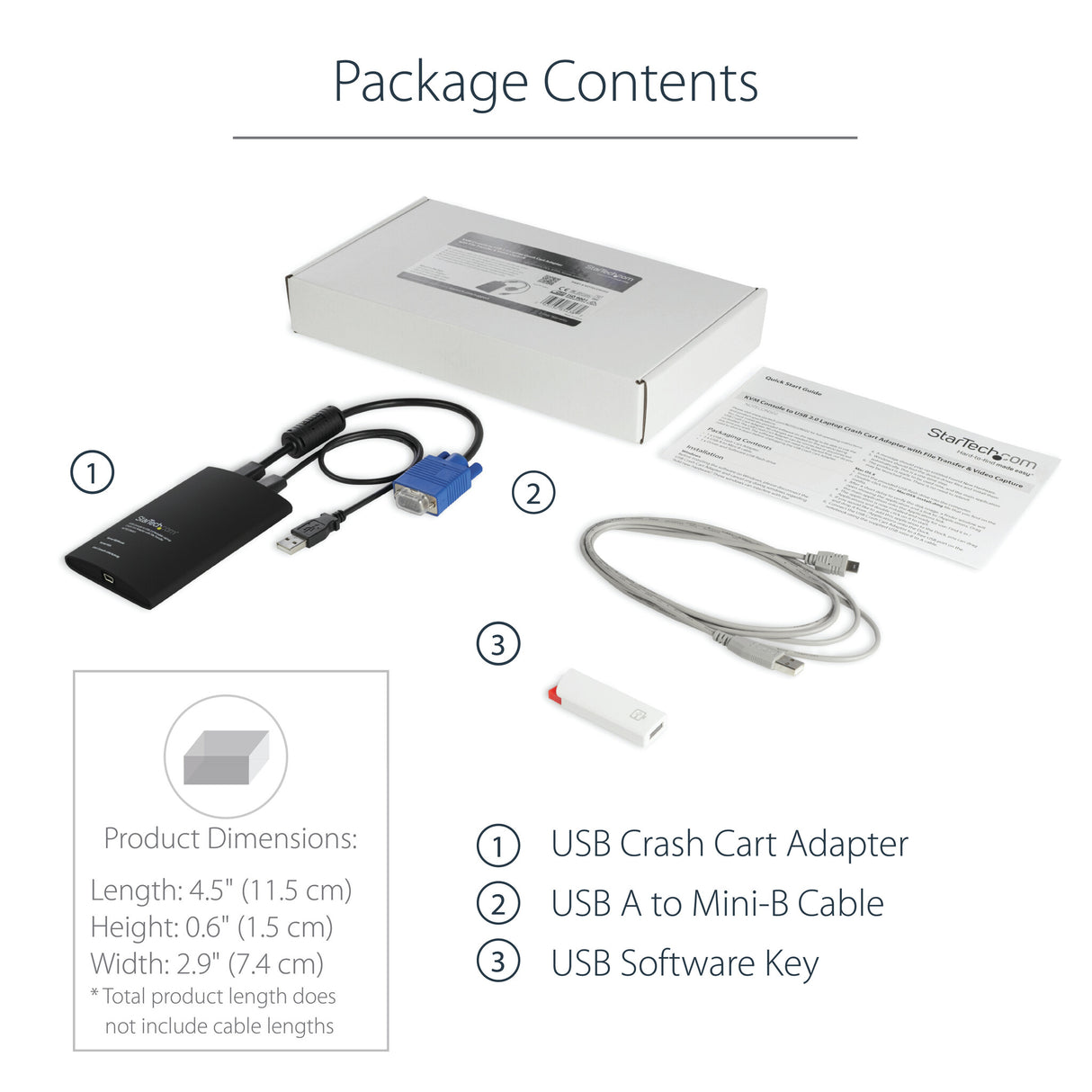

| Packaging content | |
|---|---|
| Software included | Yes |
| Cables included | USB |
| Other features | |
|---|---|
| Compatible operating systems | Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64)Windows Server 2012, 2008 R2Mac OS 10.x (Tested up to 10.9)Linux 2.6.x - 3.5.x (32/64bit) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 30 pc(s) |
| Master (outer) case height | 525 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case width | 320 mm |
| Harmonized System (HS) code | 85176200 |
-
