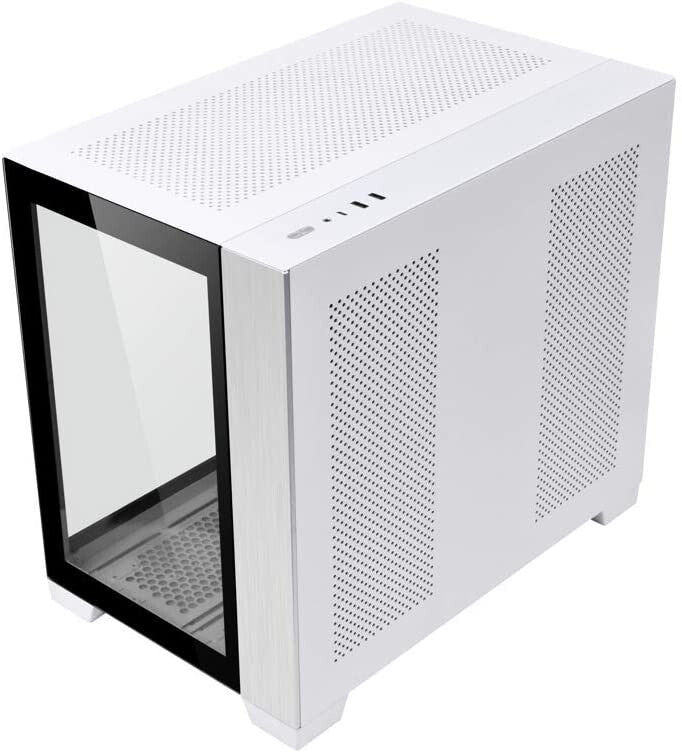

Lian Li O11-Dynamic-mini Mini Tower White
Think Big. Build Small.
O11D MINI adding to the O11 Dynamic series, the classic and mordern looking. A case that would accommodate the maximum number of water-cooling configurations without being oversized. With a modular back panel design, the user has the option to choose from 3 slots/ 5 slots/ 7 slots I/O shield to optimize the case to the configuration of user’s choice. Supports mini-ITX, micro-ATX, ATX, and E-ATX motherboard sizes. and up to 9 fans to cool the chassis.
CONFIGURATION OF YOUR CHOICE
MODULAR BACK PANEL
Decide how many expansion slots you need. Calculate the size of your fans & accessories.
Pick your motherboard type. 3 kinds of back panels to meet your demand!
SIDE RADIATOR CONFIGURATION WITH LONG GPU
The 30mm space behind the side fan / radiator bracket allows users to mount fans, thus efficiently intake fresh air to directly cool the radiator and leaves enough space to install long GPUs in this compact case.
FLAT PUMP STAND
IDEAL FOR MOUNTING THE PUMP DIRECTY AT THE BOTTOM OF THE CASE.
ELEVATED PUMP STAND
MOUNTING THE PUMP NEXT TO THE 240/280MM RADIATOR.
EASILY MATCH INTERFACE.
FLOATING PUMP STAND
MOUNTING ABOVE A 120MM FAN ON A RADIATOR.
EASILY MATCH INTERFACE.
A SERIES OF O11 DYNAMIC
As a member of the O11 family,
the O11D Mini is designed to support a maximum number of radiators to optimize the water-cooling potential,
and this even with a smaller frame.
DUAL-CHAMBER DESIGN FOR CABLE MANAGEMENT
Carried from the design of the O11D series, cables quickly pass to the second chamber through rubber grommets. Multiple tie points and Velcro strap channels are provided to tidy up the cables while the SSD mounting bar helps keep the loose cables all snuggled up to ensure a clean look and prevent the right-side panel from not closing or bulging.
COMPLETE DUST PROTECTION
All 3 ventilation intake sides are equipped
with magnetic dust filters and a removable dust tray
to prevent the dust from entering the case.
OPTIONAL ACCESSORY
O11D MINI VERTICAL GPU KITS
The vertical GPU enabled back panel can be adjusted up and down for clearance of the fans and radiator at the bottom of the case.
| Design | |
|---|---|
| Form factor | Mini Tower |
| Type | PC |
| Material | Aluminium, SPCC, Tempered glass |
| Product colour | White |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 17.9 cm |
| Maximum graphics card length | 39.5 cm |
| Maximum PSU length | 37 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
|---|---|
| Number of front fans supported (max) | 1 |
| Number of side fans supported (max) | 2 |
| Side fans diameters supported | 120,140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Top radiator sizes supported | 240,280,360 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Width | 269.5 mm |
| Depth | 420 mm |
| Height | 380 mm |
-
