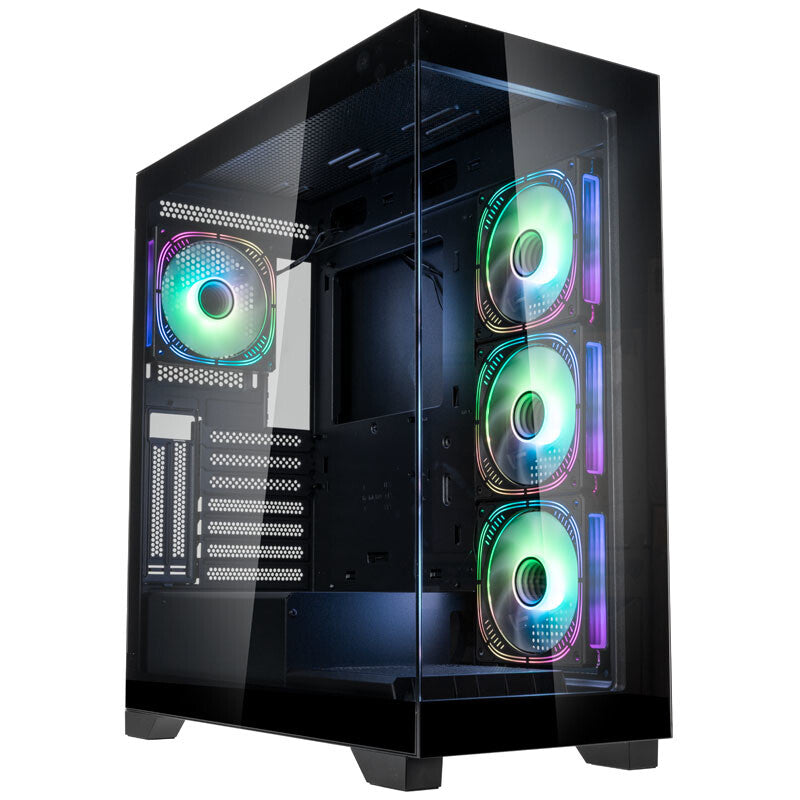

Showcase your hardware in style with the Kolink Unity Peak Mid Tower PC Case. With edge to edge tempered glass panelling, you can enjoy a panoramic view of your components, RGB, and PC building prowess. The four pre-installed Kolink Umbra Void Pro 120mm fans bring stylish ARGB lighting with infinity mirror effects to the case, as well as phenomenal thermal performance. Plus, with support for ATX motherboards, 400mm GPU clearance, and a sleek half PSU shroud, this chassis has extensive compatibility with hardware on the market.
Unity Peak

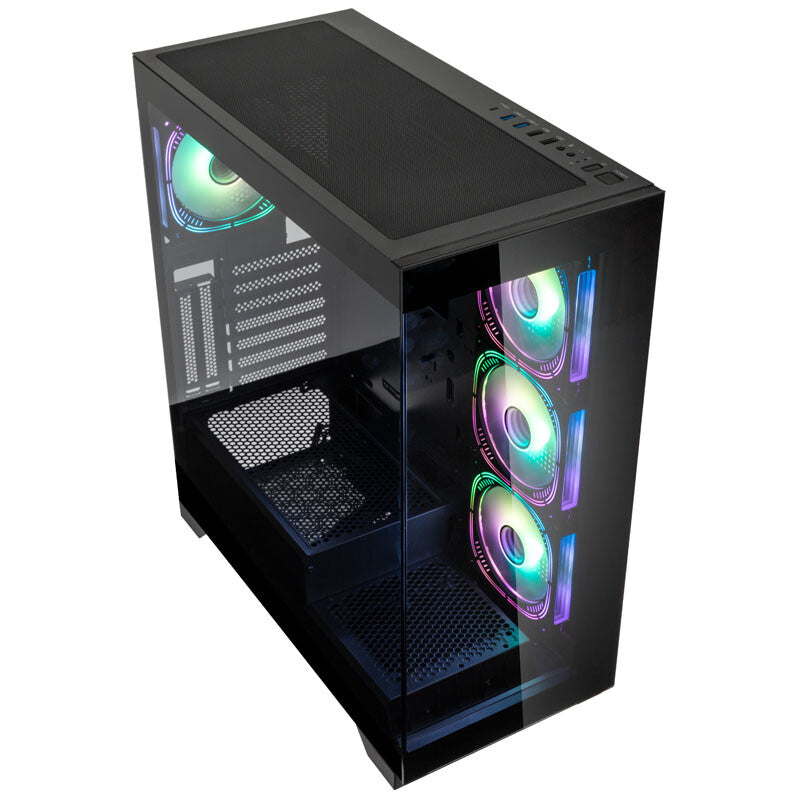

The Kolink Unity Peak marries elegance and component support, whilst still providing ample airflow. The edge-to-edge front and side panelling offer a panoramic view of all your high-end hardware, making this a true showcase chassis. Subtle mesh and ventilation on the top and bottom panels, respectively, bring the natural airflow, which is bolstered by the four pre-installed Kolink Umbra Void Pro fans. These add a sophisticated splash of colour, with their ARGB lighting and infinity mirror effects. Set to the backdrop of a classic all-black finish, the Kolink Unity Peak is a stunning PC case.
Great Hardware Support
On top of its stylish good looks, the Kolink Unity Peak has comprehensive support for all your gaming hardware. The backplate can hold up to ATX motherboards, and there are seven expansion slots with two additional vertical ones. Thanks to this, you can mount your GPU vertically (kit sold separately), and there is even 400mm clearance for extensive compatibility with the current market.
To keep the interior looking clean, there is a half PSU shroud capable of holding ATX power supplies between 150mm and 180mm. For storage, there are four drive bays at your disposal, featuring two for 2.5" SSDs and two for 3.5" HDDs.
Great Airflow
Between the mesh panels and the pre-installed fans, the Kolink Unity Peak PC Case facilitates incredible natural airflow. Alternatively, you can take full advantage of the support for water-cooling components to craft a highly efficient thermal solution.
The pre-installed 120mm fans are mounted to the side and rear panels, in clusters of three and one, respectively. Naturally, these panels can support additional fans or radiators. The top panel can host up to three 120mm or 140mm fans, or radiators up to 360mm long. Upon the rear, there is a 120mm mount that can be used for either a fan or radiator. Instead of mounting on the front panel, either three 120mm fans or a radiator up to 240mm can be put on the motherboard tray. The PSU shroud supports three 120mm fans, but a radiator cannot be installed here.
To complete the cooling component specifications, there is clearance for a 168mm tall CPU cooler.
Finishing Touches
Keeping the interior looking tidy, the Kolink Unity Peak has a dedicated 24mm deep space for routing cables. This is tucked behind the motherboard tray, helping to reduce airflow restriction in the main chamber, too.

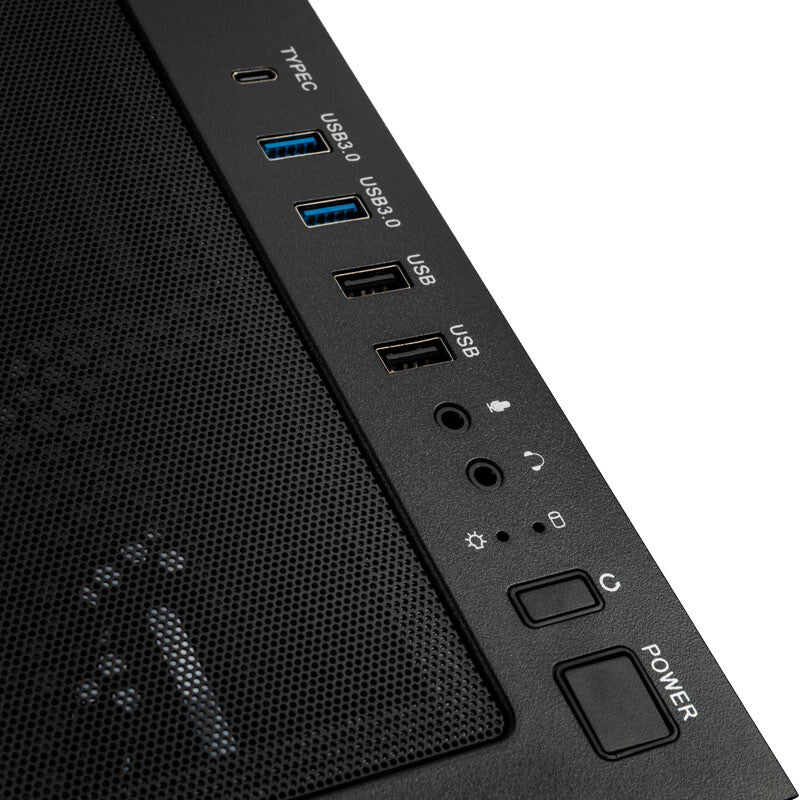

The I/O is located on the top panel. It features two USB 3.0, two USB 2.0, one USB-C, and an HD audio jack, along with power and reset buttons.
| Design | |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Material | Acrylonitrile butadiene styrene (ABS), Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 9 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Illumination location | Case fans |
| Tempered glass panel(s) | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 16.8 cm |
| Maximum graphics card length | 40 cm |
| Maximum PSU length | 18 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
|---|---|
| Side fans installed | 3x 120 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 120 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Side radiator sizes supported | 120,240 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 120,240,360 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Width | 210 mm |
| Depth | 420 mm |
| Height | 465 mm |
| Weight | 7.7 kg |
-
