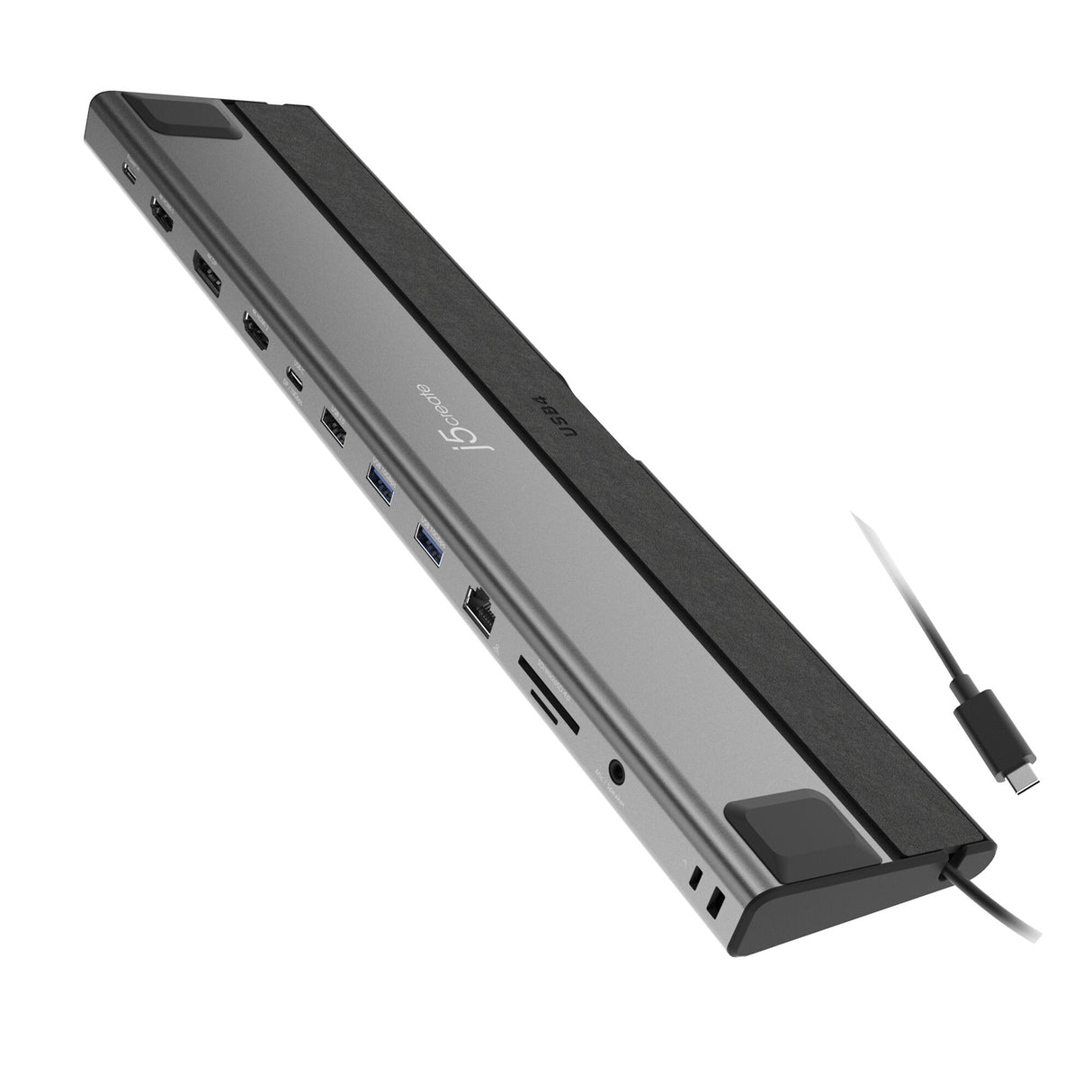

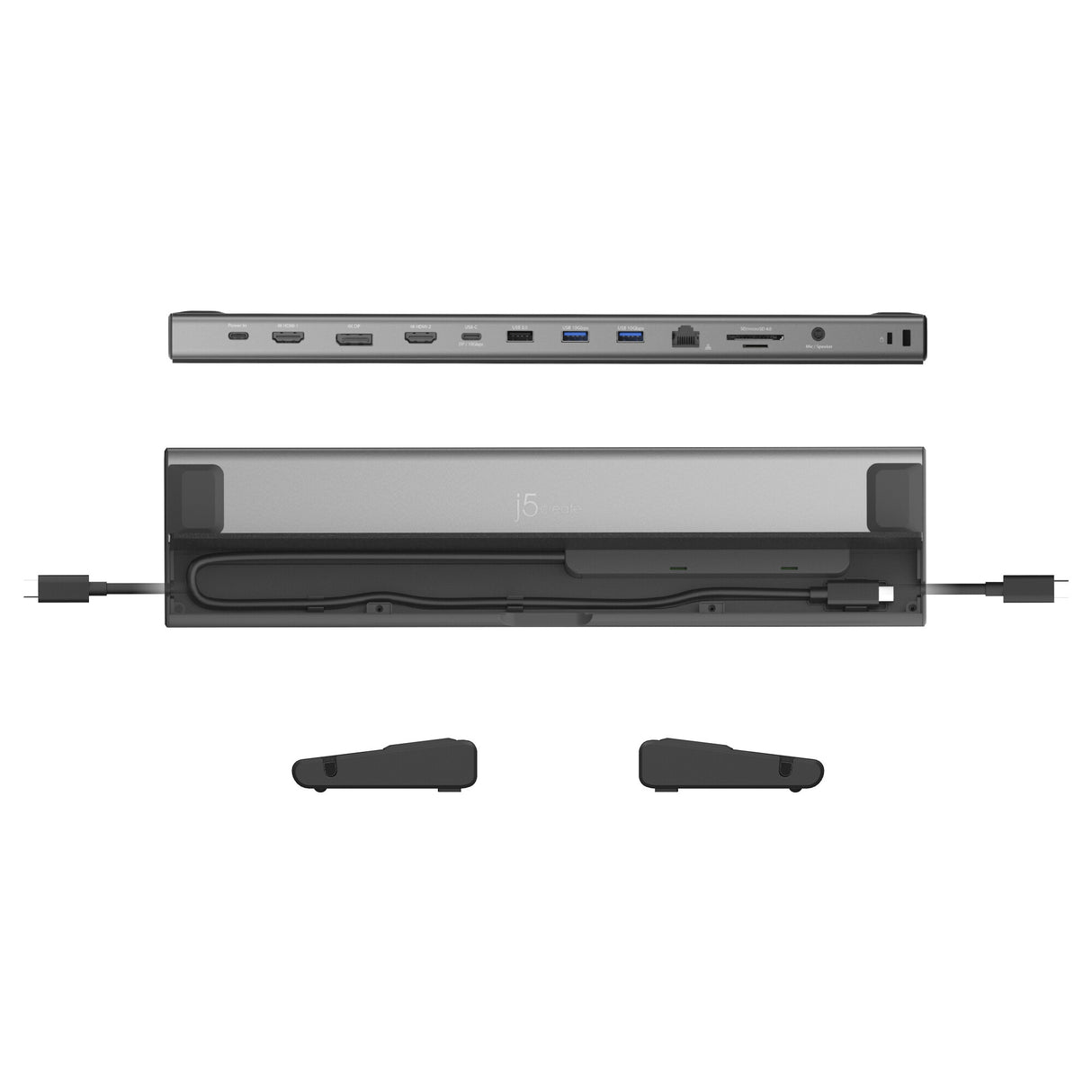

j5create JCD554 USB4® Triple 4K Display Docking Station, Black
j5create JCD554 USB4® Triple 4K Display Docking Station, Black está agotado y se enviará tan pronto como vuelva a estar disponible.
j5create JCD554 USB4® Triple 4K Display Docking Station, Black

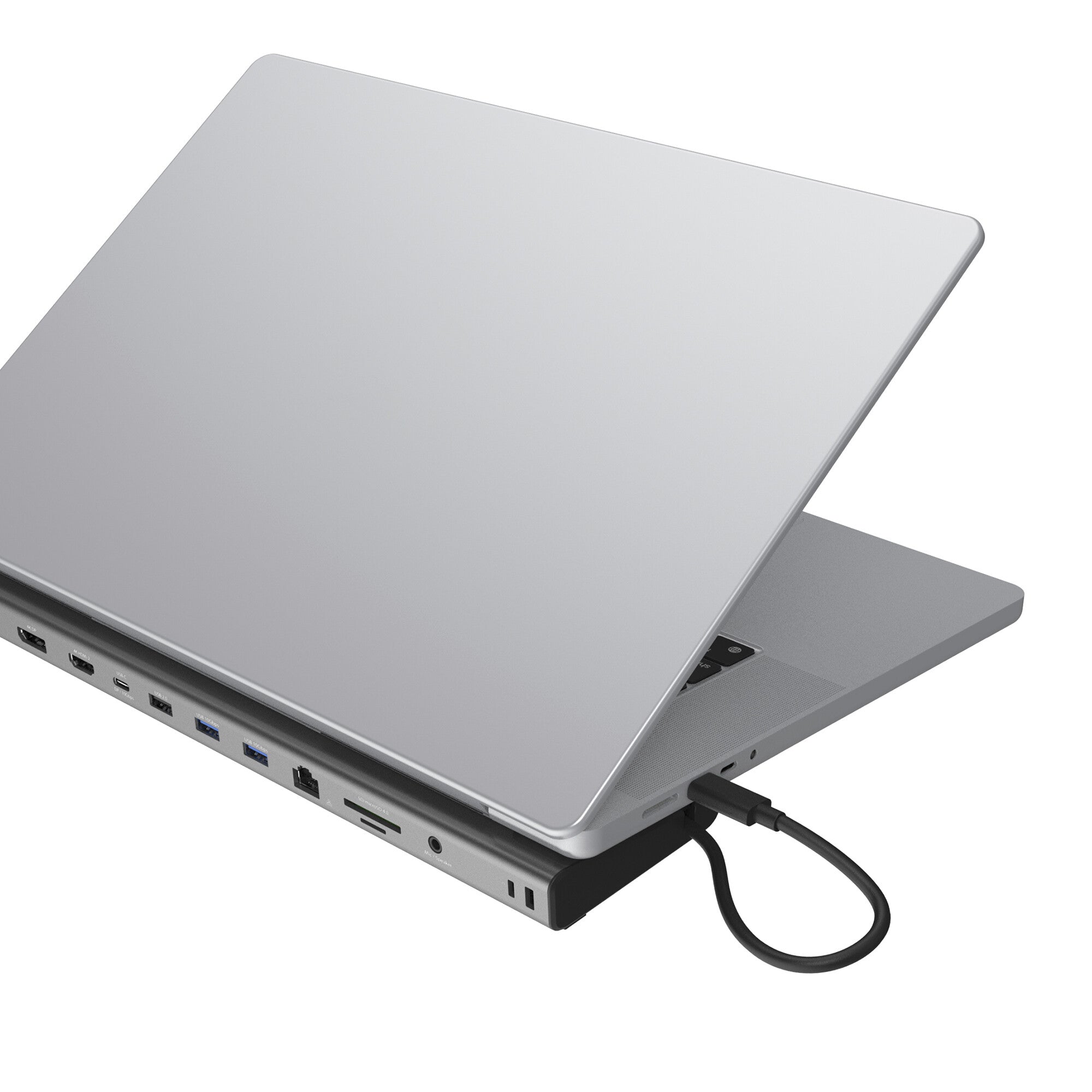

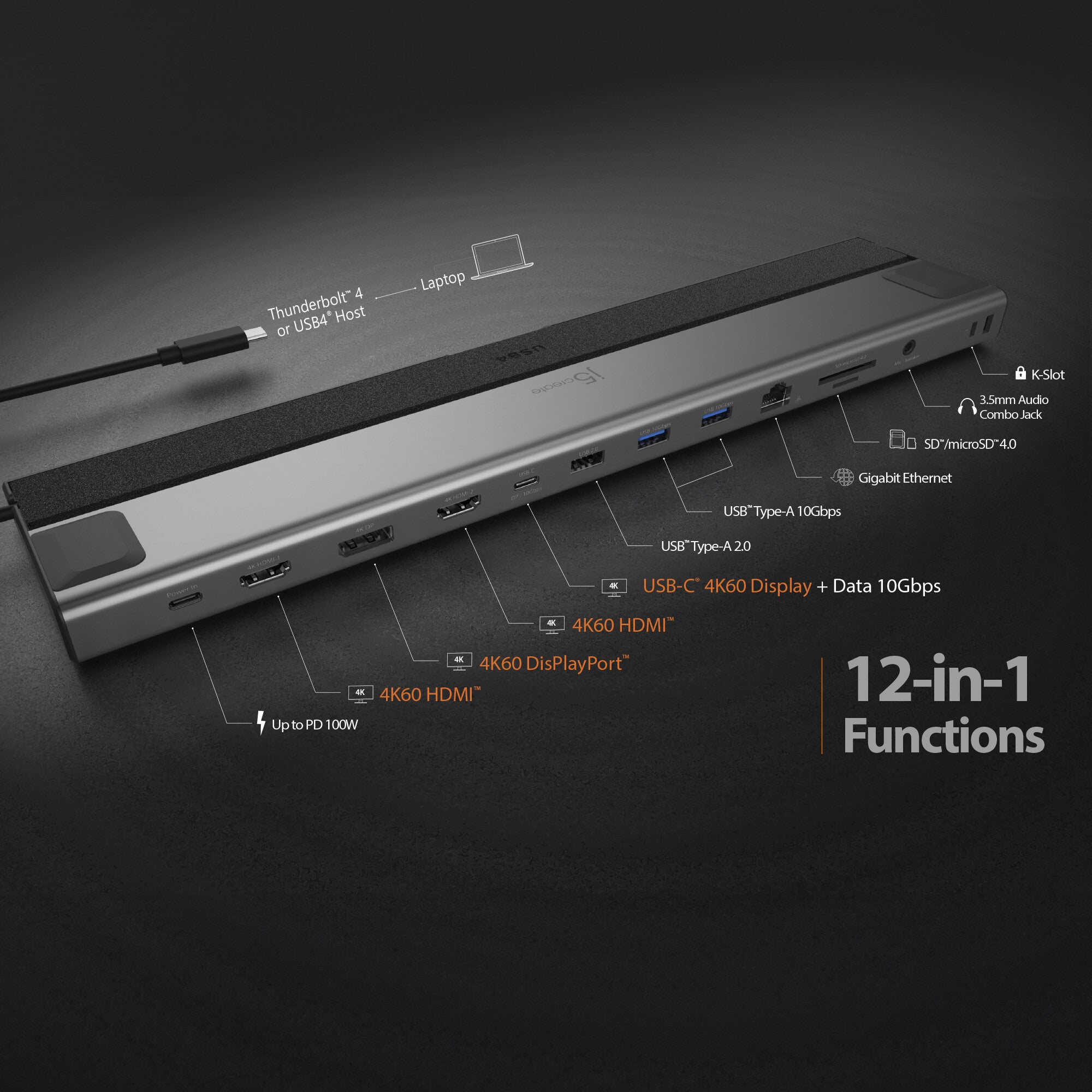

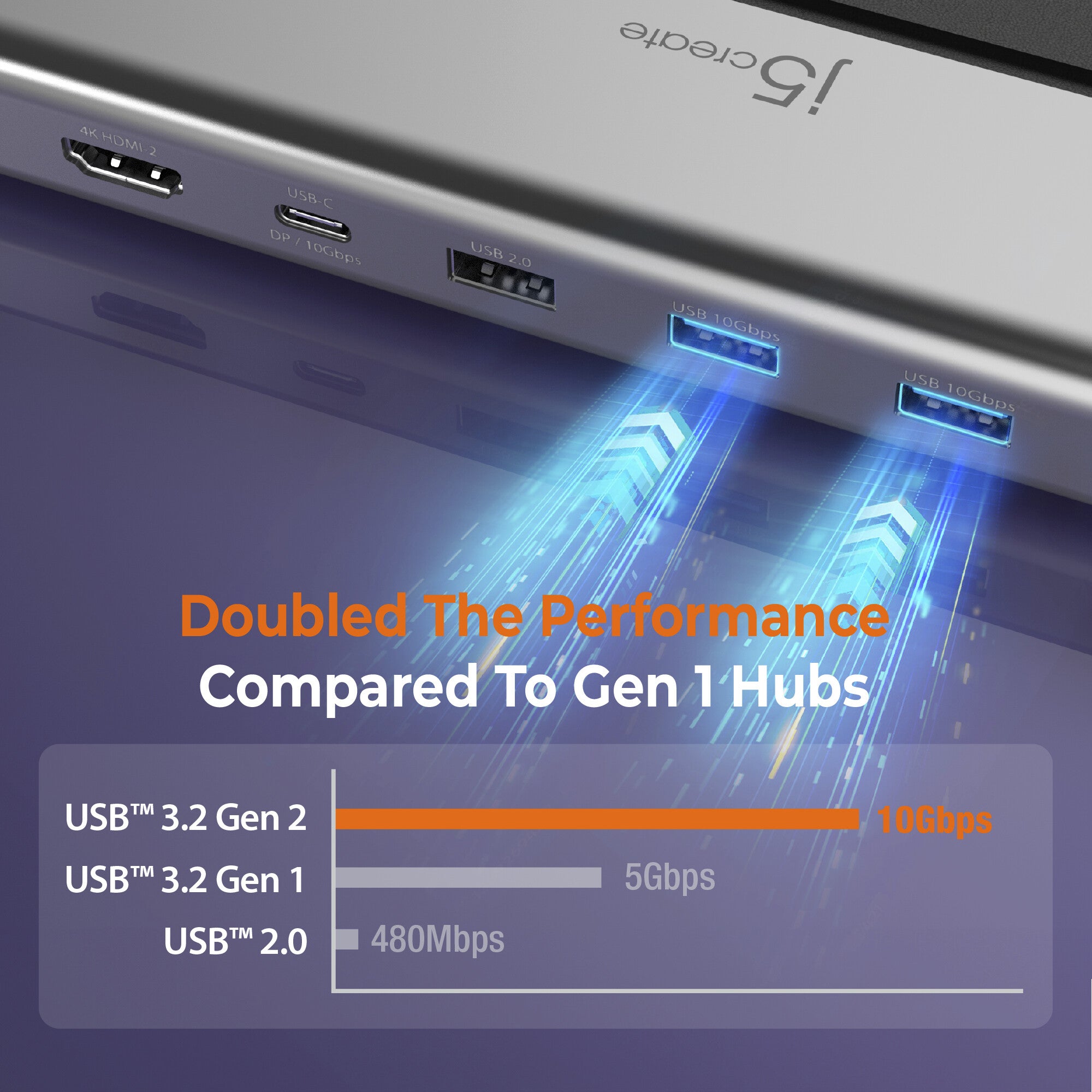

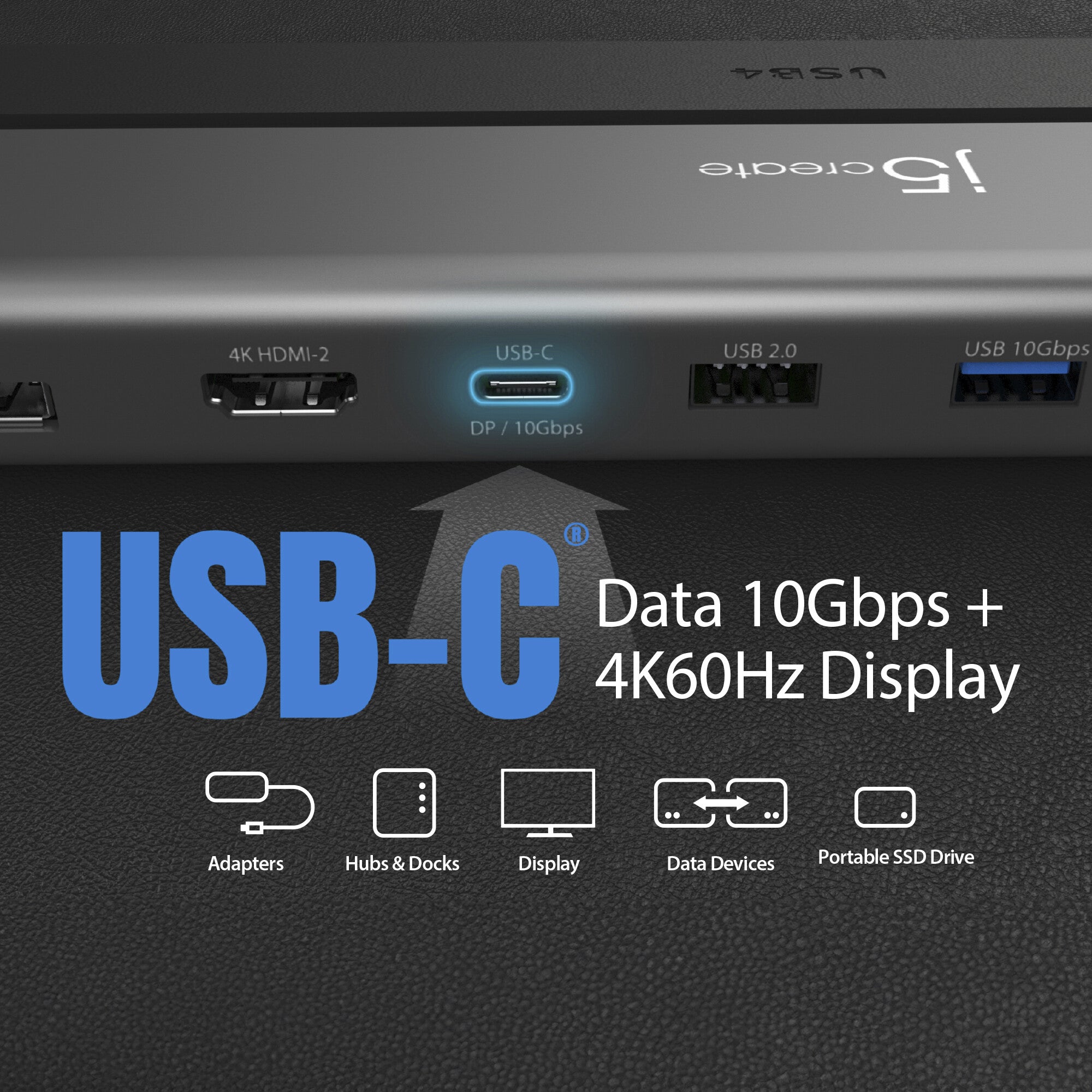

This high-performance USB4® Triple 4K Display Docking Station is the first USB-C® docking to incorporate a USB4® controller from Intel®, offering compatibility with Thunderbolt™ 4 and USB4® laptops. No driver installation is required for use making it an easy-to-use docking station solution. With up to 40Gbps of throughput and dynamic data and display bandwidth allocation for efficient display data flow, you can easily create a Triple-monitor setup with up 4K resolution using DisplayPort™, HDMI™ or USB-C® and access data faster without affecting system performance. Additionally, it has three USB™ 3.2 10Gbps ports (1 USB-C® and 2 Type-A) for charging or connecting peripherals, as well as a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W passthrough power. A USB™ 2.0 port is also included for connecting your wireless USB™ mouse or keyboard with reduced latency.
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Microphone in | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 2 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 85 W |
| USB Power Delivery | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Host interface | USB4 |
| Connectivity technology | Wired |
| Network | |
|---|---|

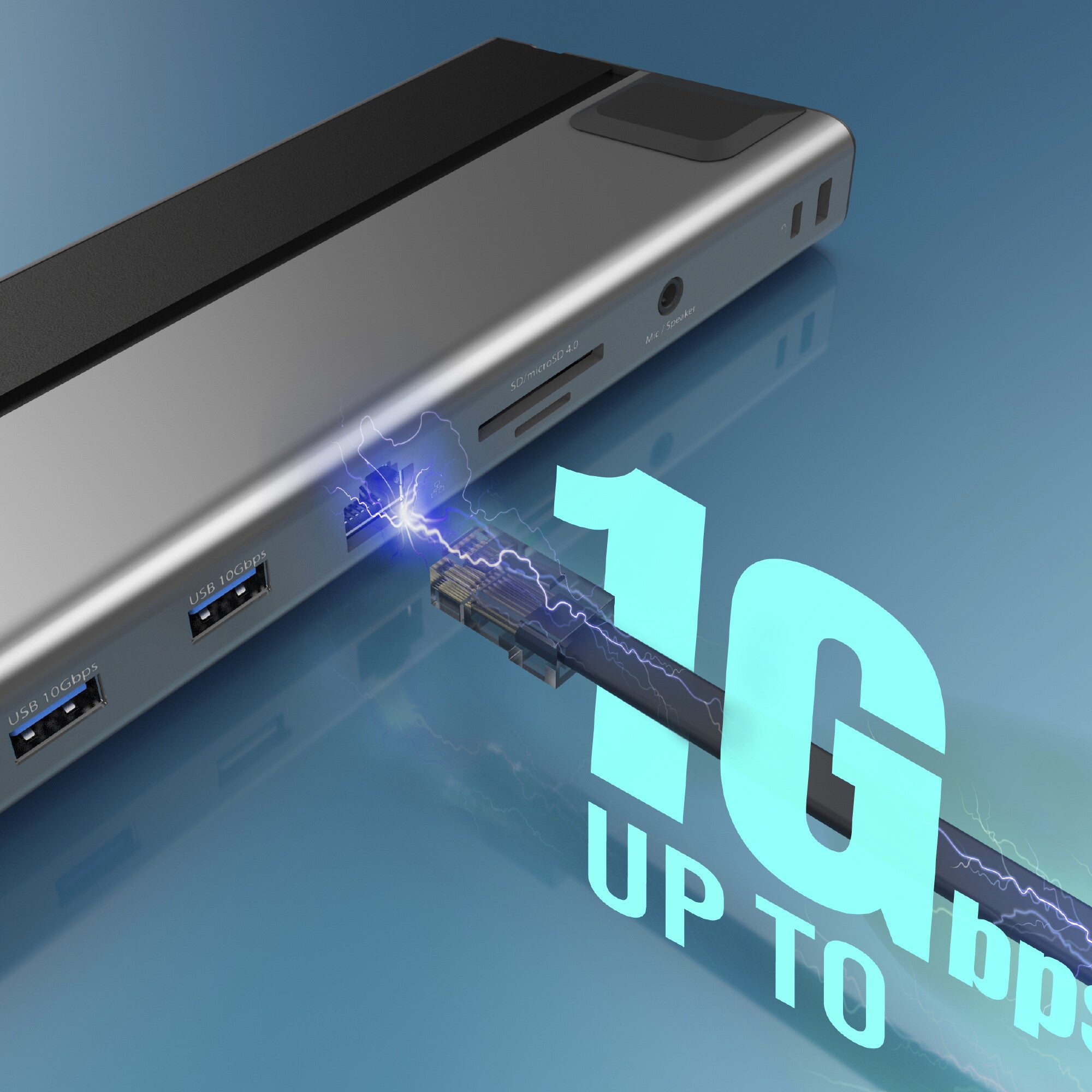

| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Country of origin | Taiwan |
| Plug and Play | Yes |
| Housing material | Aluminium |
| Hub interfaces | USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| Display modes | Extended, Mirror |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |

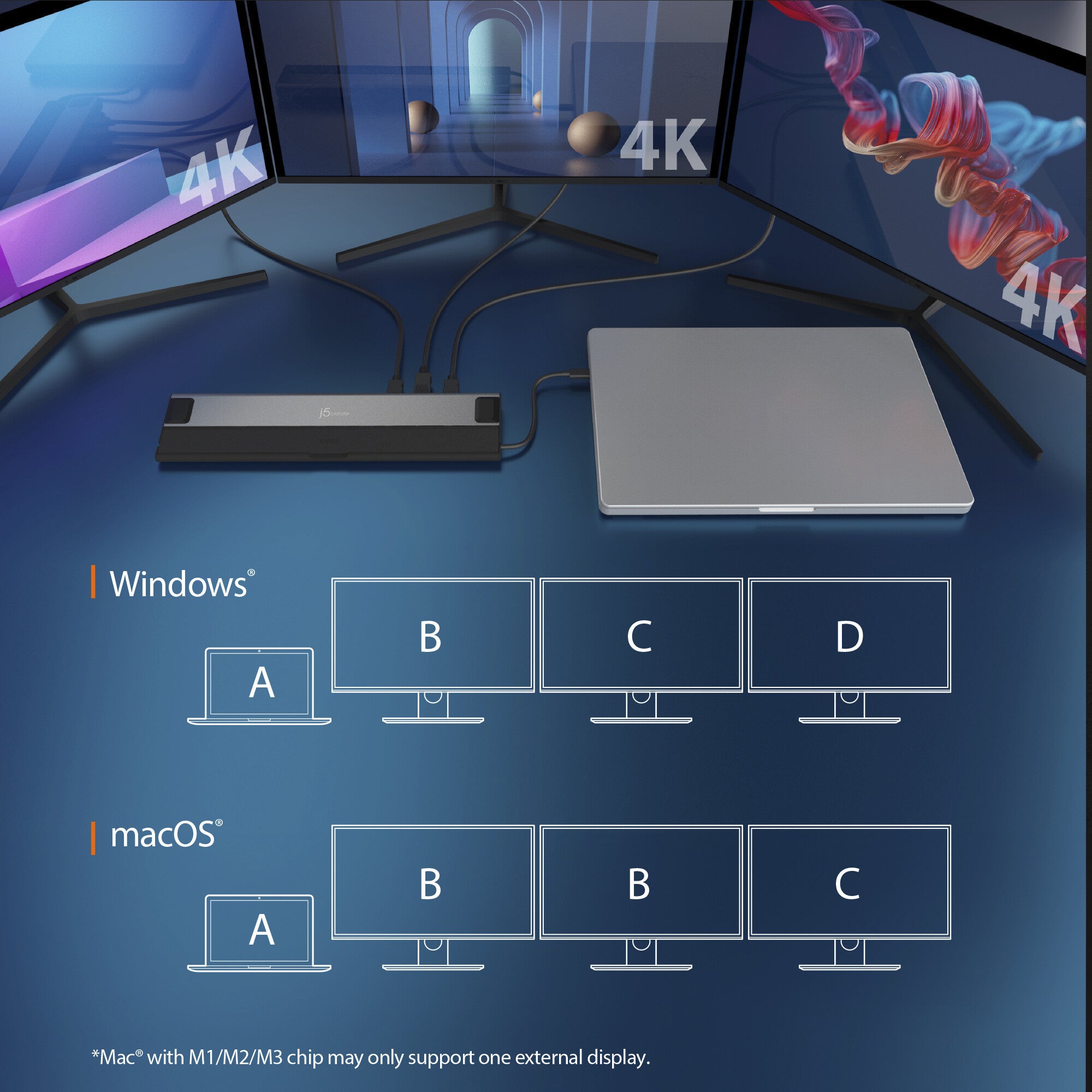

| Number of displays supported | 3 |
| Maximum refresh rate | 144 Hz |
| Maximum digital resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Data transfer rate | 10 Gbit/s |

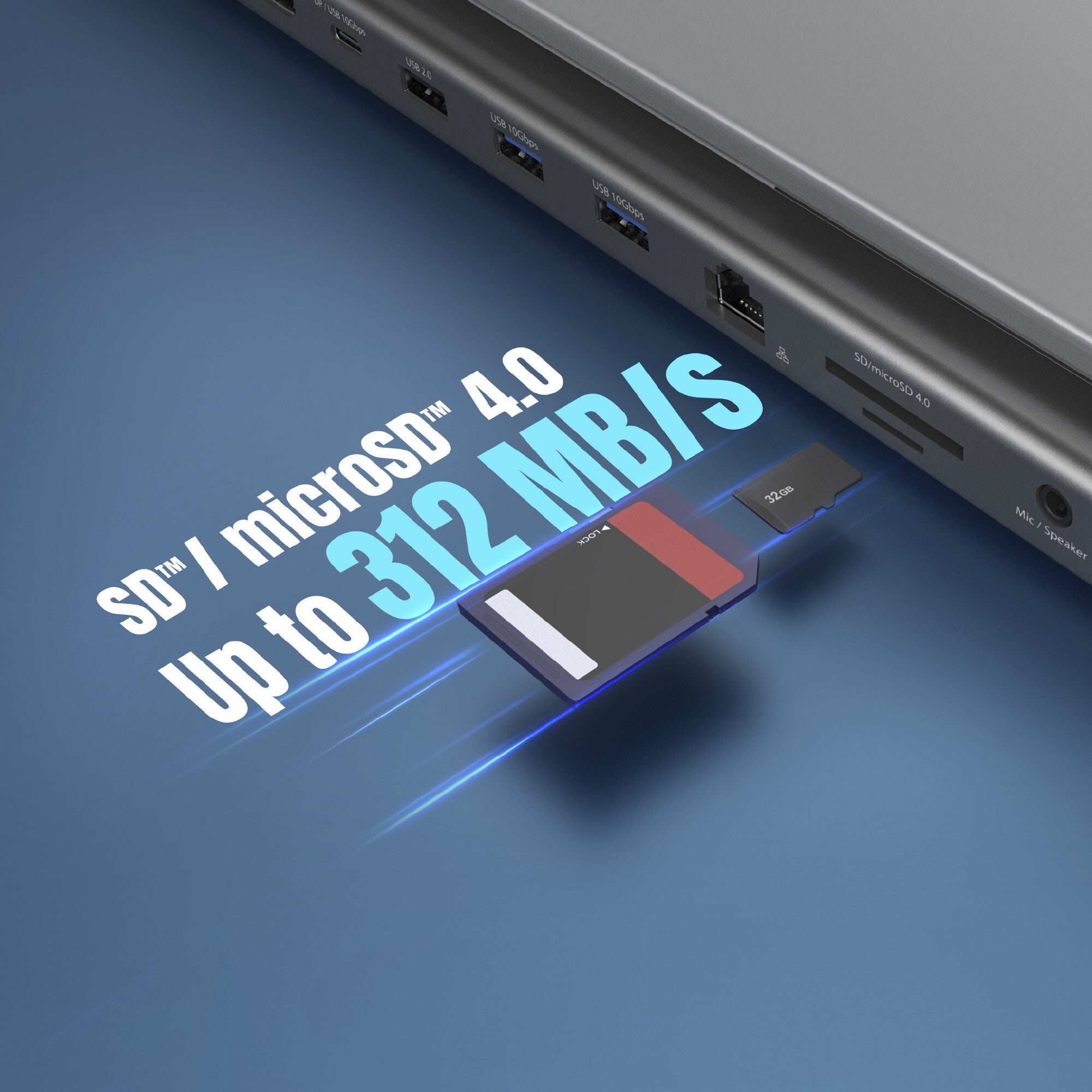

| Compatible memory cards | MicroSD (TransFlash), SD |
| Card reader integrated | Yes |
| Product colour | Black, Grey |
| Power | |
|---|---|
| Power plug type | Type C |
| Power consumption (typical) | 4.5 W |
| Output voltage | 20 V |
| Output current | 4.25 A |
| Input current | 3 A |
| Power source type | USB |
| Software | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 85% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating temperature (T-T) | -1 - 41 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 463 g |
| Height | 81.4 mm |
| Depth | 23.6 mm |
| Width | 344 mm |
| Packaging data | |
|---|---|
| Package weight | 574 g |
| Package height | 28 mm |
| Package depth | 358 mm |
| Package width | 88.3 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Packaging content | 1 - JCD554 USB4® Triple 4K Display Docking Station1 - Quick Installation Guide (QIG)" |
| Quick start guide | Yes |
| Technical details | |
|---|---|
| Master (outer) case GTIN (EAN/UPC) | 24712795088186 |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, REACH, RoHS |
| Logistics data | |
|---|---|
| Shipping (inner) case net weight | 1.2 kg |
| Shipping (inner) case height | 9.9 cm |
| Shipping (inner) case length | 38 cm |
| Shipping (inner) case width | 6.6 cm |
| Products per shipping (inner) case | 2 pc(s) |
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case net weight | 2.8 kg |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 150 mm |
| Master (outer) case length | 398 mm |
| Master (outer) case height | 123 mm |
| Other features | |
|---|---|
| Cable length | 0.5 m |
-
