TP-Link AV600 Wi-Fi Powerline Extender
Find Wired and Wireless Network from
Any Outlet with Your Home's Electrical System
300Mbps AV600 Powerline Wi-Fi Extender
Extend Your Network to Any Room Using Existing Powerline
The TL-WPA4220 transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling. With advanced HomePlug AV, TL-WPA4220, an add-on unit, is perfect for further extending the existing powerline network, providing stable and high-speed data transfer rates over a household electric circuit for up to 300 meters. Bringing wired and wireless network simultaneously to anywhere there is a power outlet.

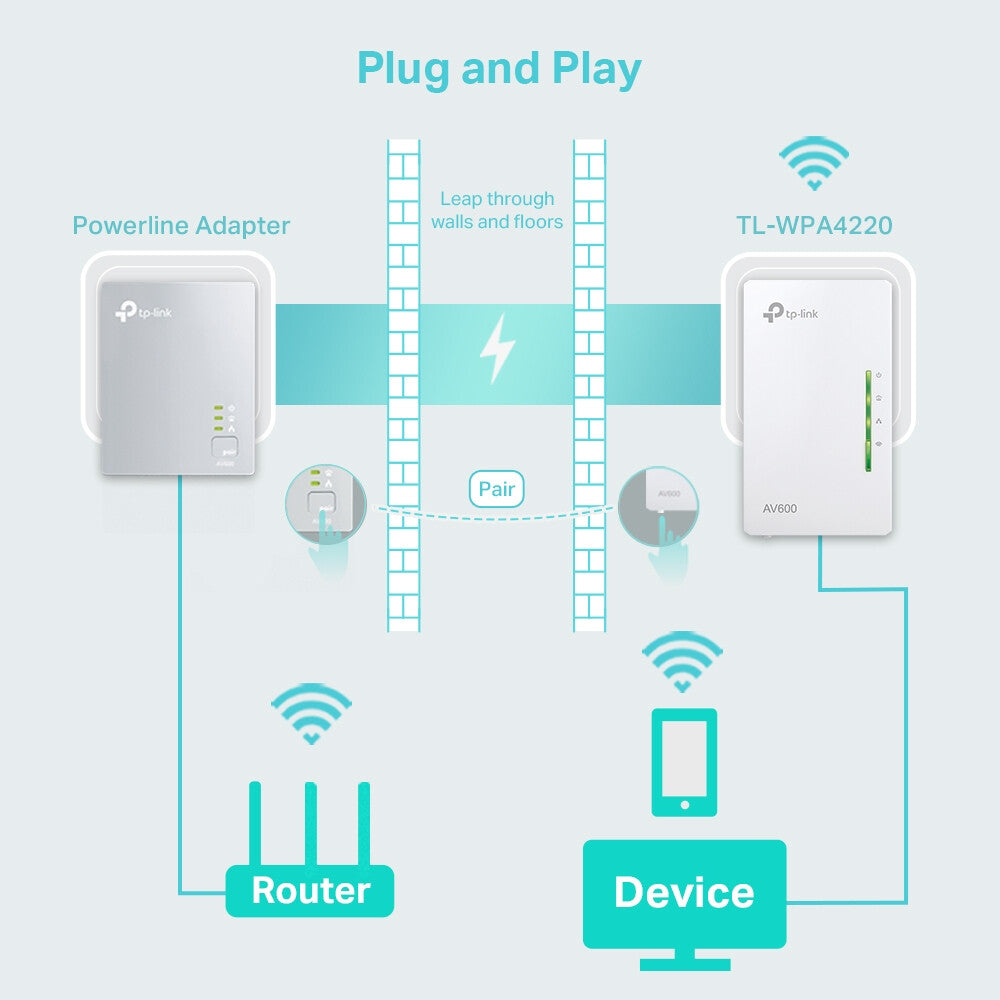

Plug & Play, No Configuration Required
Plug the powerline adapter in the wall and connect it to the router with an Ethernet cable. Then plug the TL-WPA4220 in any desired power outlet. There you go! No configuration is required. Just enjoy the seamless, high speed wired and wireless network.
Pair for More Security
Press the “Pair” button on both adapters to create a more secure network.
Wi-Fi Auto-Sync for Unified Wi-Fi Network
Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

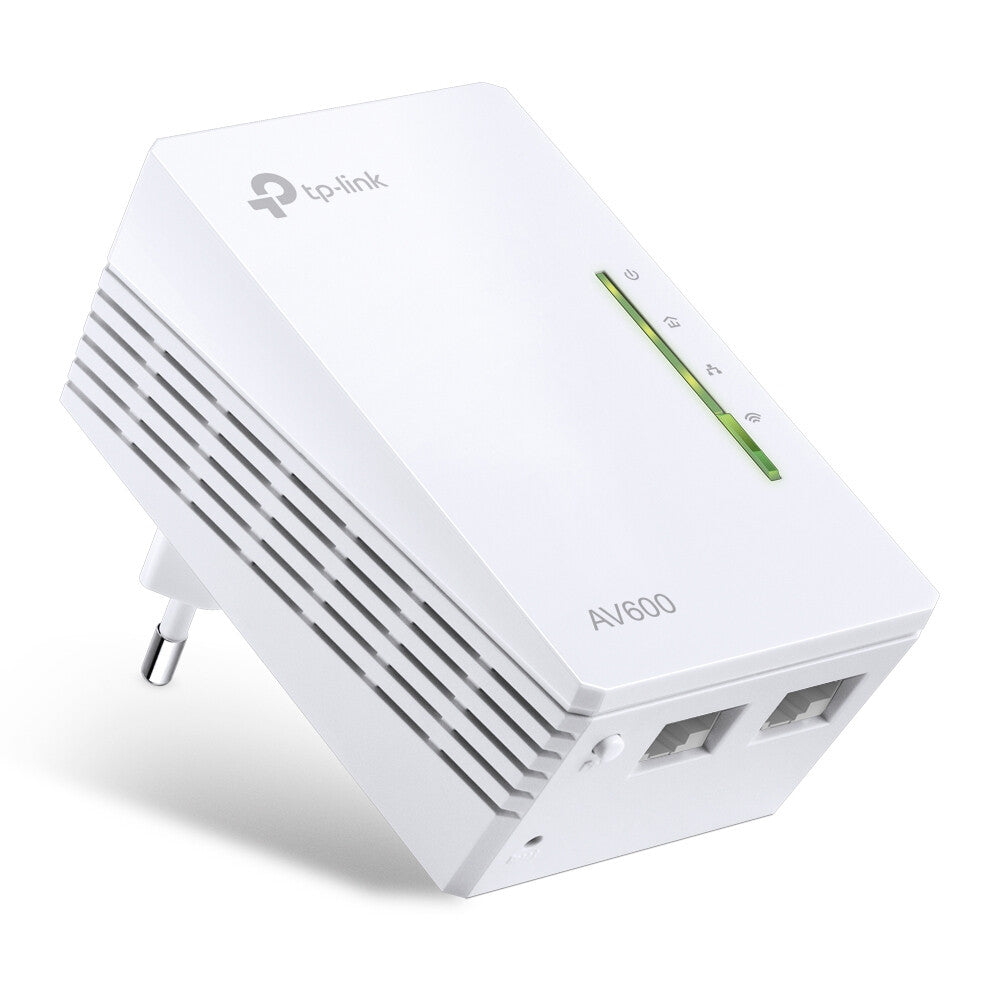

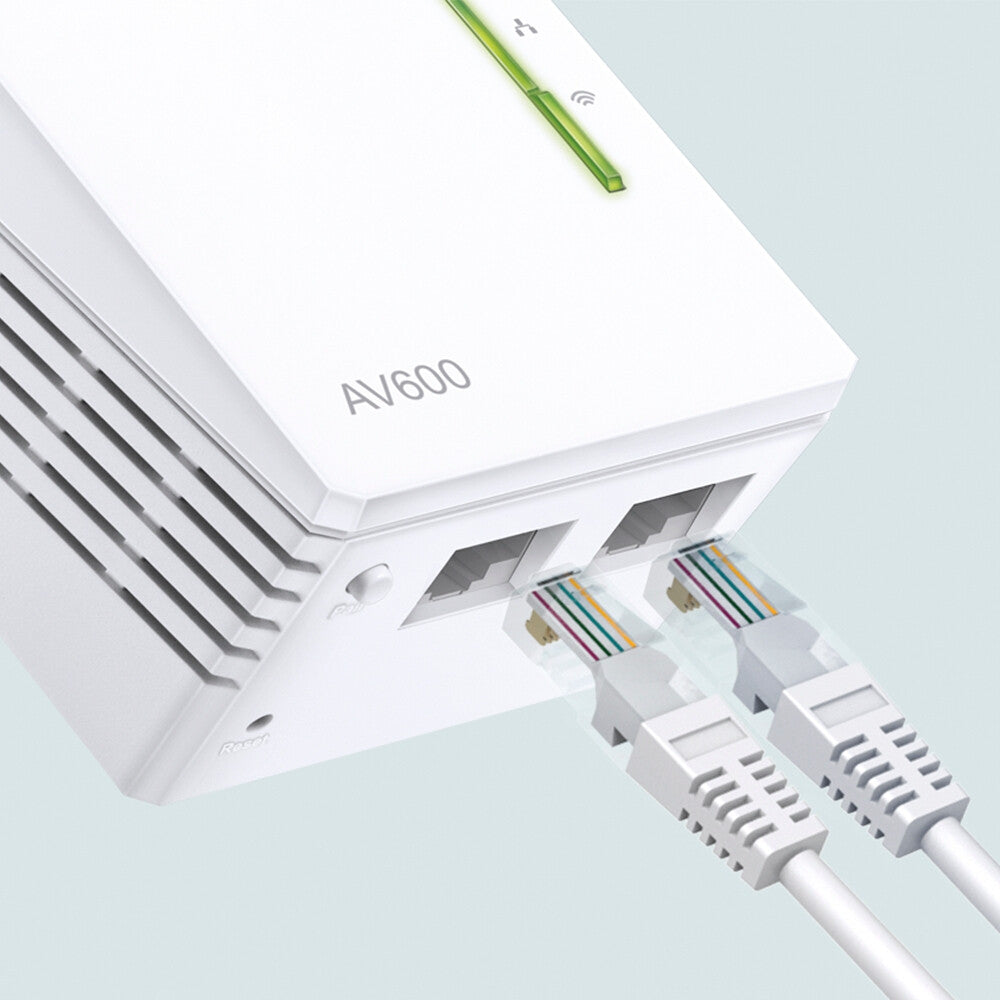

Two Fast Ethernet Ports for Wired Connections
With two fast Ethernet ports, the TL-WPA4220 can run multiple high-speed and reliable wired connections at the same time for devices like smart TVs, PCs, and game consoles. One Ethernet cable is included in the box.
Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices.
| Performance | |
|---|---|
| Maximum operating distance | 300 m |
| Security algorithms | 64-bit WEP, 128-bit WEP, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Modulation | OFDM |
| PowerLine standard | HomePlug AV |
| Built-in power socket | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Maximum data transfer rate | 600 Mbit/s |
| Power | |
|---|---|
| Power consumption (typical) | 5.2 W |
| Design | |
|---|---|
| Certification | CE, FCC |
| Product colour | White |
| LED indicators | Yes |
| Antenna type | Internal |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 40 mm |
| Depth | 54 mm |
| Width | 94 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
-
