ASUS ROG CROSSHAIR X870E EXTREME AMD X870E Socket AM5 Extended ATX

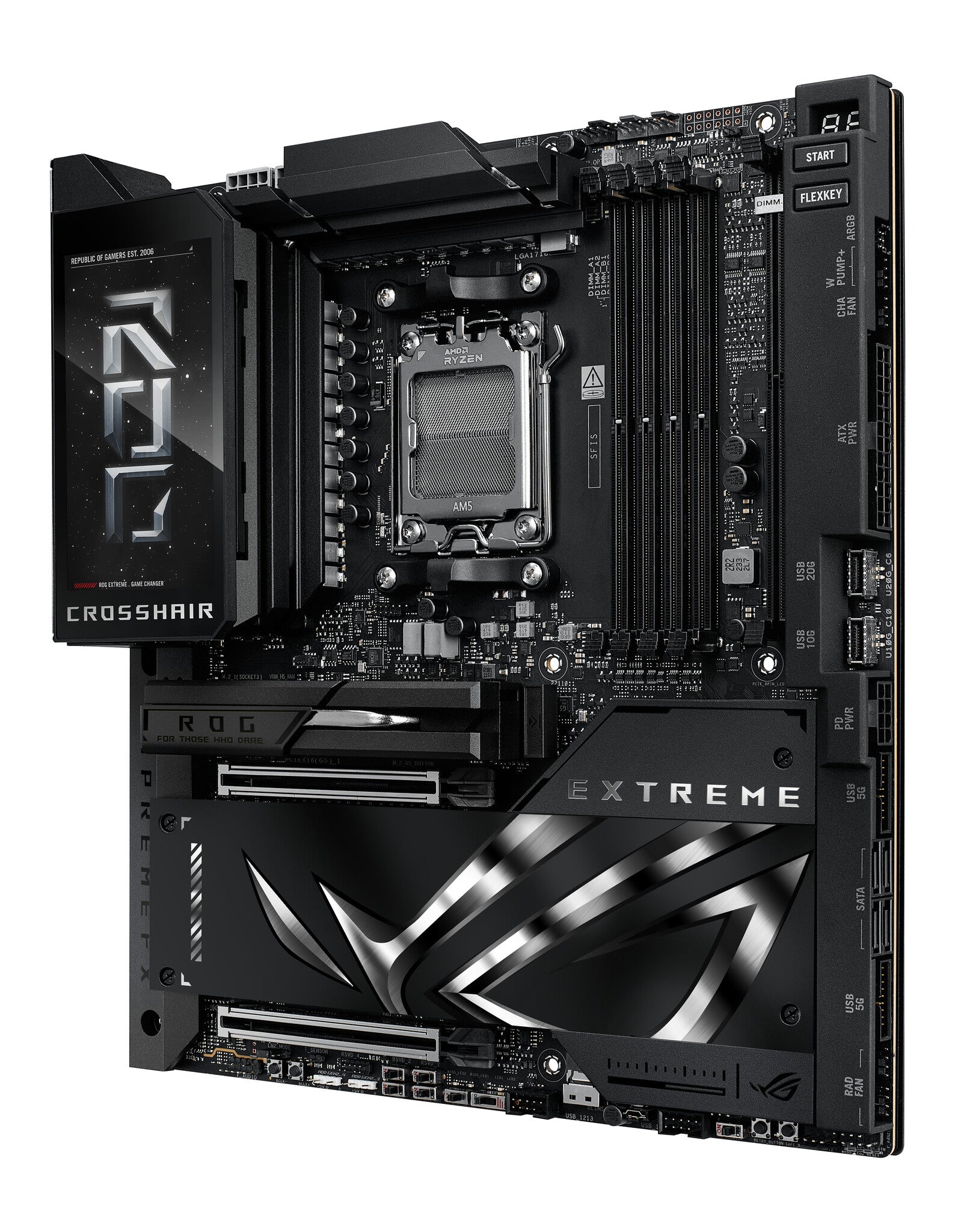

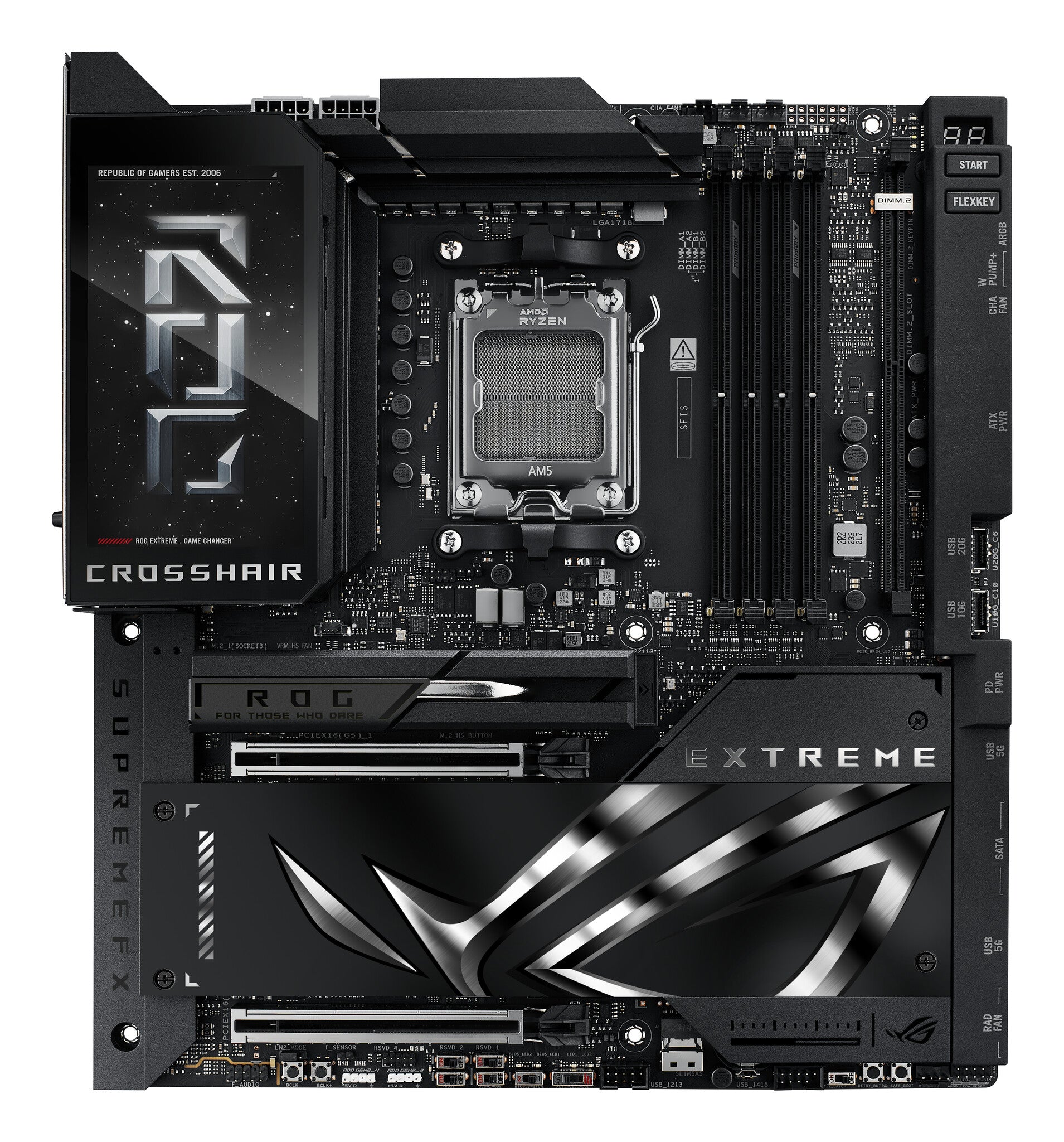

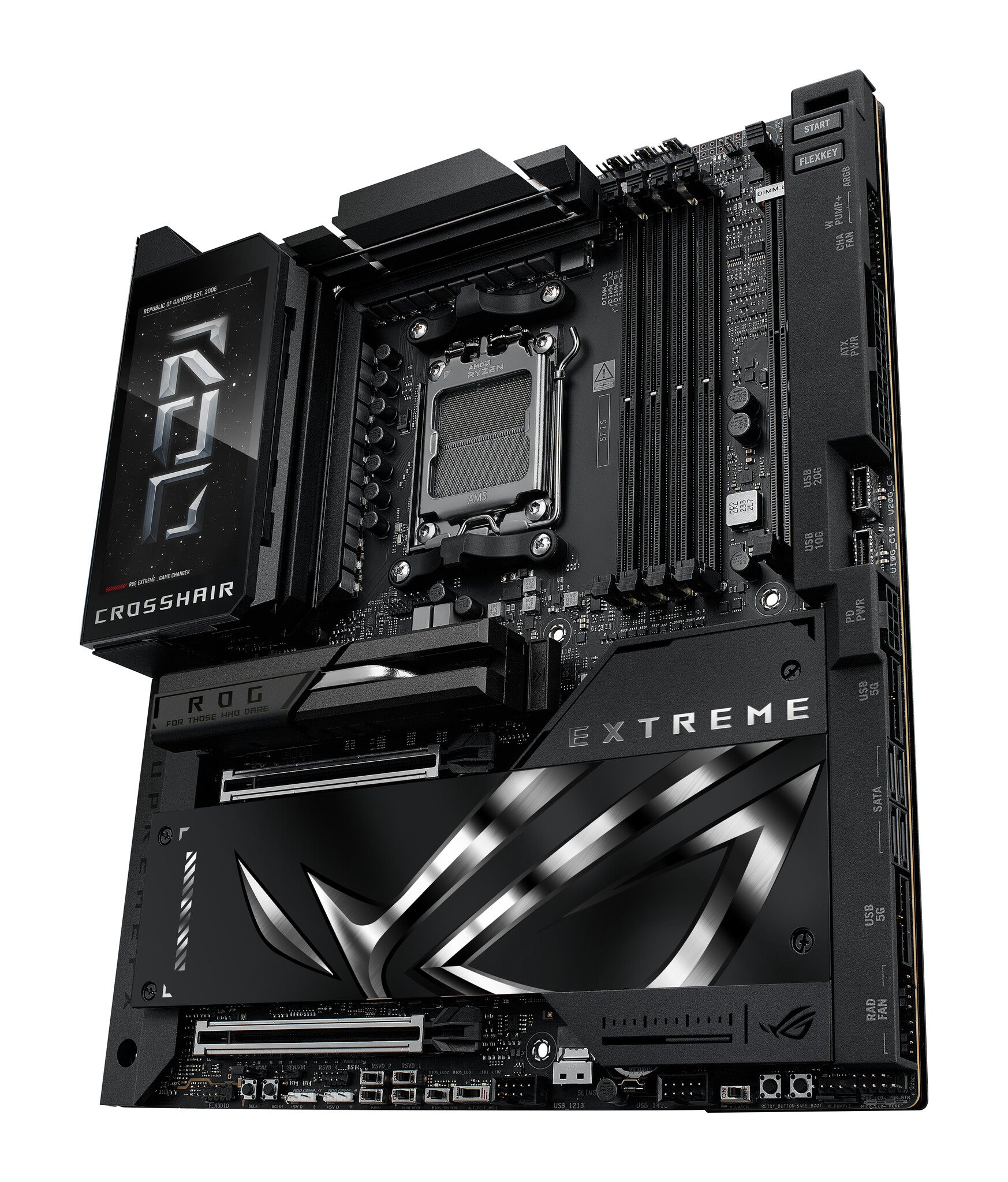

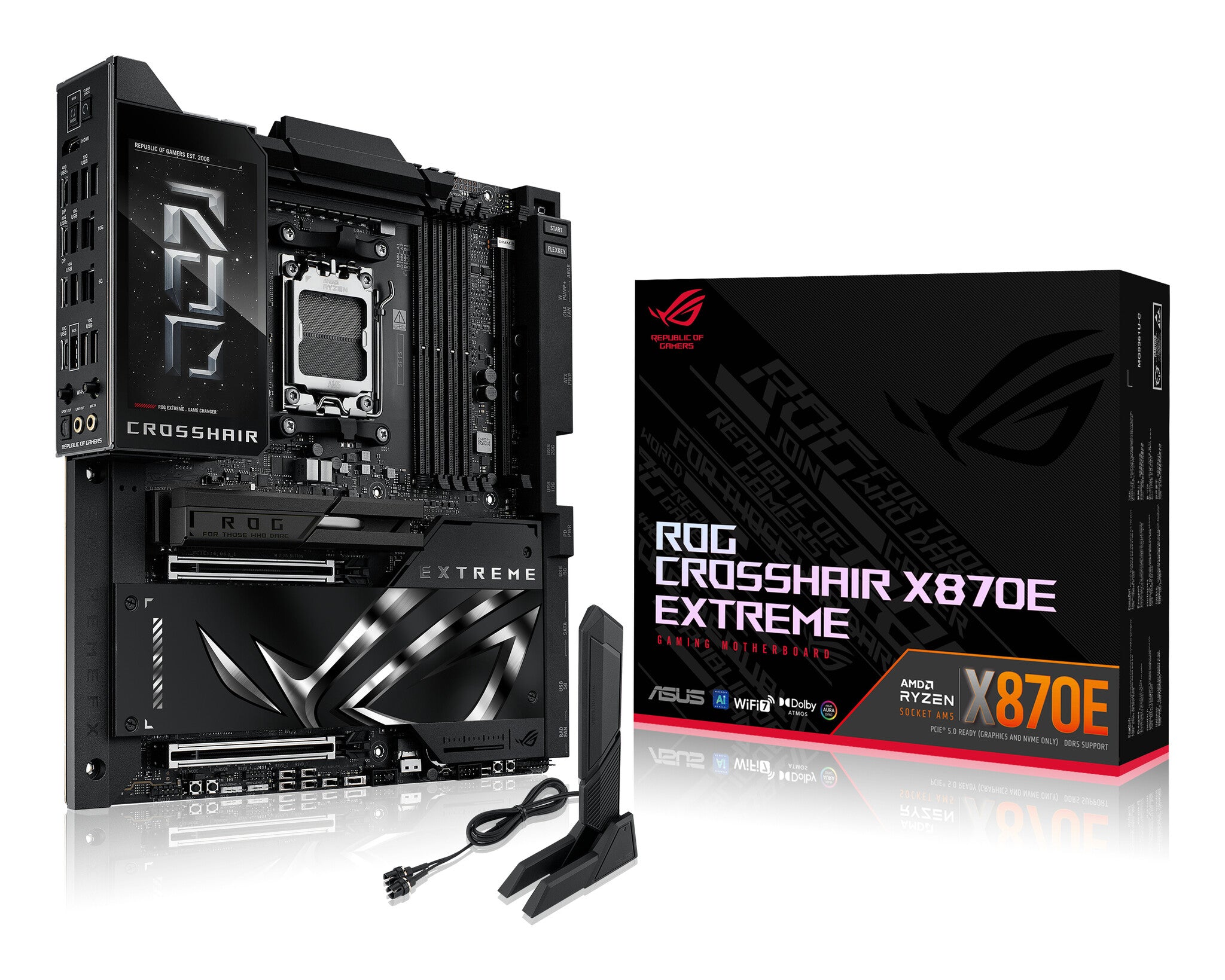

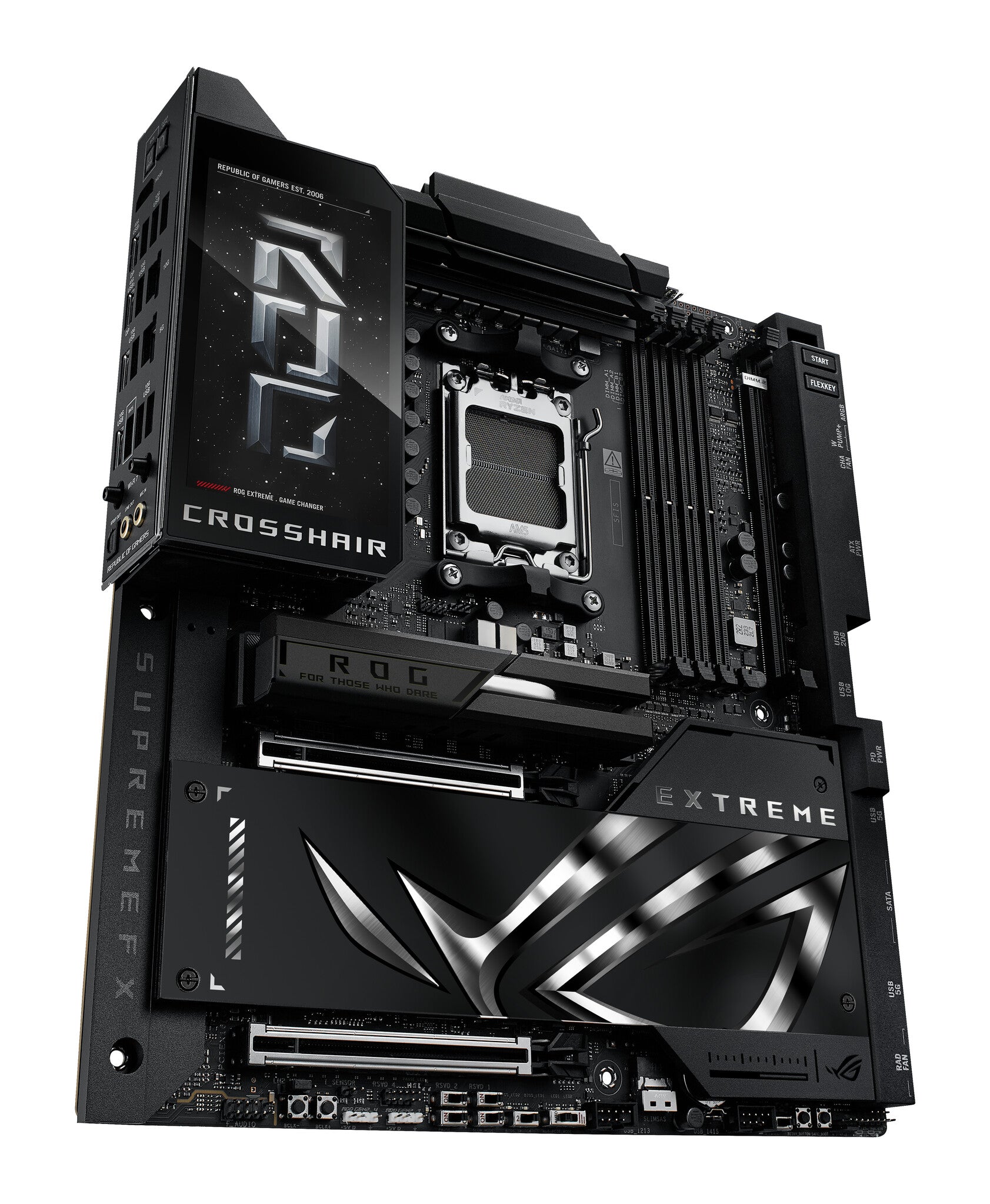

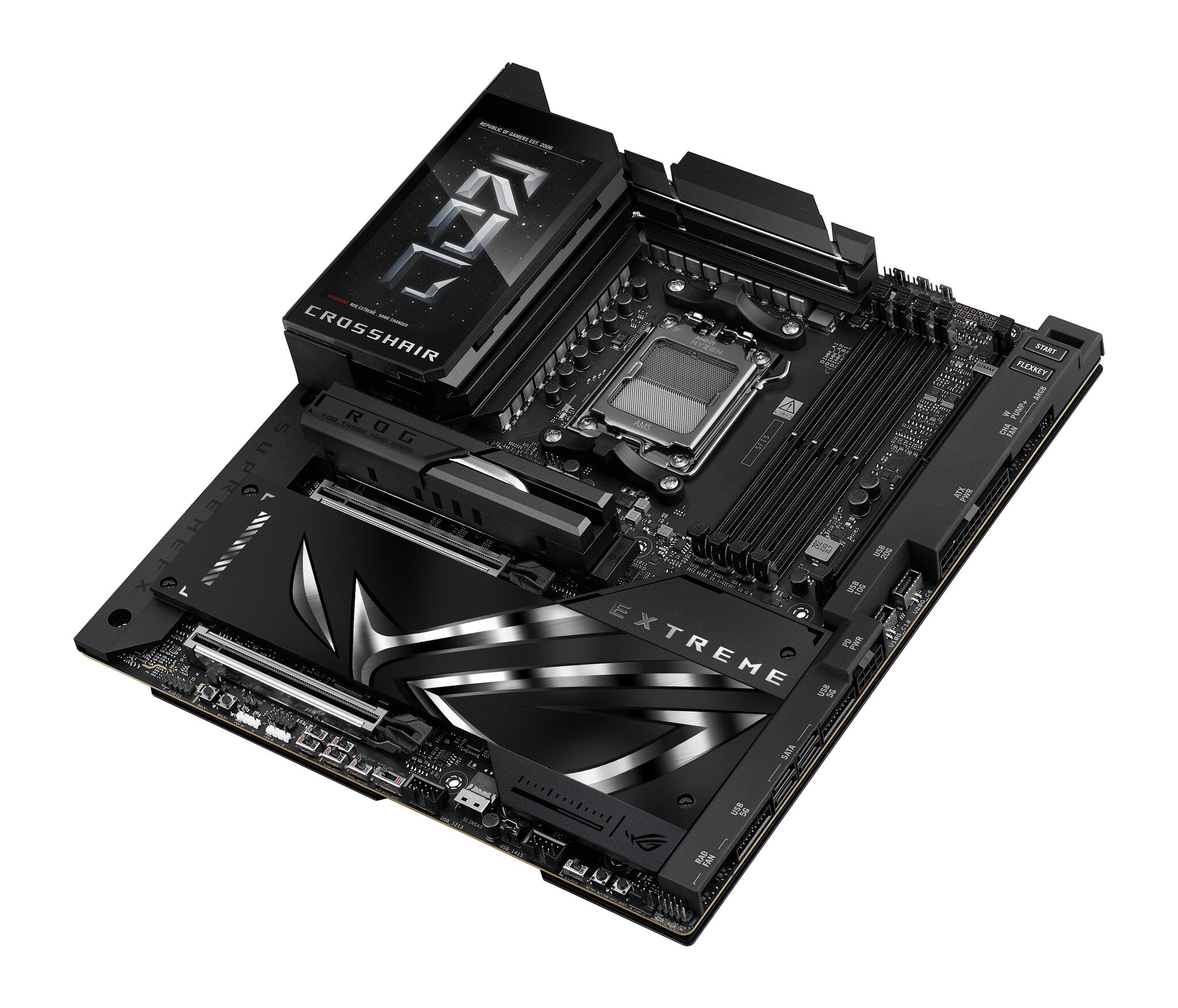

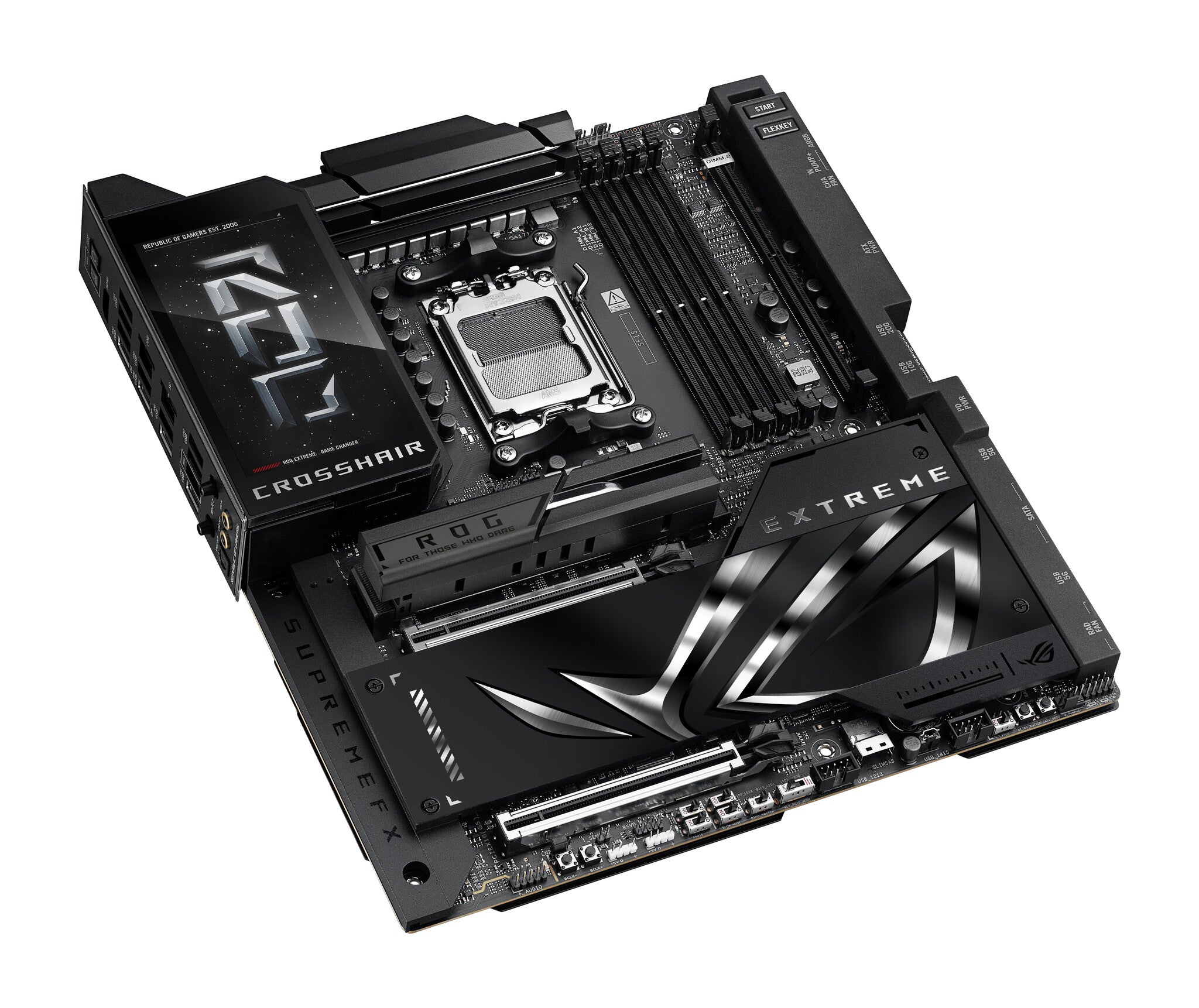

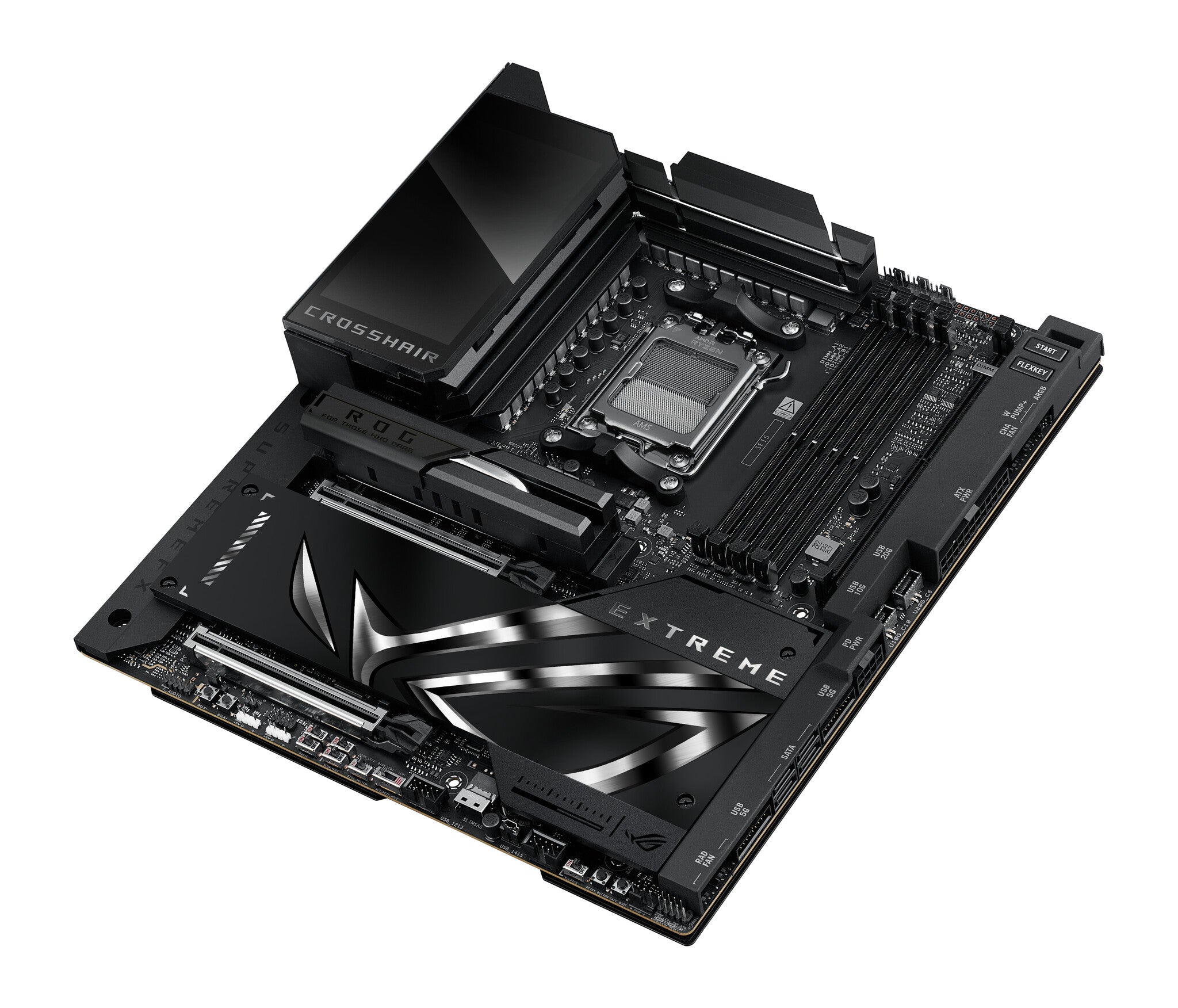

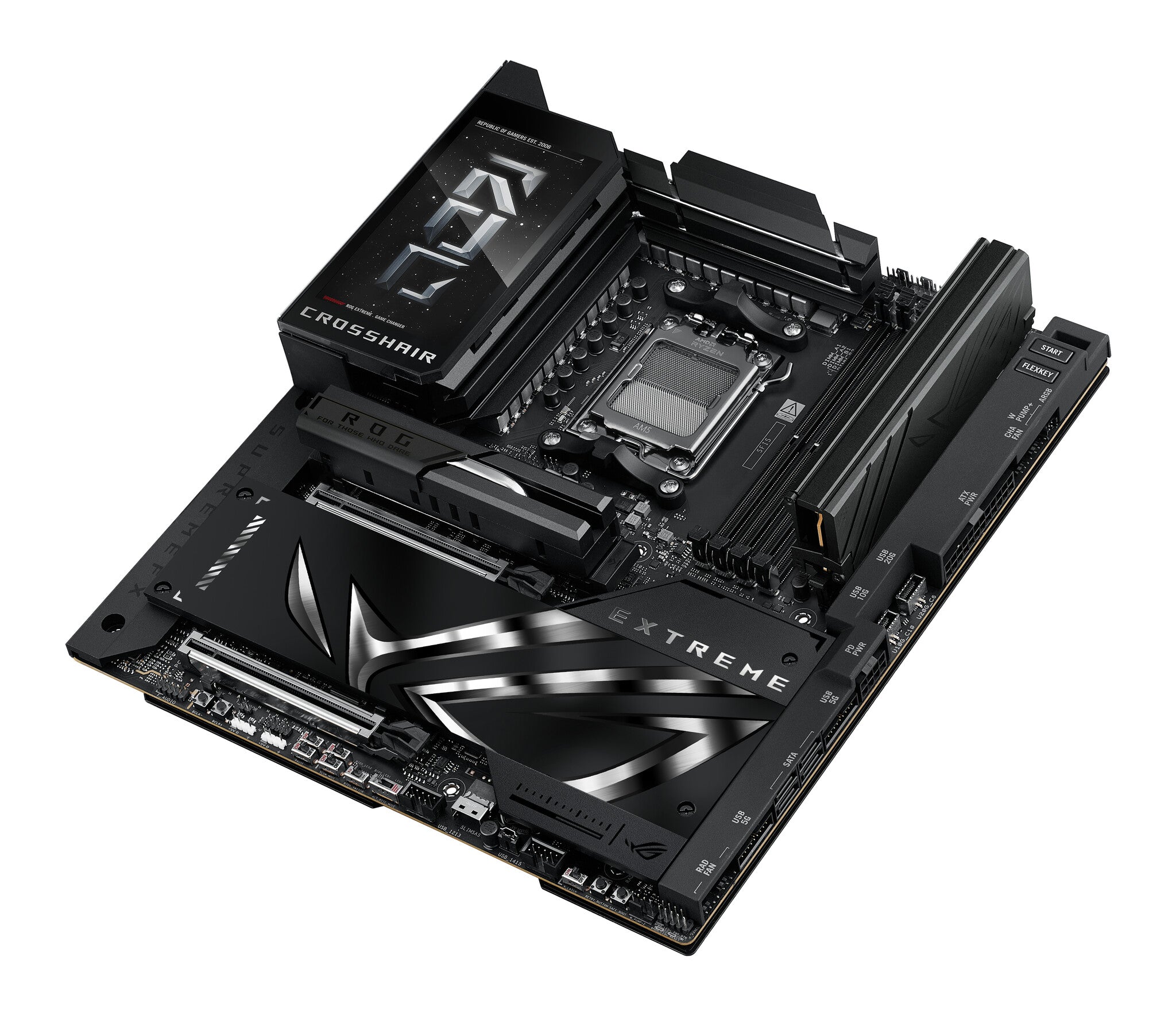

ROG Crosshair X870E Extreme

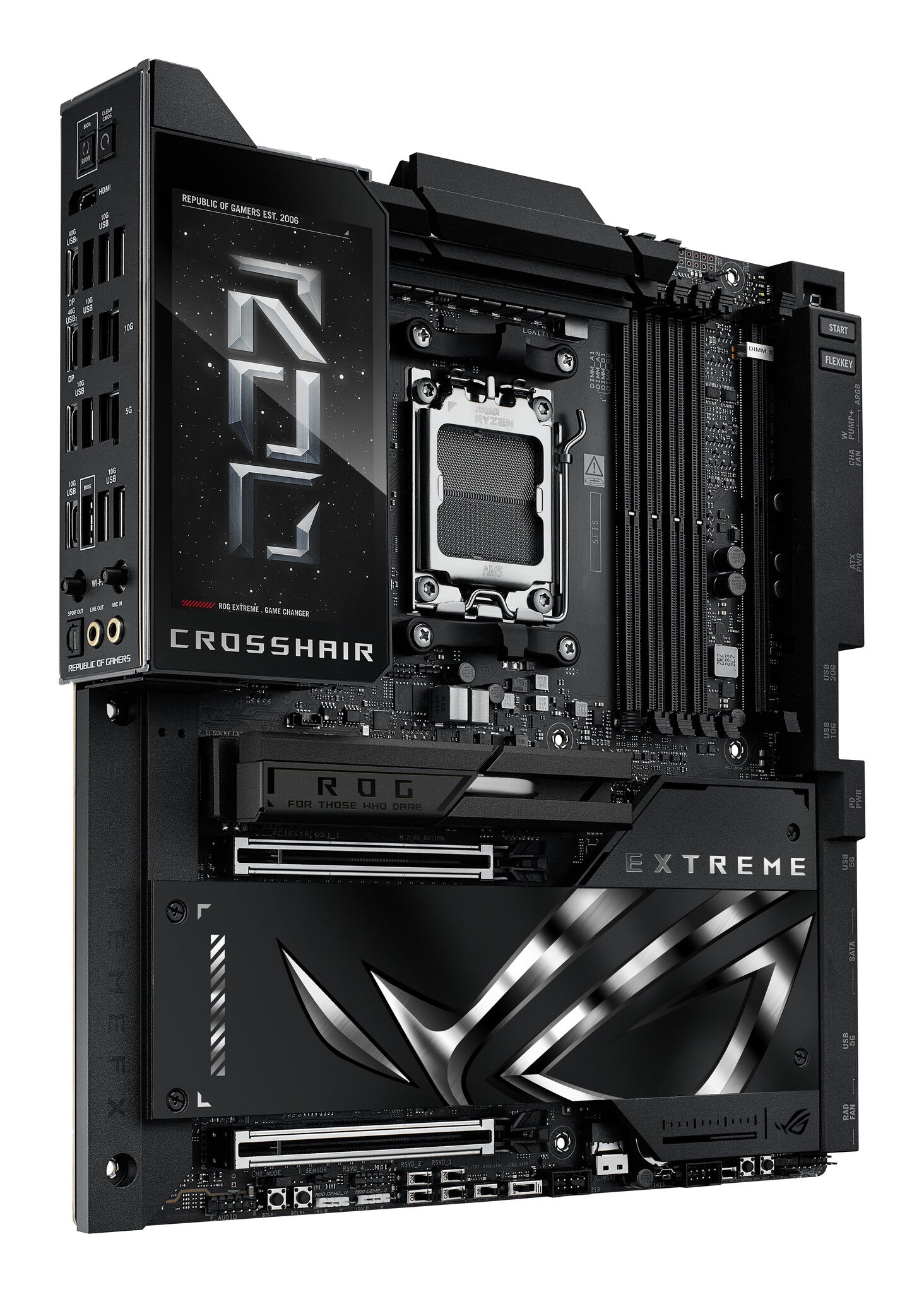

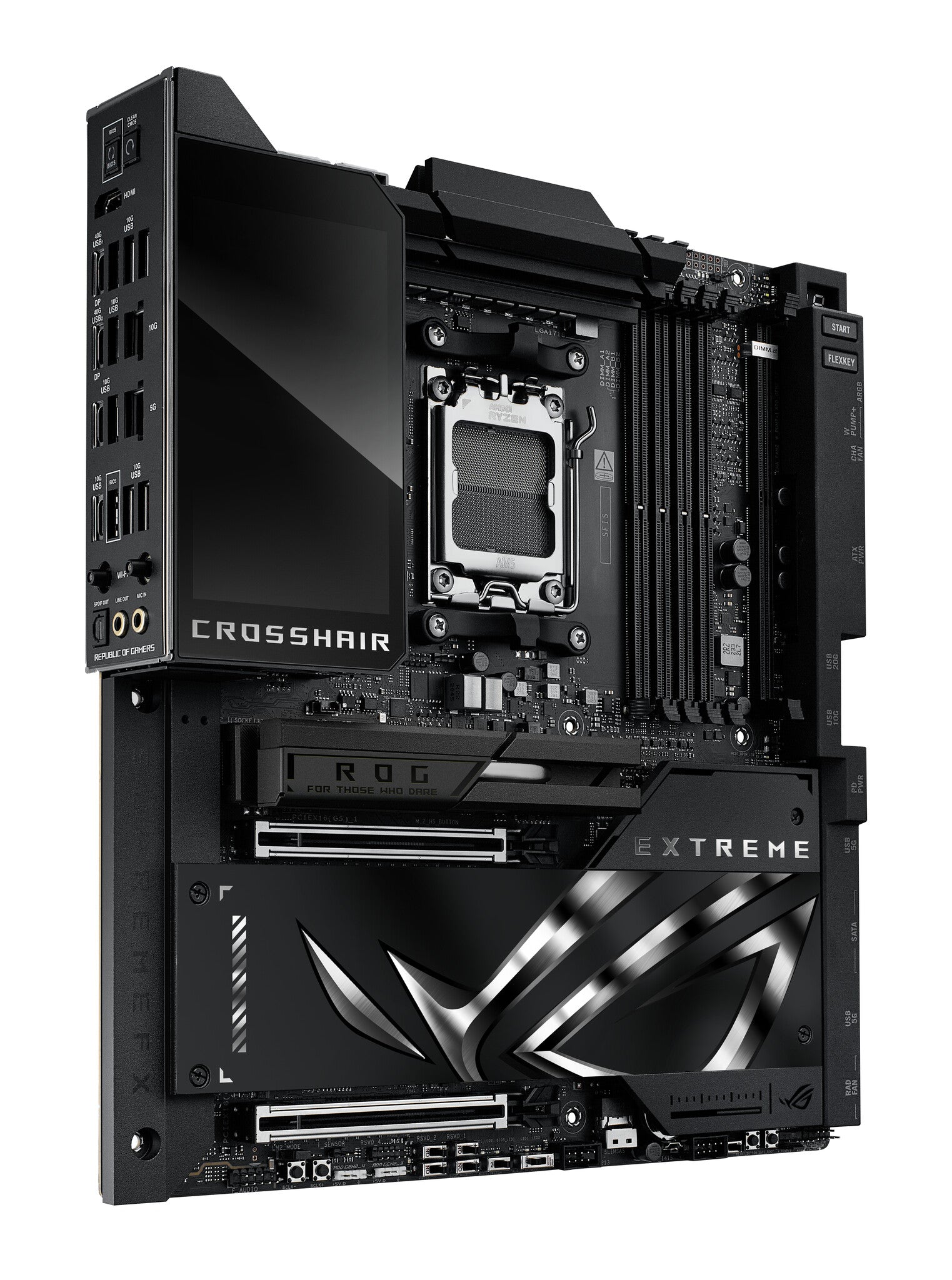

The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |

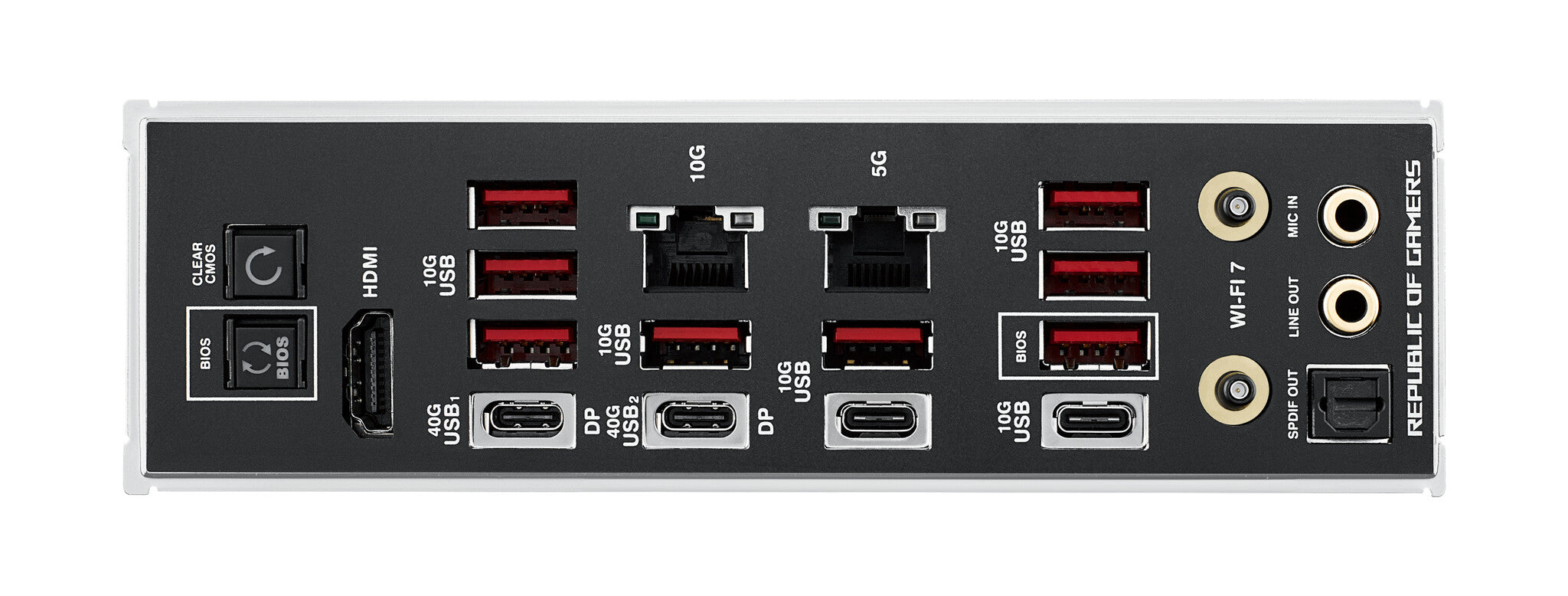

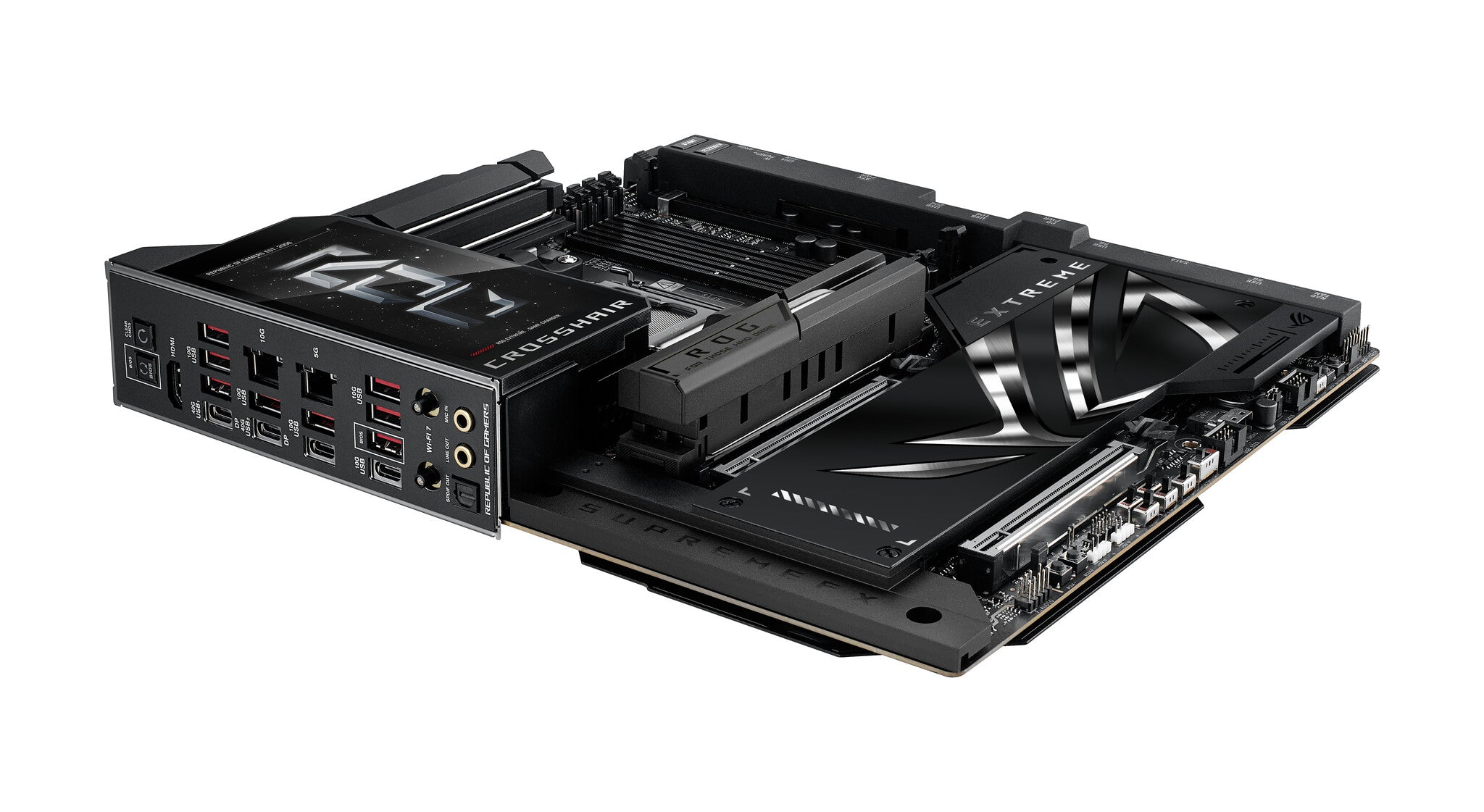

| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Windows operating systems supported | Windows 11 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 5 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 22110 |
| 5th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Packaging data | |
|---|---|
| Package width | 380 mm |
| Package depth | 320 mm |
| Package height | 125 mm |
| Package weight | 5.66 kg |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 277 mm |

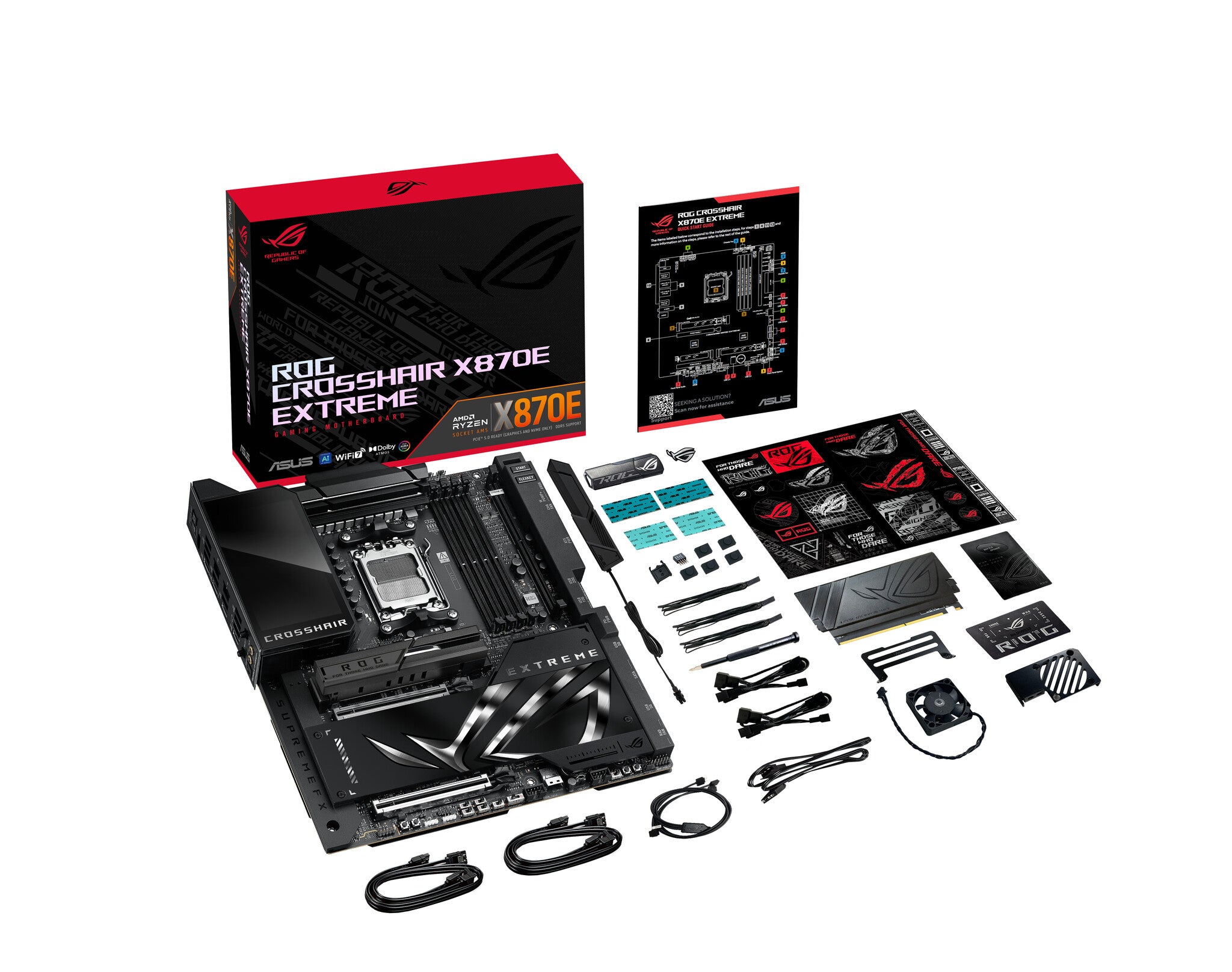

| Packaging content | |
|---|---|

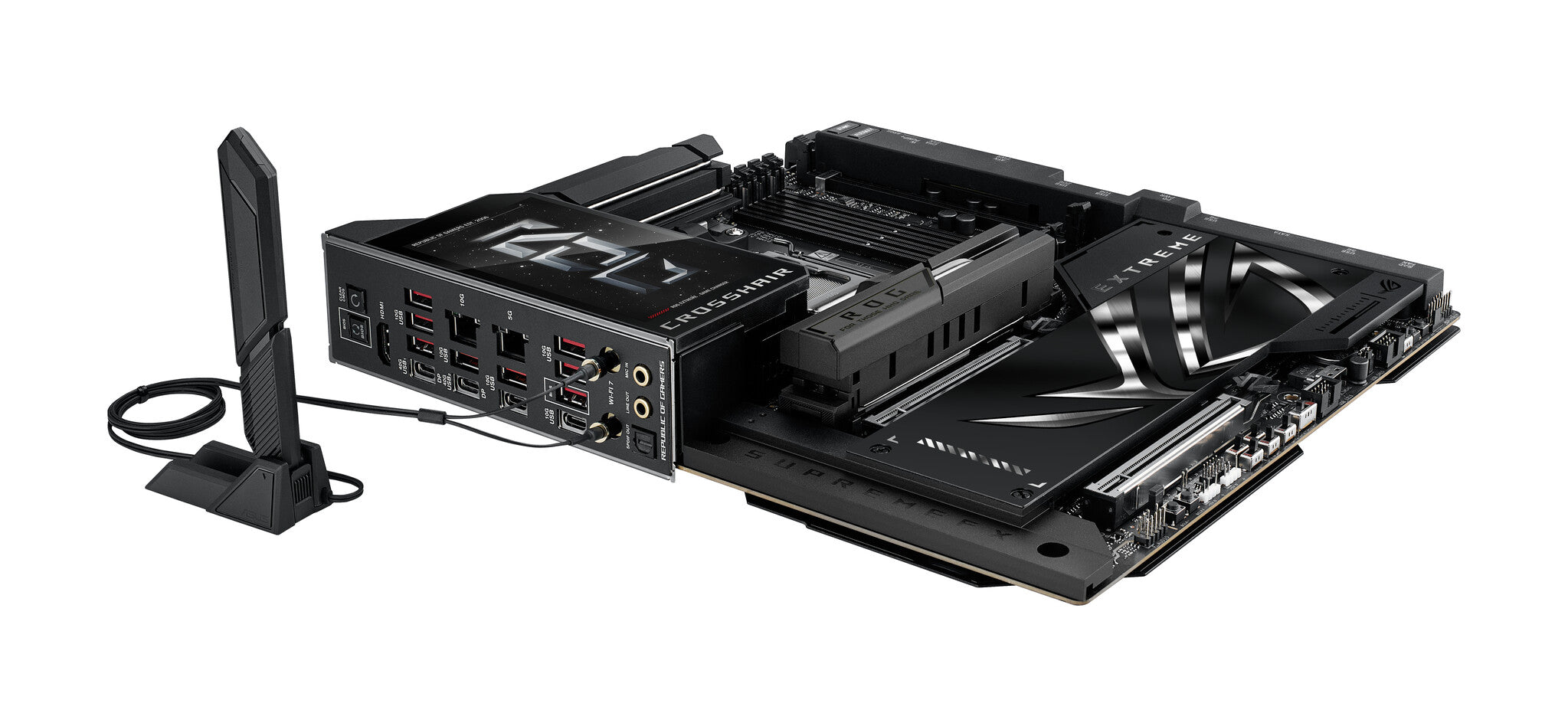

| Antenna included | Yes |
| Cables included | SATA |
| Drivers included | Yes |
| Other features | |
|---|---|
| Audio output |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. |
| Other features | 4 x DIMM slots, max. 256GB, DDR5 Supports up to 8200+MT/s(OC) with Ryzen™ 9000 Series Processors, 9000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP) NitroPath DRAM Technology *Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under theSupport tab of product information site or visit https://www.asus.com/support/download-center/. * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. |
| Special features |
Supports up to 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)** AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870E Chipset DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) SlimSAS connector supports PCIe 4.0 x4 mode via an SFF-8654 adapter cable. The cable is purchased separately. 4 x SATA 6Gb/s ports * Specifications vary by CPU types. ** When M.2_2 is enabled, but M.2_3 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled. ** When M.2_3 is enabled, but M.2_2 is not in use, PCIEX16_1 will run in x8 mode and PCIEX16_2 will run in x4 mode. ** When both M.2_2 and M.2_3 are enabled, PCIEX16_1 will run in x8 mode and PCIEX16_2 will be disabled. |
| Graphics output | 1 x HDMITM port** 2 x USB4® (40Gbps) ports support USB Type-C® display outputs*** * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. ** Supports 4K@60Hz as specified in HDMI 2.1. *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a **** VGA resolution support depends on processors' or graphic cards' resolution. |
-
