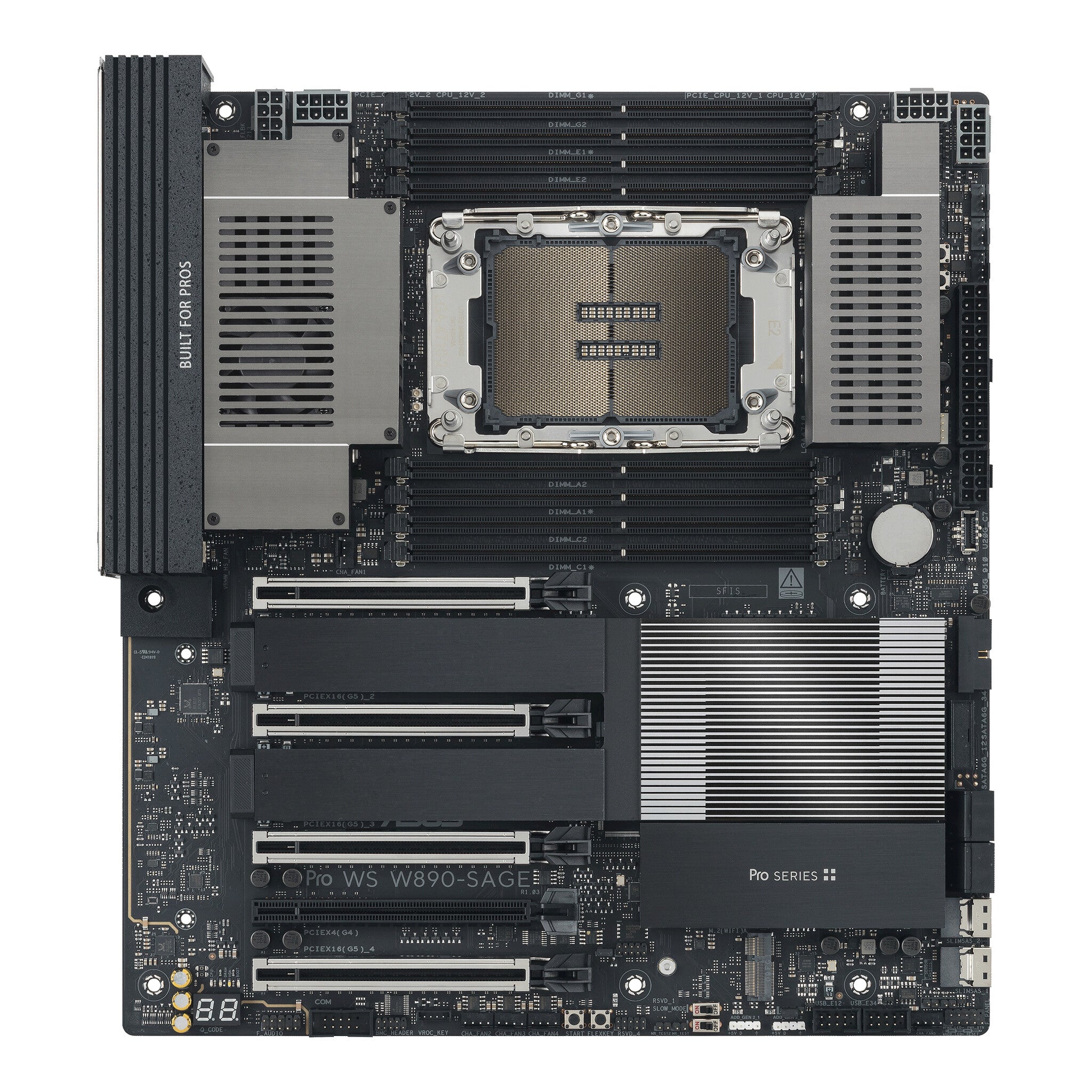

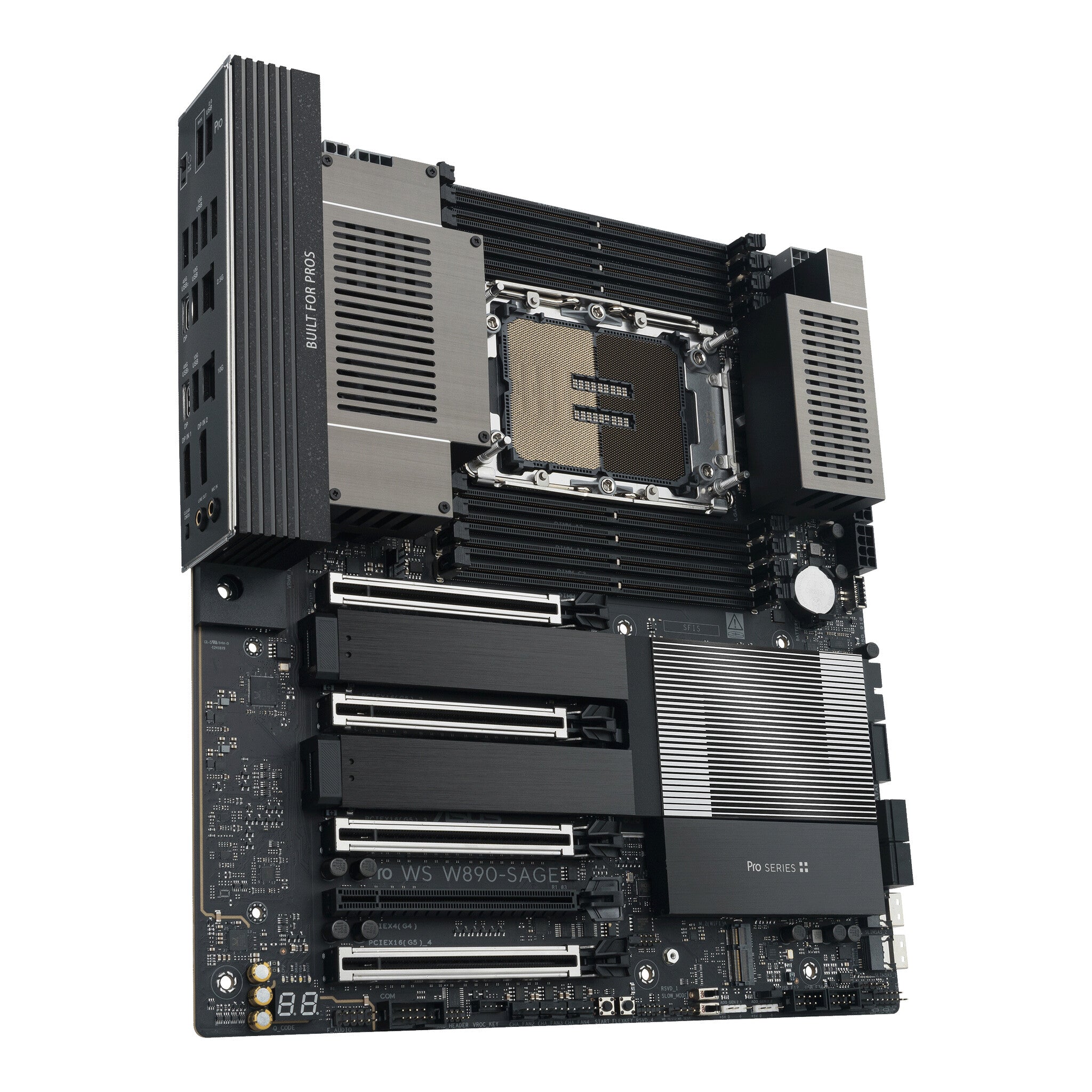

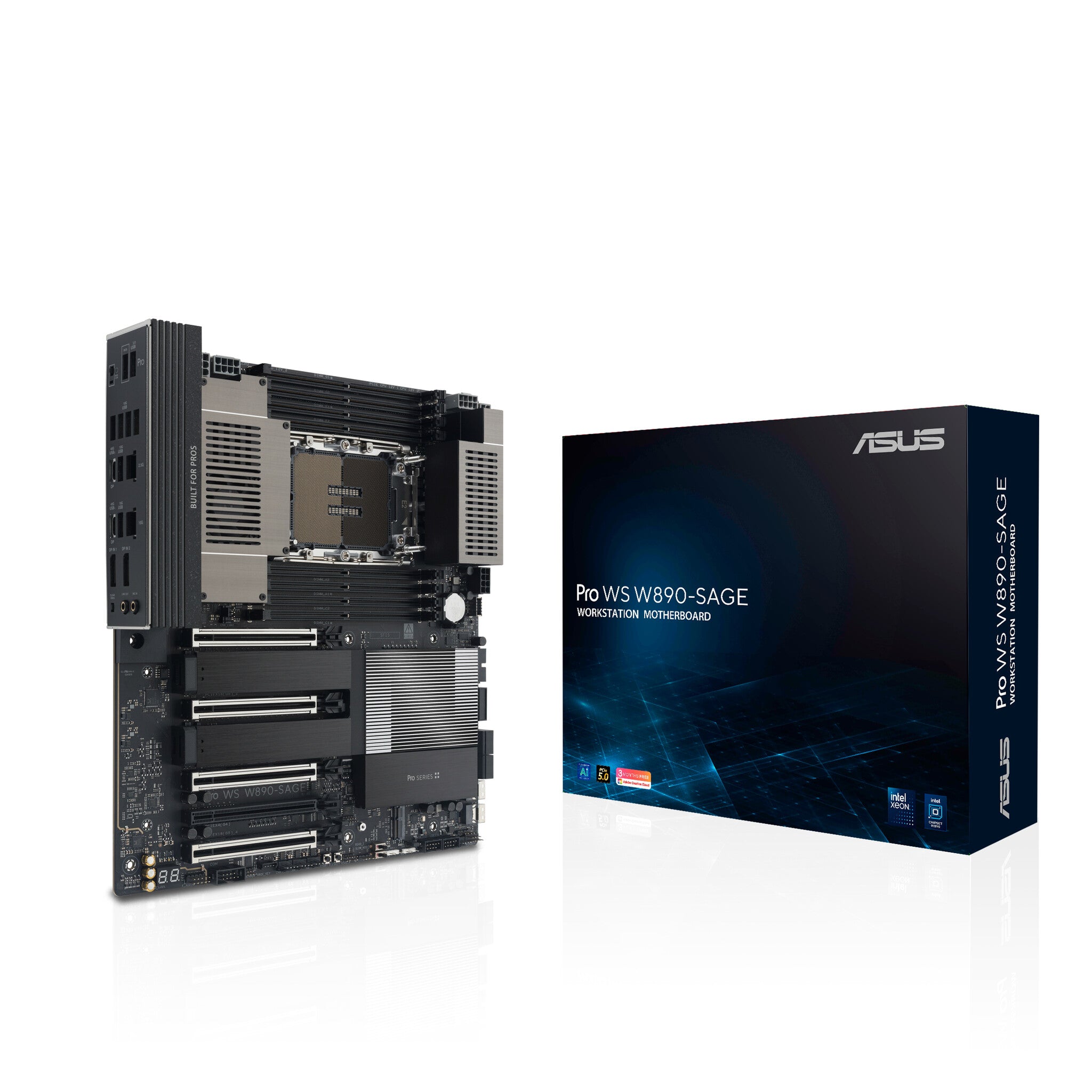

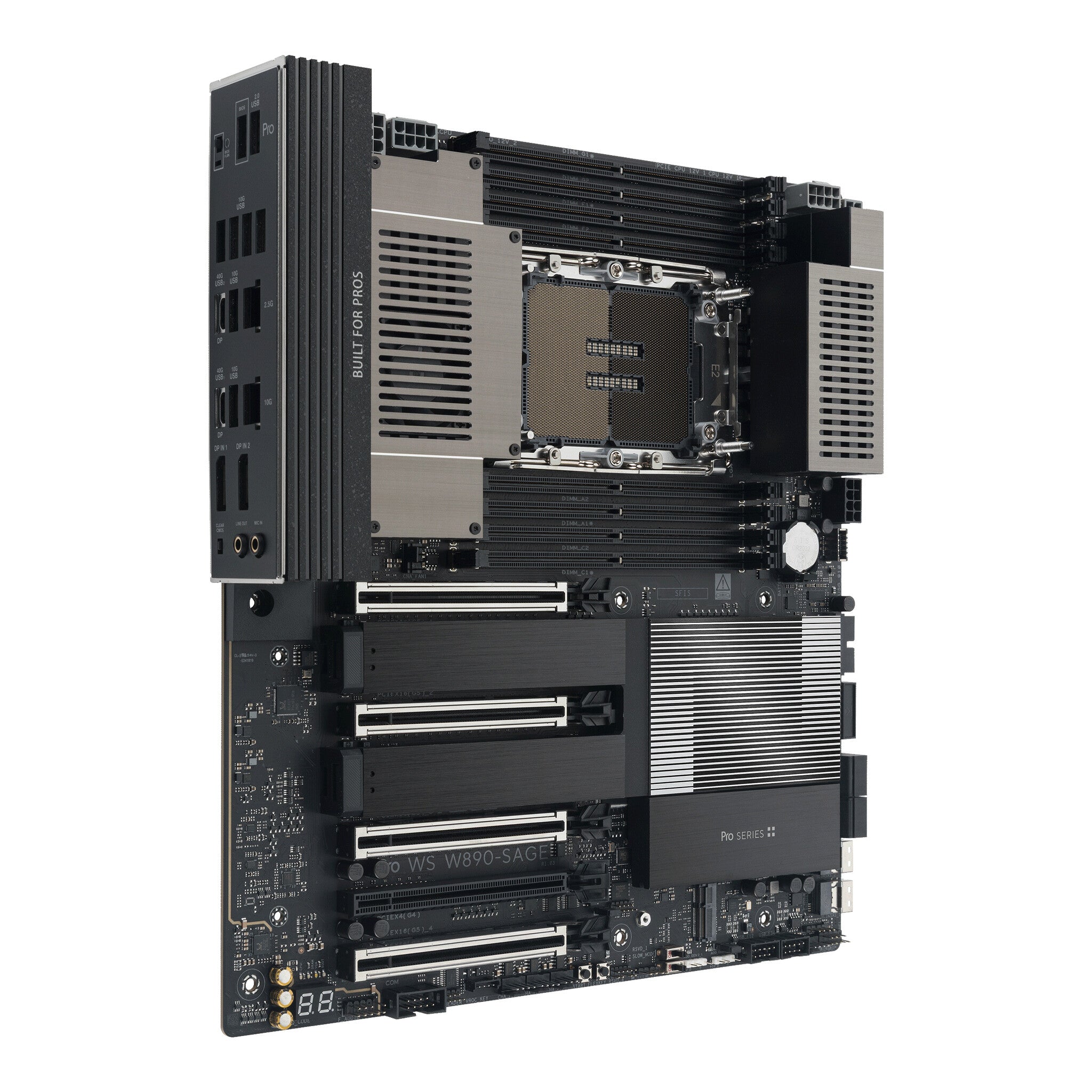

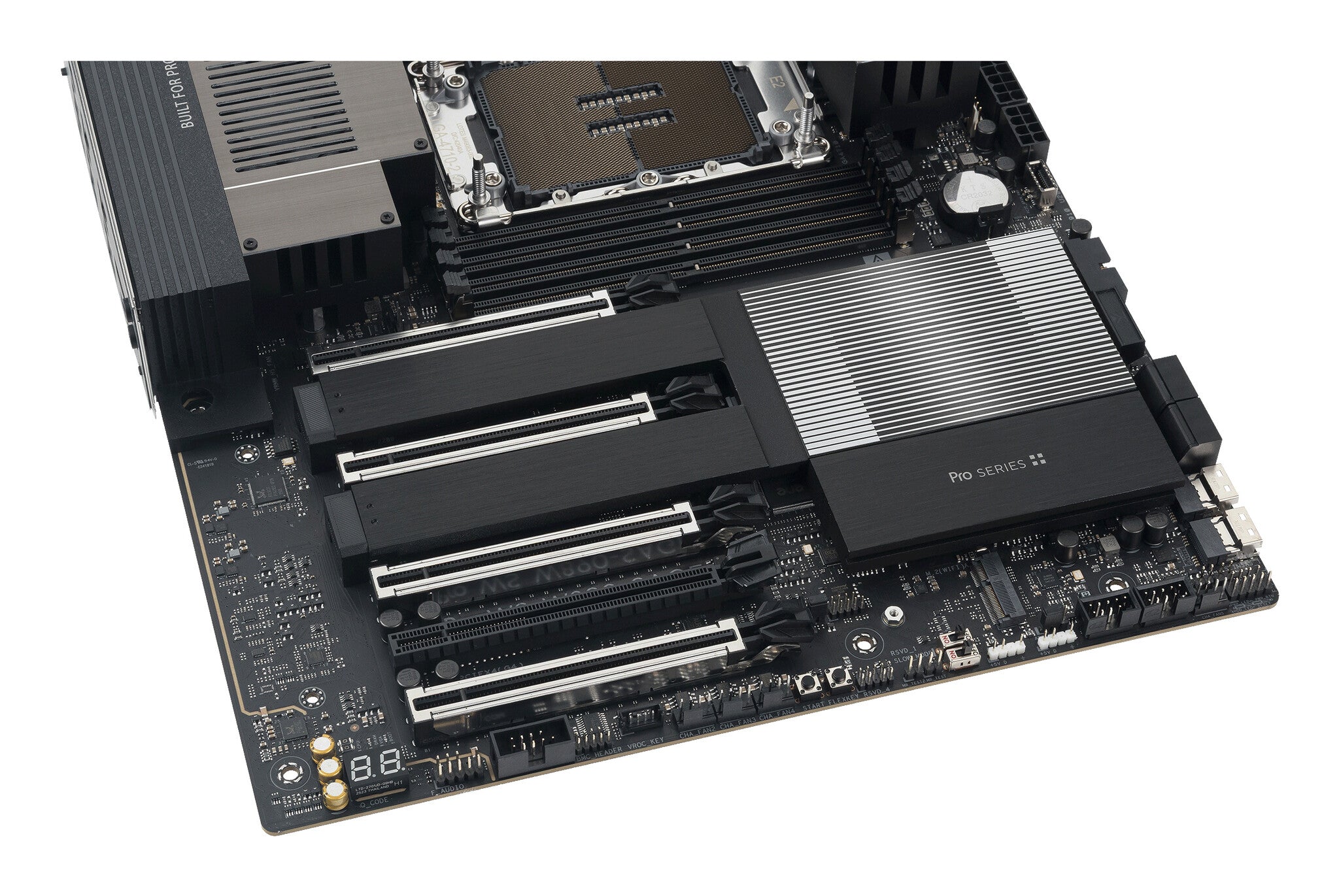

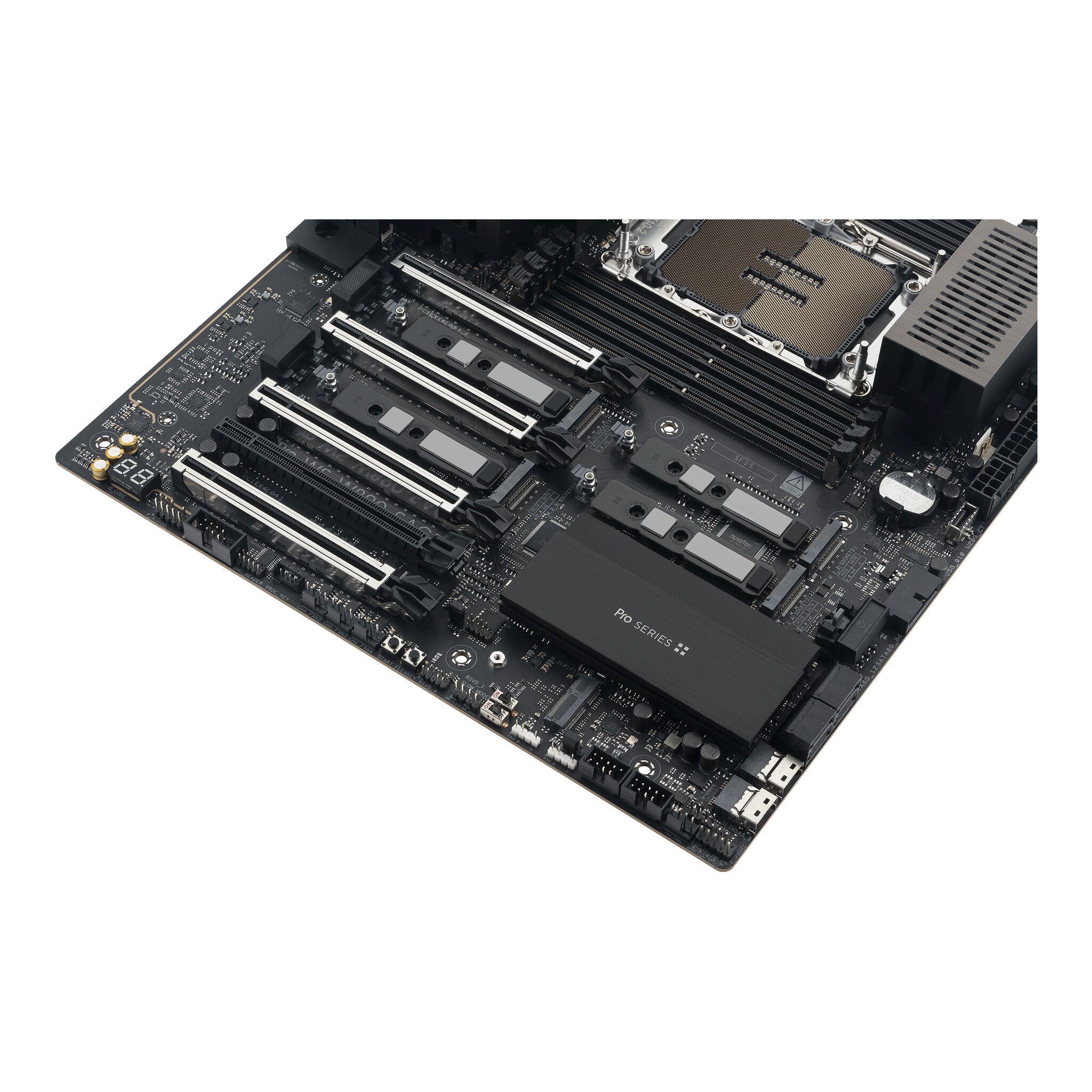

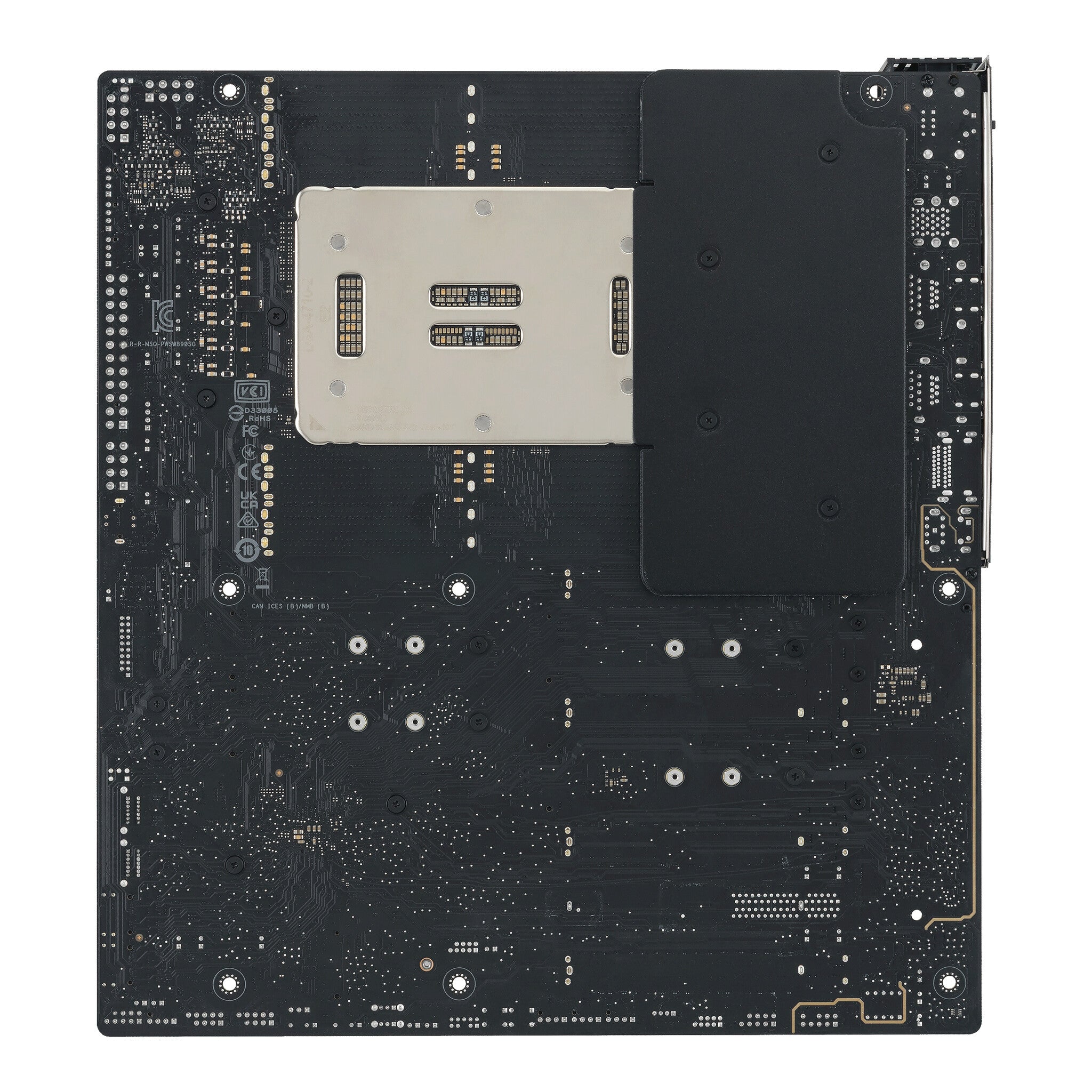

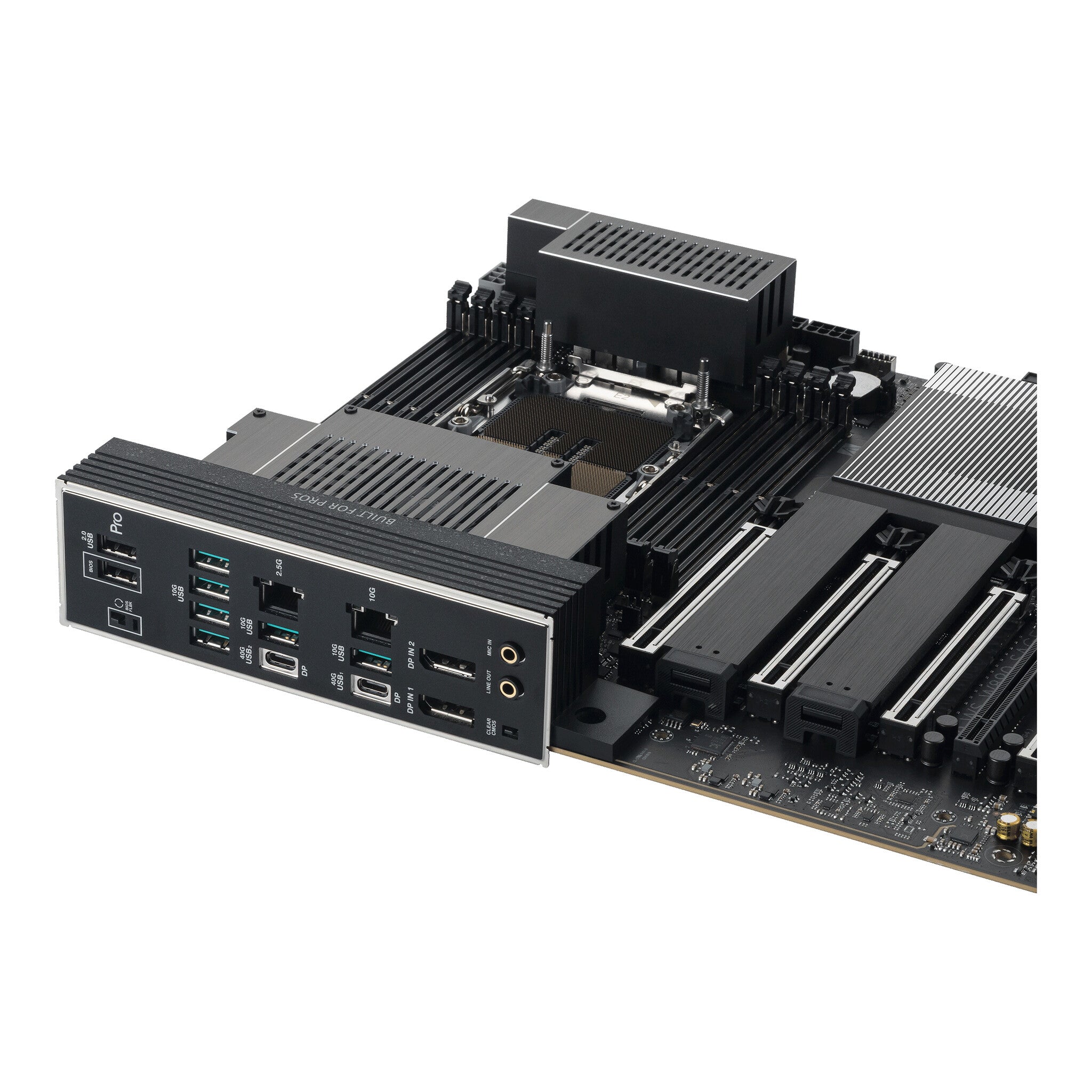

ASUS PRO WS W890-SAGE Intel W890 LGA 4710-2 CEB
The Pro WS W890-SAGE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, ready for server-grade IPMI remote management, and ultrafast PCIe 5.0 and networking connectivity, Pro WS W890-SAGE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890-SAGE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
| Processor | |
|---|---|
| Supported processor sockets | LGA 4710-2 |
| Compatible processor series | Intel® Xeon® |
| Processor socket | LGA 4710-2 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC сompatibility | ECC |
| Memory channels | Quad-channel |
| Memory slots type | DIMM |
| Number of memory slots | 8 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 5, 1, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| Supported storage drive interfaces | M.2, SATA III, SlimSAS |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| Number of RGB LED pin headers | 2 |
| RGB LED pin header | Yes |
| Number of water pump connectors | 1 |
| Number of COM connectors | 1 |
| 12V power connector | Yes |
| Integrated SAS ports | 2 |
| Number of temperature sensor headers | 1 |
| Number of EPS power connectors (8-pin) | 5 |
| EPS power connector (8-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 5 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |
| Rear panel I/O ports | |
|---|---|
| Headphone outputs | 1 |
| Line-in | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB4 Gen 3x2 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 2.0 ports quantity | 2 |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 11 |
| Power source type | ATX |
| Cooling type | Passive |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC1220P |
| Motherboard chipset | Intel W890 |
| Motherboard chipset family | Intel |
| Motherboard form factor | CEB |
| Component for | Workstation |
| Expansion slots | |
|---|---|
| 4th M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
|---|---|
| BIOS flashback button | Yes |
| Clear CMOS button | Yes |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 4.12 kg |
| Package height | 100 mm |
| Package depth | 320 mm |
| Package width | 376 mm |
| Weight & dimensions | |
|---|---|
| Height | 50 mm |
| Depth | 280 mm |
| Width | 305 mm |

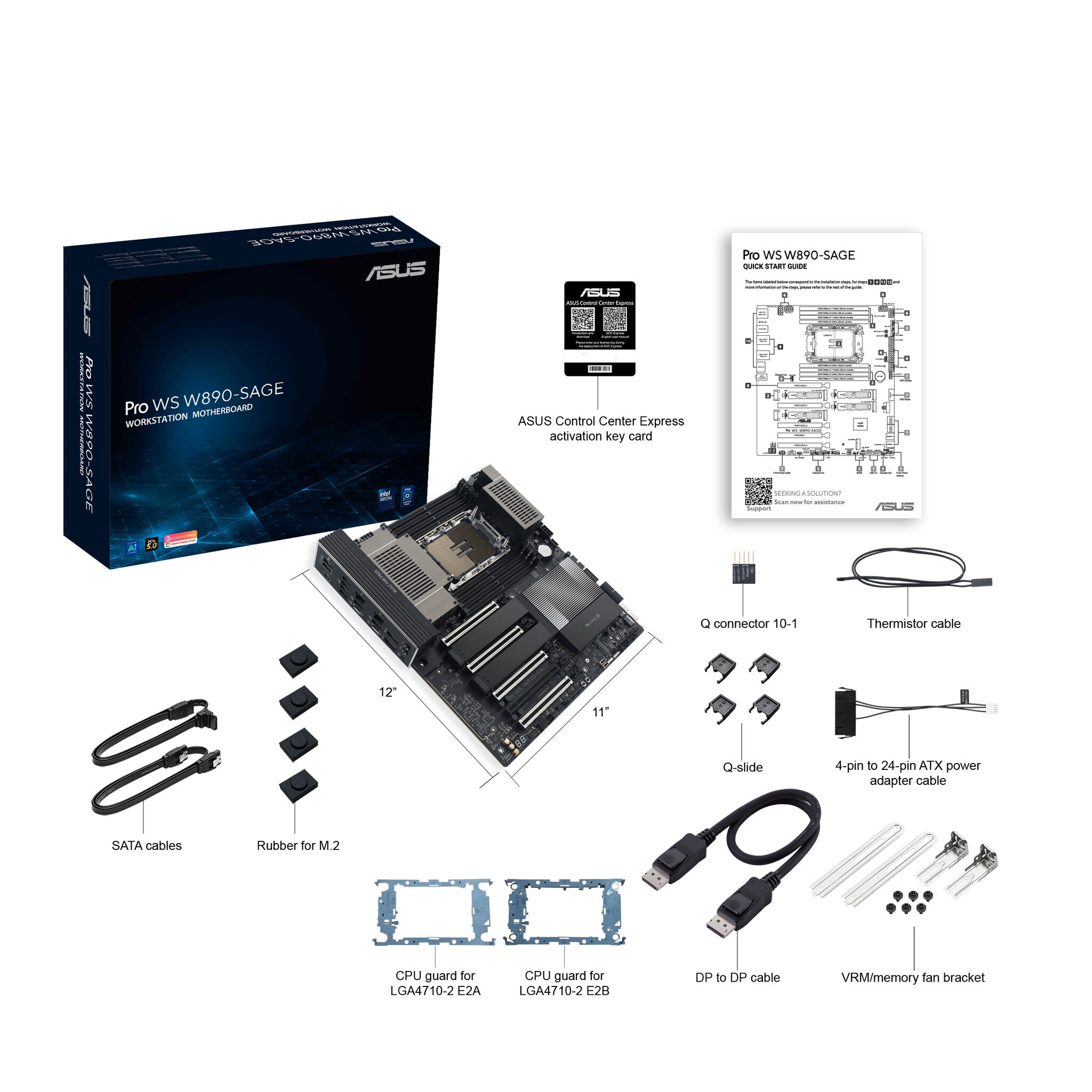

| Packaging content | |
|---|---|
| Screws included | Yes |
| Cables included | SATA, DisplayPort |
| Other features | |
|---|---|
| Number of M.2 (E) slots | 1 |
| Weight | 2.75 kg |
-
