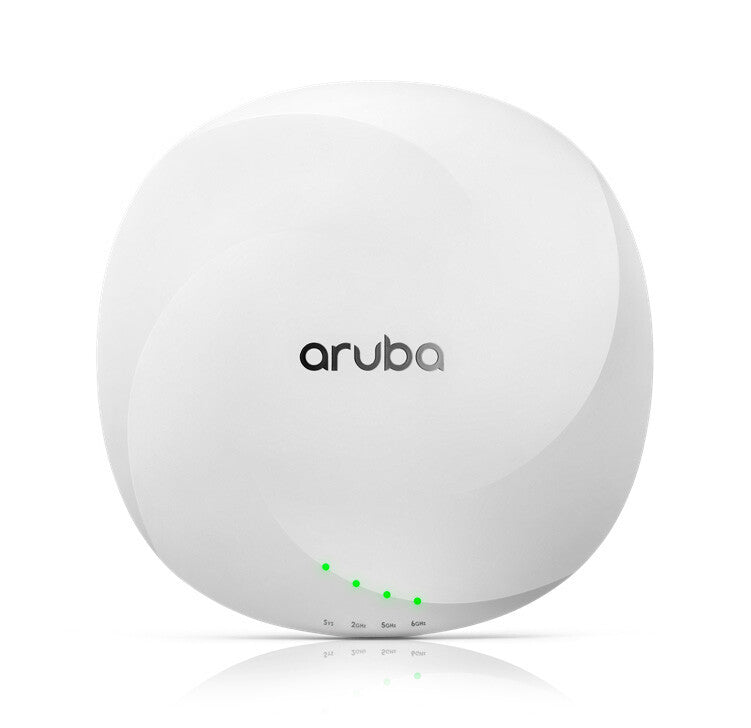

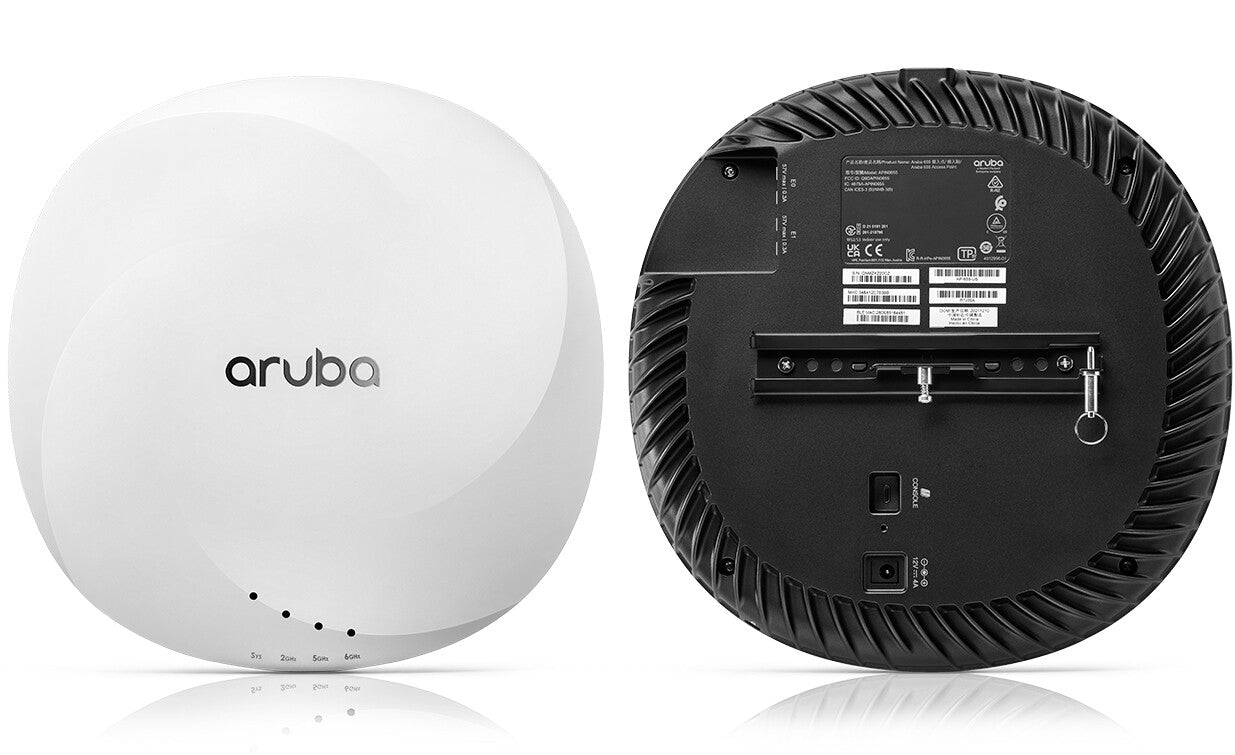

HPE Aruba Networking AP-655 (RW) Tri Radio 4x4 802.11ax Wi-Fi 6E Internal Antennas Campus AP
HPE Aruba Networking AP-655 (RW) Tri Radio 4x4 802.11ax Wi-Fi 6E Internal Antennas Campus AP está agotado y se enviará tan pronto como vuelva a estar disponible.
HPE Aruba Networking AP-655 (RW) Tri Radio 4x4 802.11ax Wi-Fi 6E In...
The HPE Aruba Networking 650 Series Campus Access Points are our flagship Wi-Fi 6E access points (APs) that take advantage of the 6 GHz band for greater capacity, wider channels, and interference-free spectrum. Designed to meet the demands of bandwidth-hungry video, a growing numbers of client and Internet of Things (IoT) devices, and the growth of cloud services, these high-performance Wi-Fi 6E APs provide comprehensive tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate. The 650 series includes ultra tri-band (UTB) filtering to help minimize channel interference and dual configurable 5 Gbps Ethernet ports to mitigate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity. Up to seven 160 MHz channels in 6 GHz support low-latency, bandwidth-hungry applications such as high-definition video and AR/VR applications. The 650 series includes a limited lifetime warranty.
What is new supporting point:
Patented UTB filtering enhances the use of 5 GHz and 6 GHz bands
IoT-ready with support for Bluetooth Low Energy (BLE) and Zigbee
Built-in GPS receivers and intelligent software enable APs to self-locate and act as reference points for more accurate indoor location measurements
Flagship Wi-Fi 6E APs provide tri-band coverage across 2.4 GHz, 5 GHz, and 6 GHz to deliver up to 7.8 Gbps combined aggregate data rate
4x4 MIMO radios to deliver peak performance and increased capacity using multi-user (MU-MIMO) and orthogonal frequency-division multiple access (OFDMA) (uplink and downlink for both)
High availability with dual 5 Gbps wired ports for redundant Ethernet and power
| Features | |
|---|---|
| 2.4 GHz | Yes |
| 6 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (6 GHz) | 4800 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2400 Mbit/s |
| Ethernet LAN data rates | 5000 Mbit/s |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/(80+80) (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 7.8 Gbps |
| Bandwidth | 160 GHz |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Channels quantity | 3 channels |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Bluetooth version | 5.0 |
| Channel bandwidth | 160 MHz |
| Automatic channel selection | Yes |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | DSSS |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Maximal-Ratio Combining (MRC) | Yes |
| Cyclic Shift Diversity (CSD) | Yes |
| Cyclic Delay Diversity (CDD) | Yes |
| Dynamic Frequency Selection (DFS) | Yes |
| Data unit aggregation | A-MPDU, A-MSDU |
| Trusted Platform Module (TPM) | Yes |
| MACsec support | No |
| BeamForming | Yes |
| Security | |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| Access Control List (ACL) | Yes |
| Management features | |
|---|---|
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 1 |
| USB connector type | USB Type-A |
| DC-in jack | Yes |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Power consumption (typical) | 20.2 W |
| Power consumption (max) | 22.7 W |
| Design | |
|---|---|
| Placement | Ceiling |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Status, System |
| Recommended usage | Indoor |
| Certification | UL2043 plenum rating Wi‑Fi Alliance Wi-Fi CERTIFIED a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2, and WPA3 -Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 6) |
| Antenna | |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 4.8 dBi |
| Performance | |
|---|---|
| Compatible operating systems | AP-654 (excluding 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.11.2.0, HPE Aruba Networking Wireless Operating System 10.6.0.0 AP-654 (including 6 GHz support): HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.12.0.0, HPE Aruba Networking Wireless Operating System 10.7.0.01 AP-655: HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.10.0.1, HPE Aruba Networking Wireless Operating System 10.4.0.0 Standard power product class operation of the AP-654 is only supported on HPE Aruba Networking Wireless Operating System software release 10.7.0.0 and later deployments and HPE Aruba Networking Wireless Operating System software release 8.12.0.0 and later deployments that include a HPE Aruba Networking Virtual Mobility Conductor. SP operation is not supported on Instant OS deployments or 8.x OS deployments without a HPE Aruba Networking Virtual Mobility Conductor. |
| General | |
|---|---|
| Product family | Aruba Networking |
| Technical details | |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Low Voltage Directive (LVD) |
| Weight & dimensions | |
|---|---|
| Width | 260 mm |
| Depth | 56 mm |
| Height | 260 mm |
| Weight | 1.8 kg |
| Packaging data | |
|---|---|
| Package width | 285 mm |
| Package depth | 285 mm |
| Package height | 95 mm |
| Package weight | 2.3 kg |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Other features | |
|---|---|
| I/O ports | Ports E0, E1: Ethernet wired network ports (RJ-45) U0: USB 2.0 host interface (Type A connector) Kensington security slot Serial console interface (proprietary, micro B USB physical jack) |
| Weight (imperial) | 1.8 kg (3.97 lbs) |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Storage relative humidity (H-H) | 10 - 100% |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
-
