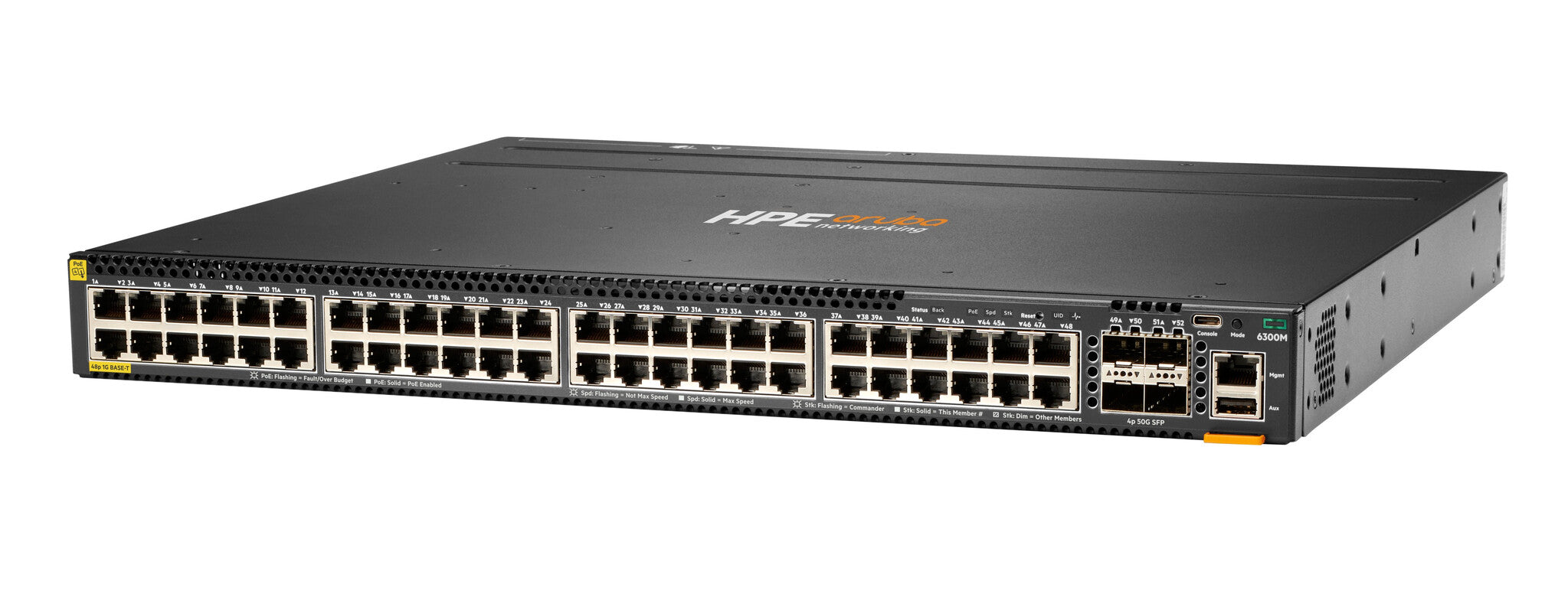

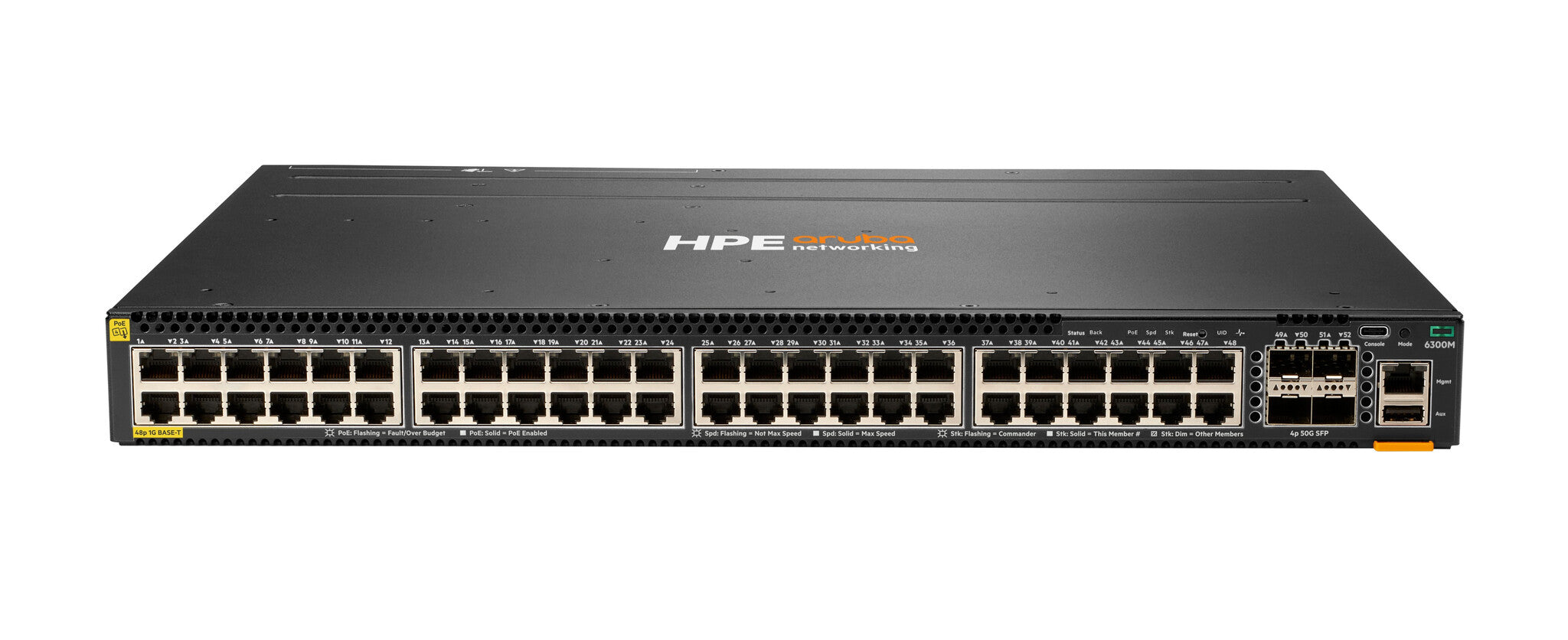

HPE Aruba Networking CX 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch
HPE Aruba Networking CX 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch está agotado y se enviará tan pronto como vuelva a estar disponible.
HPE Aruba Networking CX 6300M 48-port 1GbE Class 4 PoE and 4-port S...
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.
What is new supporting point:
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| Network | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| 10G support | No |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
| Optical fiber | |
|---|---|
| Transmission distance (max) | 10 km |
| Data transmission | |
|---|---|
| MAC address table | 29490 entries |
| Switching capacity | 496 Gbit/s |
| Throughput | 369 Mpps |
| Latency (1 Gbps) | 2.28 µs |
| Latency (10 Gbps) | 1.46 µs |
| Jumbo frames support | Yes |
| Packet buffer memory | 8 MB |
| Security | |
|---|---|
| DHCP features | DHCP server |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| SSH/SSL support | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| Protocols | |
|---|---|
| Routing protocols | BGP |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Performance | |
|---|---|
| Physical stacking (units) | 10 |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A72 |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
| General | |
|---|---|
| Product family | Aruba Networking |
| Power | |
|---|---|
| Power supply included | No |
| AC input voltage | 100 - 240 V |
| Power consumption note | With JL086A PSU: Idle: 70W 100% Traffic Rate: 90W With JL087A PSU: Idle: 71W 100% Traffic Rate: 88W With JL670A PSU: Idle: 73W 100% Traffic Rate: 96W |
| Power supply note | 2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL086A, JL087A and JL670A. |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 1440 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 44 mm |
| Depth | 442 mm |
| Height | 385 mm |
| Weight | 5.16 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Latency | 1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs |
| Fan | Switch has two fan tray slots and comes with one fan tray installed. Minimum one fan tray required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans. |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Memory and processor | CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration |
| Weight (imperial) | 5.16 kg (11.4 lbs) |
| I/O ports | 48 x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Dimensions (W x D x H) (imperial) | 43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2") |
-
