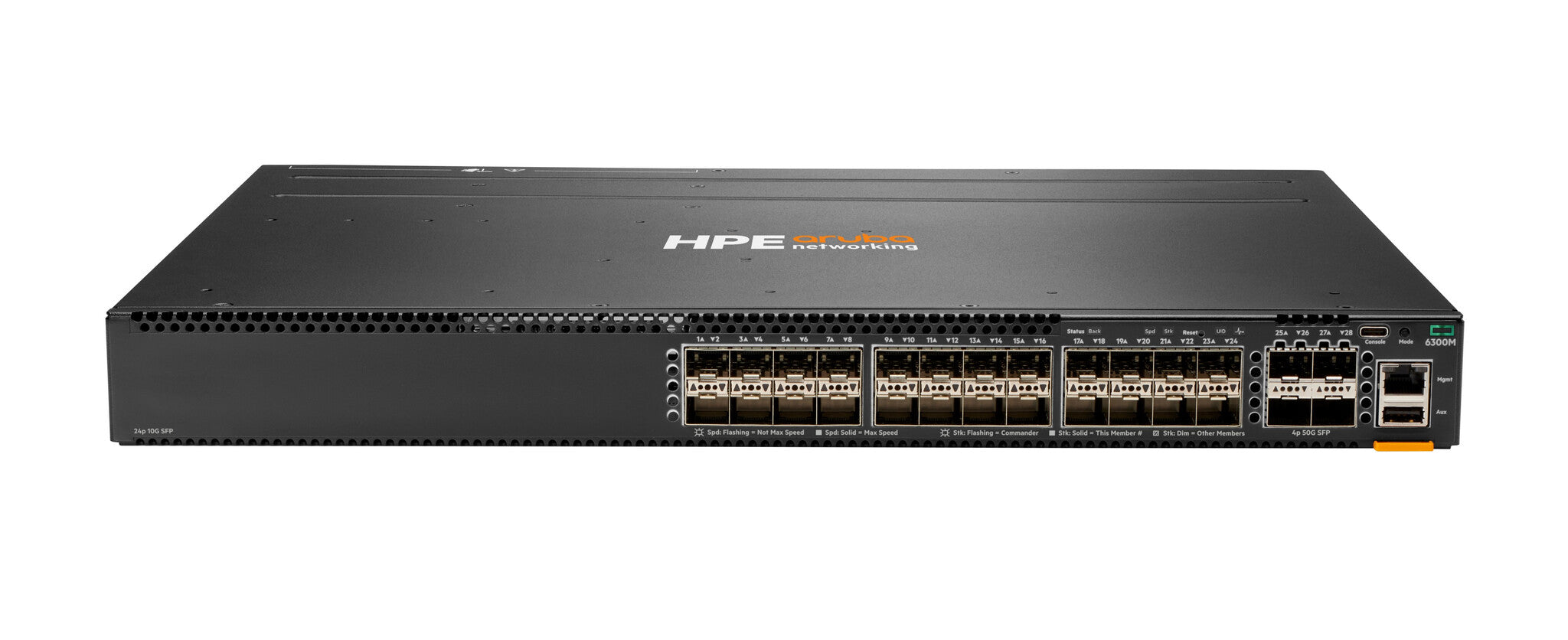

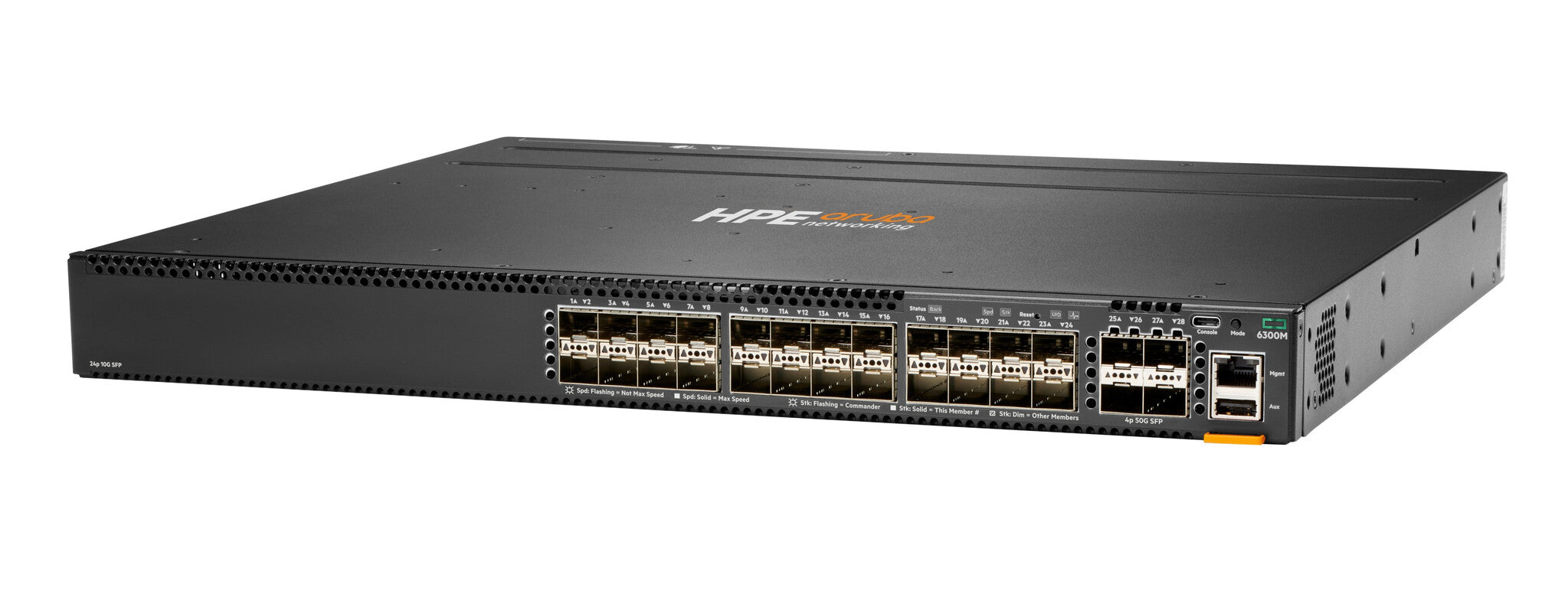

HPE Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch
HPE Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch está agotado y se enviará tan pronto como vuelva a estar disponible.
HPE Aruba Networking CX 6300M 24-port SFP+ and 4-port SFP56 Switch
The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.
What is new supporting point:
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports type | No |
| Installed SFP modules quantity | 4 |
| Installed SFP+ modules quantity | 24 |
| SFP module slots quantity | 4 |
| SFP+ module slots quantity | 24 |
| Console port | USB |
| USB 2.0 ports quantity | 1 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3bt |
| 10G support | Yes |
| Port mirroring | Yes |
| Policy-based routing | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Optical fiber | |
|---|---|
| Transmission distance (max) | 10 km |
| Data transmission | |
|---|---|
| MAC address table | 32000 entries |
| Switching capacity | 880 Gbit/s |
| Throughput | 654 Mpps |
| Latency (1 Gbps) | 1.99 µs |
| Latency (10 Gbps) | 1.49 µs |
| Number of queues | 9 |
| Packet buffer memory | 8 MB |
| Security | |
|---|---|
| DHCP features | DHCP relay, DHCP server |
| Access Control List (ACL) | Yes |
| IGMP entries | 8000 |
| SSH/SSL support | Yes |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| IPv4 multicast entries | 8000 |
| IPv6 multicast entries | 8000 |
| Number of multicast groups filtered | 8000 |
| MLD entries | 4000 |
| Protocols | |
|---|---|
| Routing protocols | OSPF, OSPFv3 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Product colour | Black |
| Airflow direction | Front-to-back airflow |
| Number of fans | 2 fan(s) |
| Certification | EN 60950-1:2006; +A11:2009 +A1:2010; +A12:2011 + A2:2013 |
| Performance | |
|---|---|
| Physical stacking (units) | 10 |
| Built-in processor | Yes |
| Processor frequency | 1800 MHz |
| Memory type | DDR4-SDRAM |
| Internal memory | 8000 MB |
| Flash memory | 32000 MB |
| Noise level | 31 dB |
| General | |
|---|---|
| Product family | Aruba Networking |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 85 W |
| Power consumption note | Idle: 51W 100% Traffic Rate: 85W |
| Power supply note | 2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately). Supports JL085A PSU. |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating altitude | 0 - 3040 m |
| Non-operating altitude | 0 - 4600 m |
| Weight & dimensions | |
|---|---|
| Width | 44 mm |
| Depth | 442 mm |
| Height | 385 mm |
| Weight | 5.11 kg |
| Packaging data | |
|---|---|
| Rack mount kit | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Latency | 1 Gbps: 2.28 μs 10 Gbps: 1.46 μs 25 Gbps: 1.90 μs 50 Gbps: 3.49 μs |

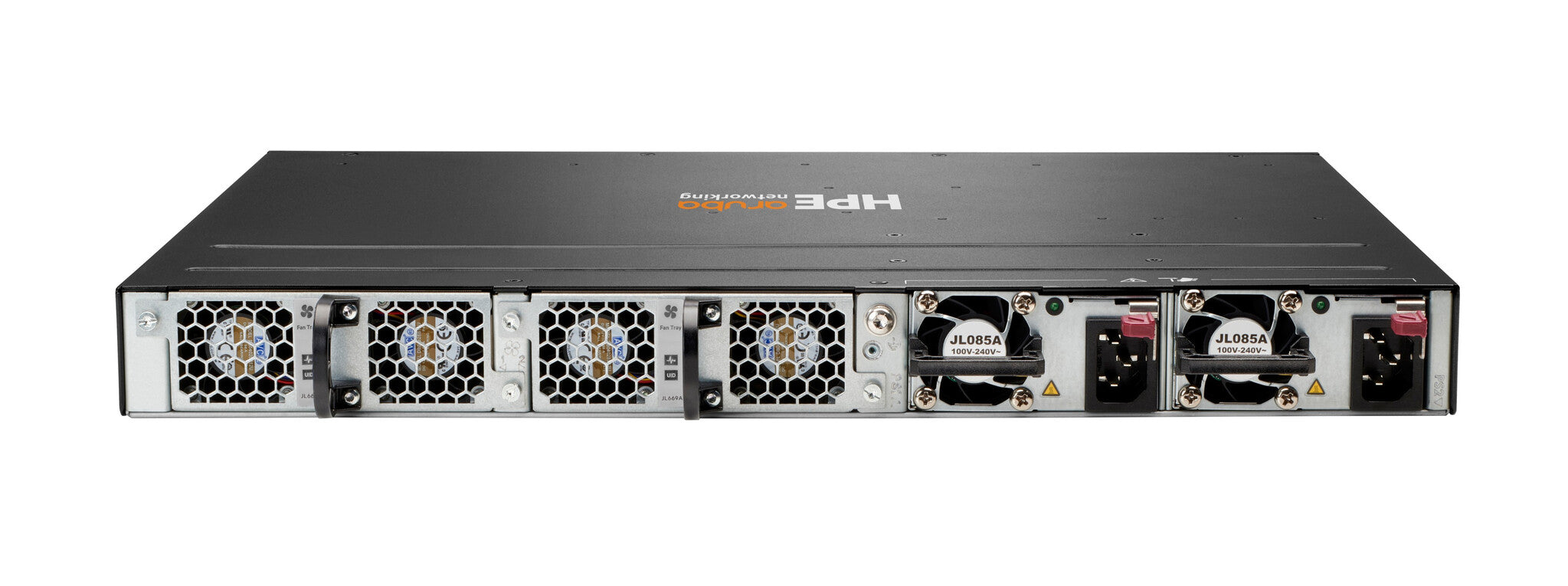

| Fan | Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans. |
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Memory and processor | CPU: Dual-core Arm Cortex-A9 @ 1.8GHz Memory: 8 GB DDR4, 32 GB eMMC Flash: 8 MB, 16 MB, or 32 MB, depending on model and configuration |
| Weight (imperial) | 5.11 kg (11.3 lbs) |
| I/O ports | 24 x 1G/10G SFP+ ports 4 x 1G/10G/25G/50G [4] SFP ports 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port |
| Dimensions (W x D x H) (imperial) | 43.9 x 442 x 386.1 mm (1.73 x 17.4 x 15.2") |
-
