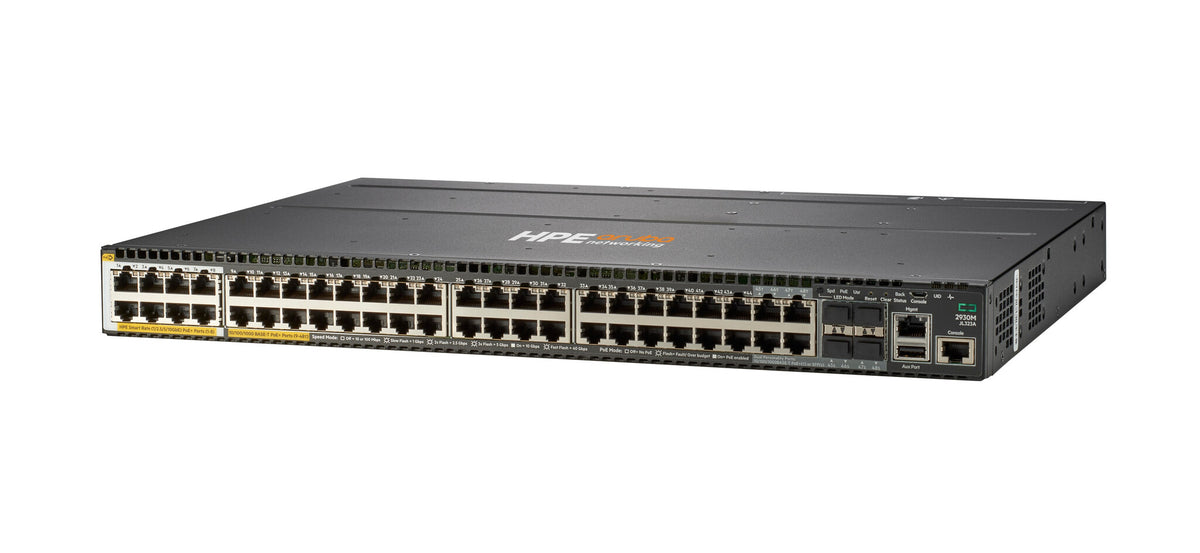

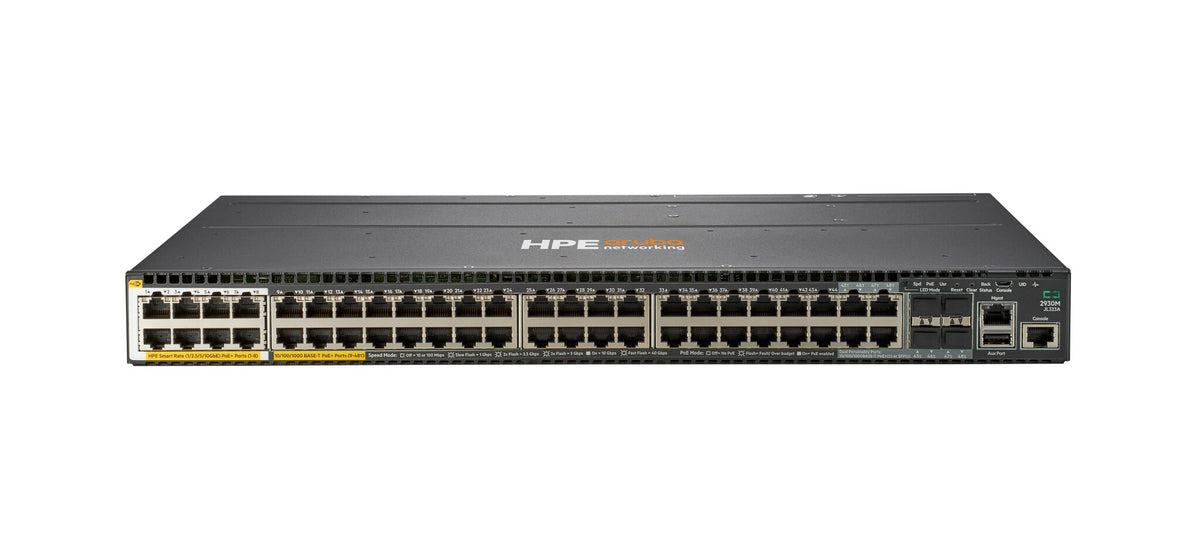

HPE Aruba Networking 2930M 40G 8 Smart Rate PoE+ 1-slot Switch
The HPE Aruba Networking 2930M Switch Series is designed for digital workplaces optimized for mobile users. These powerful Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like HPE Aruba Networking ClearPass Policy Manager, HPE Aruba Networking Management Software (AirWave) and cloud-based HPE Aruba Networking Central. Modular stacking, uplinks and power provide scalability and simplicity for enterprise edge, SMB and branch office networks. The HPE Aruba Networking 2930M Switch Series delivers performance and value with support for static, RIP and Access OSPF routing, 10 GbE and 40 GbE uplinks, models with 24 ports of HPE Smart Rate multi-gigabit Ethernet, up to 1440W of PoE, robust QoS, and Dynamic Segmentation for unified and secure access.
What is new supporting point:
High Power PoE models deliver up to 60W of PoE per port.
Models with 24 ports of HPE Smart Rate with IEEE 802.3bz.
Scale with modular 10 chassis stacking and up to 1440W PoE.
Modular 10 GbE and 40 GbE uplinks and HPE Smart Rate multi-gigabit support.
The 2930M Series is a family of layer 3 stackable switches that are easy to deploy and manage, providing scale and modularity for enterprise, SMB and branch access networks.
Simplify with Zero Touch Provisioning and cloud-based HPE Aruba Networking Central support.
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L3 |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 40 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity | 4 |
| Network | |
|---|---|
| 10G support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transmission | |
|---|---|
| Switching capacity | 320 Gbit/s |
| Throughput | 112 Mpps |
| Latency (1 Gbps) | 3.1 µs |
| Latency (10 Gbps) | 3.4 µs |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 4000 MB |
| Fanless | No |
| General | |
|---|---|
| Product family | Aruba Networking |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 200 - 240 V |
| Power consumption note | 2 power supplies are supported: JL086A PSU (each): 495W JL087A PSU (each): 855W |
| Power supply note | JL086A X372 54VDC 680W 100-240VAC Power Supply, JL087A X372 54VDC 1050W 110-240VAC Power Supply |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 10 |
| Power over Ethernet plus (PoE+) ports quantity | 10 |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 1440 W |
| Operational conditions | |
|---|---|
| Heat dissipation | 145 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 43.9 mm |
| Depth | 442.5 mm |
| Height | 324.3 mm |
| Weight | 4.45 kg |
| Other features | |
|---|---|
| Latency | 1000 Mb Latency: < 3.1 µs 10 Gbps Latency: < 3.4 µs |
| Performance management | HPE Aruba Networking Management Software (AirWave) HPE Aruba Networking Central IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB) |
| Memory and processor | Dual Core ARM Coretex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB and 4.5 MB Ingress, 7.785 Egress 4 GB eMMC |
| Weight (imperial) | 4.45 kg (9.81 lbs) |
| I/O ports | (36) RJ-45 autosensing 10/100/1000 PoE+ ports (4) Dual Personality 10/100/1000 BASE-T PoE+ or 100/1000 Mbps SFP Ports (8) RJ-45 1/2.5/5GBASE-T and 10GBASE-T copper PoE+ ports (1) uplink module slot, (1) stacking module slot |
| Dimensions (W x D x H) (imperial) | 43.9 x 442.5 x 324.4 mm (1.73 x 17.4 x 12.8") |
-
