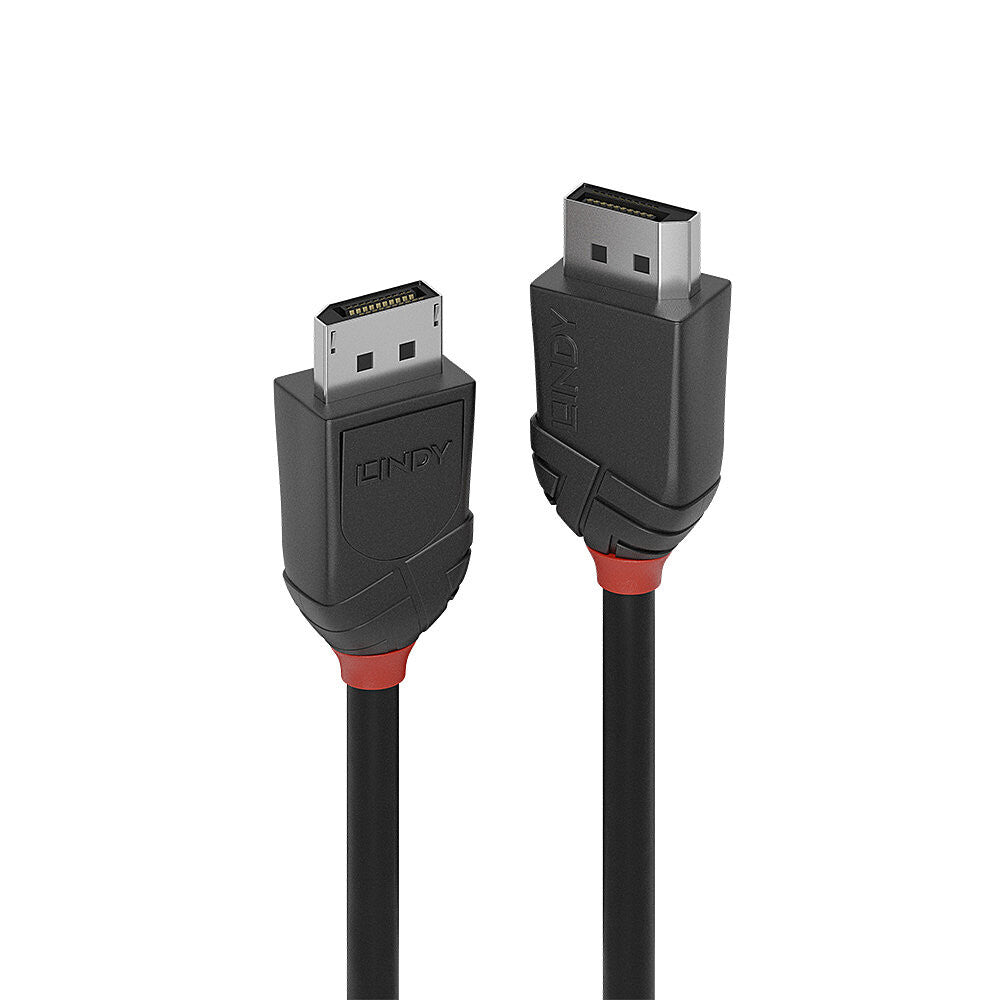

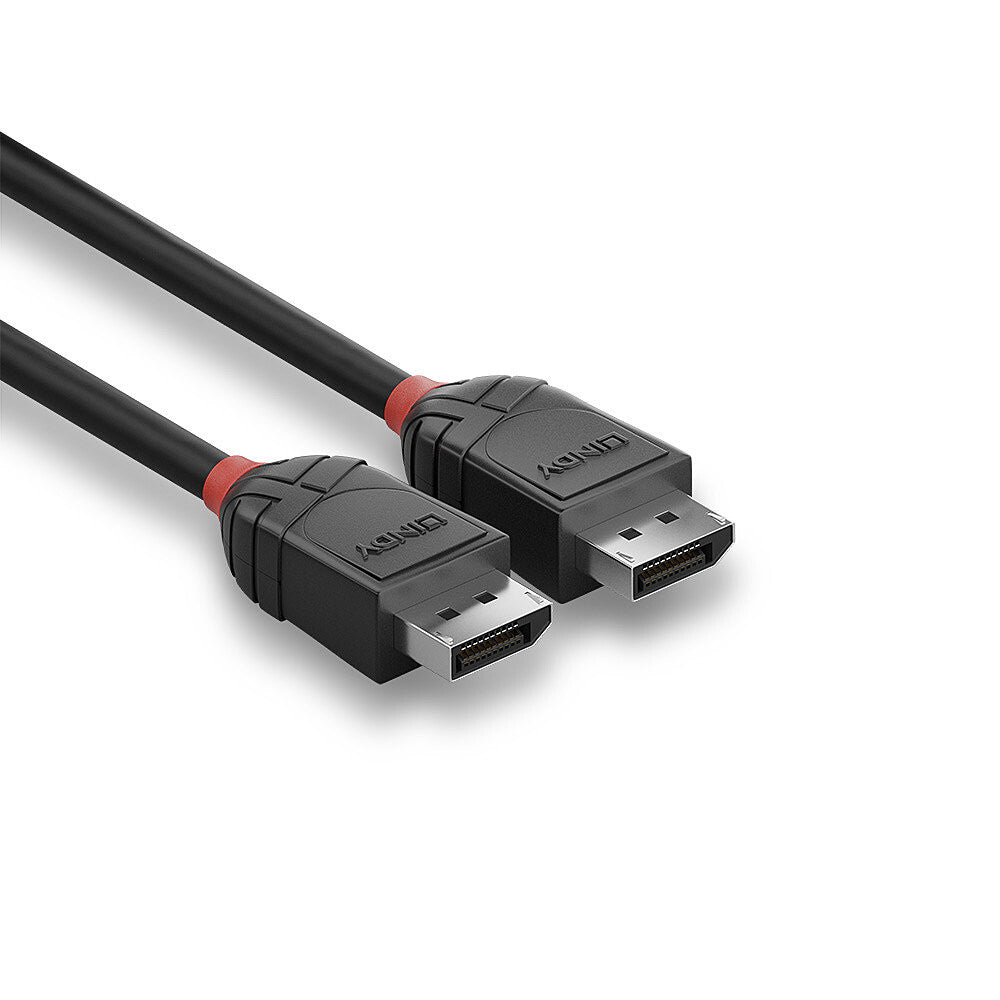

Lindy 1.5m DisplayPort 1.2 Cable, Black Line
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
Black Line DisplayPort cables feature triple shielded construction with 30AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
UHD resolutions up to 4K 4096x2160@60Hz 4:4:4 10bit are supported. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby® True HD. Black Line DisplayPort cables are capable of delivering 4:4:4 colour spacing for the most accurate colour representation possible.
Black Line DisplayPort cables are available in lengths from 0.5m to 3m.
| Features | |
|---|---|
| Certification | RoHS, REACH, UL |
| Nominal attenuation | 300kHz-825MHz - 5dB, 825MHz-2.475GHz - 5dB, 2.475GHz-4.125GHz - 12dB, 4.125GHz-5.1GHz - 20dB |
| Colour sampling | 4:4:4 |
| Cable type | Round cable |
| Bend radius (min) | 4.8 cm |
| Contact material | Phosphor bronze |
| Connector material | Nickel |
| Data transfer rate | 21.6 Gbit/s |
| AWG wire size | 30 |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Copper |
| Cable material | Copper |
| Product colour | Black |
| 3D | Yes |
| Maximum refresh rate | 60 Hz |
| Supported graphics resolutions | 4096 x 2160 |
| Maximum resolution | 4096 x 2160 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Gold |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | DisplayPort |
| Cable length | 1.5 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -25 - 85 °C |
| Operating temperature (T-T) | -20 - 80 °C |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
| Cable diameter | 6 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
-
