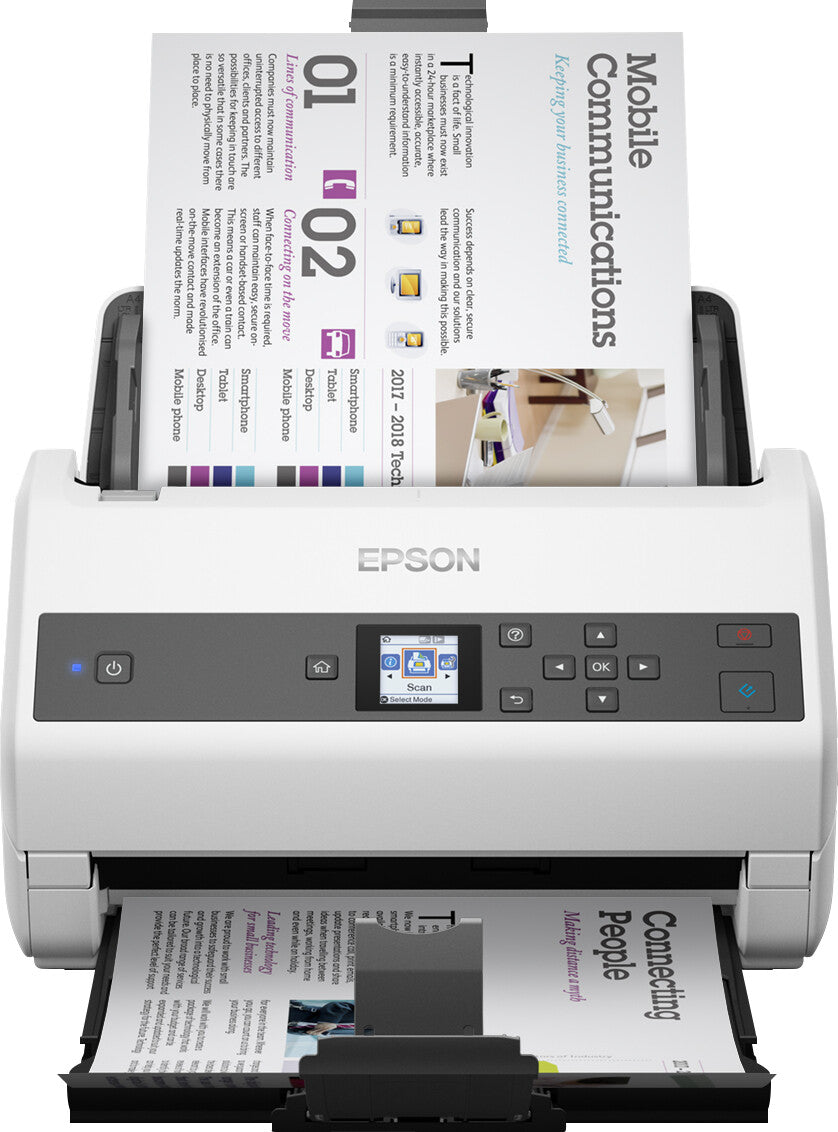

Epson WorkForce DS-970
High-volume sheet-fed scanner
Create a better business environment with the support of a global leader in document scanning. When the goal is getting documents to the right place as fast as possible, trust in the WorkForce DS-970 - Epson's fastest scanner. High performance matched with an endurance with easy-to-use features that put you in control of your documents.
Ultimate performance

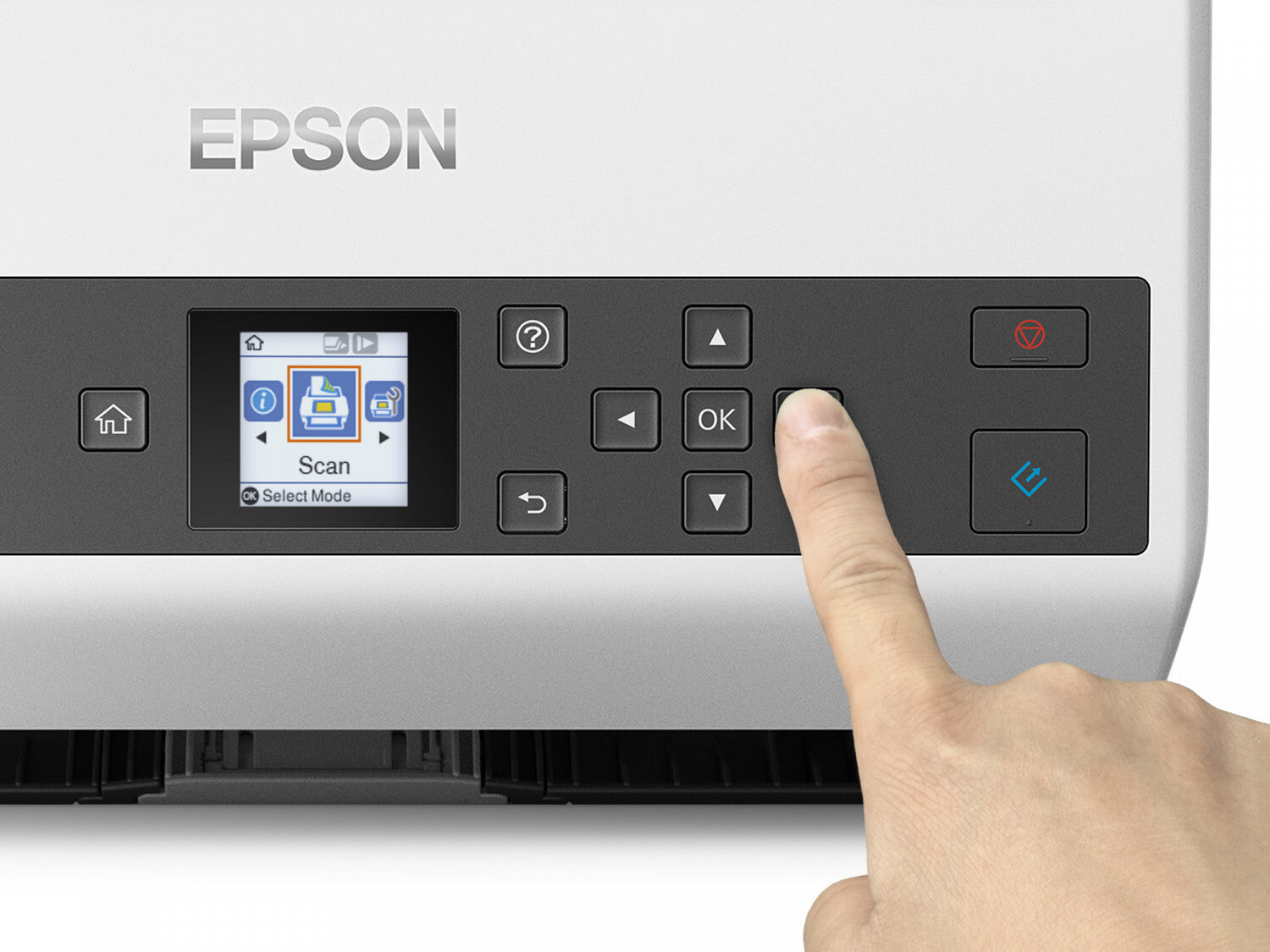

Epsons' fastest A4 document scanner offers class-leading performance{s1. With a 100-page ADF, 85ppm/170ipm scanning speed and continuous scanning with its automatic feed mode, the WorkForce DS-970 gets through large jobs quickly and efficiently. Scroll through pre-defined jobs easily using the intuituve panel and get your documents to the right place in just a few presses of a button. TWAIN, WIA and ISIS drivers are available for enhanced compatibility with document management systems.
Efficient document processing
Stay in control of the document process with a scanner capable of scanning a wide range of media from 27gsm to 413gsm and a long paper scanning mode up to 6096mm. Slow mode decreases document friction by reducing the speed of the rollers, making it easier to capture fragile or damaged documents, without increasing file sizes. The Active Separation Roller System prevent document double feeds, ensuring that every piece of paper gets scanned, and the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes.
| Scanning | |
|---|---|
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Output monochrome depth | 1 bit |
| ADF scan speed (b/w, A4) | 85 ppm |
| ADF scan speed (colour, A4) | 170 ppm |
| Black/white scanning colour modes | Monochrome |
| Design | |
|---|---|
| Scanner type | Sheet-fed scanner |
| Built-in display | Yes |
| Product colour | Black, White |
| Display | LCD |
| Display diagonal | 3.68 cm (1.45") |
| Colour display | Yes |
| Performance | |
|---|---|
| Sensor type | CIS |
| Light source | LED |
| Scan file formats | BMP, JPEG, PDF, PNG, TIFF |
| Daily duty cycle (max) | 9000 pages |
| Scan drivers | SANE, TWAIN, WIA |
| Input capacity | |
|---|---|
| Auto document feeder (ADF) input capacity | 100 sheets |
| Paper handling | |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Scanning media types supported | Business Card, Plastic Card |
| ISO B-series sizes (B0...B9) | B4, B5, B6 |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Legal | Yes |
| Letter | Yes |
| Auto Document Feeder (ADF) media weight | 27 - 413 g/m² |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
|---|---|
| Power consumption (typical) | 20 W |
| Power supply type | AC |
| Power consumption (standby) | 8.5 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 50-60 Hz |
| Sleep mode | Yes |
| Input voltage | 100-240 V |
| Power consumption (sleep) | 1.4 W |
| General | |
|---|---|
| Product family | WorkForce |
| Network | |
|---|---|
| Supported network protocols | TCP/IP, DHCP, DNS, SNMP, SLP |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2012 R2 |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | 25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
| Weight & dimensions | |
|---|---|
| Width | 296 mm |
| Depth | 169 mm |
| Height | 167 mm |
| Weight | 3.6 kg |
| Packaging content | |
|---|---|
| Manual | Yes |
| Warranty card | Yes |
| AC adapter included | Yes |
| Cables included | AC, USB |
| Drivers included | Yes |
| Bundled software | Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2 |
| Technical details | |
|---|---|
| Data compression | IFF (JPEG(7), CCITT G4, LZW), PDF, JPEG |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84716070 |
-
