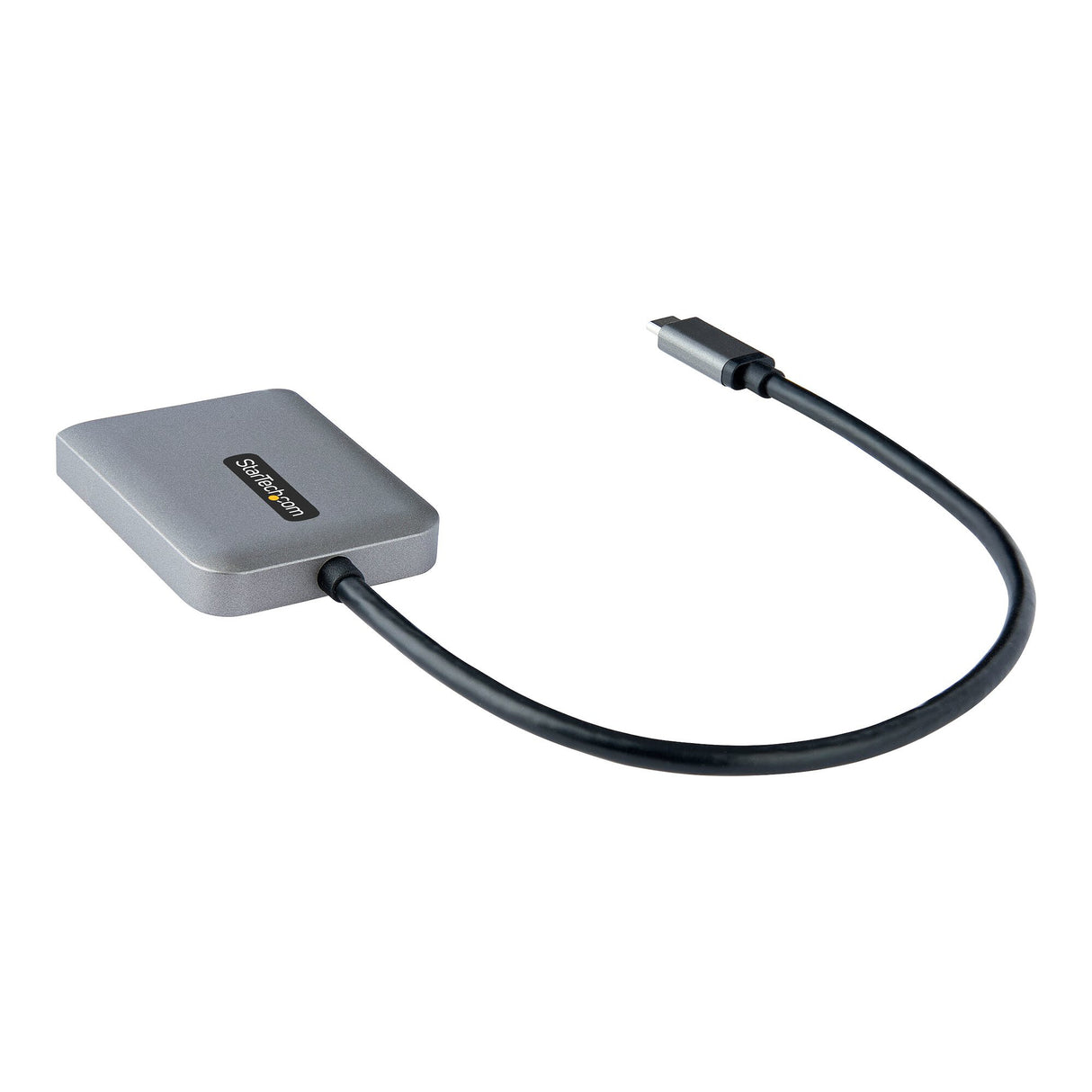

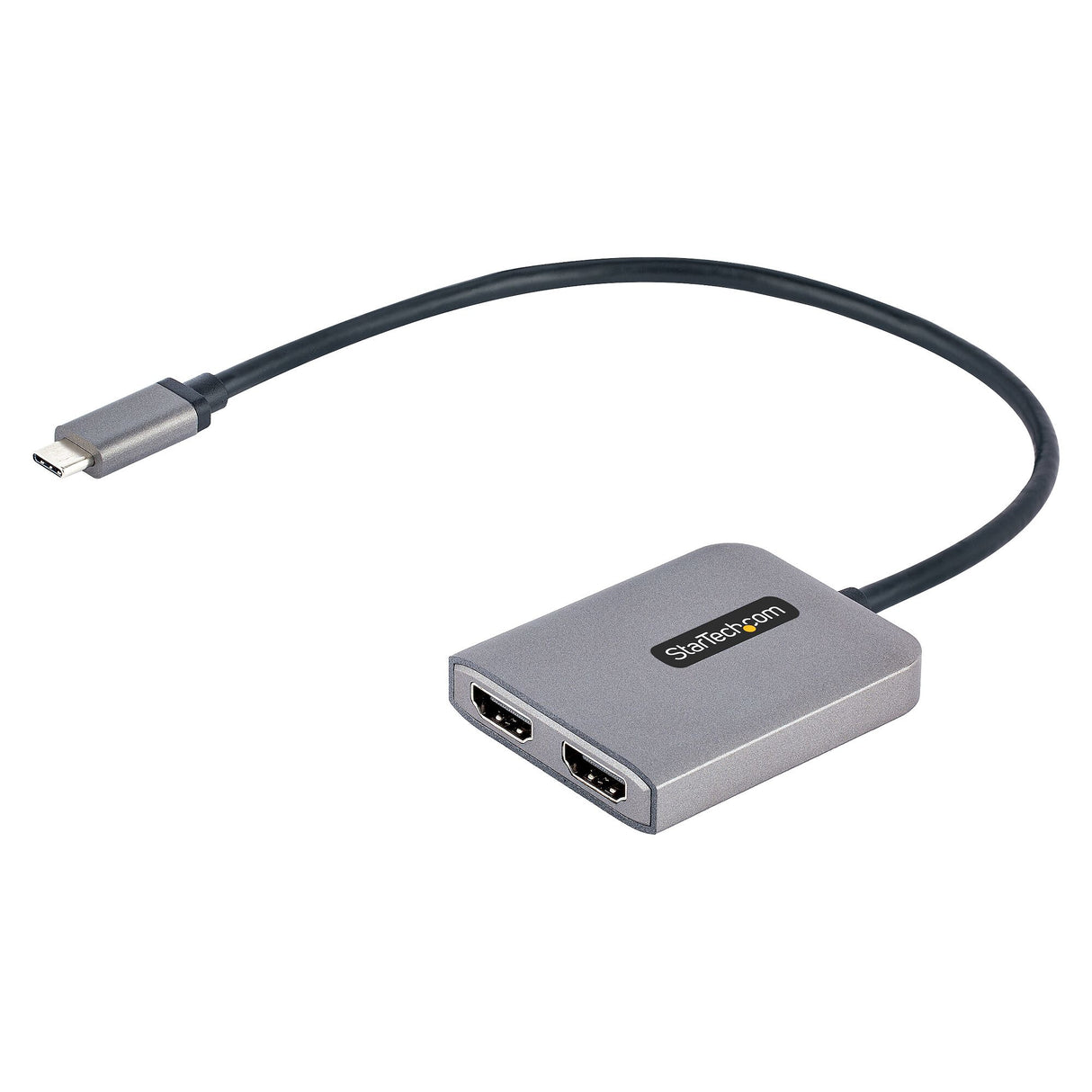

StarTech.com USB-C to Dual HDMI MST HUB - Dual HDMI 4K 60Hz - USB Type C Multi Monitor Adapter for Laptop w/ 1ft/30cm cable - DP 1.4 Multi-Stream Transport Hub - USB-C to HDMI Splitter
Key Details:

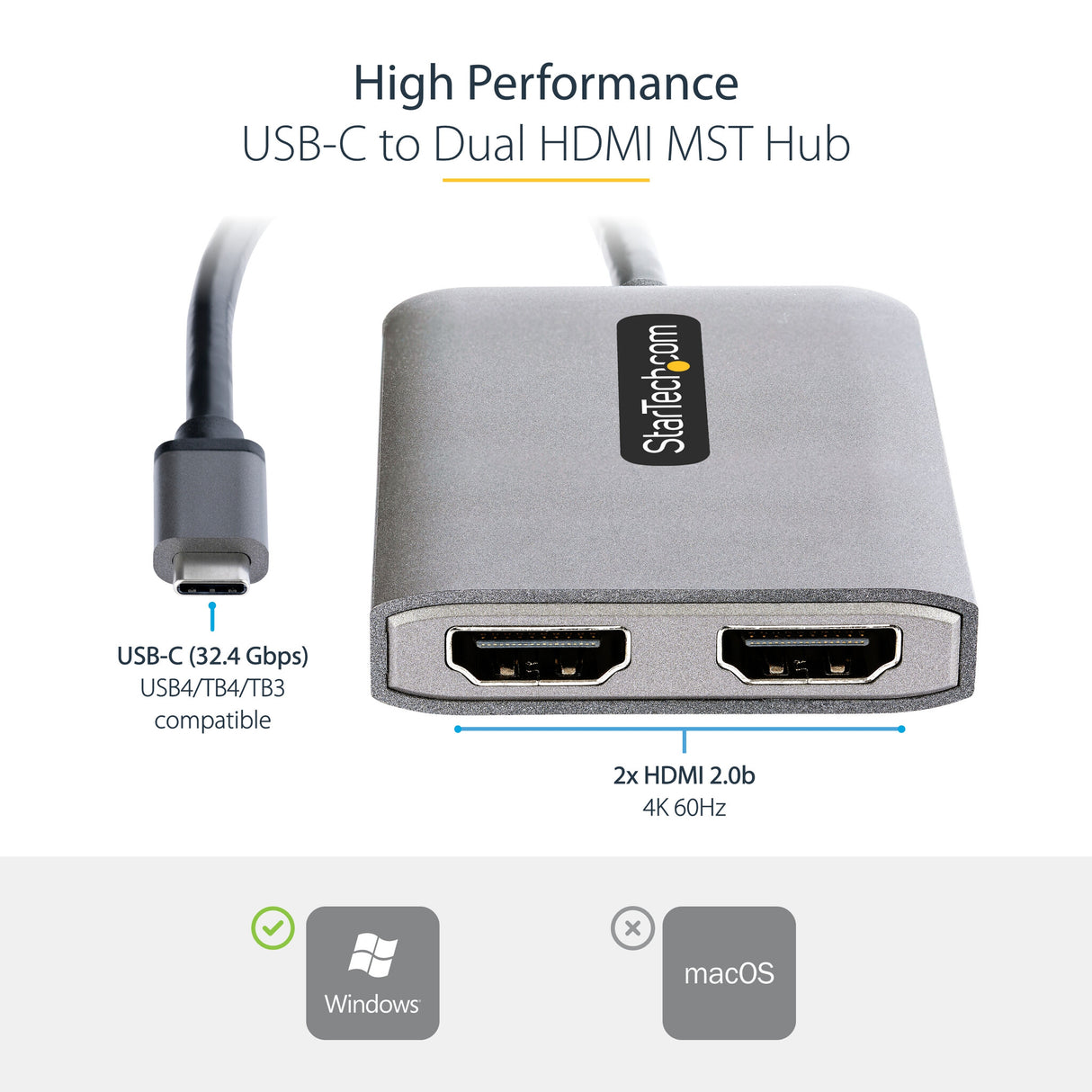

- MULTI-MONITOR CONFIGURATION: USB Type-C to Dual HDMI MST Hub/Splitter drives up to two 4K 60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch HDMI Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding two extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Dual 4K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU
- EXTRA-LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7 and up, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Dual HDMI Adapter
StarTech.com USB-C to Dual HDMI MST HUB - Dual HDMI 4K 60Hz - USB T...
Description
Description

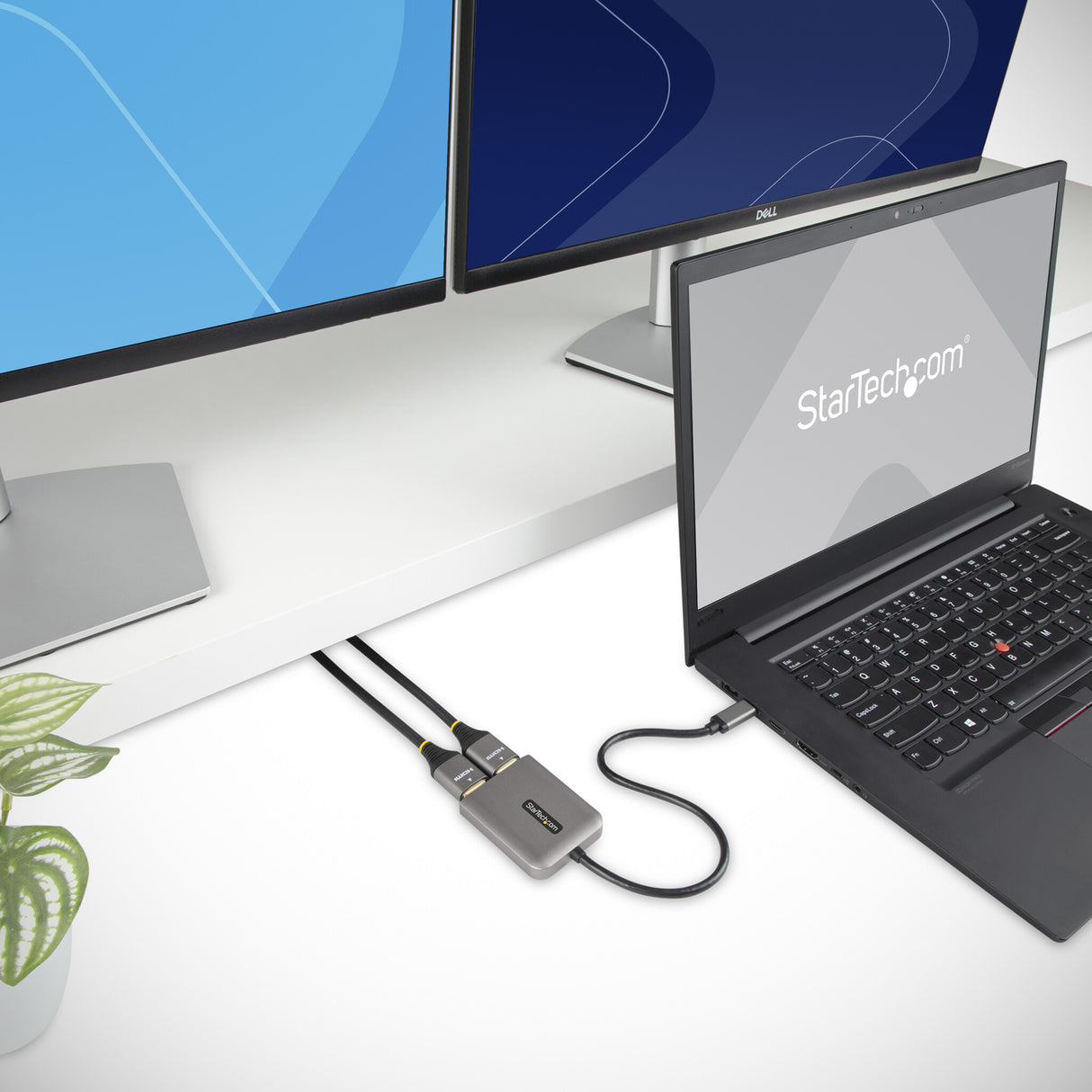

Create a high-performance dual-display workstation by connecting a USB Type-C™ device to two independent HDMI® monitors

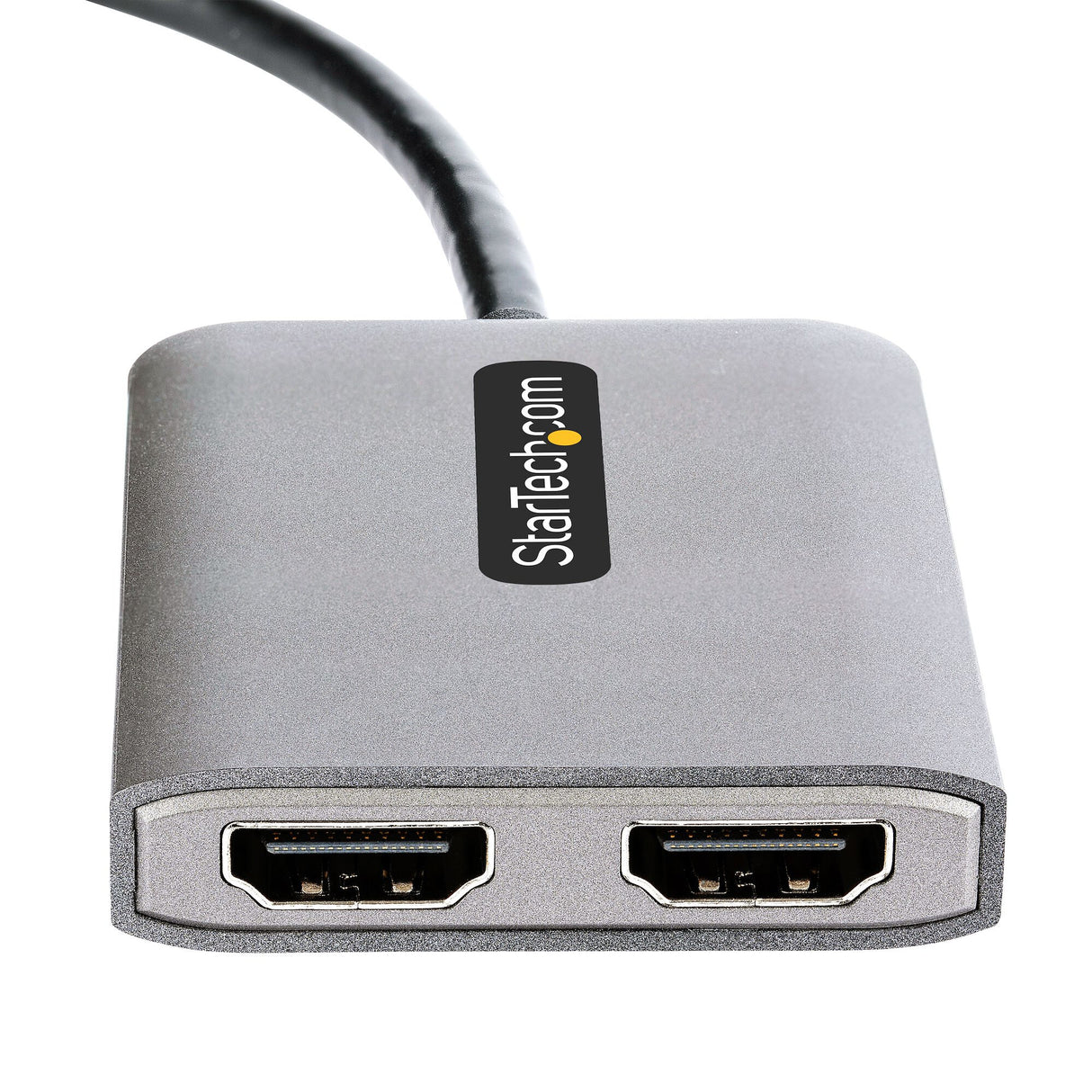

This USB-C to HDMI MST Hub allows you to connect two HDMI monitors, using a USB-C enabled host device.

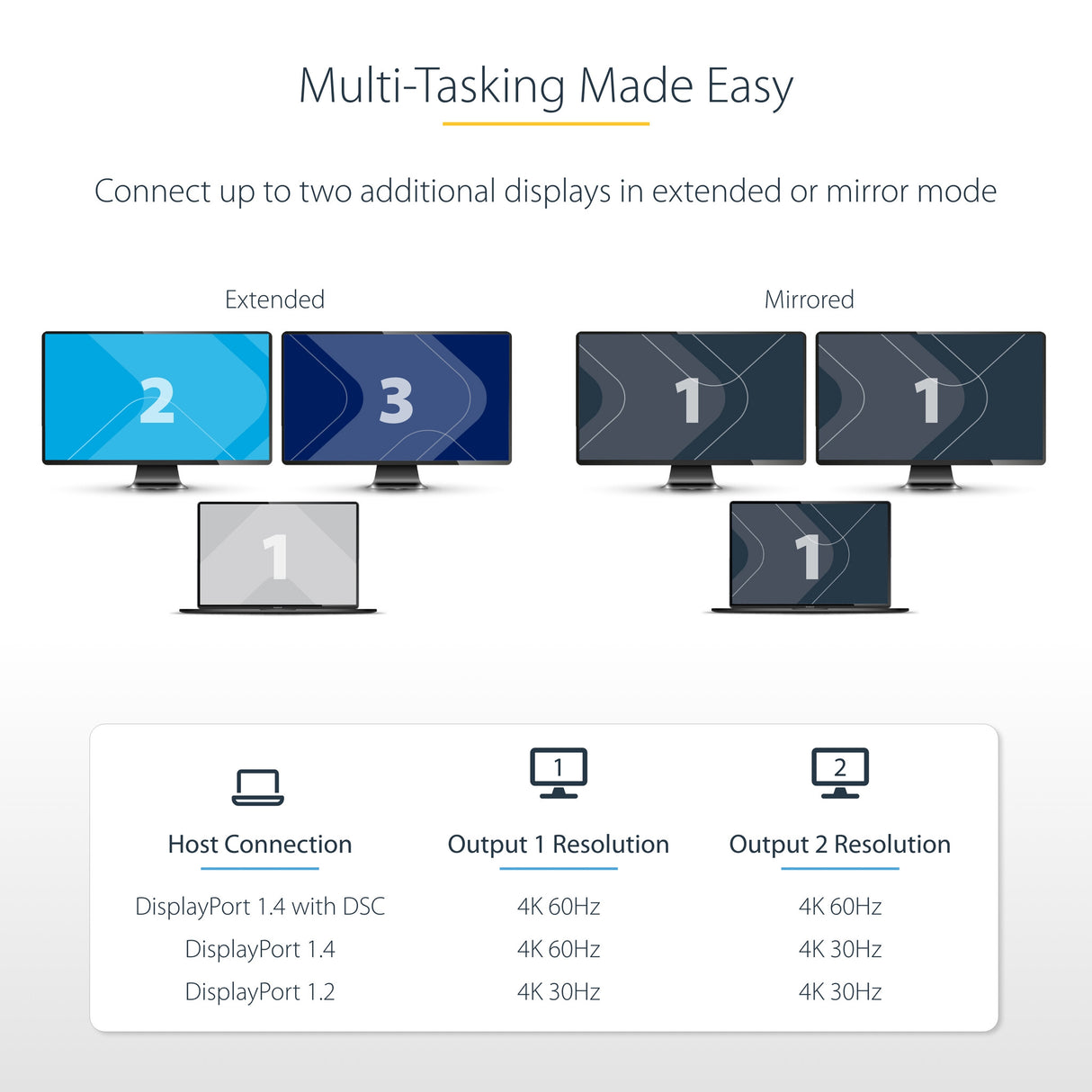

Multi-tasking Made Easy
This USB-C to HDMI video splitter connects up to two additional displays in extended or mirror mode. Connecting two independent 4K 60Hz displays creates high-performance workstations, for users in your organization enabling easier multi-tasking resulting in increased productivity.
Host Connection
Output 1 Resolution
Output 2 Resolution
DisplayPort 1.4 with DSC
4K 60Hz
4K 60Hz
DisplayPort 1.4
4K 60Hz
4K 30Hz
DisplayPort 1.2
4K 30Hz
4K 30Hz

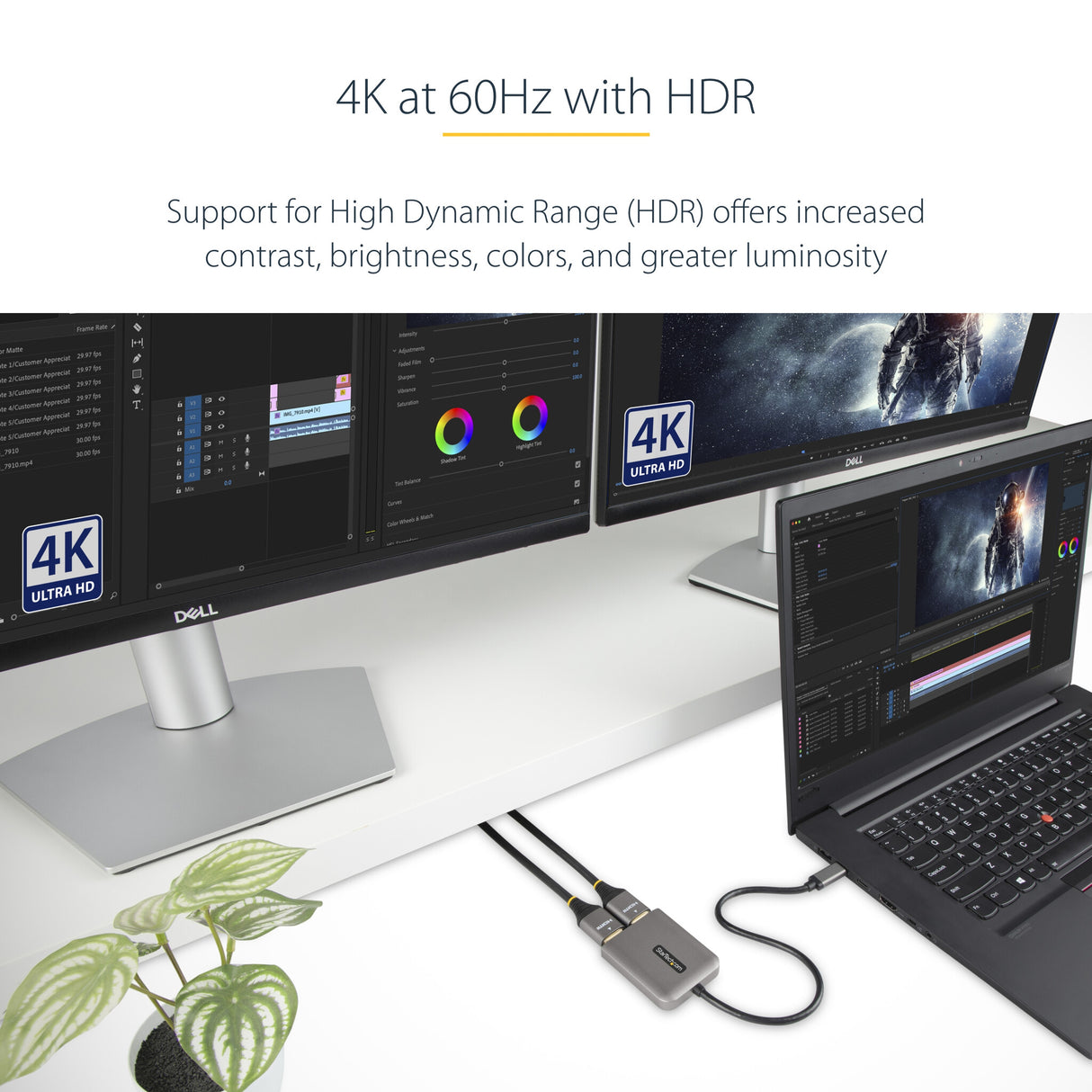

4K at 60Hz and HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single signal/stream. This MST Hub separates the single stream into two independent signals, one for each HDMI enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

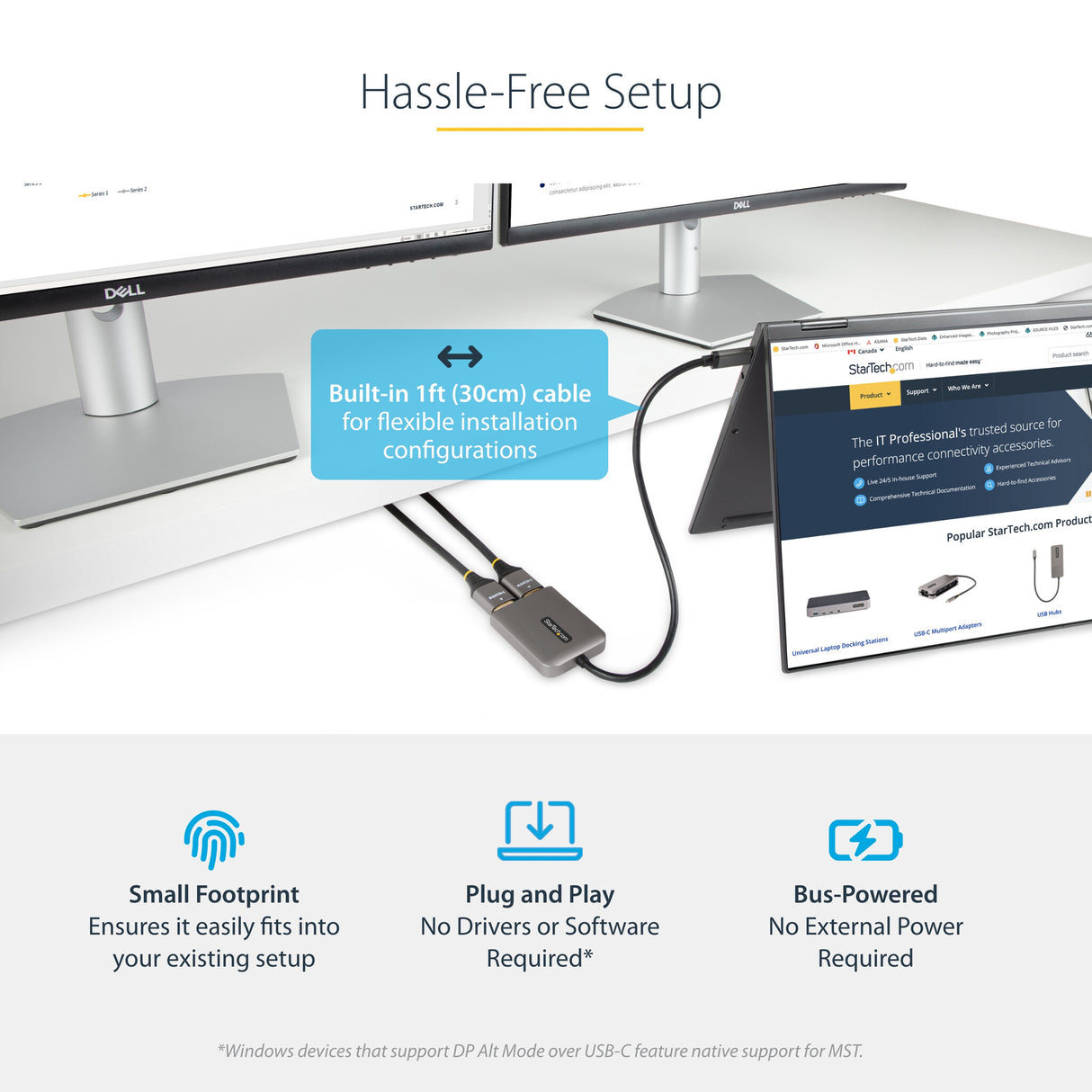

Hassle-Free Setup

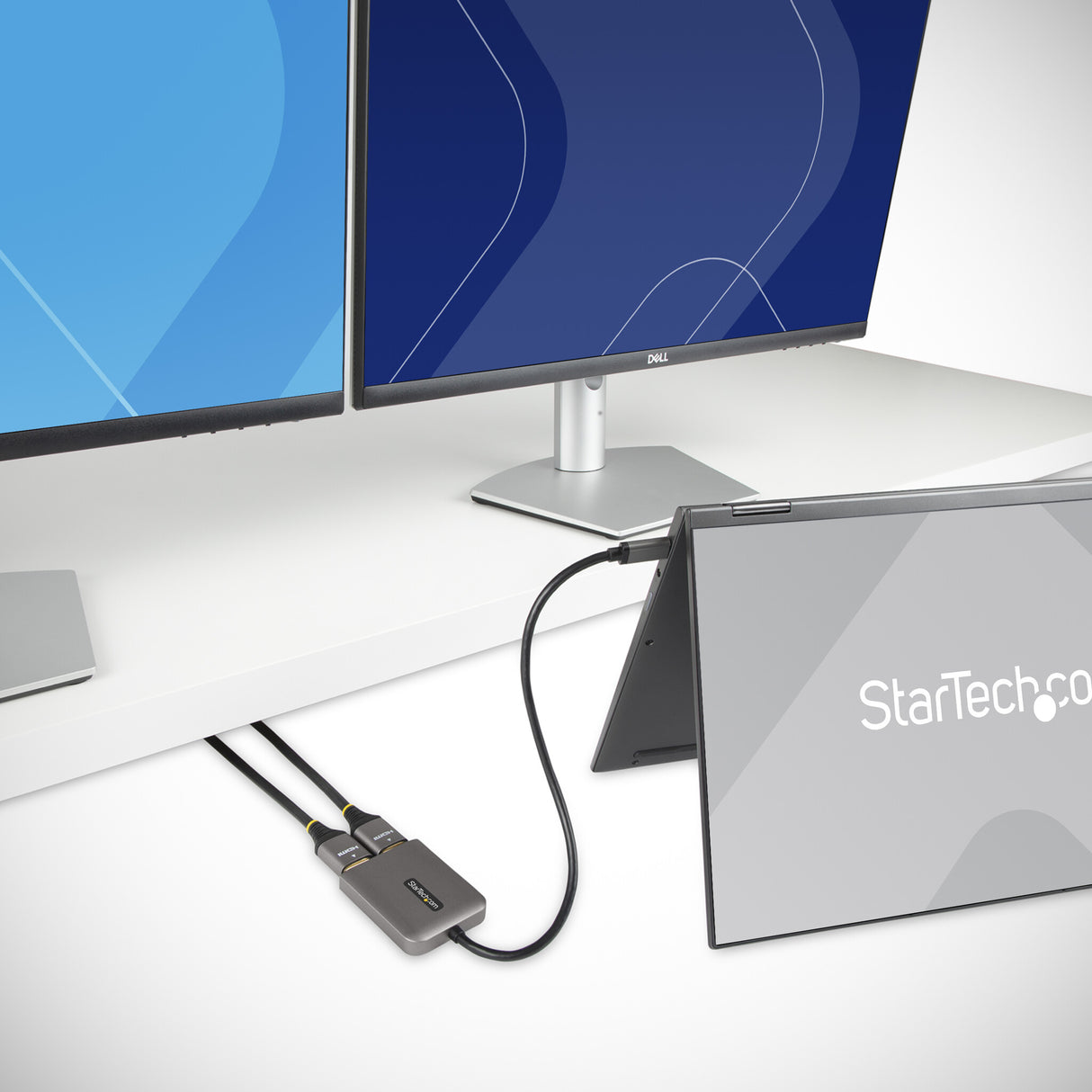

Windows devices that support DP Alt Mode over USB-C feature native support for MST. This USB-C to HDMI hub is compatible with Thunderbolt 4, Thunderbolt 3, and USB4 enabled Windows devices. Plug-and-play installation with no drivers or software required. The 12in (30cm) attached cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, meaning no external power is required.
MST14CD122HD is backed by a StarTech.com 3-year warranty, and free lifetime multilingual, North American based technical support.
The StarTech.com Advantage
| Performance | |
|---|---|
| Data transfer rate (max) | 32.4 Gbit/s |
| Chipset | Synaptics VMM5200 |
| Audio output channels | 7.1 channels |
| Refresh rate at maximum resolution | 60 Hz |
| Maximum resolution | 3840 x 2160 pixels |
| HDMI ports quantity | 2 |
| Number of displays supported | 2 |
| High Dynamic Range (HDR) supported | Yes |
| DisplayPort output | Yes |
| HDMI output | Yes |
| DVI output | No |
| USB connector form factor | Straight |
| USB connector gender | Male |

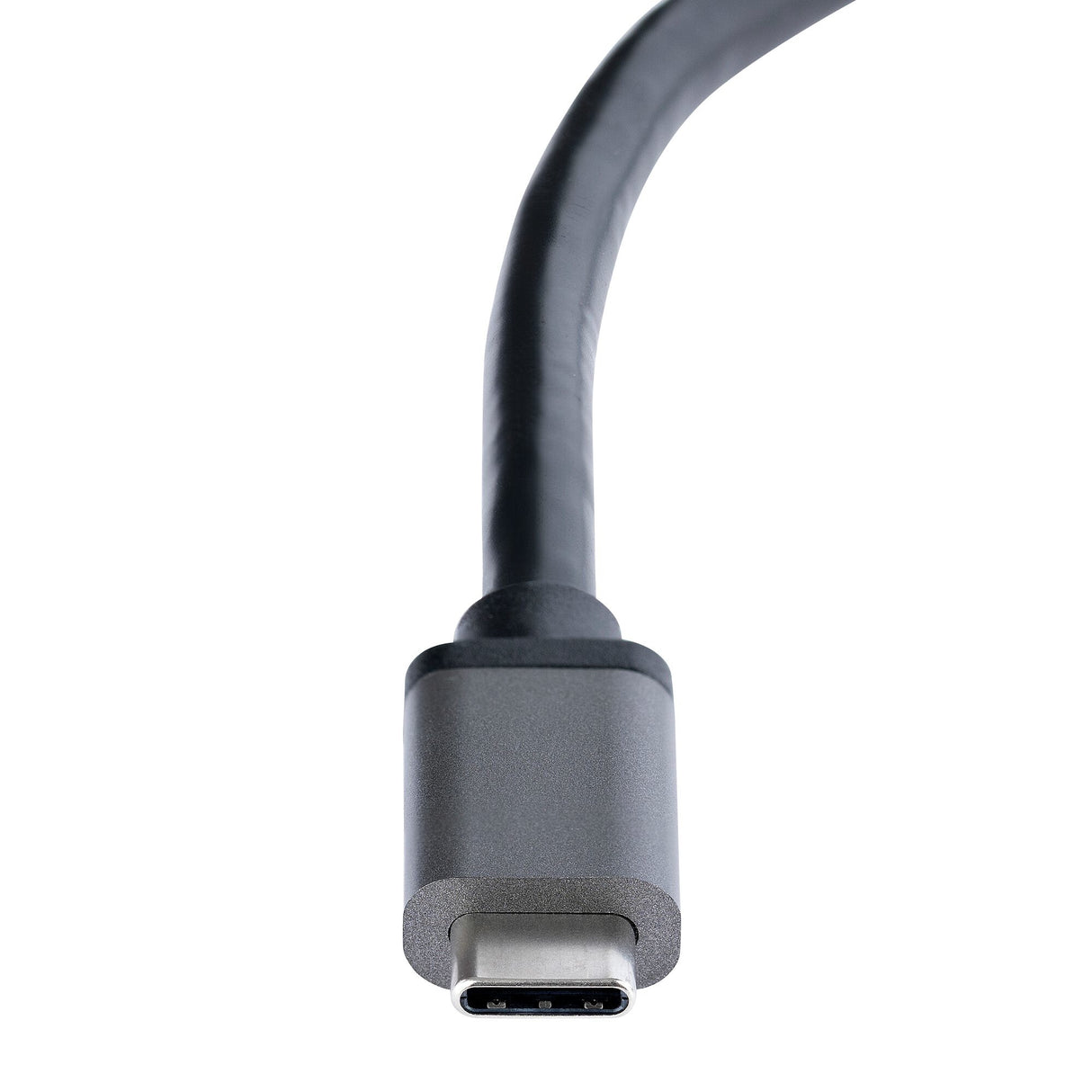

| USB connector type | USB Type-C |
| Design | |
|---|---|
| Integrated USB cable | Yes |
| Housing material | Plastic |
| Product colour | Black, Grey |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 x64, Windows 11, Windows 11 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating temperature (T-T) | 0 - 70 °C |

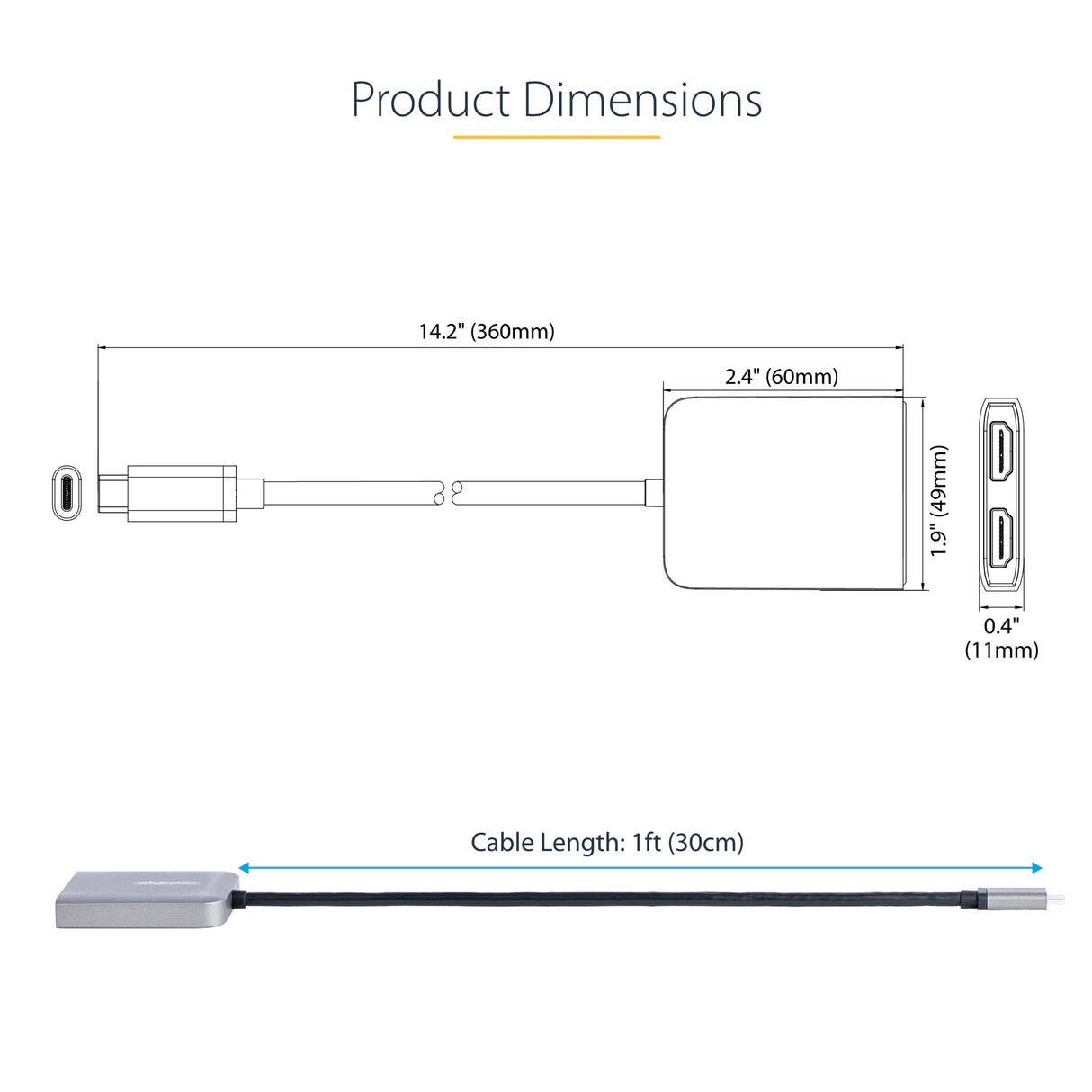

| Weight & dimensions | |
|---|---|
| Package weight | 108.8 g |
| Package height | 30 mm |
| Package depth | 170 mm |
| Package width | 142 mm |
| USB cable length | 0.3 m |
| Weight | 55 g |
| Height | 14 mm |
| Depth | 43 mm |
| Width | 105 mm |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 473 mm |
| Master (outer) case length | 331 mm |
| Master (outer) case height | 440 mm |
| Harmonized System (HS) code | 84733020 |
