StarTech.com 3U 19” Wall Mount Vertical Rack Bracket, Wall Mount Patch Panel Bracket for Data/AV/IT/Computer Equipment, 3U Rack for Cabinet or Server Room, Supports 150lb (68kg) Capacity - TAA

STARTECH.COM  |  SKU : RK319WALLV  |  Condition: Brand New  |  Code-barres: 65030834407
£67.99
£61.99 Save £6.00 £67.99
£51.66 excluding VAT @20%
iFrame
StarTech 3U 19" Wall Mount Vertical Rack Bracket, Wall Mount Patch Panel Bracket for Data/AV/IT/Computer Equipment, 3U Rack for Cabinet or Server Room, Supports 150lb (68kg) , TAA (RK319WALLV)

Hardware Included | TAA Compliant | Lifetime Warranty

This 3U 19 in server room rack enables vertical mounting of rack-mounted equipment of any depth. Mount the bracket to a wood stud wall and position equipment vertically, maximizing space utilization and optimizing layout design. The open-frame design allows for unrestricted airflow to the mounted equipment, improving cooling.

Versatile Design

Mount the bracket into a wall featuring wood stud construction, where studs are spaced 16in (40.6cm) apart. The patch panel wall mount rack is perfect for SoHo (small office, home office) and other small footprint applications allowing you to vertically mount up to 150lb (68kg) of standard rack equipment into this 14-gauge steel bracket. The mounting holes are positioned 16in (40.6cm) apart, matching the standard for construction framework.

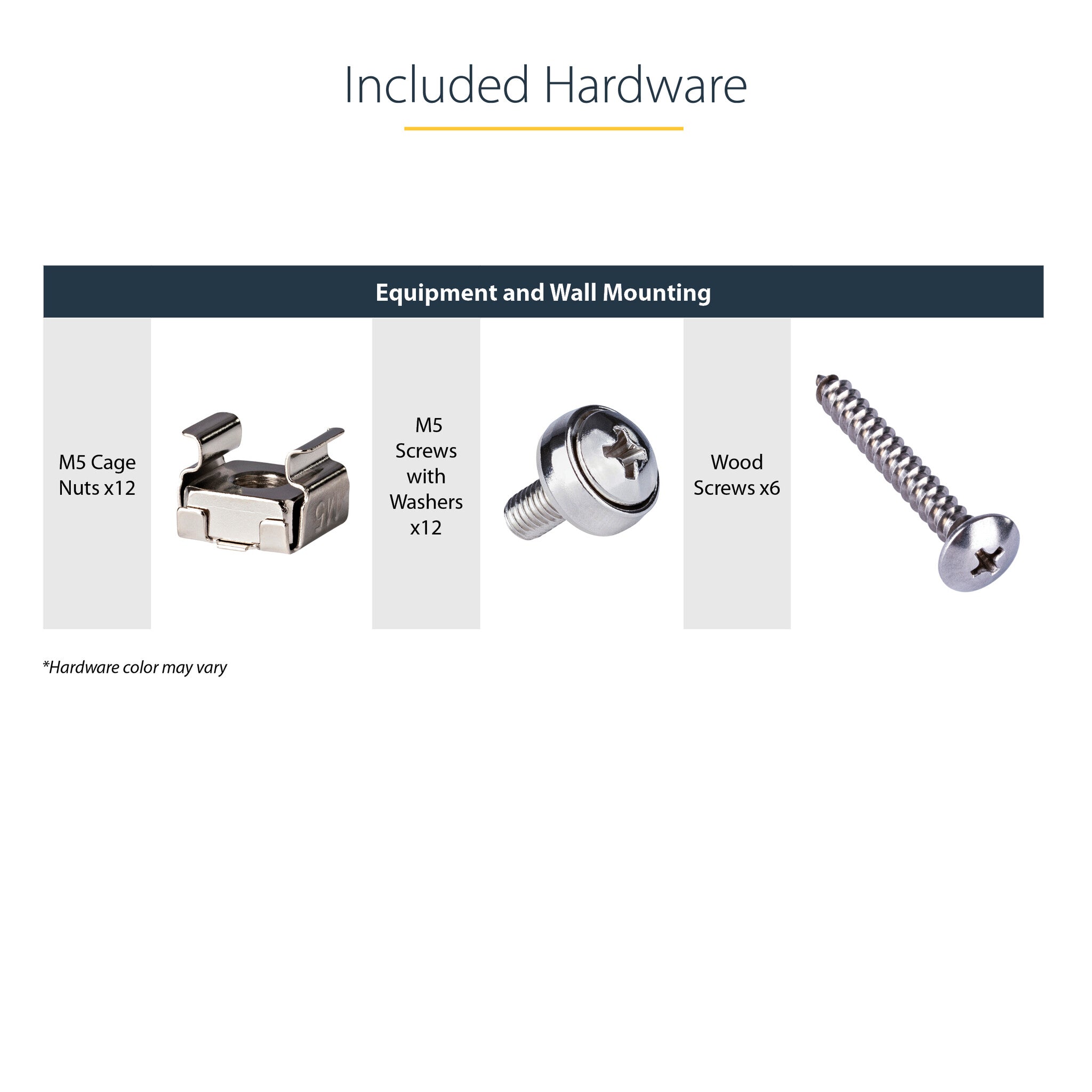

Included Hardware

The vertical wall mount network rack conveniently includes 6x wood screws, 12x M5 square cage nuts, and 12x M5 screws to attach the rack to a wall and mount your equipment.

The wall mount vertical rack is backed for life, including free lifetime 24/5 multi-lingual technical assistance.

Features
Rack capacity 3U
Type Wall mounted rack
Maximum weight capacity 56.7 kg
Product colour Black
Material Steel
Frame type Open
Product design 2-post
Number of fans 0 fan(s)
Mounting hole shape Square
Certification REACH, CE, UL, TAA

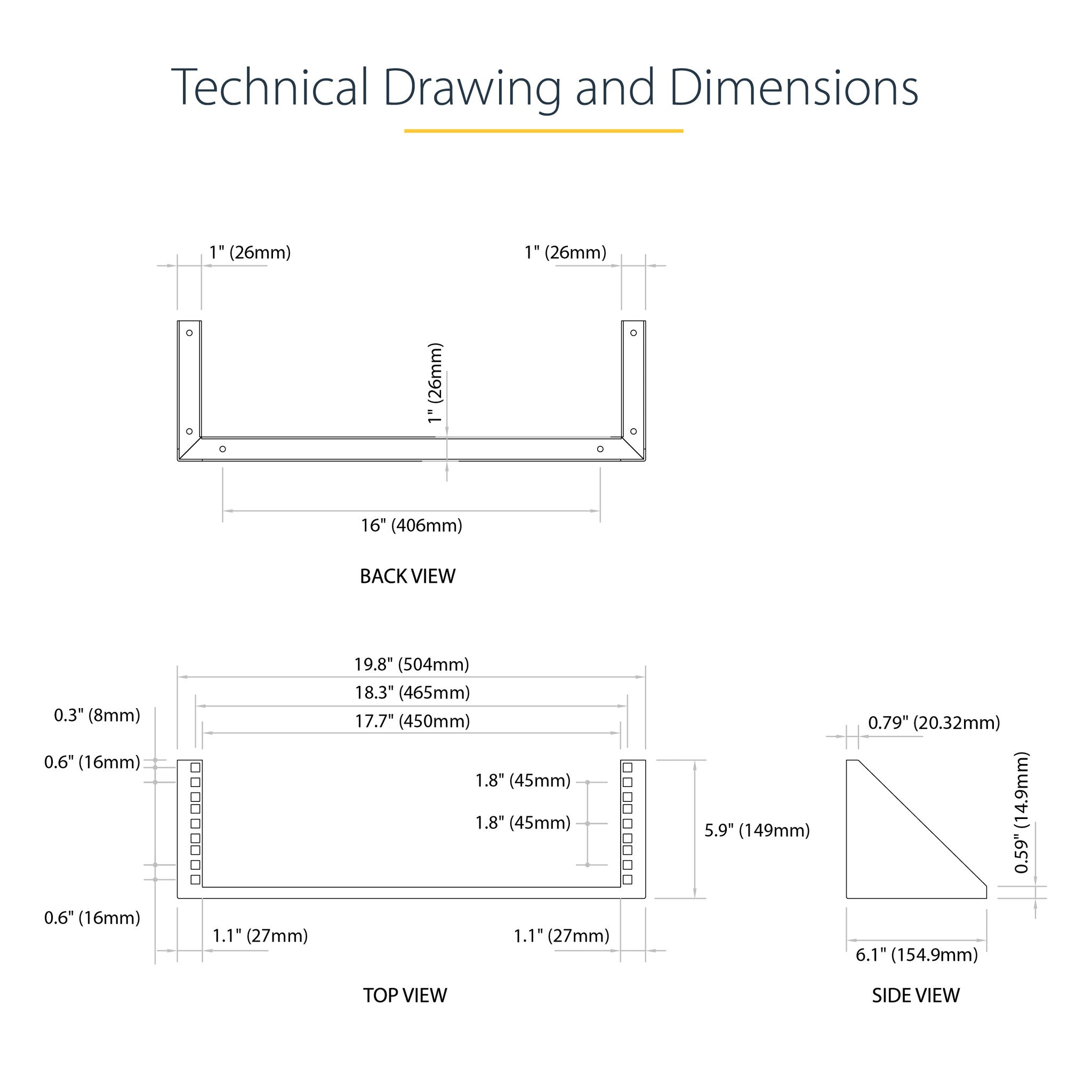

Weight & dimensions
Width 503 mm
Depth 151 mm
Height 149 mm
Inner width 46.5 cm
Weight 921 g
Packaging data
Nuts included Yes
Number of nuts 12
Number of screws 18
Screws included Yes
Wall mounting kit Yes
Mounting kit Yes
Manual Yes
Package width 545 mm
Package depth 176 mm
Package height 171 mm
Package weight 1.4 kg
Technical details
Compliance certificates RoHS
Logistics data
Harmonized System (HS) code 85381000
Master (outer) case width 164 mm
Master (outer) case length 518 mm
Master (outer) case height 174 mm
Products per master (outer) case 1 pc(s)
Other features
Compliance industry standards EIA/ECA-310-E
