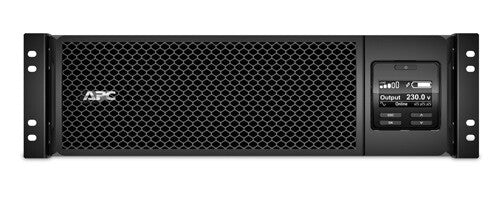

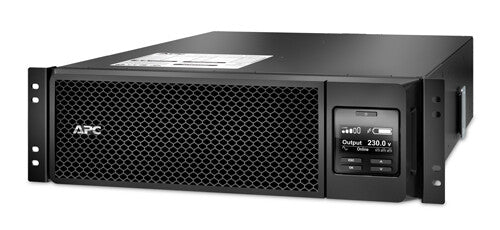

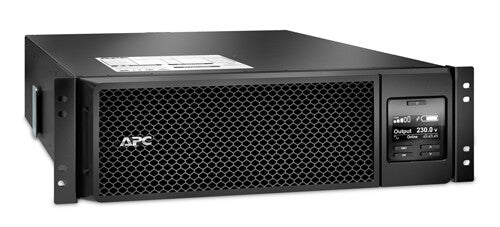

APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card, Extended runtime, W/ rail kit, 6-year warranty

APC  |  SKU : SRT5KRMXLI-6W  |  Condition: Brand New  |  Code-barres: 3606481338990

MORE INFO

£5,797.99
£5,751.99 Save £46.00 £5,797.99
£4,793.33 excluding VAT @20%
iFrame
Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card, Extended runtime, W/ rail kit, 6-year warranty

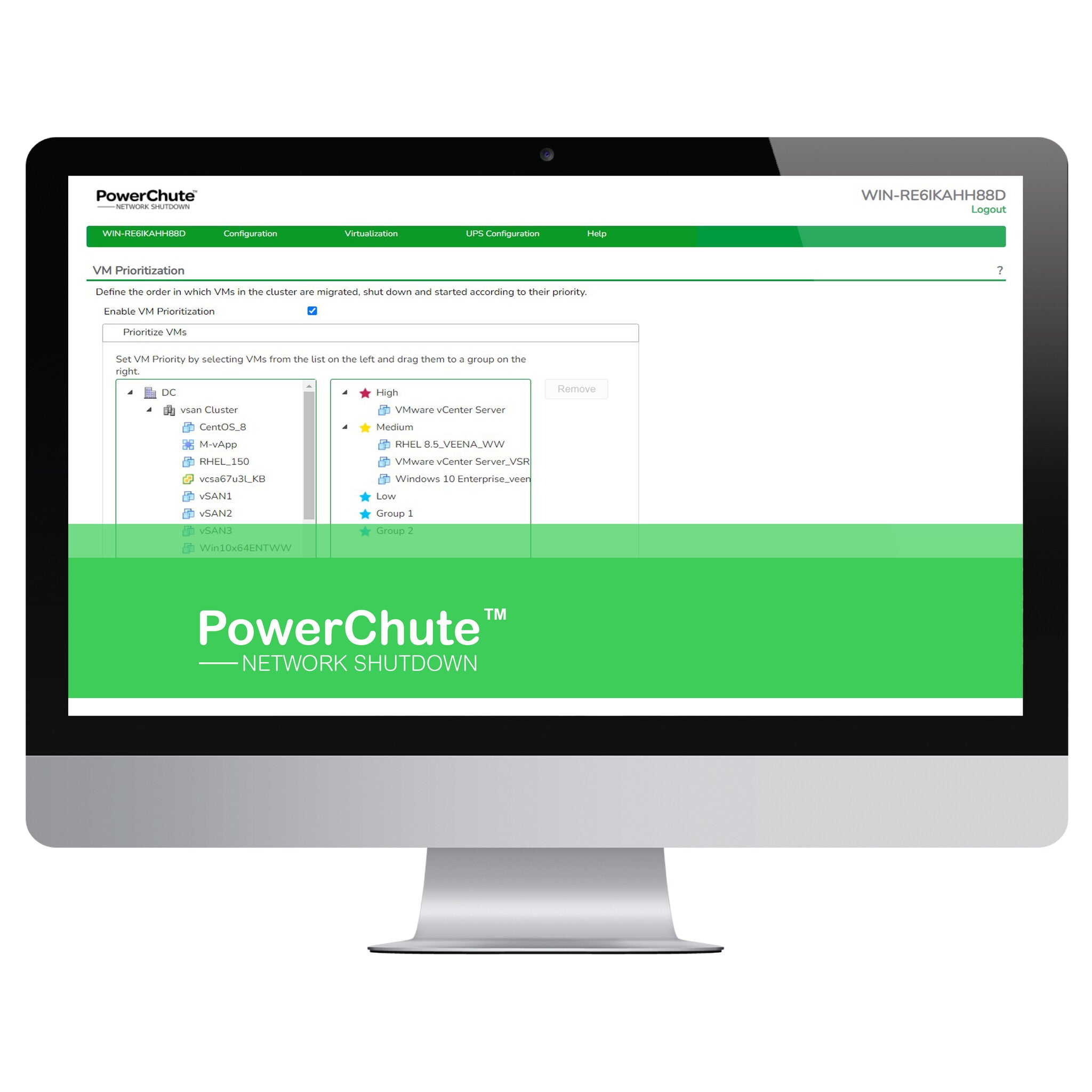

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hard Wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 6-year warranty and comes with a built-in lead-acid battery.

Features
UPS topology Double-conversion (Online)
Output power capacity 5 kVA
Output power 4500 W
Waveform Sine
Input operation voltage (min) 160 V
Input operation voltage (max) 275 V
Input frequency 40 - 70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency regulation 50/60 Hz
Surge energy rating 480 J
Efficiency 94.1%
Crest factor 3:1
Emergency Power Off (EPO) Yes
Output voltage Total Harmonic Distortion (THD) 3%
Noise level 55 dB
Surge protection Yes
Audible alarm(s) Yes
Auto-restart Yes
Ports & interfaces

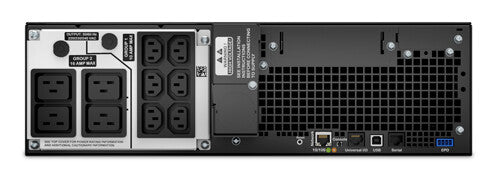

AC outlet types C13 coupler, C19 coupler
Power plug Hardwire
AC outlets quantity 10 AC outlet(s)
Number of output IEC jumpers 2
USB port Yes
Serial interface Yes
Serial interface type RJ-45
SmartSlot Yes
SmartConnect port No
Battery
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 845 VAh

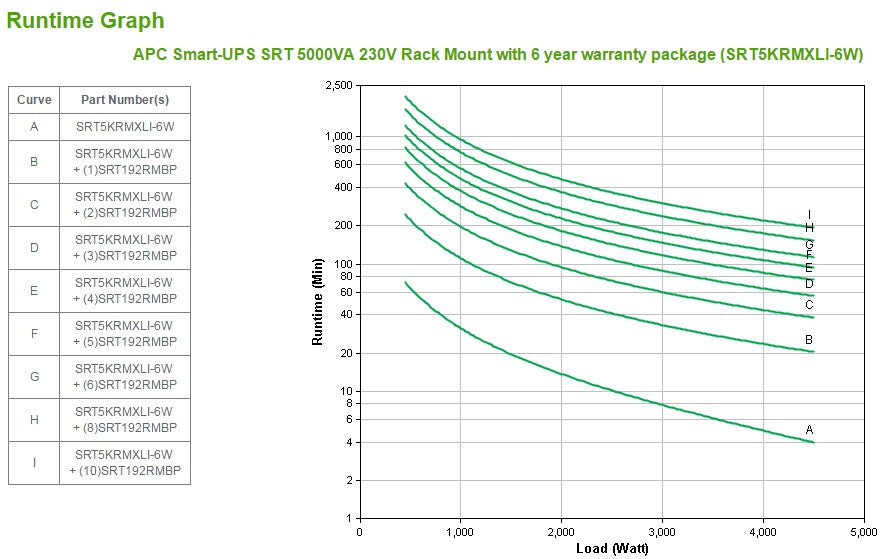

Typical backup time at full load 4 min
Typical backup time at half load 11.8 min
Battery life (max) 5 year(s)
Battery recharge time 1.5 h
Hot-swap battery Yes
Automatic battery test Yes
Cold start Yes
Replacement battery cartridge APCRBC140
Design
Form factor Rackmount
Product colour Black
Rack capacity 3U

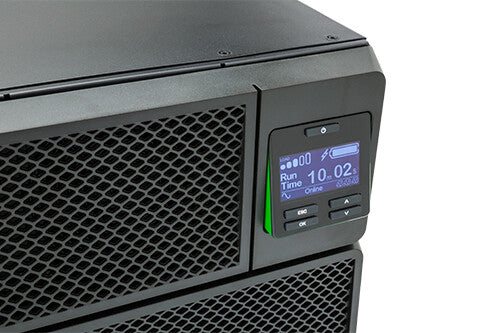

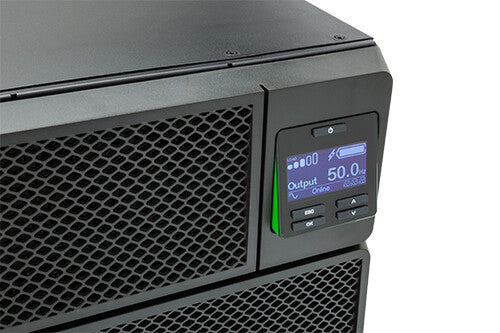

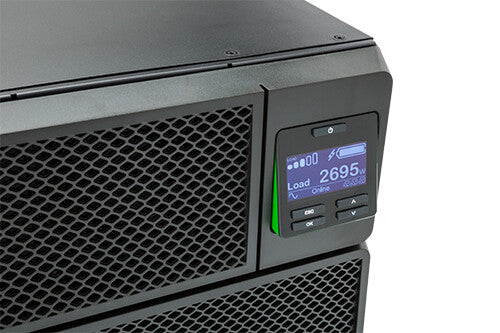

Display type LCD
International Protection (IP) code IP20
Certification REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, NOM, VDE
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Non-operating altitude 0 - 15000 m
Technical details
Total carbon footprint 8408.59
Compliance certificates RoHS
Sustainability certificates ENERGY STAR
Weight & dimensions
Width 432 mm
Depth 719 mm
Height 130 mm
Weight 54.4 kg
Package width 610 mm
Package depth 960 mm
Package height 330 mm
Package weight 66.9 kg
Packaging data
Rack mount kit Yes
Bracket Yes
Management card included Yes
Temperature sensor Yes
Quick installation guide Yes
Warranty card Yes
Logistics data
Products per pallet 6 pc(s)
Harmonized System (HS) code 85078000
Other features
Packaging content Web/SNMP Management Card
