Description
Description
Always stay online and prevent data loss
As soon as the power goes out, an APC Smart-UPS immediately provides emergency power to all connected equipment. Because an APC UPS does this automatically, you prevent unwanted failure of, for example, a PC, server or switch. With the APC PowerChute Network Shutdown software you can even have critical IT hardware shut down automatically and in a controlled manner when the battery of the UPS is almost empty. This way you prevent data loss, downtime and physical damage to hardware.
Safety
In addition, a Smart-UPS protects connected devices against peak voltage caused by lightning, among other things. This APC emergency power supply is ideally suited for (small) business use.
Battery life

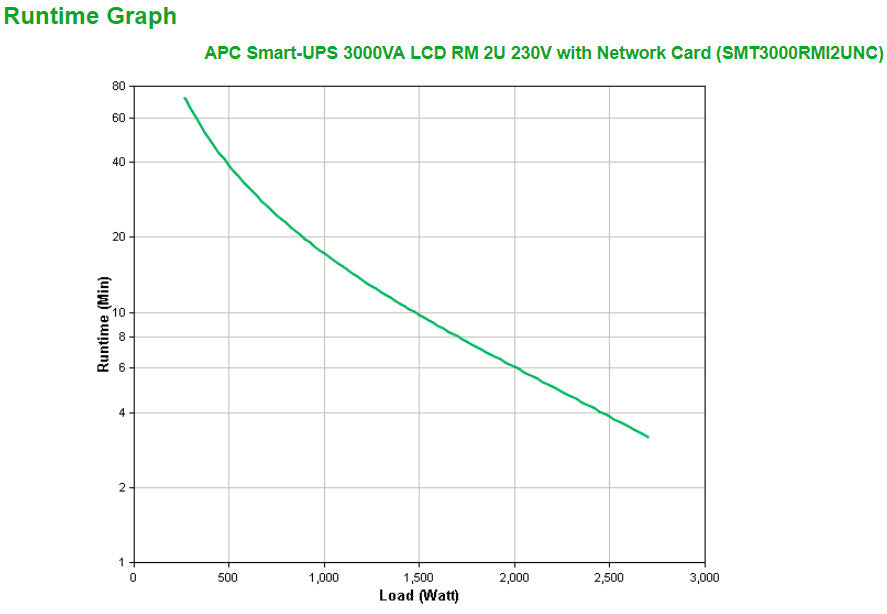

You can easily read the expected battery life in the runtime graph, which you can find between the product images. You can easily see how long the UPS supplies emergency power at a certain load.
Manage your Smart-UPS
Thanks to the pre-installed network card (ap9641), you can easily connect the APC UPS to the network. This way you can monitor and manage the UPS remotely (SNMP) and the UPS can send a shutdown signal to multiple physical and/or virtual servers using PowerChute Network Shutdown software.

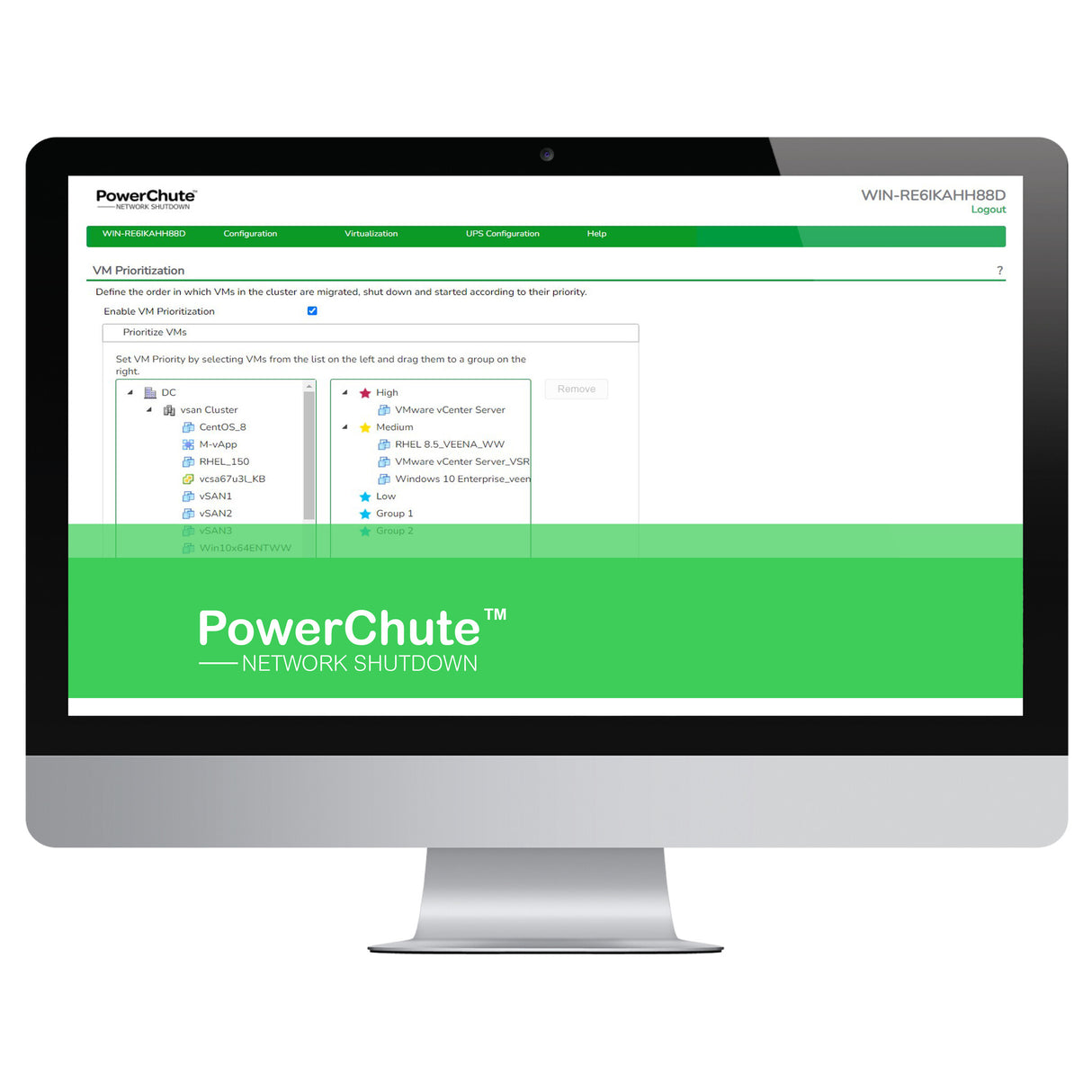

PowerChute Network Shutdown
PowerChute Network Shutdown is UPS management software that works with the UPS Network Management Card to protect Windows, Linux and Host ESXi, as well as hyperconverged and virtual infrastructure*. In the event of a power outage, PowerChute can properly shut down your virtual machines and the preconfigured boot sequence ensures they are turned back on.
*An additional license is required for HCI and virtual machine support:
1 year: SWPCNS1Y-DIGI
3 years: SWPCNS3Y-DIGI
5 years: SWPCNS5Y-DIGI
Remote management and monitoring of your network
The network card can be managed remotely via the easy-to-use web browser interface, remote management software EcoStruxure™ IT (SFTWES1-DIGI) or other SNMP-compatible system. Tip EcoStruxure™ IT also includes the functionalities of the support contract below.
Support contract
The optional network card support contract license* ensures you are always up to date and secure and includes additional benefits such as frequent updates with:
• New and improved features
• Security updates
• Advanced support
*The above license is available in the variants:
1 year: SWNMC3SU-1Y-DIGI
3 years: SWNMC3SU-3Y-DIGI
5 years: SWNMC3SU-5Y-DIGI
Ease of use
By means of physical buttons and an LCD screen make it possible to set and read the basic functionalities. Thanks to the included 4-post rail kit, you can easily mount the UPS in a rack.
Extend the lifespan
The internal battery cartridge (RBC43) can be replaced easily, safely and independently by the user. This without having to switch off the APC SMT3000RMI2UNC or connected equipment. This way you can easily and cheaply extend the lifespan of the APC Smart-UPS and your equipment always remains online.
Warranty extension
The manufacturer's warranty of the SMT3000RMI2UNC is 3 years, with the exception of the battery cartridge, which has a 2-year manufacturer's warranty. Both are extended by 3 years to 6 and 5 years respectively with the APC service pack (WBEXTWAR3YR-SP-04).
Switched Outlet Groups: Remote reboot and phased start-up
Thanks to the Switched Outlet Groups, it is possible to configure a phased/delayed power-on per UPS outlet group. This reduces the peak load on the UPS and brings it closer to the constant load, which limits oversizing of the UPS.
It is also possible to reset a group of multiple UPS outputs and the equipment connected to them. If SmartConnect Advanced (ERWPLUS1-1Y-DIGI) is used, a UPS with SmartConnect port + Ecostruxure IT Expert (SFTWES1-DIGI) or a network card (ap9640) in combination with Ecostruxure IT Expert (SFTWES1-DIGI), this is even possible at a distance.
Green Premium
This label represents Schneider Electric's commitment to delivering products with best-in-class environmental performance. Green Premium promises to comply with the latest regulations, transparency on environmental effects and circular and low CO2 emission products.
Green Premium:
- Stands for an energy-efficient product that helps our customers achieve their CO2 reduction goals and save energy costs at the same time. The energy efficiency of this product is at least 10% higher than the market average.
- Provides insight into the environmental effects of the product, this data is available 24/7 via the digital product environmental profile, see https://checkaproduct.se.com/
- Commits to minimal use of hazardous substances within and beyond regulatory compliance (RoHS/REACh)
Maximize availability
Or instead of extending the warranty, opt for the even more complete 5-year EcoCare service to maximize the availability of your APC UPS. In addition to a 5-year warranty, it also includes 24/7 remote monitoring through the Schneider Electric Connected Services Hub and SE's on-site repair service (replacement parts, labor, installation and call-out charges).
Features | |
---|---|
Auto-restart | Yes |
Audible alarm modes | Battery replacement |
Web-based management | Yes |
Audible alarm(s) | Yes |
Surge protection | Yes |
Noise level | 55 dB |
Emergency Power Off (EPO) | O |
Response time | 4 ms |
Surge energy rating | 320 J |
Output frequency | 50/60 Hz |
Output operation voltage (max) | 240 V |
Output operation voltage (min) | 220 V |
Input frequency | 50/60 Hz |
Input operation voltage (max) | 302 V |
Input operation voltage (min) | 151 V |
Waveform | Sine |
Output power | 2700 W |
Output power capacity | 3 kVA |
UPS topology | Line-Interactive |
Ports & interfaces | |
---|---|
USB 2.0 ports quantity | 1 |
AC outlets quantity | 9 AC outlet(s) |
Power plug | C20 coupler |
AC outlet types | C13 coupler, C19 coupler, C20 coupler |
Battery | |
---|---|
Cold start | Yes |
Automatic battery test | Yes |
Hot-swap battery | Yes |
Battery recharge time | 3 h |
Battery capacity | 547 Ah |
Battery technology | Sealed Lead Acid (VRLA) |
Design | |
---|---|
Certification | CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE |
LED indicators | Yes |
Display type | LCD |
Cable length | 2 m |
Rack capacity | 2U |
Product colour | Black |
Form factor | Rackmount |
Operational conditions | |
---|---|
Non-operating altitude | 0 - 15000 m |
Operating altitude | 0 - 3000 m |
Storage relative humidity (H-H) | 0 - 95% |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -15 - 45 °C |
Operating temperature (T-T) | 0 - 40 °C |
Technical details | |
---|---|
Sustainability certificates | Green Premium |
Compliance certificates | RoHS |
Weight & dimensions | |
---|---|
Package weight | 51.6 kg |
Package height | 254 mm |
Package depth | 980 mm |
Package width | 600 mm |
Weight | 44.2 kg |
Height | 86 mm |
Depth | 683 mm |
Width | 480 mm |
Packaging data | |
---|---|
Resource CD | Yes |
Quick installation guide | Yes |
Cables included | Input power cable, USB cable |
Rack mount kit | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 85078000 |
Products per pallet | 8 pc(s) |
Other features | |
---|---|
Output voltage | 230 V |
