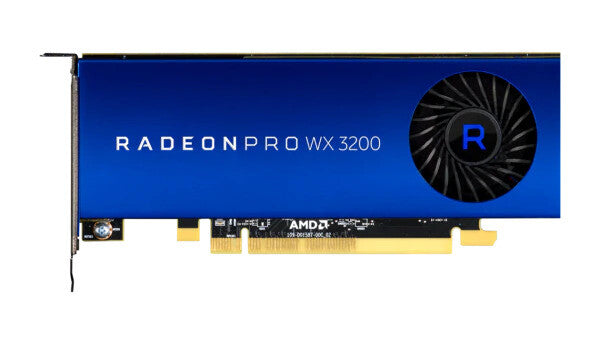

AMD Radeon Pro WX 3200 4 GB GDDR5
Cost-Effective & ISV-Certified Graphics Solution.
The AMD Radeon™ Pro WX 3200 graphics card is the most cost-effective graphics solution under USD $200 and is ISV-certified for professional use with major design applications.
High Quality Graphics Performance for Small Form Factor Workstations.
The AEC and Manufacturing industries have seen an increased demand for quality visuals in recent years. The Radeon™ Pro WX 3200 workstation graphics card is ideal for mainstream CAD engineers who require an ISV-certified graphics solution at an aggressive price point, while providing a full set of workstation features for deployments of all sizes. The Radeon™ Pro WX 3200 graphics card has a small form factor that is designed to fit into nearly all desktop workstations, supports the latest display standards with four Mini-DisplayPortTM 1.4 outputs, and offers 4GB of high speed GDDR5 memory and up to 1.66 TFLOPS of single precision compute performance.
| Processor | |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon Pro WX 3200 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Peak floating point performance (single precision) | 1660 Gflops |
| Peak floating point performance (double precision) | 104000 Gflops |
| Stream processors | 640 |
| Memory | |
|---|---|
| Discrete graphics card memory | 4 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 128 bit |
| Memory bandwidth (max) | 96 GB/s |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express x16 3.0 |
| Mini DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| Performance | |
|---|---|
| DirectX version | 12.0 |
| Shader model version | 5.1 |
| OpenGL version | 4.6 |
| OpenCL version | 2.0 |
| Dual Link DVI | No |
| Design | |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Form factor | Half-Height/Half-Length (HH/HL) |
| Number of slots | 1 |
| Product colour | Blue, Stainless steel |
| Certification | FCC Class A, CE, C-Tick, BSMI, KCC, UL, VCCL, WEEE |
| Power | |
|---|---|
| Power consumption (typical) | 50 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
|---|---|
| Height | 168 mm |
| Depth | 68.6 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Packaging data | |
|---|---|
| Package type | Box |
-
