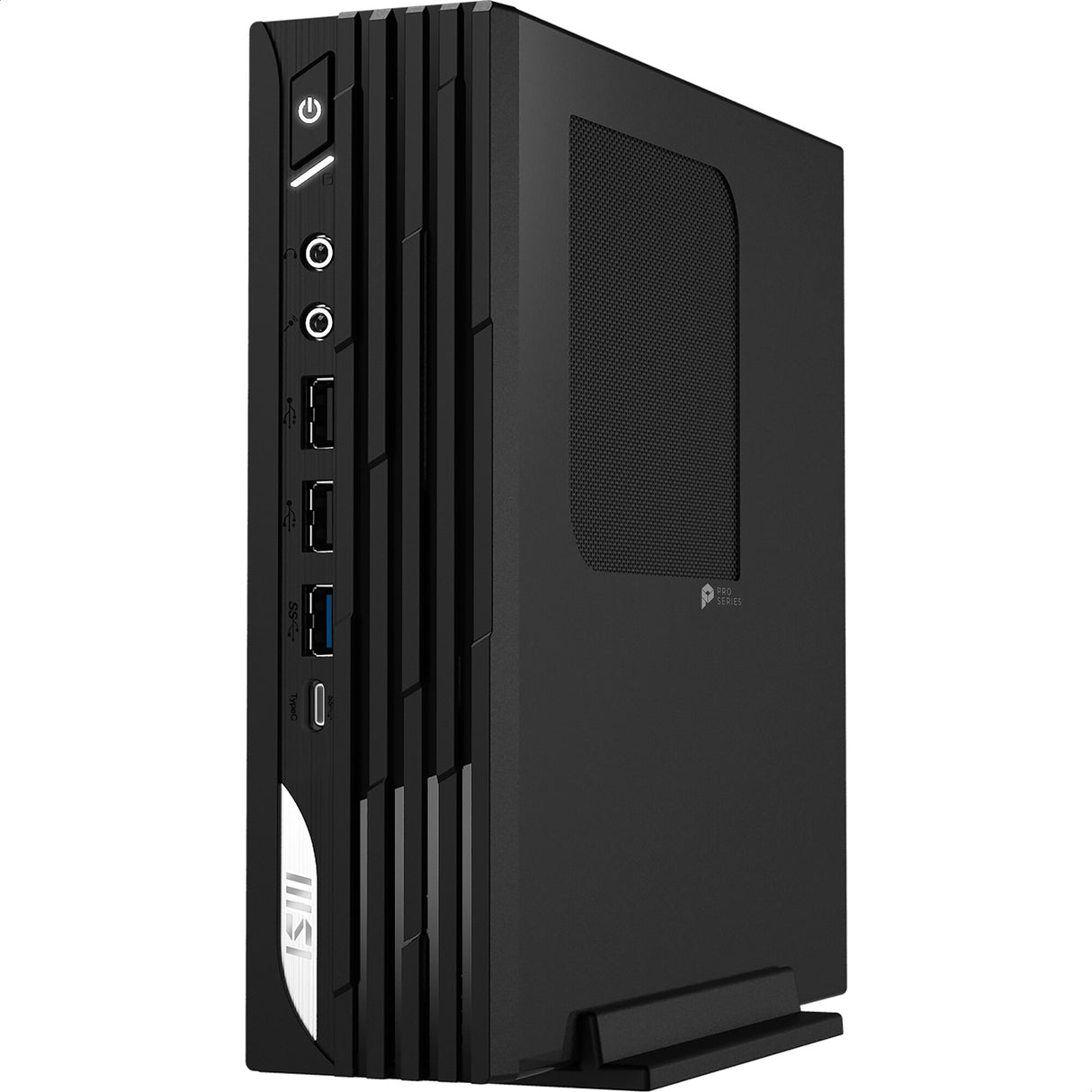

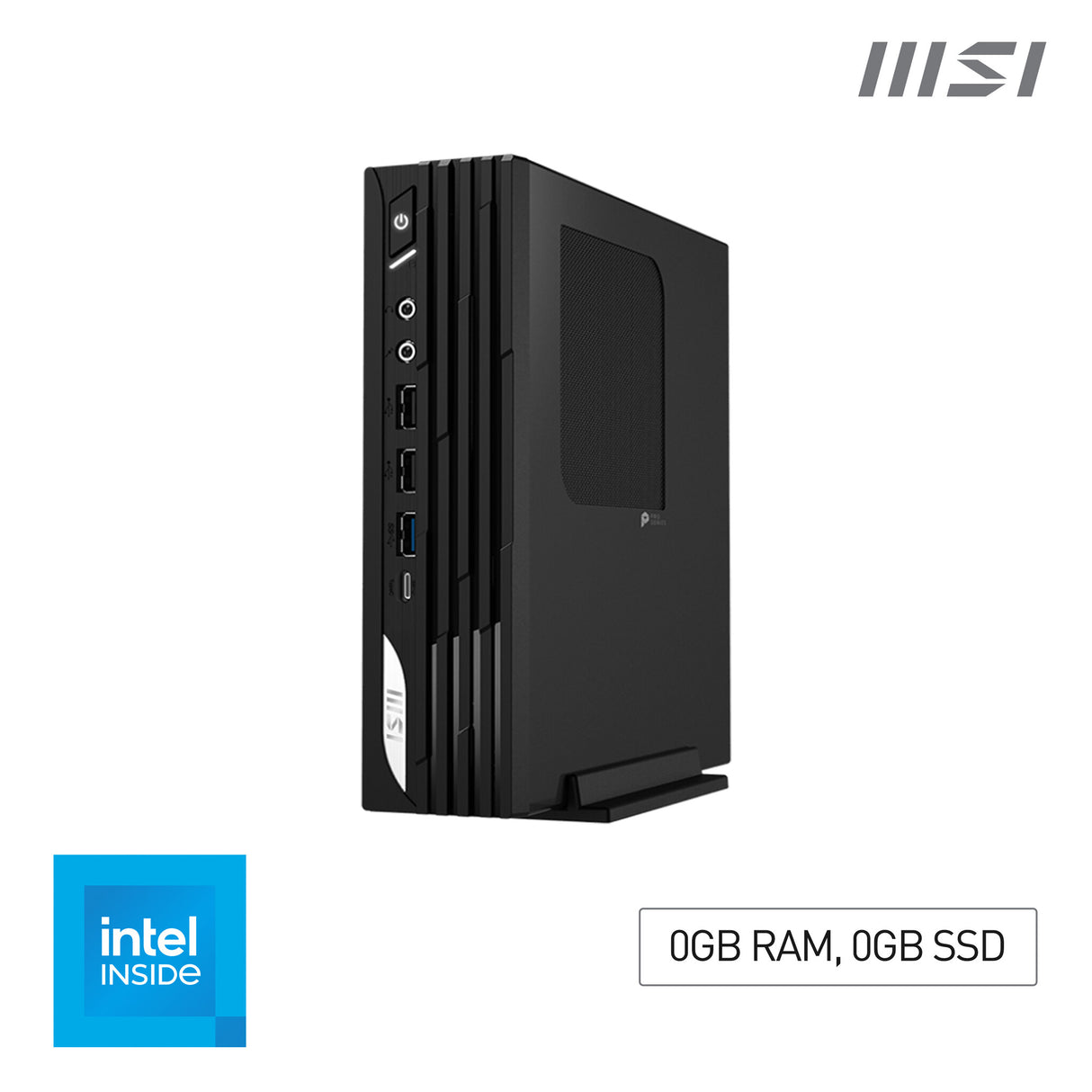

MSI PRO DP21 14M Intel Core 7 14700, Barebone, DP21 14M, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3
MSI PRO DP21 14M Intel Core 7 14700, Barebone, DP21 14M, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3 est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
MSI PRO DP21 14M Intel Core 7 14700, Barebone, DP21 14M, SFF, Mini ...
"MSI PRO DP21 14M Mini PC (SFF):

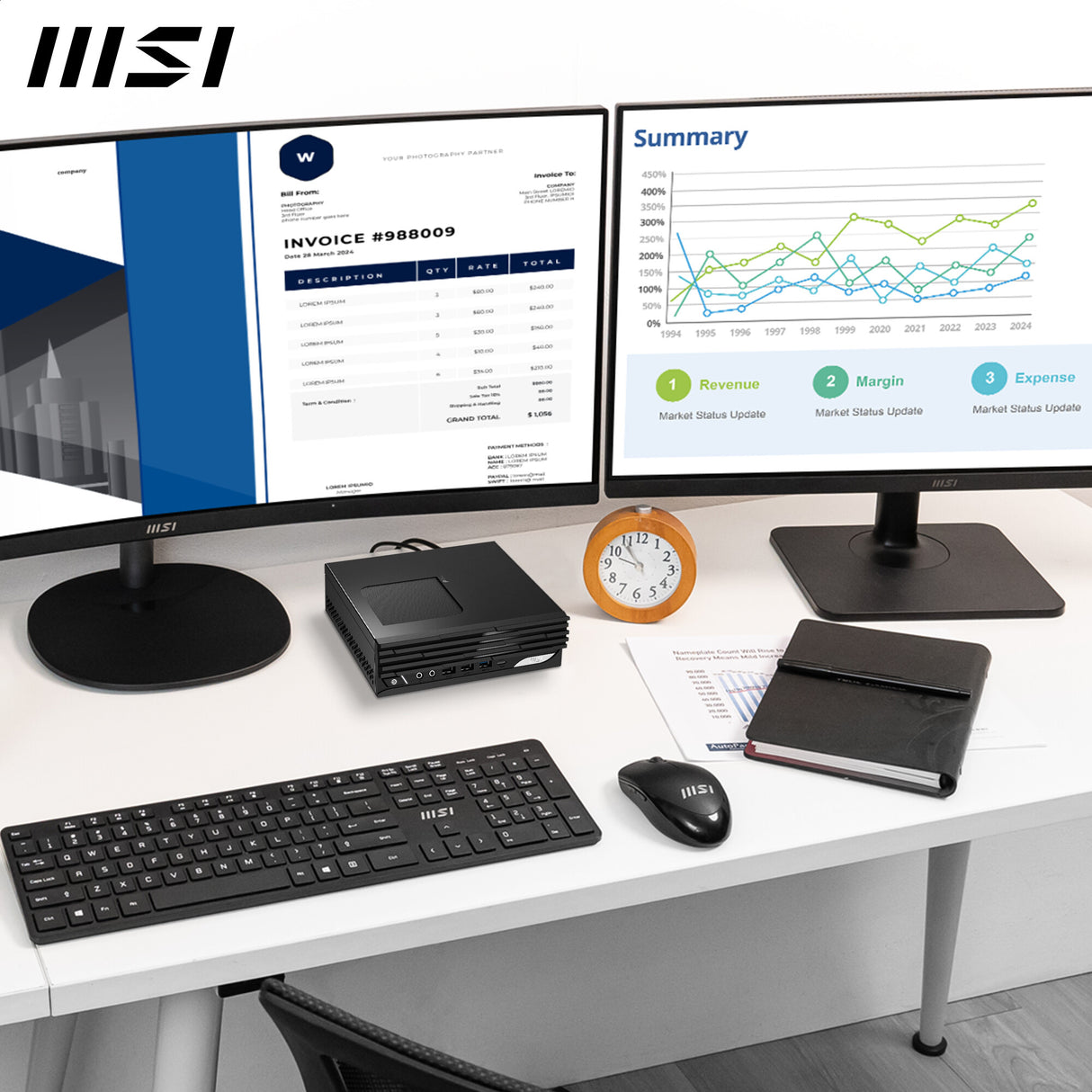

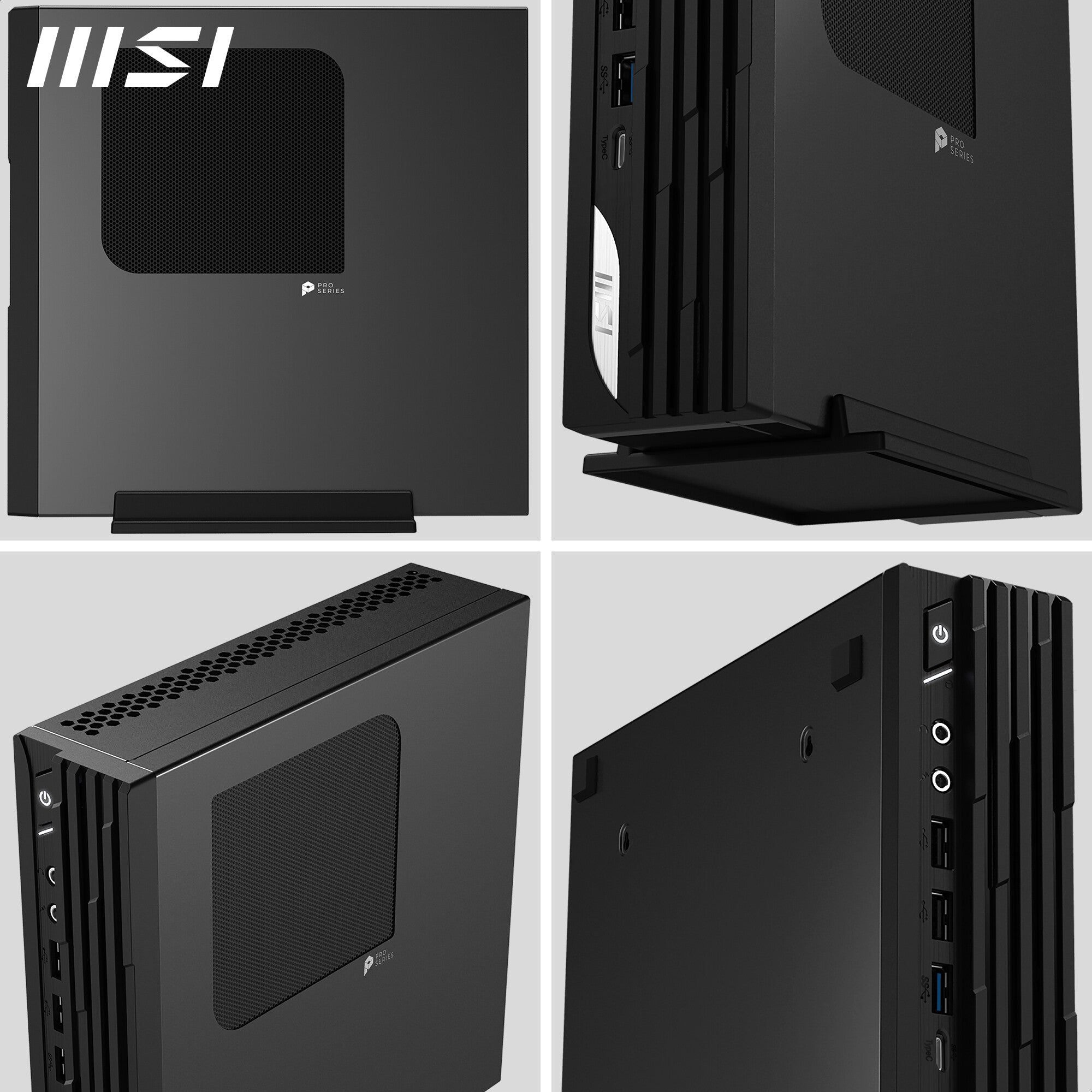

The MSI PRO DP21 14M is a small yet powerful mini-desktop with a compact 2.3L design suitable for commercial office work.

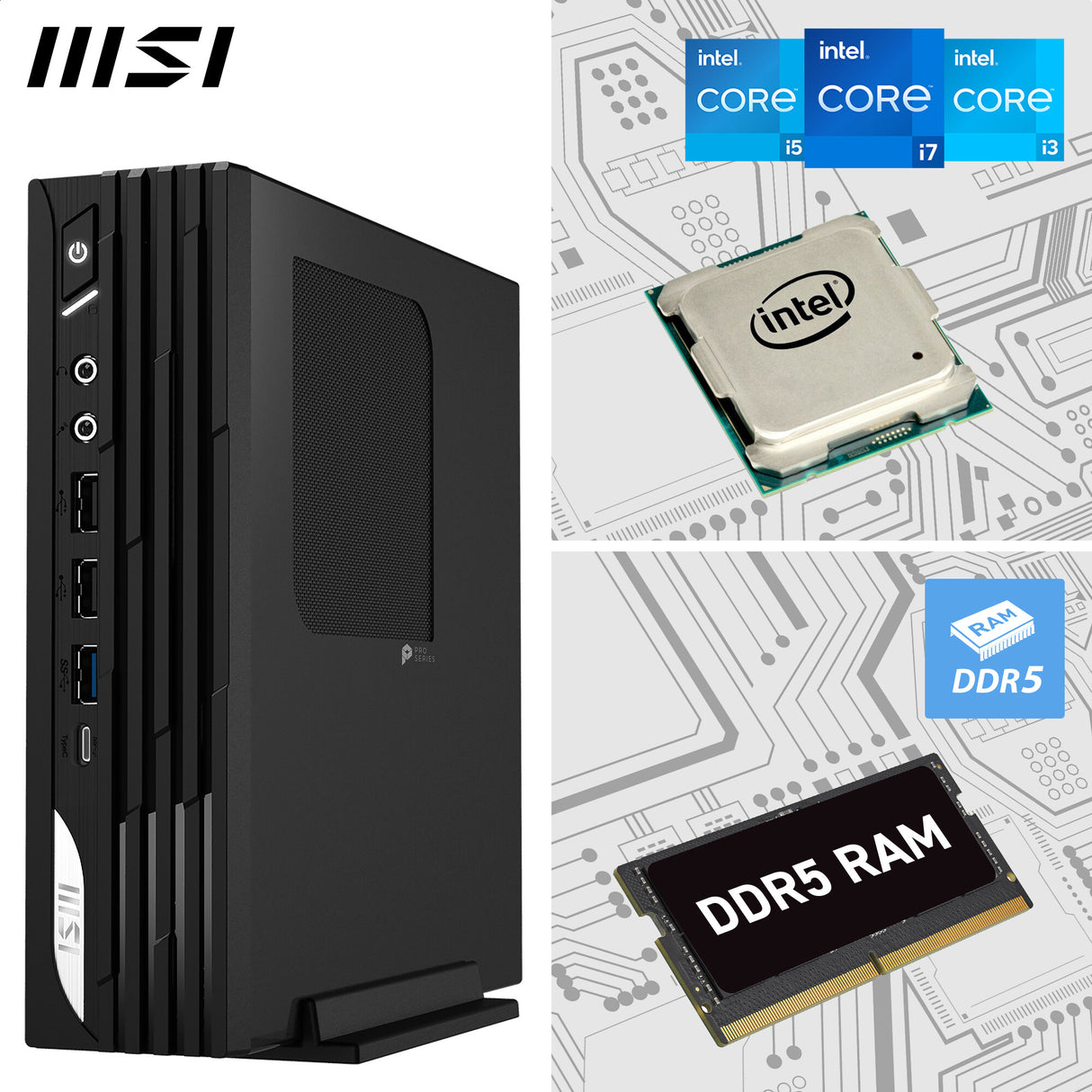

The PRO DP21 14M i7 14700 BB is a complete system equipped with an Intel 14th Gen Core i7-14700 processor with 20-core / 28-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo), Intel Wi-Fi 6E & Bluetooth 5.3 connectivity. Windows 11 Pro software is pre-installed.

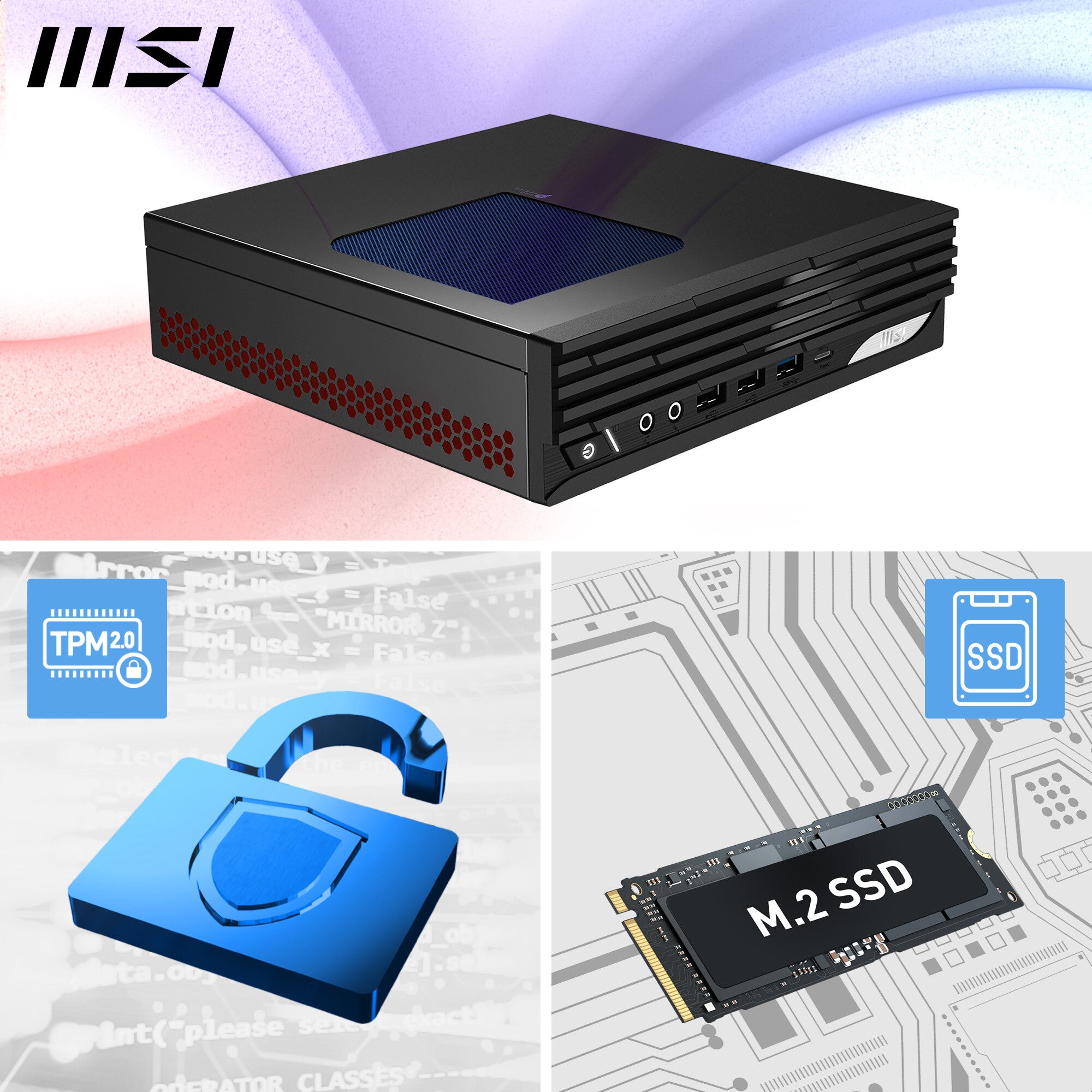

The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2 x 2.5-inch SSD/HDD storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMMs)

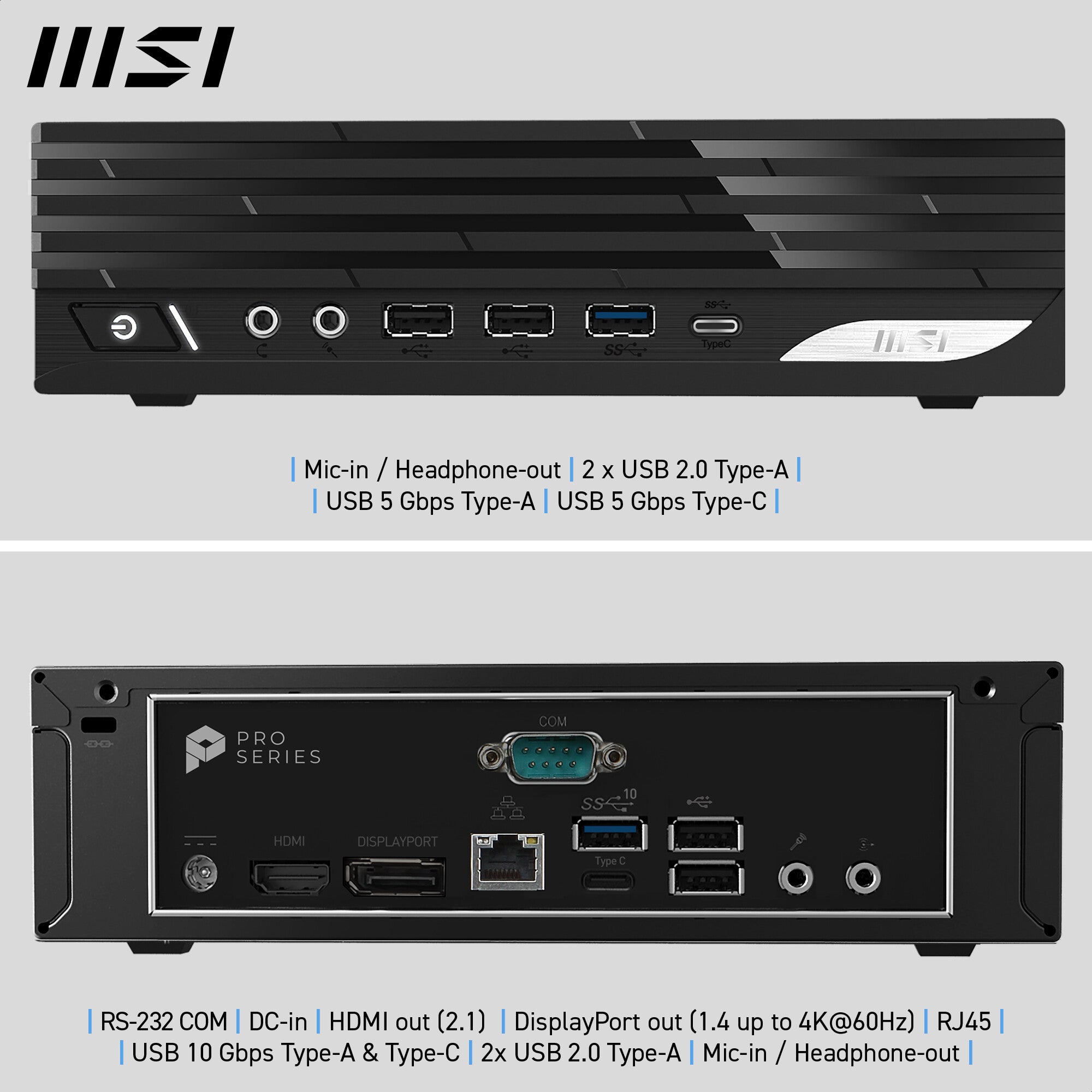

Front & rear I/O include Intel 1Gbps ethernet LAN RJ45, Mic-in, Headphones-out, 8 x USB (10Gbps Type-A & C, 5Gbps Type-A & C, 2.0 Type-A), and HDMI 2.1 & DP 1.4 ports. The PRO DP21 14M also contains a COM port for connecting to POS devices. dTrusted Platform Module 2.0 (dTPM2.0) technology provides security for storing sensitive information."
| Processor | |
|---|---|
| Built-in processor | Yes |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Performance-core base frequency | 2.1 GHz |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor frequency | 2.1 GHz |
| Processor cores | 20 |
| Processor threads | 16 |
| Performance cores | 8 |
| Efficient cores | 12 |
| Processor boost frequency | 5.4 GHz |
| Processor cache | 33 MB |
| L3 cache | 33 MB |
| Thermal Design Power (TDP) | 65 W |
| ECC supported by processor | No |
| Memory | |
|---|---|
| Memory channels | Dual-channel |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 5600 MHz |
| Maximum internal memory | 64 GB |
| ECC | No |
| Non-ECC | Yes |
| Storage | |
|---|---|
| Card reader integrated | No |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel UHD Graphics 770 |
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |
| Display | |
|---|---|
| Touchscreen | No |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Bluetooth Low Energy (BLE) | Yes |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8111H |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Internal USB 2.0 ports quantity | 4 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Combo headphone/mic port | No |
| TV-out | No |
| USB charging | Yes |
| Consumer infrared headers | No |
| S/PDIF out port | No |
| Serial port via internal header | No |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | No |
| Expansion slots | |
|---|---|
| PCI Express slots version | 4.0 |
| PCI Express x1 slots | 1 |
| Number of M.2 (M) slots | 2 |
| Design | |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Yes |
| Housing material | Metal, Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |

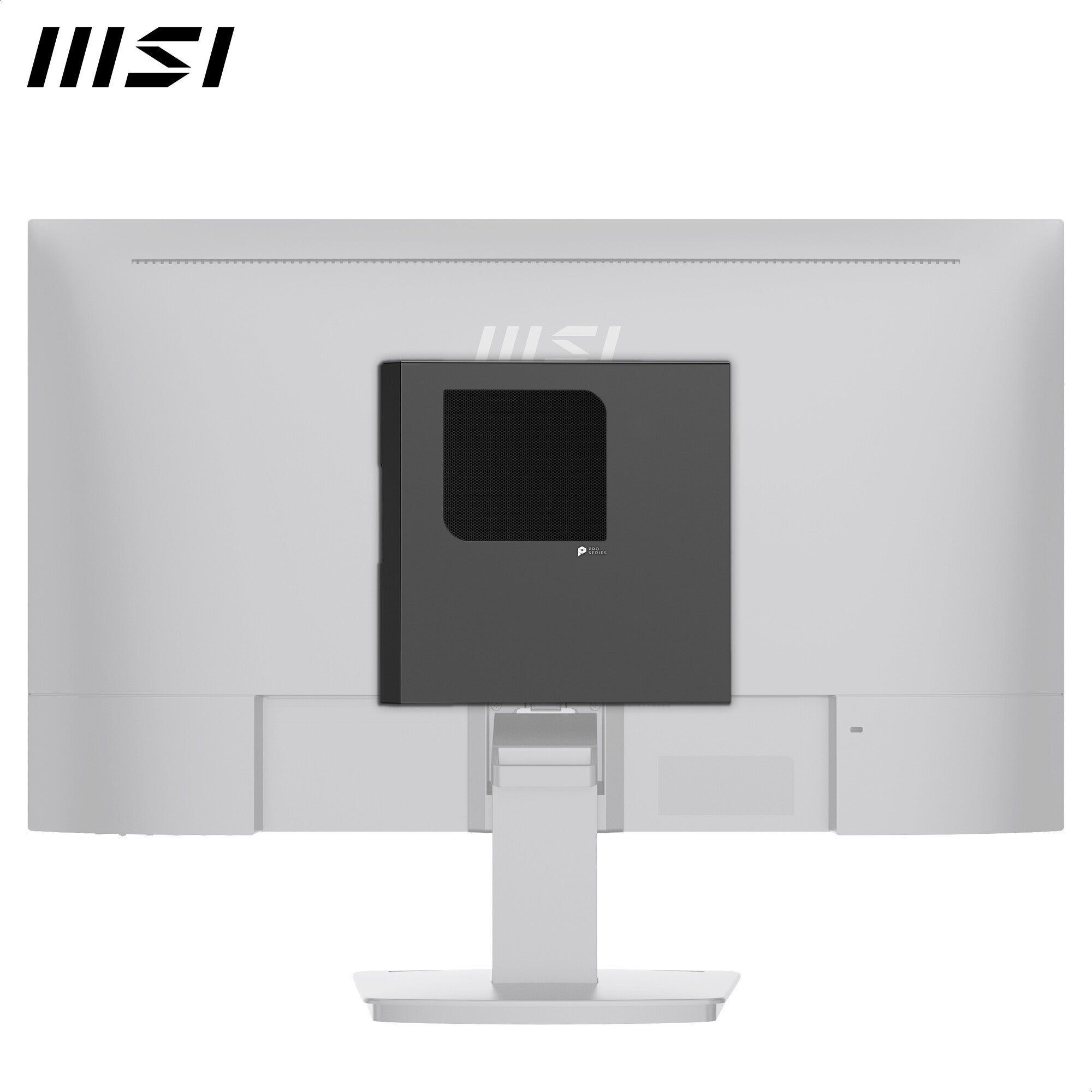

| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Performance | |
|---|---|
| Motherboard form factor | mini ITX |
| Motherboard chipset | Intel H610 |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Compatible processor series | Intel Core i7 14th Gen |
| Supported processor frequency (max) | 5.4 GHz |
| BIOS type | UEFI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.3 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
| Consumer infrared Rx sensor | No |
| Processor special features | |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
| Intel Unite installed | No |
| Intel® Unite™ | No |
| Intel Advanced Management Technology | No |
| Intel® Rapid Start Technology | No |
| Conflict-Free | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel Express BIOS update | No |
| Intel Visual BIOS | No |
| Intel® Smart Cache | Yes |
| Intel Fast Memory Access | No |
| Intel Demand Based Switching | No |
| Intel FDI Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Insider™ | No |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel On-Demand Power Redundancy Technology | No |
| Intel Smart Connect Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel Rapid Storage Technology | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® OS Guard | Yes |
| Intel® Smart Response Technology | No |
| Intel® Secure Key | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Execute Disable Bit | Yes |
| Intel Trusted Execution Technology | No |
| Intel Flex Memory Access | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Embedded options available | No |
| Technical details | |
|---|---|
| Compliance certificates | BSMI, CB, CE, Federal Communications Commission (FCC), UL |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Software | |
|---|---|
| Windows operating systems supported | No |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| AC input frequency | 50/60 Hz |
| Number of power supply units | 1 |
| Power supply | 120 W |
| AC input voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|

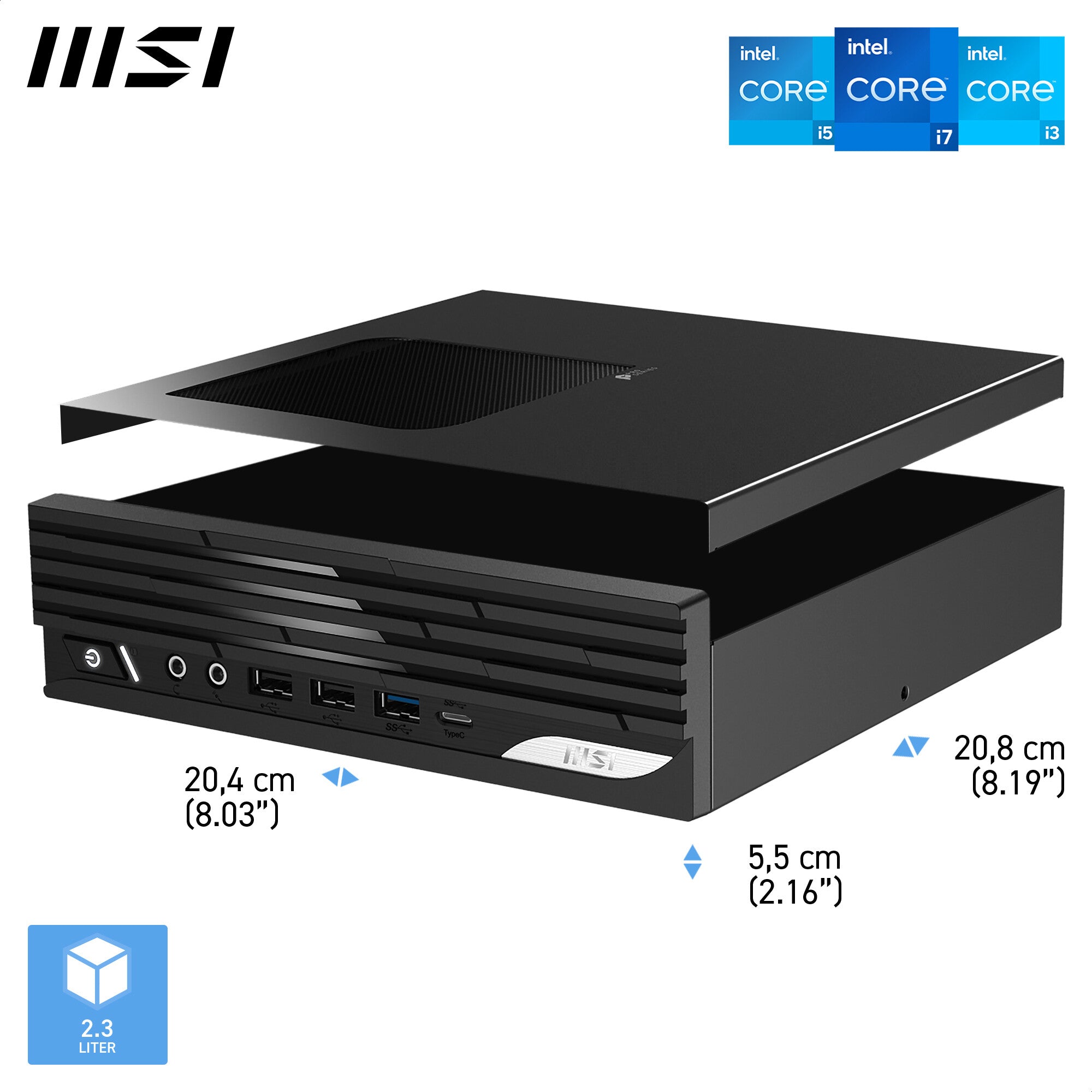

| Width | 204 mm |
| Depth | 208 mm |
| Height | 54.8 mm |
| Weight | 1.27 kg |
| Package width | 271 mm |
| Package depth | 382 mm |
| Package height | 122 mm |
| Package weight | 2.8 kg |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
| Other features | |
|---|---|
| Warranty period | 3 year(s) |
| Introduction year | 2025 |
| Introduction month | June |
| Country of origin | China |
-
