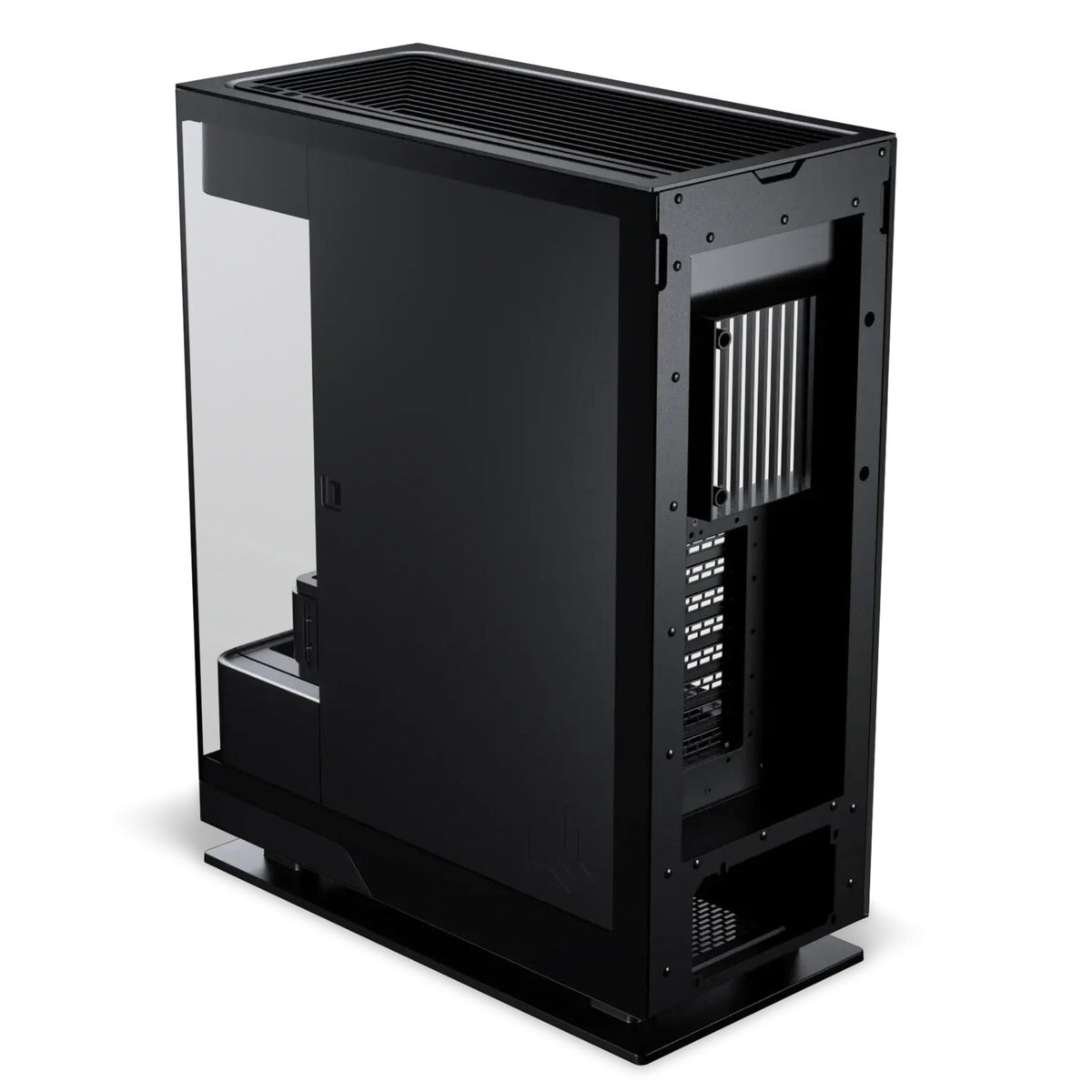

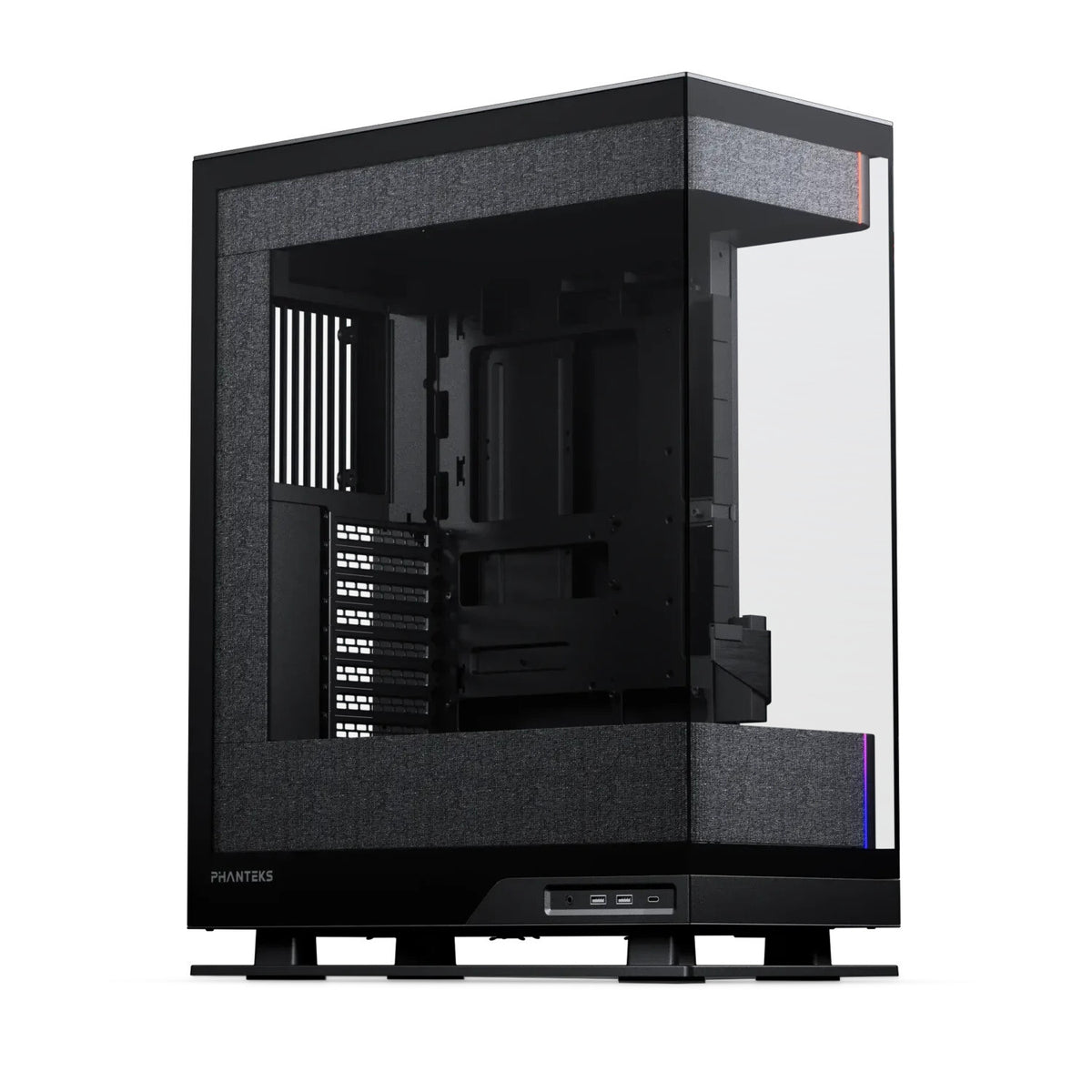

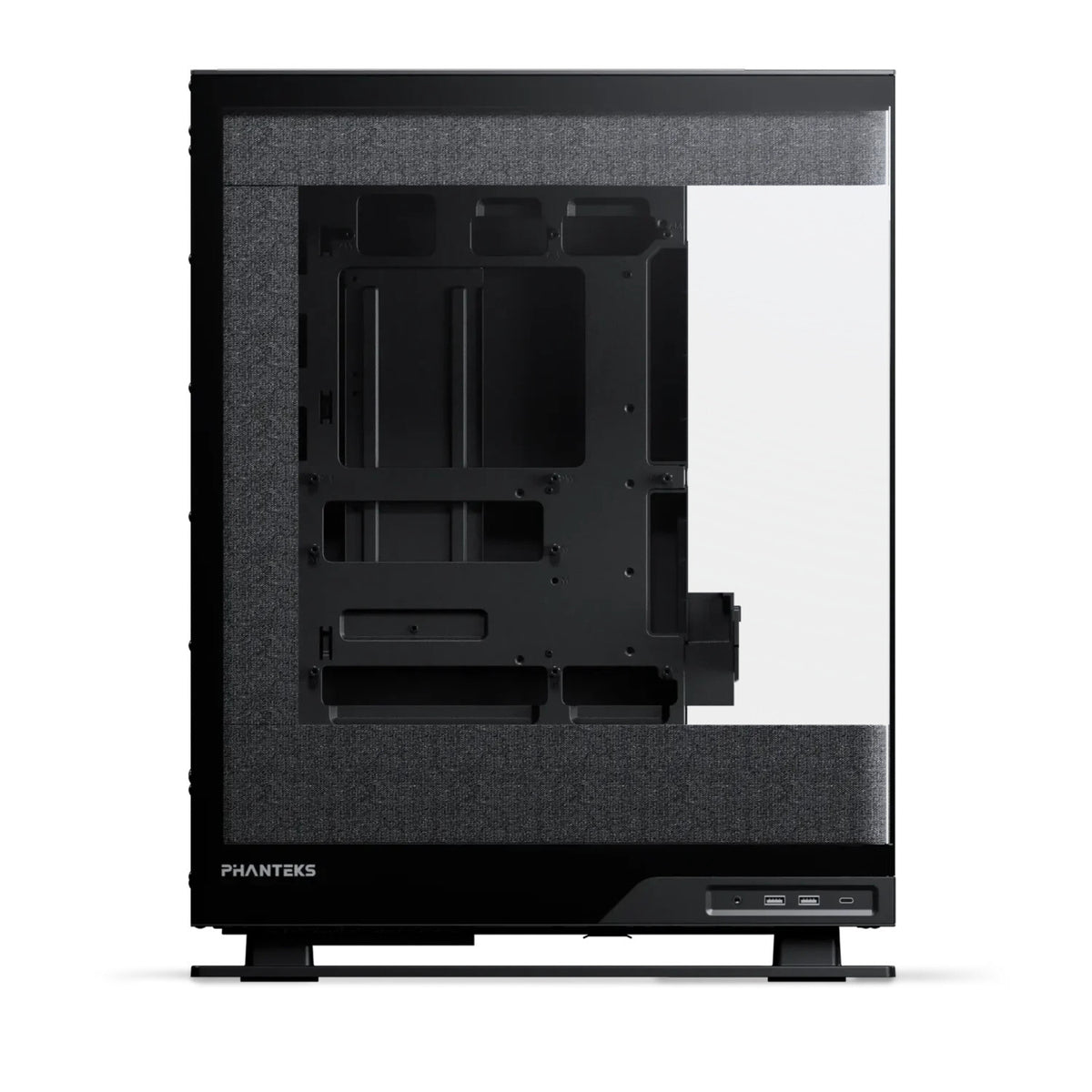

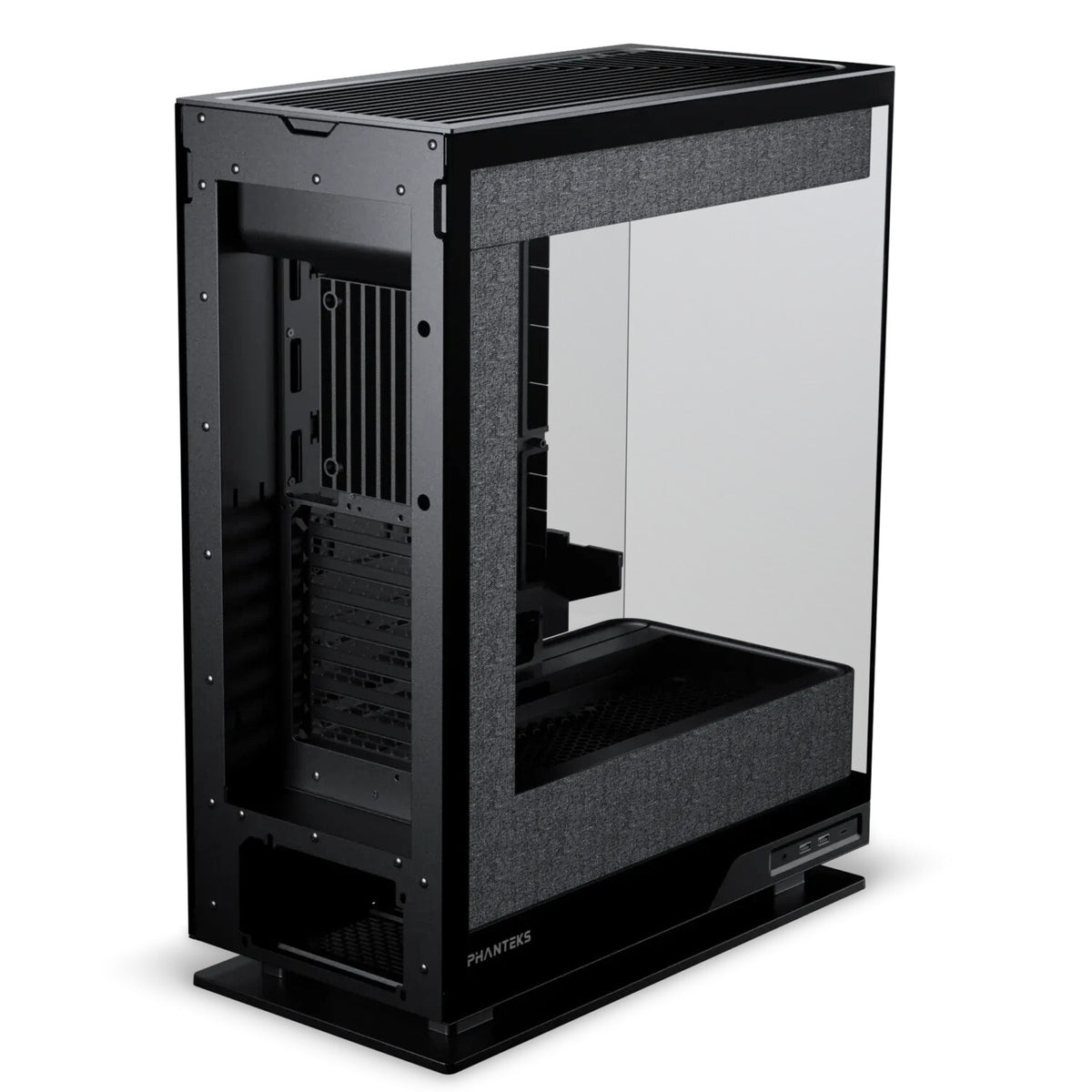

Phanteks Evolv X2 Matrix Tower Black
Matrix turns your chassis into a canvas

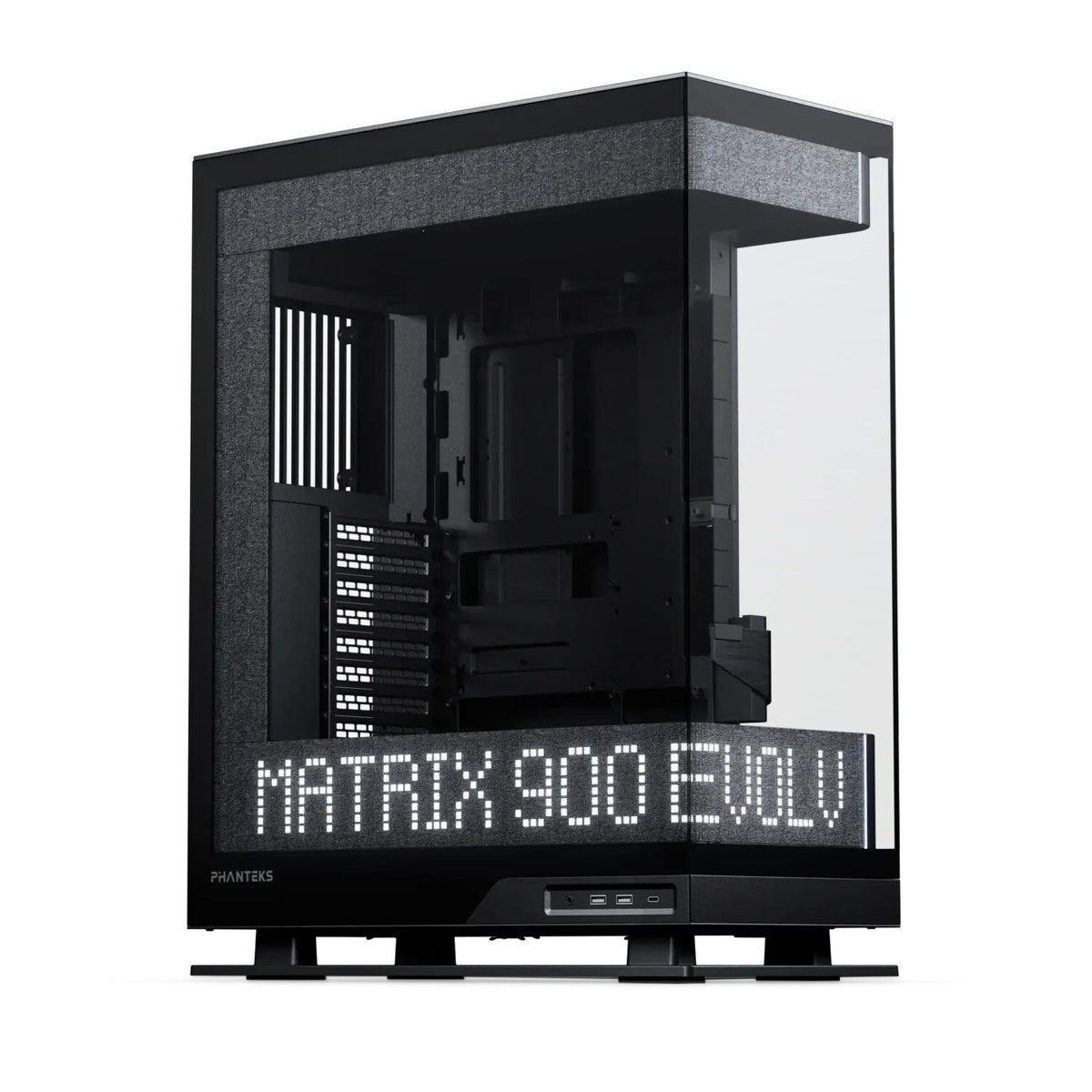

The Evolv X2 Matrix introduces a bold new dimension to the Evolv series with its integrated 900-LED Matrix Display, hidden behind the refined fabric interior. This unique feature transforms the chassis into a dynamic canvas, bringing personalized lighting and visual effects directly into your build.
Discover Evolv X2 Matrix
At its core, the Evolv X2 still redefines the desktop computer with its see-through glass design, premium aluminum panels, and powerful vertical cooling solution. The chassis floats above its base, pulling in fresh air and channeling it efficiently through the GPU and CPU, with hot air expelled through the top ventilation for enhanced thermal performance. Inside, cooling components sit flush into the top and base for a fully integrated look, blending seamlessly with your hardware.
Matrix Layouts & Widgets
Configure and manage all Matrix content through the NexLinq App for Windows.
Integrated Lighting
To operate the D-RGB lighting, it must be connected to a Phanteks controller or an A-RGB equipped mainboard. We strive to make it as easy to use and compatible as possible.
| Design | |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | Steel, Aluminium, Tempered glass, Plastic, Polyester |
| Product colour | Black |
| Supported motherboard form factors | EATX, ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 5 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 8 |
| Side window | Yes |
| Illumination | Yes |
| Illumination location | Internal |
| Tempered glass panel(s) | Yes |
| On/off button | Yes |
| Reset button | Yes |
| Maximum CPU cooler height | 17 cm |
| Maximum graphics card length | 38 cm |
| Maximum PSU length | 25 cm |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Combo headphone/mic port | Yes |
| Cooling | |
|---|---|
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120 mm |
| Number of bottom fans supported (max) | 3 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Top radiator sizes supported | 360 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| SSD form factor | 2.5" |
| Weight & dimensions | |
|---|---|
| Width | 228 mm |
| Depth | 454 mm |
| Height | 588 mm |
| Weight | 14.2 kg |
| Packaging data | |
|---|---|
| Package weight | 16.5 kg |
-
