The Dream Machine Special Edition (UDM SE) is an enterprise-grade UniFi OS Console capable of helping home and business owners alike seamlessly scale and manage their networks with high-speed, dual-WAN connectivity (10G SFP+ and 2.5GbE RJ45 ports), a Gigabit, PoE switch, and a network video recorder (NVR) with 128 GB of internal storage. Powered by UniFi OS, the UDM SE gives you full control of all your UniFi devices, including access points, Protect cameras, Talk phones, and Access readers. It's also a future-proof console since it will be able to run all upcoming UniFi OS applications. Engineered for end-to-end simplicity, the UDM SE features an integrated Bluetooth radio that streamlines the initial setup and configuration process, which can be completed in minutes with the UniFI Network application (web or mobile).

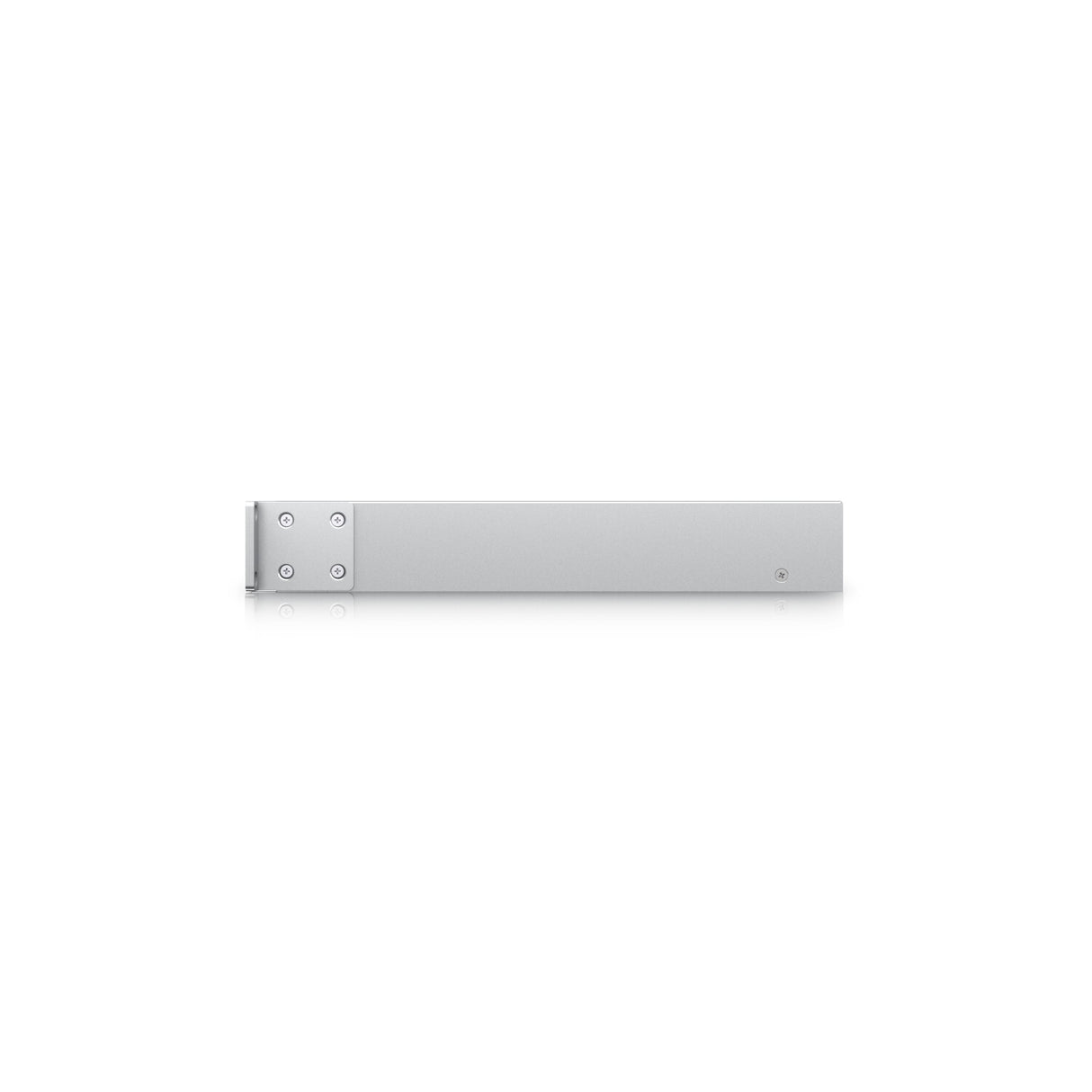

Ubiquiti Unifi Dream Machine Special Edition - UDM-SE
The Ubiquiti Unifi Dream Machine Special Edition is designed for high speed home and business internet connections with dual wan (10G SFP+ and 2.5GbE RJ45 ports). Unlike the UDM & UDM-PRO the Special Edition (UDM-SE) includes 8 PoE capable ports allowing the UDM-SE to power cameras, phones and access points alike.
Key Features
1.7 GHz quad-core processor
Dual WAN ports (10G SFP+ and 2.5GbE RJ45)
(8) GbE RJ45 ports, including (6) 802.3af PoE and (2) 802.3at PoE+ LAN ports
(1) 10G SFP+ LAN port
(1) 1.3" LCM color touchscreen for at-a-glance network monitoring
Customizable internet threat filtration and traffic identification for enhanced network security
Quick, Bluetooth-powered setup via the UniFi Network web application or mobile app
1U-sized, rack-mountable device
Connect a SmartPower Redundant Power System to create an uninterruptible network
Integrated security gateway and UniFi Protect-ready NVR that supports compatible 3.5" HDDs
128 GB integrated storage for full UniFi OS Application experience
Specifications
Dimensions
442.4 x 43.7 x 285.6 mm
Weight
4.95 kg
Interfaces Networking
(8) 10/100/1000 RJ45 LAN Ports
(1) 10/100/1000/2.5G RJ45 WAN Port
(1) 1/10G SFP+ LAN Port
(1) 1/10G SFP+ WAN Port
Interfaces Management
Ethernet In-Band
(1) Bluetooth BLE
PoE Interfaces
(2) PoE+ IEEE 802.3at (pair A 1, 2+; 3, 6-)
(6) PoE IEEE 802.3af (pair A 1, 2+; 3, 6-)
Max. PoE wattage per port by PSE 802.3af
15.4W
Max. PoE wattage per port by PSE 802.3at
30W
Voltage range 802.3af mode
44 to 57V
Voltage range 802.3at mode
50 to 57V
IDS/IPS Throughput
3.5 Gbps*
Processor
Quad ARM Cortex-A57 Core at 1.7 GHz
System Memory
4 GB DDR4
On-Board Flash Storage
16 GB eMMC
Max Power Consumption (excluding PoE)
50W
Voltage Range
100 to 240VAC
Power Method
(1) Universal AC Input, 100-240VAC, 50/60 Hz
(1) RPS DC Input
Power Supply
Internal 50W/12V
ESD/EMP Protection
Air: +- 16 kV, Contact: +- 12 kV
Operating Temperature
-10 to 40 C
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
Whats in the box?
Package Contents:
UDM-SE
(2) Rackmount Brackets
(8) Bracket Screws
(4) Mounting Screws
(4) Cage Nuts
(1) Security Screw
(4) 2.5" HDD Screws
UK Power Cord
(4) Rubber Feet
