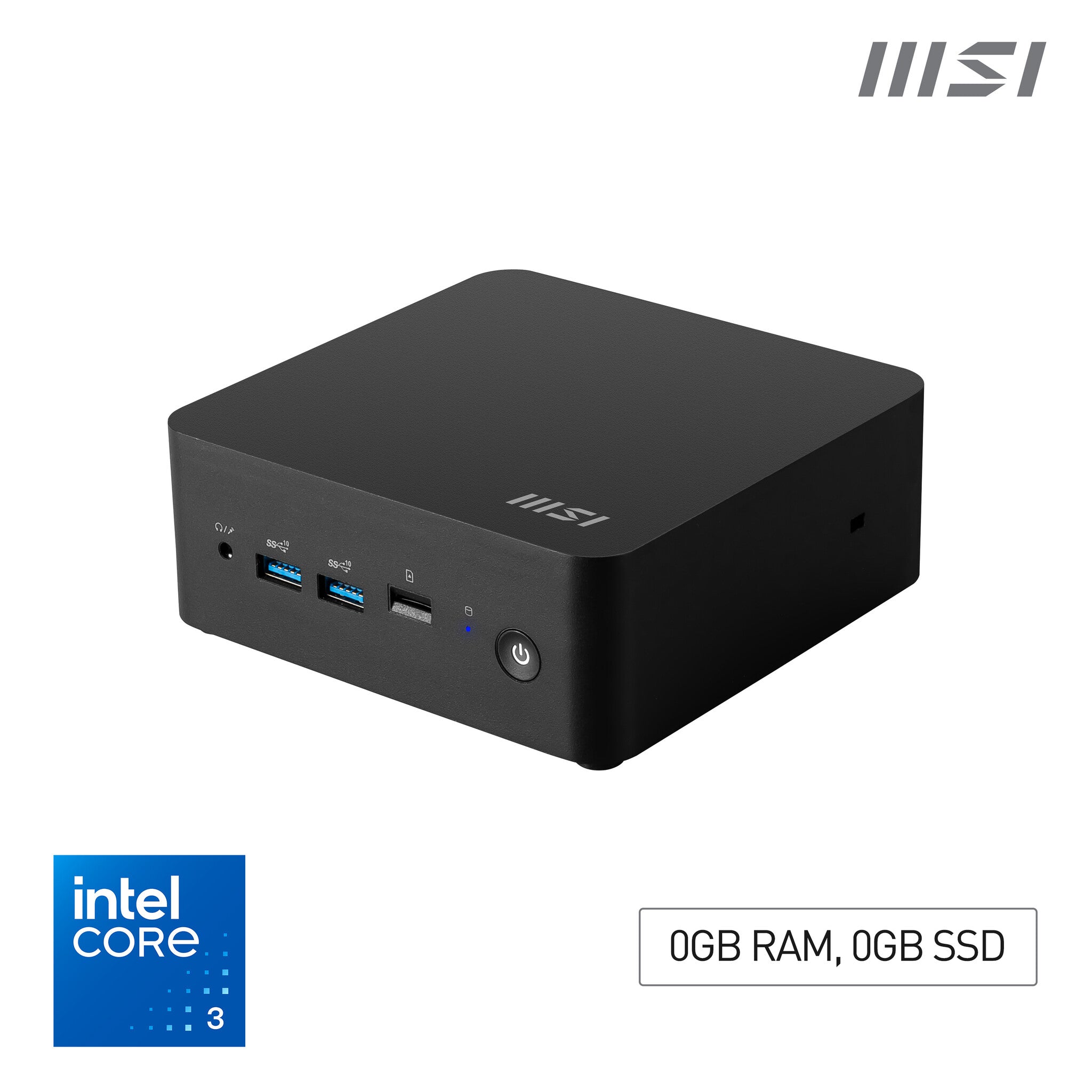

MSI Cubi NUC 1M Intel Core 3 100U (14th Gen) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA
MSI Cubi NUC 1M Intel Core 3 100U (14th Gen) Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/VESA est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
MSI Cubi NUC 1M Intel Core 3 100U (14th Gen) Barebone, NUC, SFF, Mi...
"Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC
The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 1M i3 100U BB configuration is a barebone system equipped with an Intel® Core 3 processor 100U, but does not include required DDR5 memory, storage, or software. Features Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity.
The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.
Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
| Processor | |
|---|---|
| Built-in processor | Yes |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.3 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor manufacturer | Intel |
| Processor generation | Intel Core (Series 1) |
| Processor family | Intel Core 3 |
| Processor model | 100U |
| Processor cores | 6 |
| Processor threads | 8 |
| Performance cores | 2 |
| Efficient cores | 4 |
| Processor cache | 10 MB |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Supported memory clock speeds | 5200 MHz |
| Maximum internal memory | 64 GB |
| Storage | |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2, Serial ATA, Serial ATA II, Serial ATA III |
| NVMe | Yes |
| Number of storage drives supported | 3 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® Graphics |
| Number of displays supported | 4 |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Copper ethernet cabling technology | 2.5GBASE-T |
| Near Field Communication (NFC) | No |
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| LAN controller | Intel I226-V |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4b/2.1 |
| DVI port | No |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| TV-out | No |
| USB charging | Yes |
| Consumer infrared headers | No |
| CardBus PCMCIA slot type | No |
| S/PDIF out port | No |
| Thunderbolt 4 ports quantity | 2 |
| Serial port via internal header | No |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Design | |
|---|---|
| Chassis type | 0.84L sized PC |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | System |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
| Performance | |
|---|---|
| Motherboard form factor | NUC |
| Motherboard chipset | Intel SoC |
| Number of processors supported | 1 |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| General | |
|---|---|
| Product family | Cubi |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic |
| Software | |
|---|---|
| Windows operating systems supported | Windows 11, Windows 11 Enterprise, Windows 11 Home, Windows 11 Pro |
| Operating system installed | No |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| AC input frequency | 50/60 Hz |
| Number of power supply units | 1 |
| Power supply | 120 W |
| AC input voltage | 100 - 240 V |
| Weight & dimensions | |
|---|---|
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Weight | 0.625 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.45 g |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
| Other features | |
|---|---|
| Warranty period | 3 year(s) |
| Introduction year | 2024 |
| Introduction month | July |
| Country of origin | China |
-
