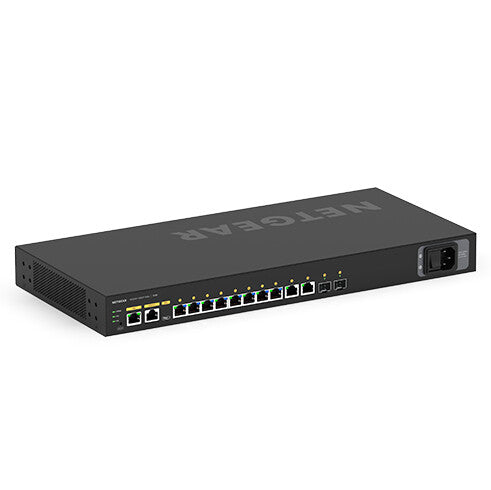

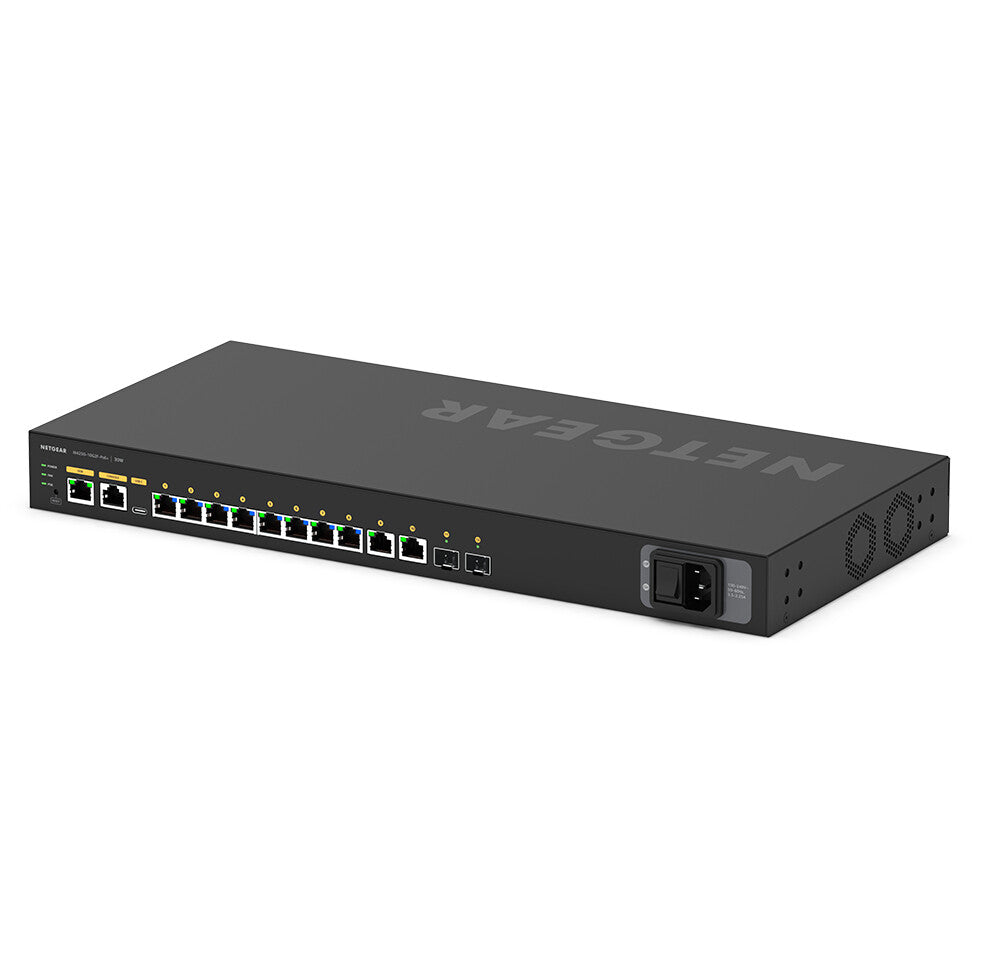

NETGEAR M4250-10G2F Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

NETGEAR  |  SKU : GSM4212P-100EUS  |  Condition: Brand New  |  Code-barres: 0606449149548

MORE INFO

£848.99
£795.99 Save £53.00 £848.99
£663.33 excluding VAT @20%
iFrame
24 Gbps, 8x 1G PoE+ RJ-45, 2x 1G RJ-45, 2x SFP, 440x200x43.2 mm

Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.

M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.

Management features
Quality of Service (QoS) support Yes
Switch layer L2/L3
Switch type Managed
Ports & interfaces
SFP module slots quantity 2
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 10
Network
Number of VLANs 4093
Virtual LAN features MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
VLAN support Yes
Link aggregation Yes
Broadcast storm control Yes
Rate limiting Yes
Spanning tree protocol Yes
Full duplex Yes
10G support No
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Data transmission
Packet buffer memory 16 MB
Jumbo frames 12000
Jumbo frames support Yes
Number of queues 8
Latency (1 Gbps) 2.27 µs
Store-and-forward Yes
Throughput 17.86 Mpps
Switching capacity 24 Gbit/s
MAC address table 16000 entries
Security
SSH/SSL support Yes
BPDU filtering/protection Yes
Authentication MAC-based authentication
Authentication type RADIUS
Loop protection Yes
IGMP snooping Yes
Access Control List (ACL) Yes
DHCP features DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Multicast features
IPv6 multicast entries 2000
IPv4 multicast entries 2000
Multicast support Yes
Design
LED indicators PoE, Power, Status
Product colour Black
Form factor 1U
Rack mounting Yes
Performance
Mean time between failures (MTBF) 778769 h
Noise level 30.06 dB
Internal memory 2048 MB
Processor frequency 1250 MHz
Processor model ARM Cortex-A9
Built-in processor Yes
Power
Power consumption (typical) 163.9 W
Power over Ethernet (PoE)
Total Power over Ethernet (PoE) budget 150 W
Power over Ethernet (PoE) power per port 30 W
Power over Ethernet plus (PoE+) ports quantity 8
Power over Ethernet (PoE) Yes
Operational conditions
Heat dissipation 559.555 BTU/h
Non-operating altitude 0 - 3000 m
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Weight & dimensions
Weight 2.85 kg
Height 43.2 mm
Depth 200 mm
Width 440 mm
Logistics data
Harmonized System (HS) code 85176990
