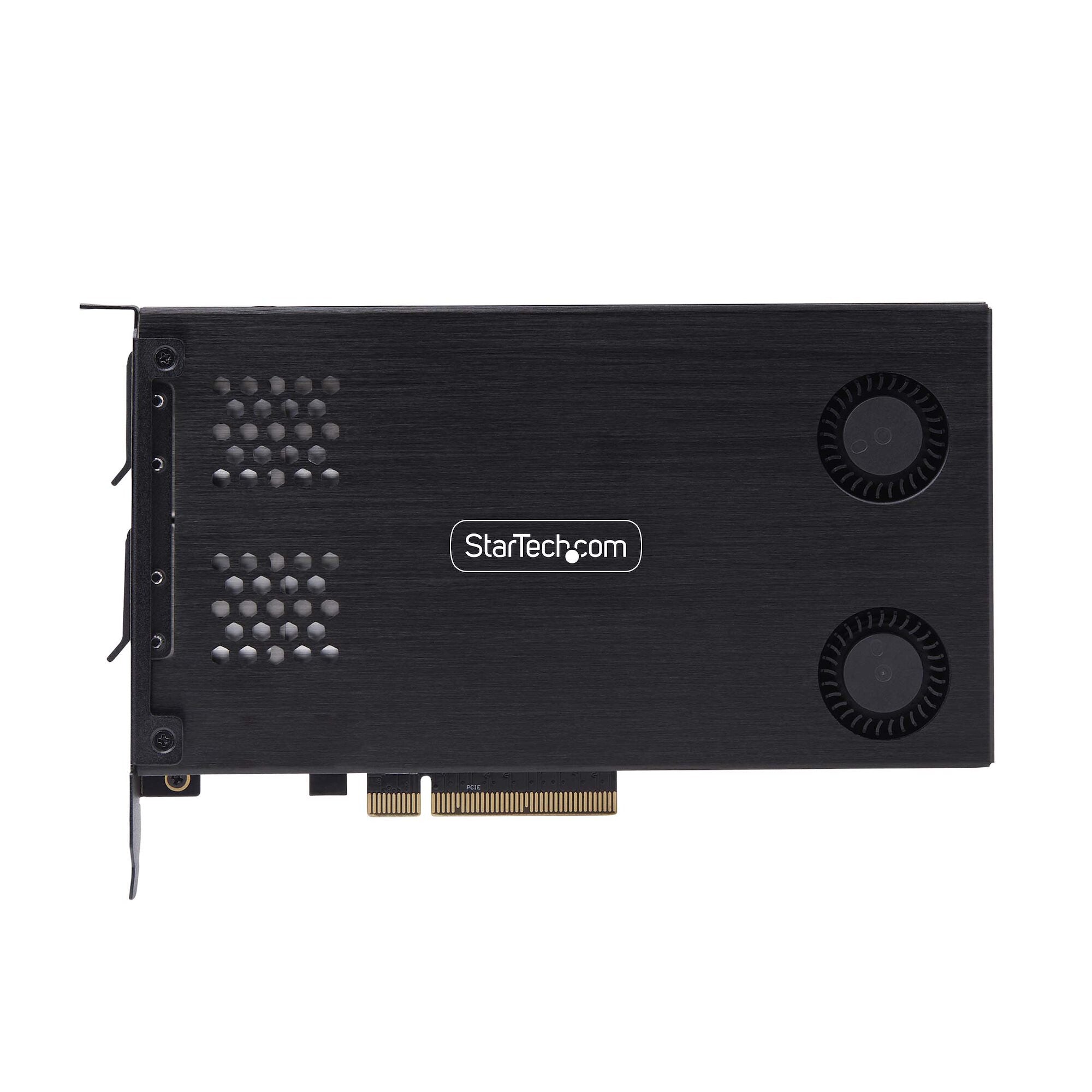

StarTech.com Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required; Tool-less Installation, PCIe Backplane w/Two Hot-Swap Drive Bays
StarTech.com Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required; Tool-less Installation, PCIe Backplane w/Two Hot-Swap Drive Bays est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
StarTech.com Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack...
Use an available PCIe x8 or larger expansion slot to create two removable M.2 NVMe drive bays
Utilize an available PCIe x8 expansion slot to install, remove, or swap PCIe M.2 SSDs. Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs with high-performance read/write speeds up to 64Gbps per drive.
Toolless Installation

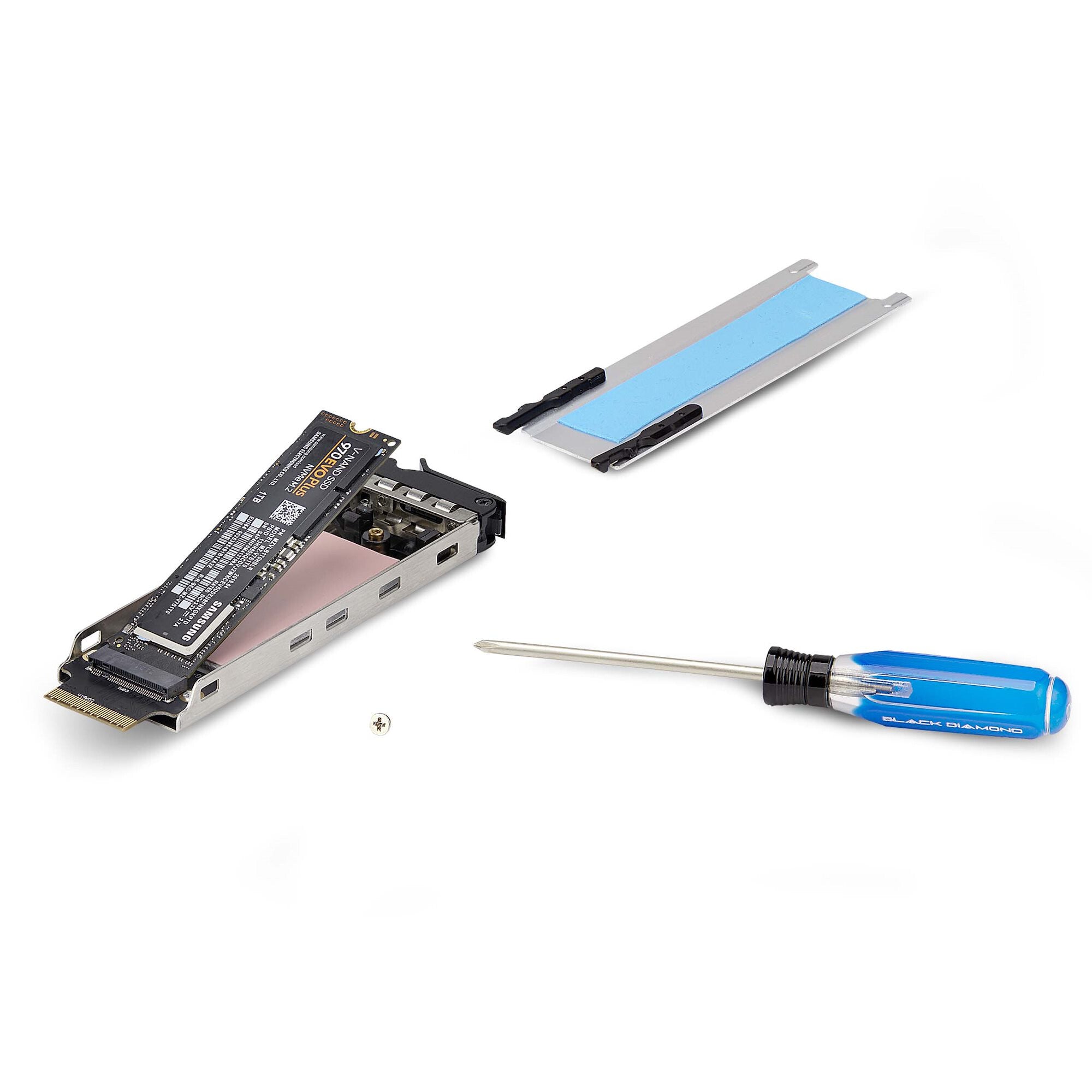

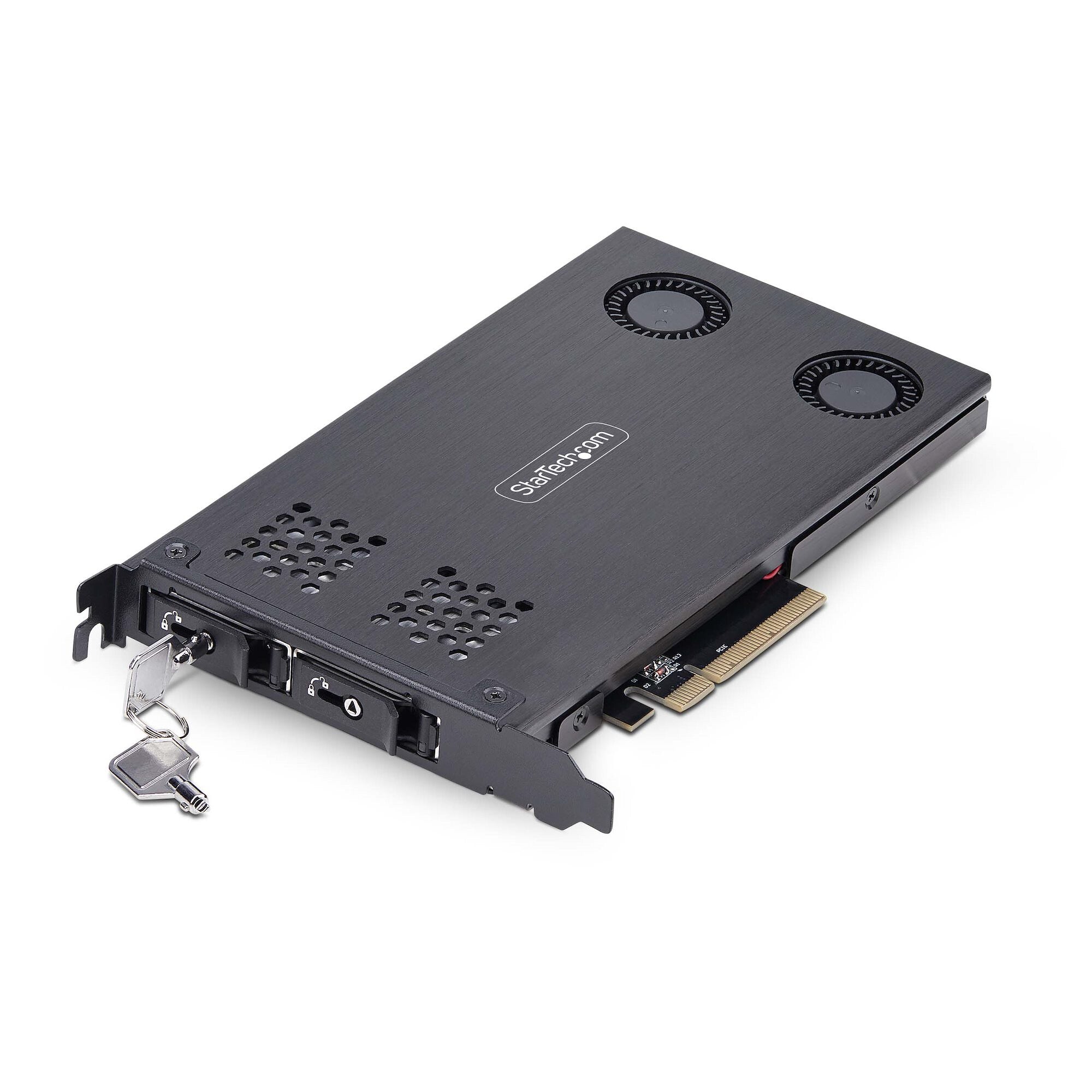

Toolless installation allows an M.2 drive to be placed into the drive tray or inserted into the drive bay without needing tools. It features a power/activity LED indicator, a latching drive tray, and a lockable installation with two included keys.
Effective Expansion

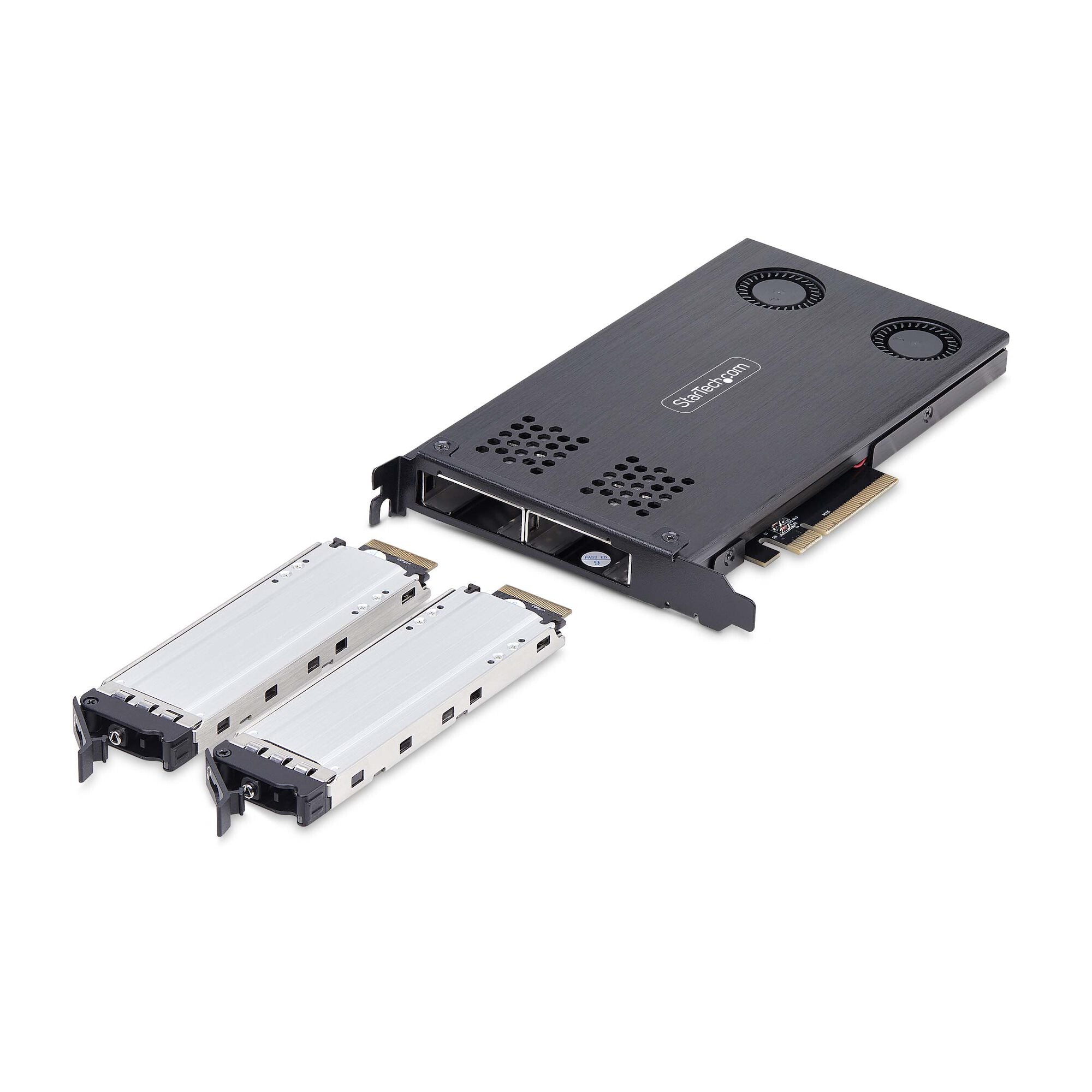

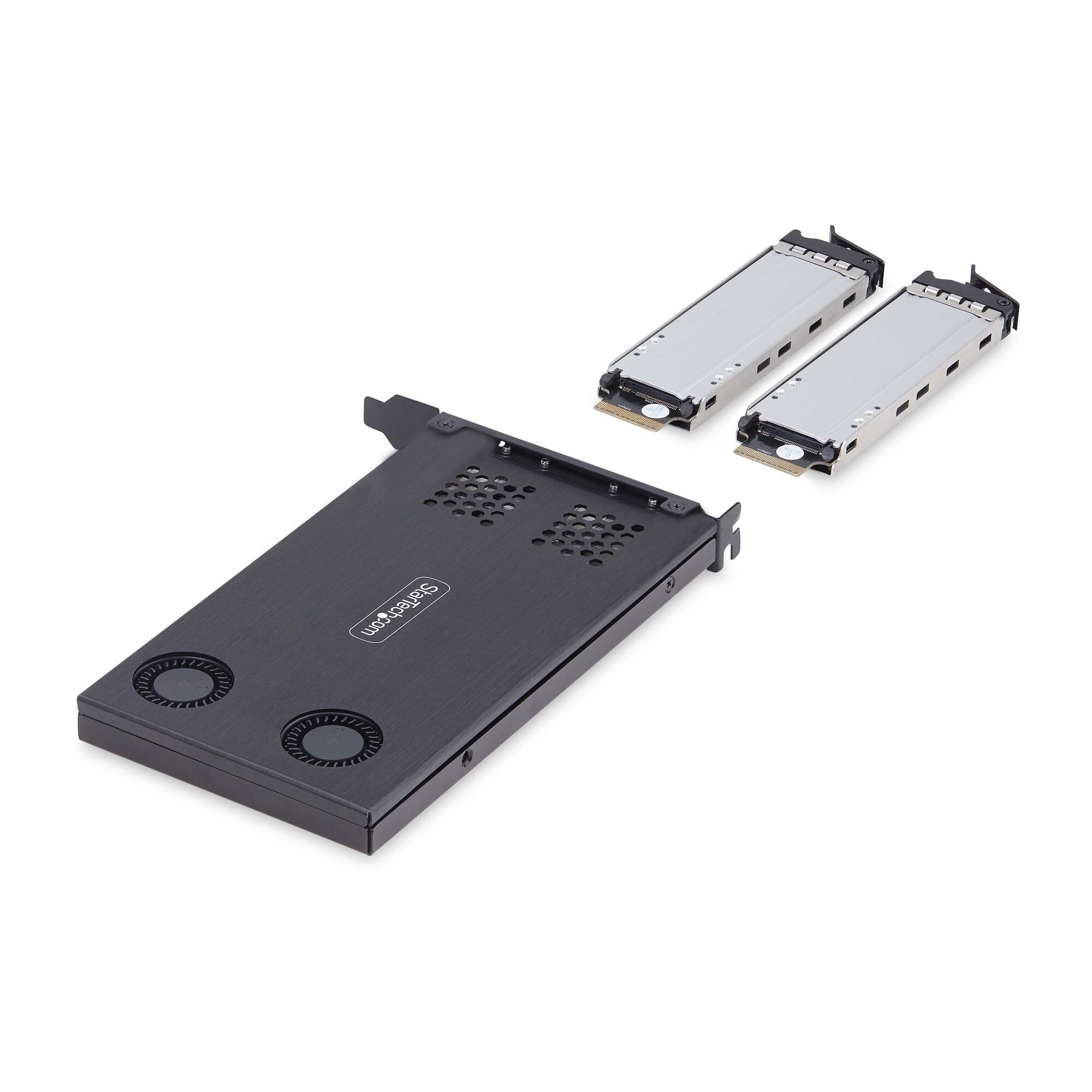

Provide quick-swap external access to internal M.2 NVMe drives without needing external enclosures or adapters, which can affect throughput. Without chipsets or adapters, the drives maintain full performance of up to 64Gbps per drive. The ability to quickly remove drives is ideal for servicing, replacing, or upgrading M.2 drives. Additional drive trays, TR-M2-REMOVABLE-PCIE, are sold separately.
Reliable Performance
Vented stainless steel frame, bracket, and tray with thermal pads, along with an aluminum cover and active cooling fans help dissipate heat to ensure the drives stay cool during operation. Anti-vibration springs on the drive tray reduce shock or vibrations, and an optional screw provides additional stability.
Access Two M.2 PCIe SSDs Simultaneously
No on-board chip means to no drivers or software requirements and is compatible with any operating system, including Windows and Linux. M.2 backplane works with PCI Express 4.0/3.0 motherboards that support PCIe bifurcation and have an available x8 or x16 slot.
Note: This product is not compatible with M.2 SATA drives.
Note: PCIe bifurcation is required to read and write to multiple drives.
The StarTech.com Advantage
| Features | |
|---|---|
| Mean time between failures (MTBF) | 40000 h |
| RAID support | No |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Number of fans | 2 fan(s) |
| Data transfer rate | 128 Gbit/s |
| LED indicators | Yes |
| Key lock | Yes |
| Hot-swap | Yes |
| Product colour | Black |
| SSD interface | M.2 |
| SSD form factor | M.2 |
| Number of SSDs supported | 2 |
| Type | Backplane |
| Ports & interfaces | |
|---|---|
| PCIe version | 4.0 |
| Host interface | PCI Express |
| Weight & dimensions | |
|---|---|
| Width | 186 mm |
| Depth | 121 mm |
| Height | 19 mm |
| Weight | 500 g |
| Packaging data | |
|---|---|
| Package weight | 500 g |
| Package depth | 151 mm |
| Package height | 46 mm |
| Package width | 230 mm |
| Packaging content | |
|---|---|
| Number of lock keys included | 2 pc(s) |
| Number of screws | 2 |
| Quick start guide | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 10 - 60% |
| Storage temperature (T-T) | 0 - 50 °C |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Products per master (outer) case | 28 pc(s) |
| Master (outer) case width | 325 mm |
| Master (outer) case length | 485 mm |
| Master (outer) case height | 258 mm |
-
