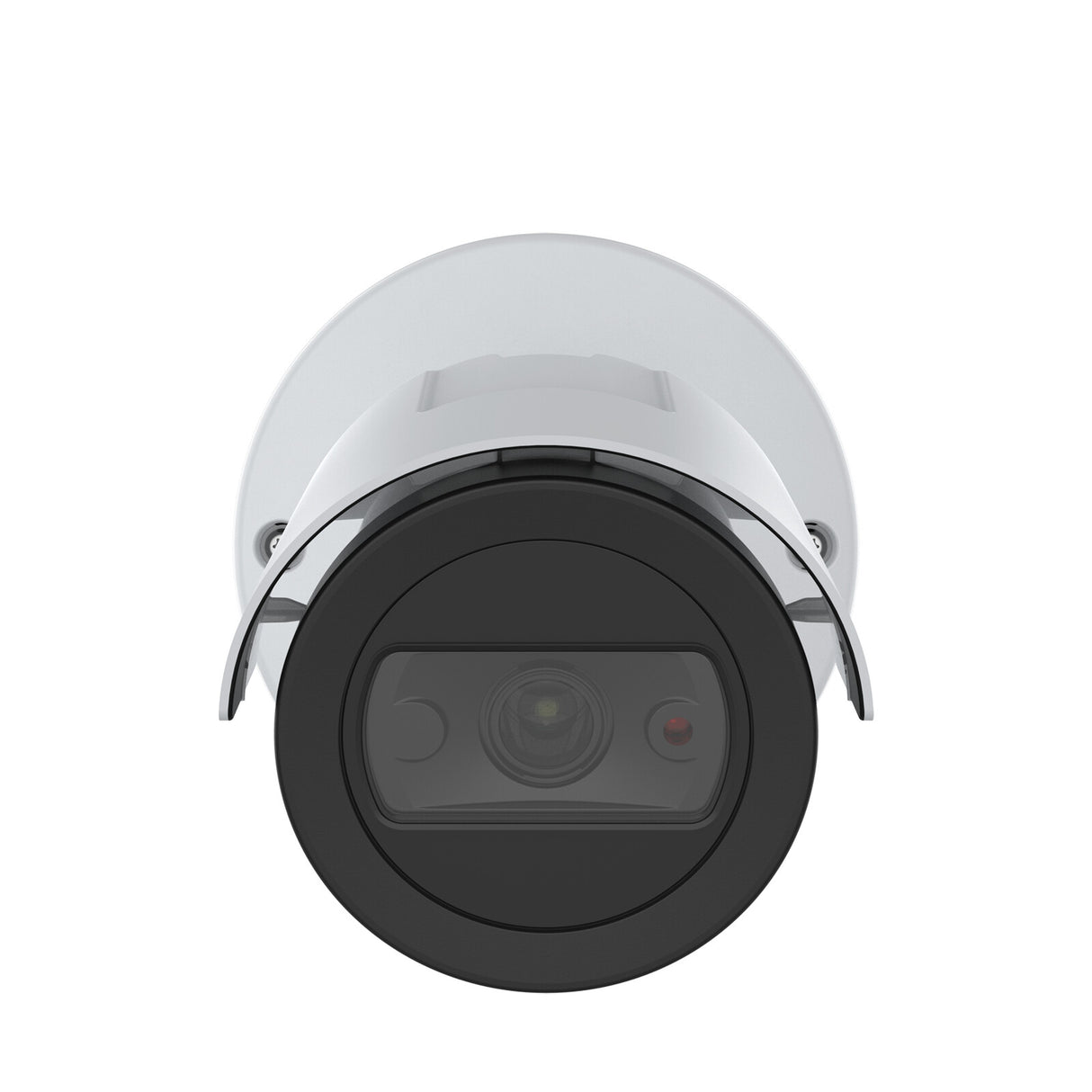

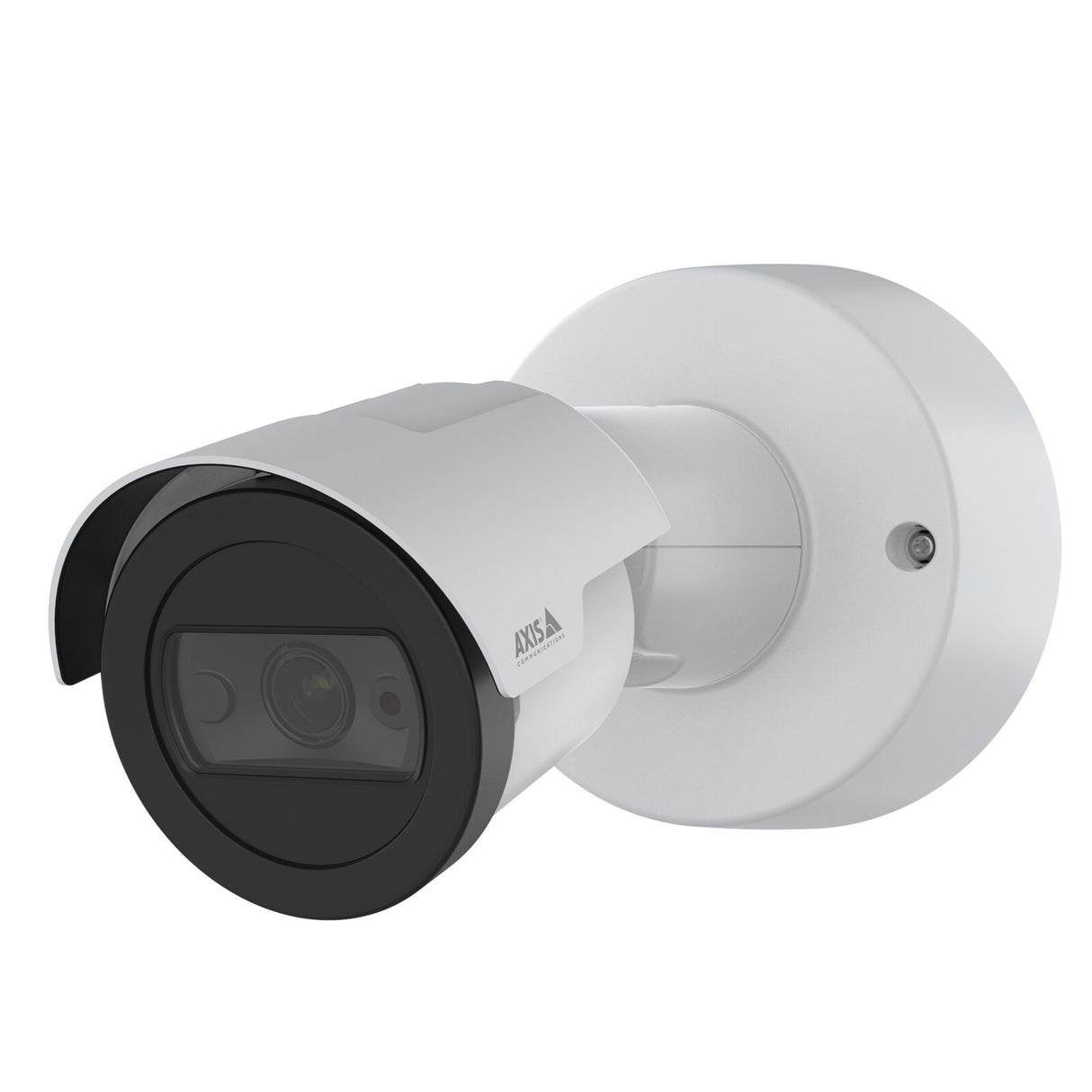

Axis 02125-001 security camera Bullet IP security camera Outdoor 2304 x 1728 pixels Ceiling/wall

AXIS  |  SKU : 02125-001  |  Condition: Brand New  |  Code-barres: 7331021072978
£562.99
£542.99 Save £20.00 £562.99
£452.49 excluding VAT @20%
iFrame
4 MP, 1/2.7" CMOS, WDR, IR, PoE, IK08, IP66, IP67

Ideal for tough environments and rough weather, AXIS M2036-LE delivers Quad HD 1440p/4 MP. With a deep learning processing unit, it enables unique opportunities for analytics based on deep learning on the edge. AXIS Object Analytics offers detection and classification of humans, vehicles, and types of vehicles. And Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. This IK08-rated camera offers flexible and cost-efficient installation including support for PoE. Edge-to-edge technology allows for smart pairing with Axis Speakers. Plus, a spacious, sealed back box ensures secure cable management.

Performance
Type IP security camera
Placement supported Outdoor
Connectivity technology Wired
PTZ modes Digital PTZ
Wide Dynamic Range (WDR) Yes
Infrared (IR) cut-off filter Yes
Day/night mode Yes
Languages support Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Number of languages 12
Certification CISPR 24, CISPR 35, EN 55032 Class A, EN 55035,
EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A,
ICES-3(A)/NMB-3(A), KC KN32 Class A, KC KN35,
RCM AS/NZS CISPR 32 Class A, VCCI Class A
IEC/EN 62368-1, IEC 62471, IS 13252
IEC 60068-2-X, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK08
NIST SP500-267
Design
Form factor Bullet
Mounting type Ceiling/wall
Product colour White
Housing material Aluminium, Plastic
Protection features Dust resistant, Vandal proof, Water resistant
International Protection (IP) code IP66, IP67
IK code IK08
Camera
Minimum illumination 0 lx
Lens viewing angle, horizontal 130°
Lens viewing angle, vertical 81°
White balance Auto
Camera shutter speed 1/38500 - 1/5 s
Image sensor
Sensor type CMOS
Lens system
Number of lenses 1
Maximum aperture number 2.1
Closest focusing distance 0.5 m
Fixed focal length 2.4 mm
Night vision
Night vision Yes
Night vision distance 20 m
LED type IR
Infra-red wavelength 855 nm
Video
Maximum resolution 2304 x 1728 pixels
Total megapixels 4 MP
Video compression formats H.264, H.265, M-JPEG
Supported graphics resolutions 2668 x 1512, 2304 x 1728
Supported video modes 1440p
Video recording Yes
Video intelligence analytic Yes
Video streaming Yes
Image stabilizer Yes
Text caption overlay Yes
Privacy masking Yes
Network
Ethernet LAN Yes
Ethernet interface type Fast Ethernet
Networking standards IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Supported network protocols IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, MQTT v3.1.1
Quality of Service (QoS) support Yes
Storage
Built-in HDD No
Card reader integrated Yes
Compatible memory cards MicroSD (TransFlash), MicroSDHC
Flash memory 512 MB
Internal memory 1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Security
Password protection Yes
HTTPS encryption Yes
IP address filtering Yes
Active tampering alarm Yes
Alert notification type E-mail
Security algorithms 802.1x RADIUS, EAP-TLS, HTTPS, SSH
Video motion detection Yes
Power
Power source type PoE
Power consumption (typical) 5 W
Power consumption (max) 12.95 W
Operational conditions
Operating temperature (T-T) -30 - 50 °C
Storage temperature (T-T) -40 - 65 °C
Operating relative humidity (H-H) 10 - 100%
Weight & dimensions
Diameter 10.1 cm
Length 170 mm
Weight 491 g
Packaging content
Number of cameras 1
Other features
Doesn't contain BFR, PVC
Logistics data
Harmonized System (HS) code 85258900
