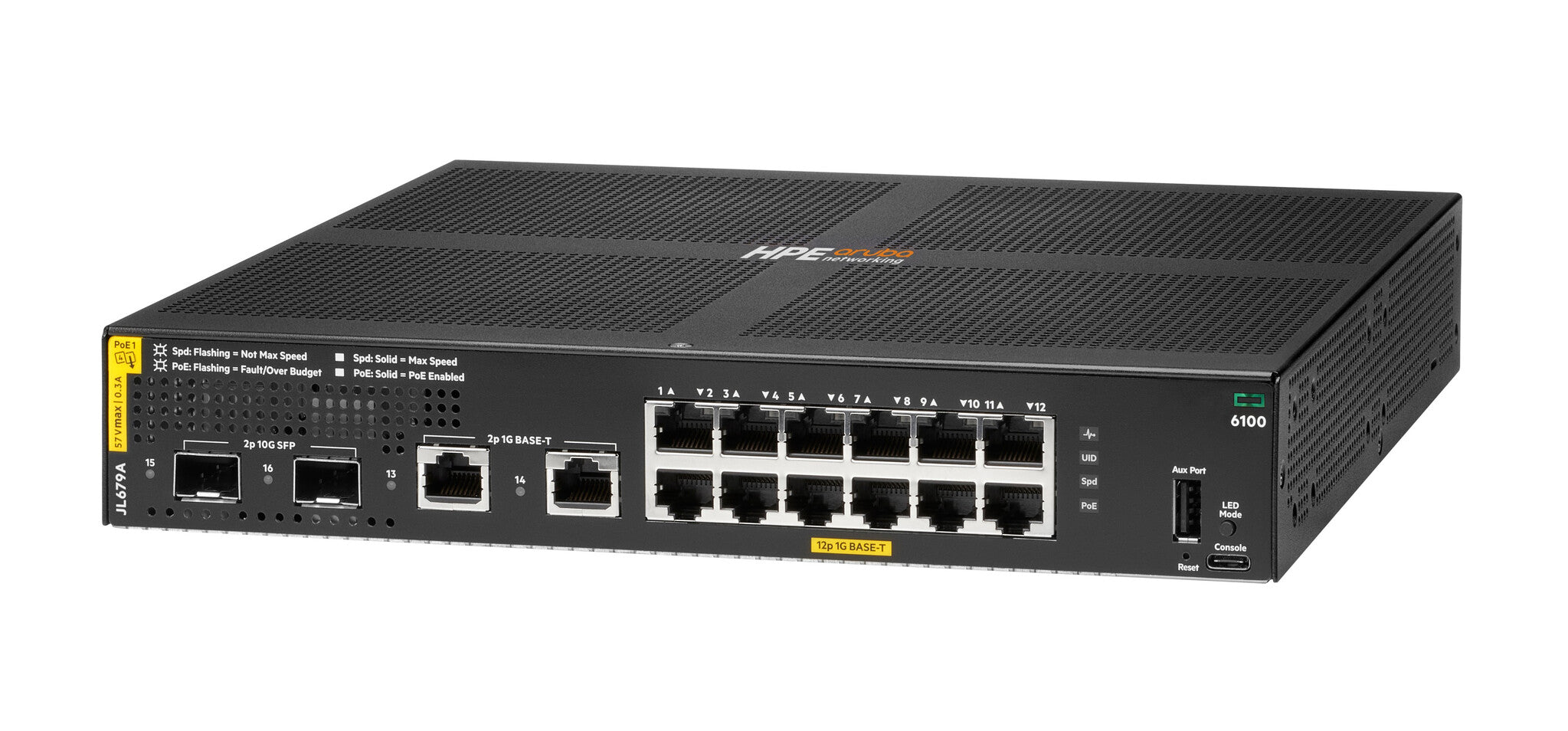

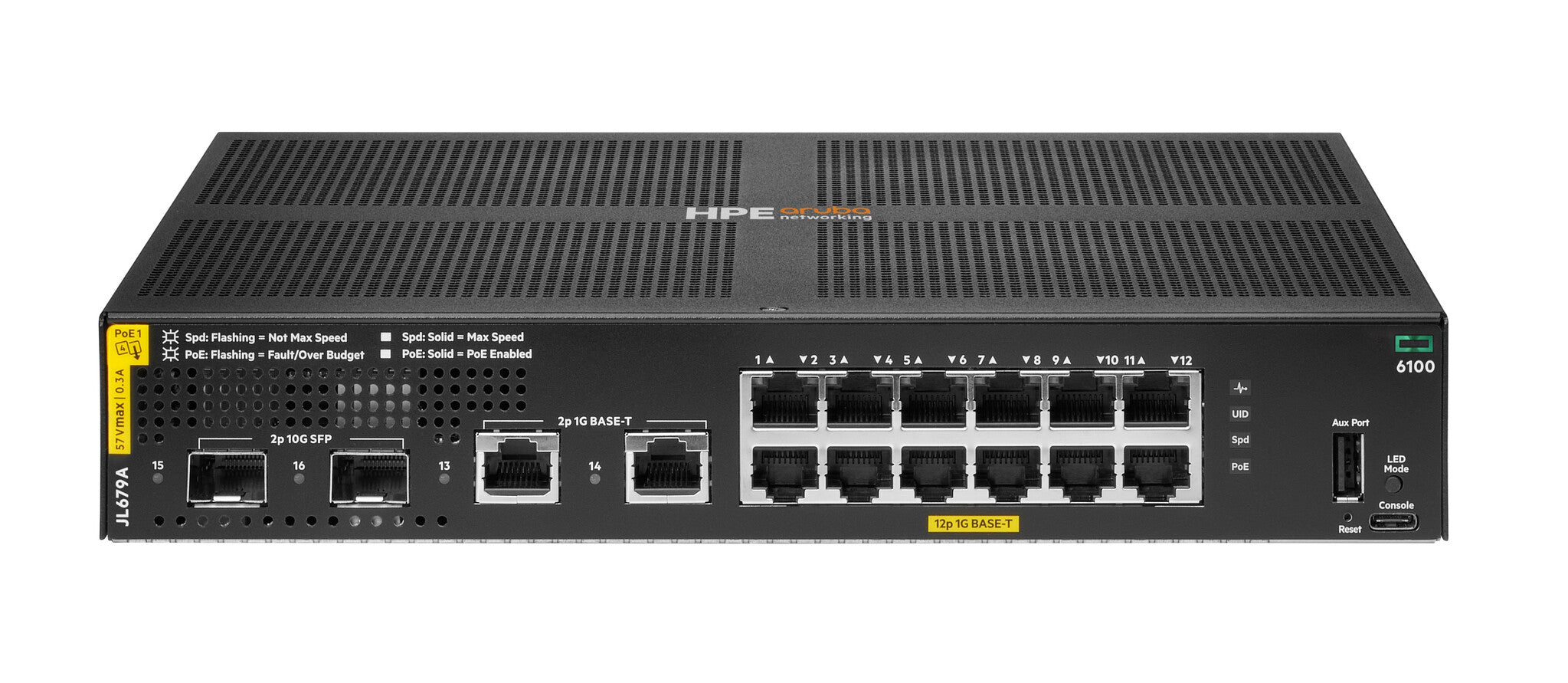

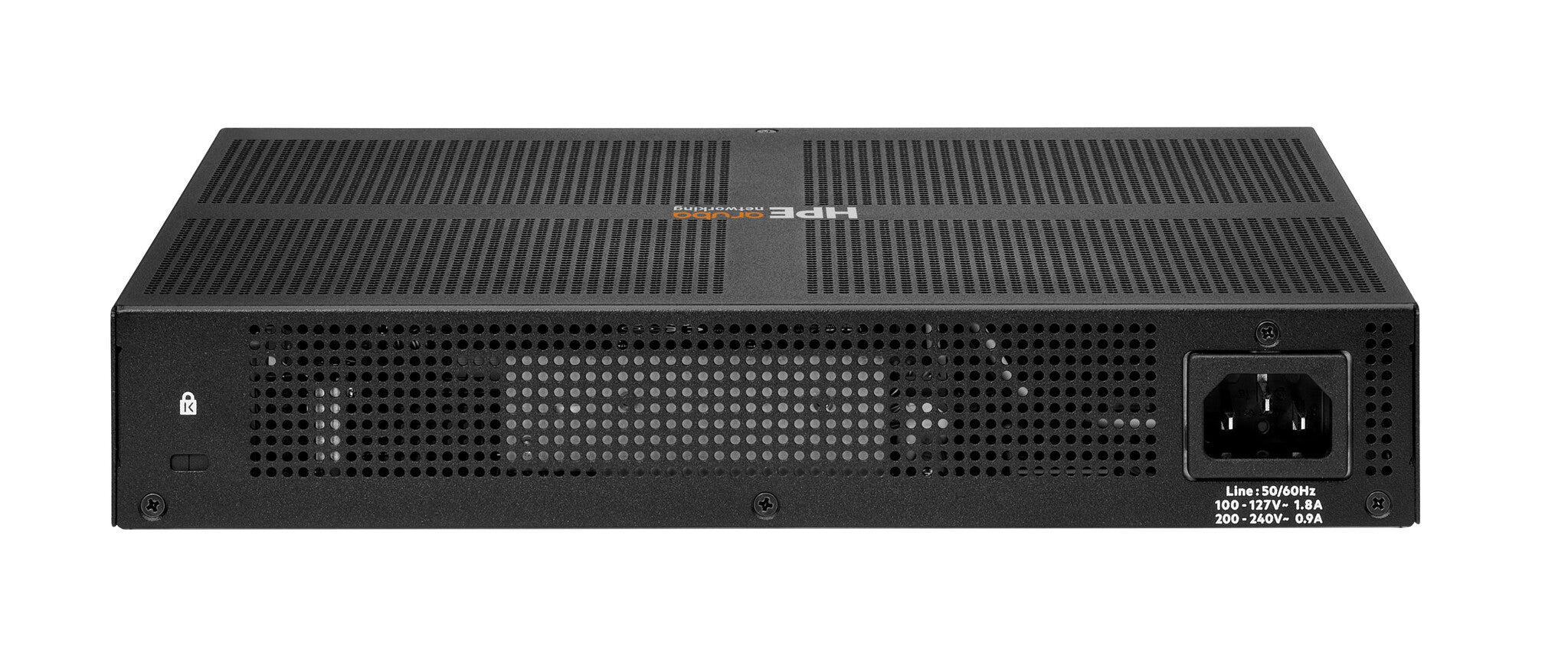

HPE Aruba Networking CX 6100 12G Class4 PoE 2G/2SFP+ 139W Switch

HPE  |  SKU : JL679A  |  Condition: Brand New  |  Code-barres: 190017349008

MORE INFO

£1,223.99
£1,122.99 Save £101.00 £1,223.99
£935.83 excluding VAT @20%
iFrame
Aruba Networking CX 6100 12G Class4 PoE 2G/2SFP+ 139W Switch

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12-port model is ideal for use in quiet workspaces. With robust quality of service (QoS), support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.

What is new supporting point:
It simplifies IT operations with next-gen Layer 2 switch series that provides entry-level, reliable, and convenient wired access connectivity
The CX 6100 series provides right size with 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE
It has compact and fan-less 12-port PoE model for space-constrained deployments
The CX 6100 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry-standard CLI
It offers scalability with an 8-member switch virtual switching framework (VSF) stacking for up to 384 downlink ports

Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 12
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity 2
Console port USB
Network
Networking standards IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
10G support Yes
Port mirroring Yes
Spanning tree protocol Yes
Link aggregation Yes
Flow control support Yes
VLAN support Yes
Data transmission
MAC address table 8192 entries
Switching capacity 68 Gbit/s
Throughput 45.1 Mpps
Latency (1 Gbps) 2.3 µs
Latency (10 Gbps) 2.6 µs
Jumbo frames support Yes
Packet buffer memory 12.38 MB
Security
DHCP features DHCP client
Access Control List (ACL) Yes
IGMP snooping Yes
Authentication type RADIUS, TACACS+
Authentication MAC-based authentication
Multicast features
Multicast support Yes
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Black
Performance
Built-in processor Yes
Processor model ARM Cortex-A9
Processor frequency 1016 MHz
Memory type DDR3-SDRAM
Internal memory 4096 MB
Flash memory 16 MB
General
Product family Aruba Networking
Power
Power source AC
Power supply included Yes
AC input voltage 200 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (max) 21.9 W
Power consumption note Max. Power (w/o PoE): 21.9W Max. Power (w/ PoE): 170W
Power supply note Fixed power supply
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Total Power over Ethernet (PoE) budget 139 W
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 15 - 95%
Storage relative humidity (H-H) 15 - 90%
Weight & dimensions
Width 44 mm
Depth 254 mm
Height 255 mm
Weight 2.8 kg
Logistics data
Harmonized System (HS) code 85176990
Other features
Latency 1 Gbps: 2.3 μSec , 10 Gbps: 2.6 μSec
Fan Fixed fans
Performance management Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
Memory and processor Dual Core ARM Cortex A9 @ 1016 Mhz 4 GB DDR3, maximum, depending on model 16 GB eMMC
Weight (imperial) 2.78 kg (6.13 lbs)
I/O ports 12 x 10/100/1000BASE-T ports 2 x 1G/10G SFP ports 2 x 1GbE ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port
