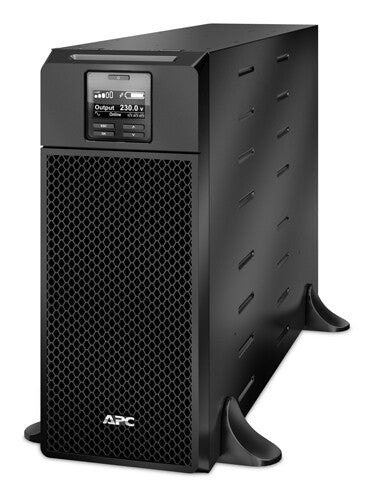

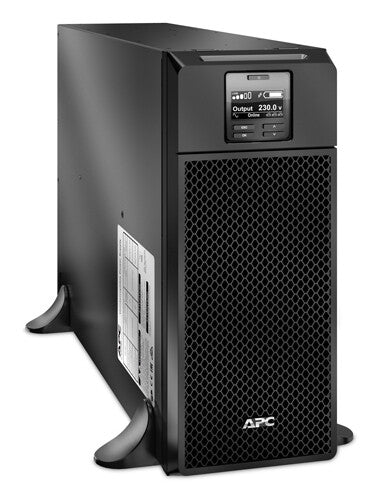

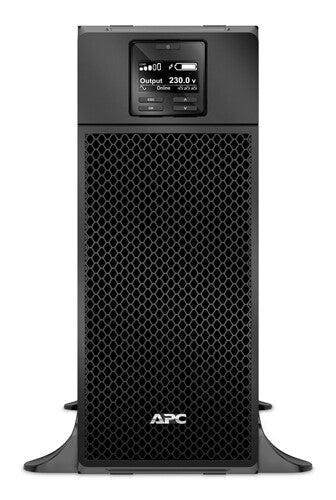

APC Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

APC  |  SKU : SRT6KXLI  |  Condition: Brand New  |  Code-barres: 0731304301660

MORE INFO

£5,875.99
£5,862.99 Save £13.00 £5,875.99
£4,885.83 excluding VAT @20%
iFrame
Smart-UPS On-Line, 6kVA/6kW, Tower, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/O rail kit

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Features
Auto-restart Yes
Audible alarm(s) Yes
Surge protection Yes
Noise level 55 dB
Output voltage Total Harmonic Distortion (THD) 3%
Emergency Power Off (EPO) Yes
Crest factor 3:1
Efficiency 94.4%
Number of output phases 1
Surge energy rating 480 J
Output frequency regulation 50/60 Hz
Output operation voltage (max) 240 V
Output operation voltage (min) 220 V
Input frequency 40 - 70 Hz
Input operation voltage (max) 275 V
Input operation voltage (min) 100 V
Waveform Sine
Output power 6000 W
Output power capacity 6 kVA
UPS topology Double-conversion (Online)
Ports & interfaces
SmartSlot Yes
Serial interface type RJ-45
Serial interface Yes
USB port Yes
Number of output IEC jumpers 2
AC outlets quantity 10 AC outlet(s)
Power plug Hardwire
AC outlet types C13 coupler, C19 coupler
Battery
Cold start Yes
Automatic battery test Yes
Hot-swap battery Yes
Battery recharge time 1.5 h
Battery life (max) 5 year(s)
Typical backup time at half load 8.7 min
Typical backup time at full load 2.5 min
Battery capacity 902 VAh
Battery technology Sealed Lead Acid (VRLA)
Design
Certification REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
International Protection (IP) code IP20
LED indicators Status
Display type LCD
Product colour Black
Form factor Rackmount/Tower
Operational conditions
Non-operating altitude 0 - 15000 m
Operating altitude 0 - 3000 m
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -15 - 45 °C
Operating temperature (T-T) 0 - 40 °C
Technical details
Total carbon footprint 13539.46
Sustainability certificates ENERGY STAR
Compliance certificates RoHS
Weight & dimensions
Package weight 67 kg
Package height 370 mm
Package depth 960 mm
Package width 610 mm
Weight 60 kg
Height 432 mm
Depth 719 mm
Width 174 mm
Packaging data
Software CD Yes
Warranty card Yes
Quick installation guide Yes
Temperature sensor Yes
Cables included USB cable
Logistics data
Harmonized System (HS) code 85078000
Products per pallet 6 pc(s)
Other features
Packaging content Removable support feetWeb/SNMP Management Card
