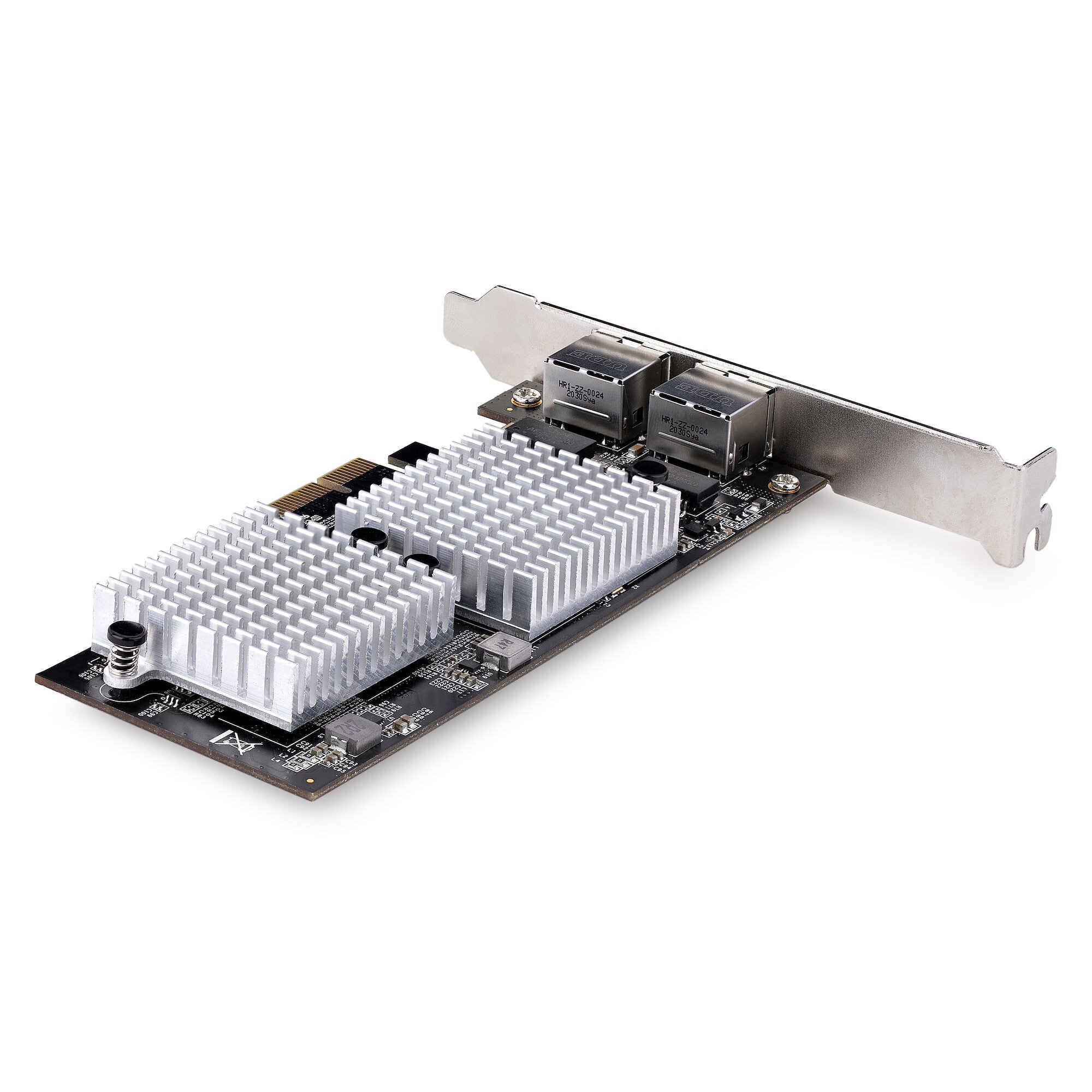

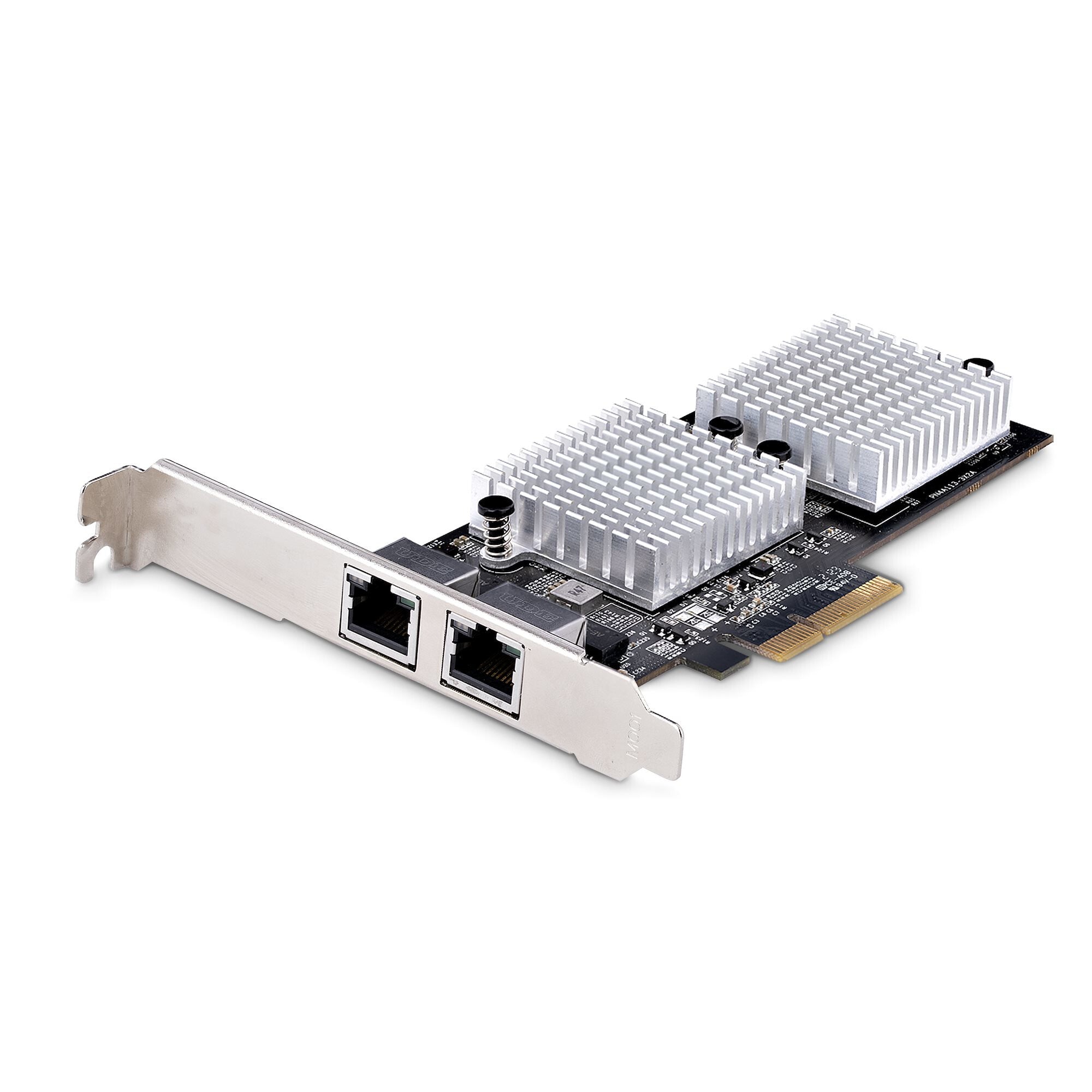

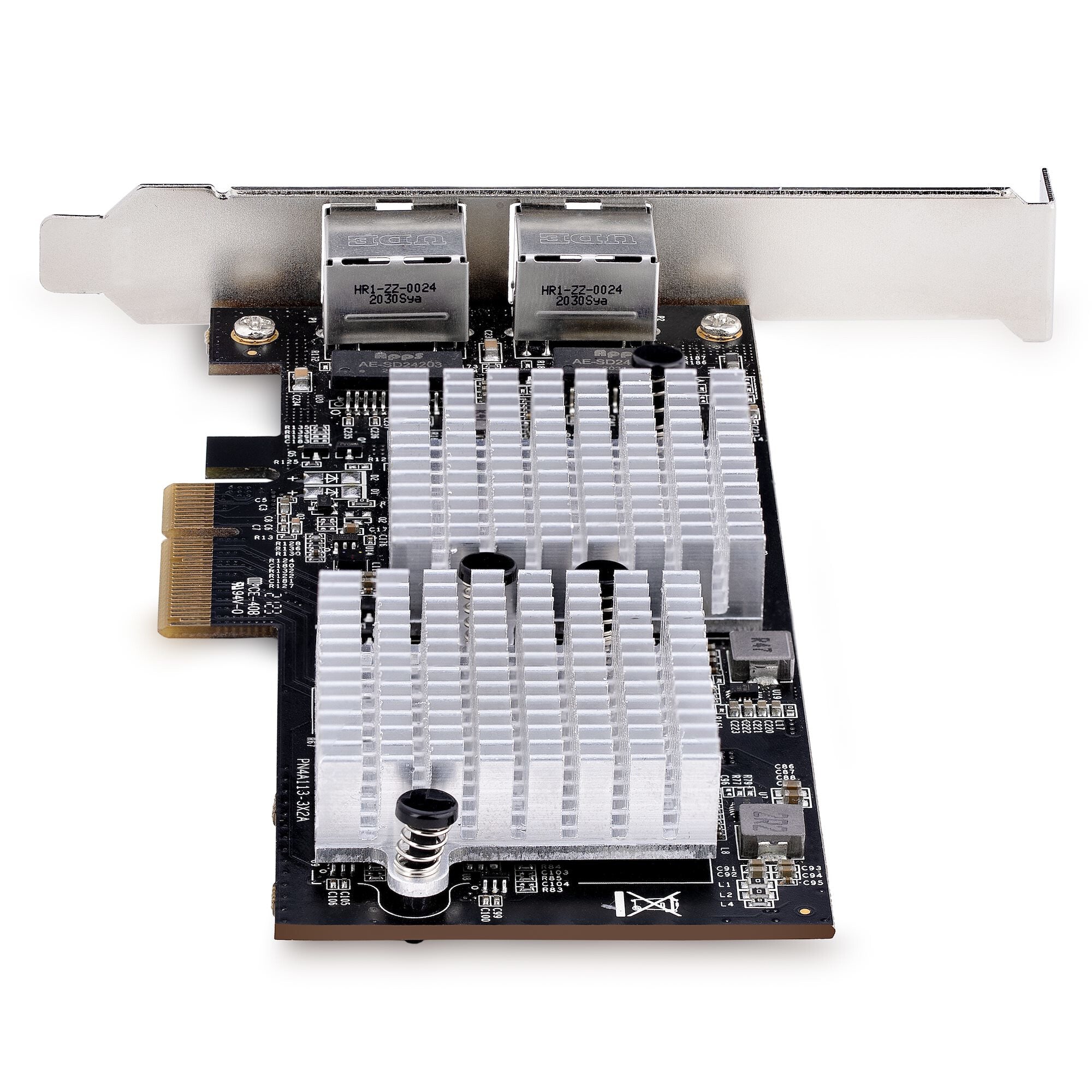

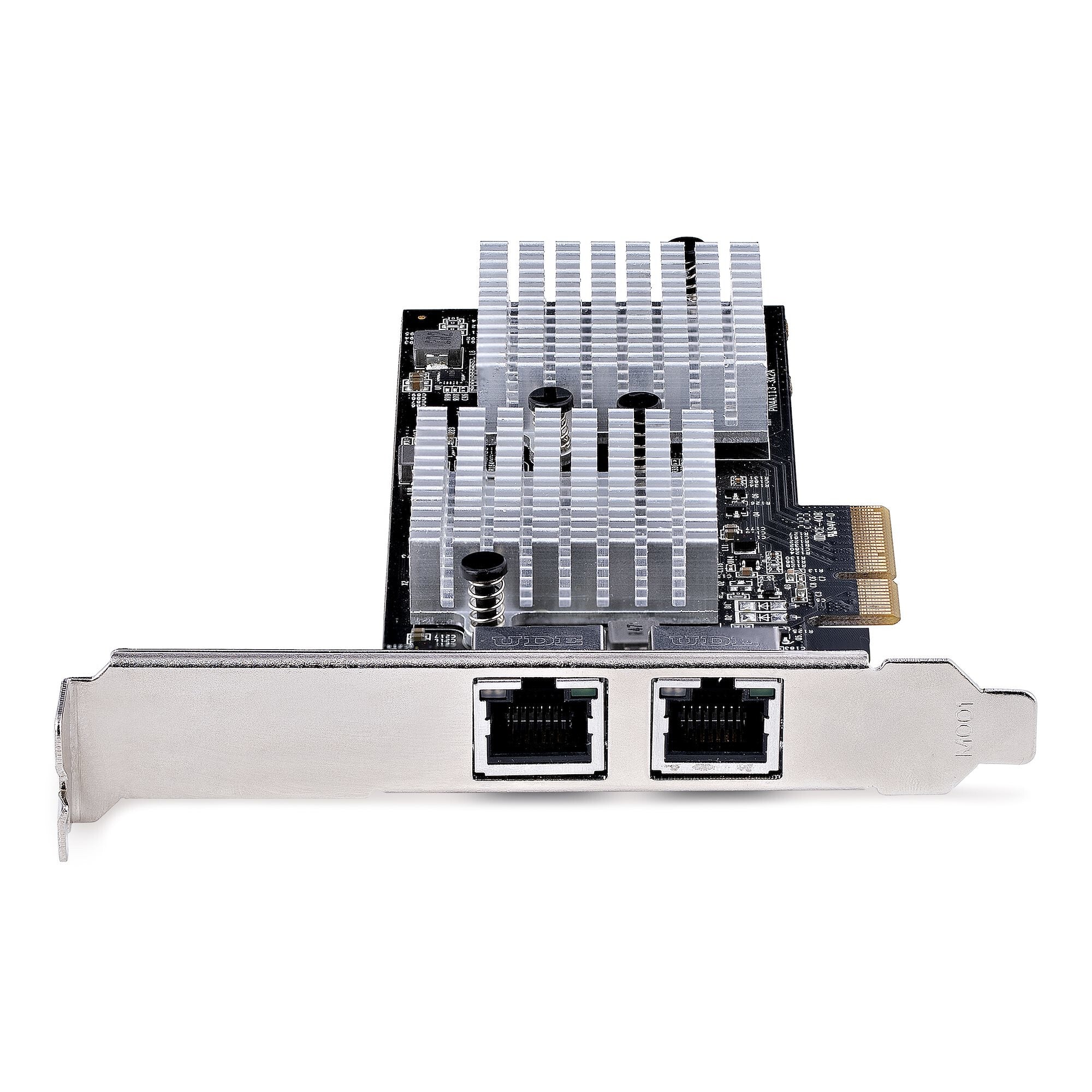

StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T
StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card for PCs/Servers, Six-Speed PCIe Ethernet Card with Jumbo Frame Support, NIC/LAN Interface Card, 10GBASE-T and NBASE-T est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
StarTech.com 2-Port 10GbE PCIe Network Adapter Card, Network Card f...
AVB | PXE Boot | PCIe 3.0 x4 | Marvell AQC113CS
Install this 2-port 10GbE PCI Express (PCIe) Network Interface Card (NIC) with independent controllers into a server or computer to enable fast network speeds and enhanced network functionality by providing failover and redundancy protection to mission-critical servers/applications.
This Card supports six speeds: 10/5/2.5/1Gbps and 100/10Mbps with auto-negotiation for instant compatibility with new and legacy hardware. In addition, 10GBASE-T and NBASE-T (2.5GBASE-T/5GBASE-T) capabilities ensure compatibility with the latest network switches and access points manufactured by Cisco®; HPE®; and Aruba Networks®.
10GbE Network Speeds
This PCIe Network Card enables access to two high-bandwidth ethernet connections. As a result, it reduces network degradation when running data-intensive applications/processes such as FTPs, online storage/backup, and streaming online content. The Ethernet Network Card supports 10GBASE-T using existing Cat6 (or better) cable infrastructure.
Enhance Existing Hardware

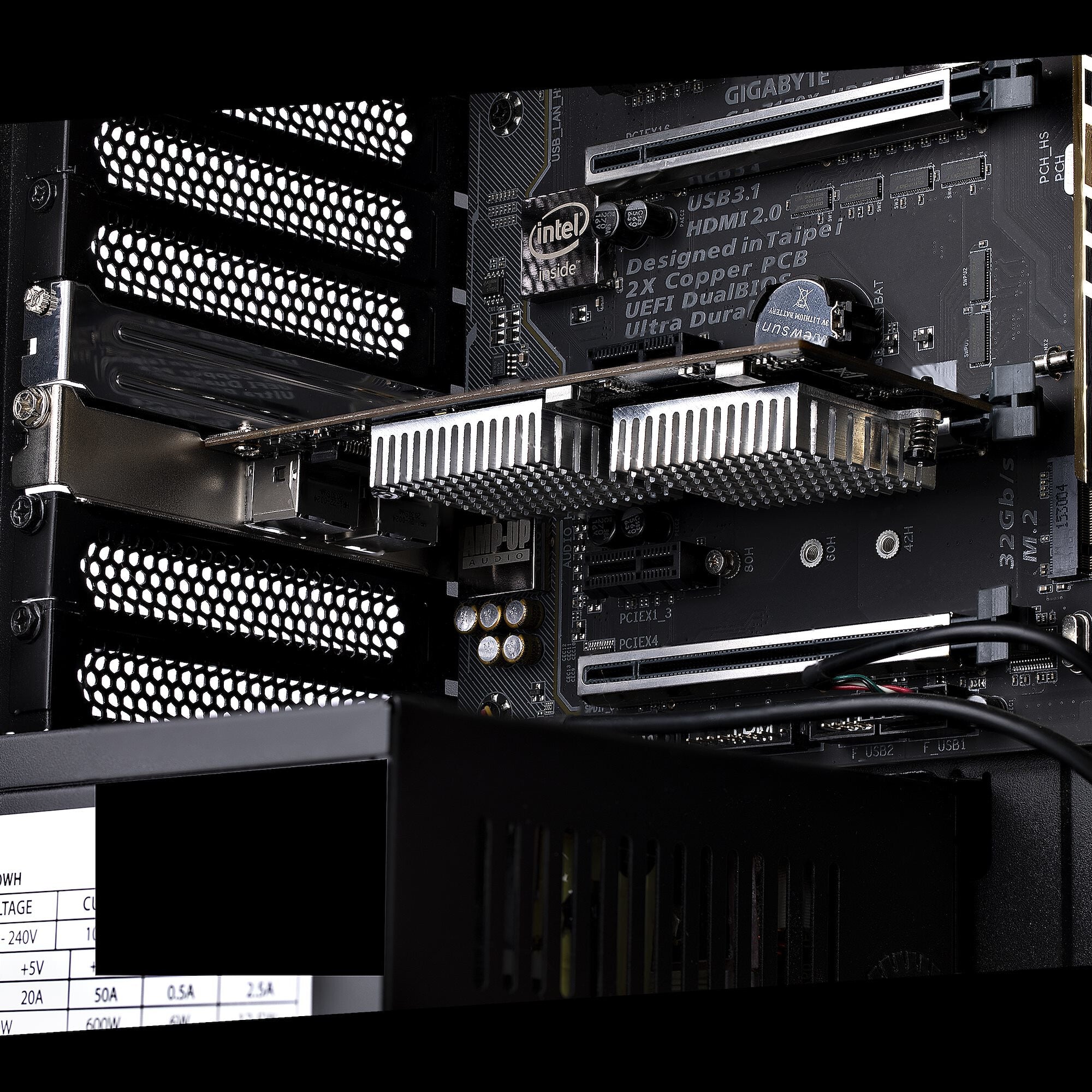

NBASE-T technology maximizes the capability of Cat5e copper infrastructure over distances of up to 100 meters. The Network Interface Card connects to a PCIe x4 3.0/4.0 (or higher) slot and comes with a full-height bracket preinstalled, and a low-profile bracket is included. This Card is compatible with Windows, Windows Server, and Linux operating systems.
Take advantage of advanced features such as load balancing in server or network equipment, bridging two different networks on one system, Audio Video Bridging (AVB), VLAN tagging (802.1Q), 16K-byte Jumbo Frames, full-duplex (FDX), UEFI Secure Boot (SB), and Preboot eXecution Environment (PXE).
The StarTech.com Advantage
| Ports & interfaces | |
|---|---|
| PCI Card form factor | Full-height (low-profile) |
| PCI version | 3.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Maximum operating distance | 100 m |
| VLAN tagging | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 16000 |
| Full duplex | Yes |
| Auto MDIX IEEE | Yes |
| Wake-on-LAN ready | Yes |
| Cabling technology | 10GBase-T |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
|---|---|
| LED indicators | Activity, Link, Status |
| Chipset | Marvell AQC113CS |
| Product colour | Black |
| Component for | PC/Server |
| Internal | Yes |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 5 - 50 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 116 g |
| Height | 65 mm |
| Depth | 145 mm |
| Width | 20 mm |
| Packaging data | |
|---|---|
| Package weight | 208 g |
| Package height | 35 mm |
| Package depth | 215 mm |
| Package width | 145 mm |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Mounting brackets included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE |
| Logistics data | |
|---|---|
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case height | 315 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case width | 440 mm |
-
