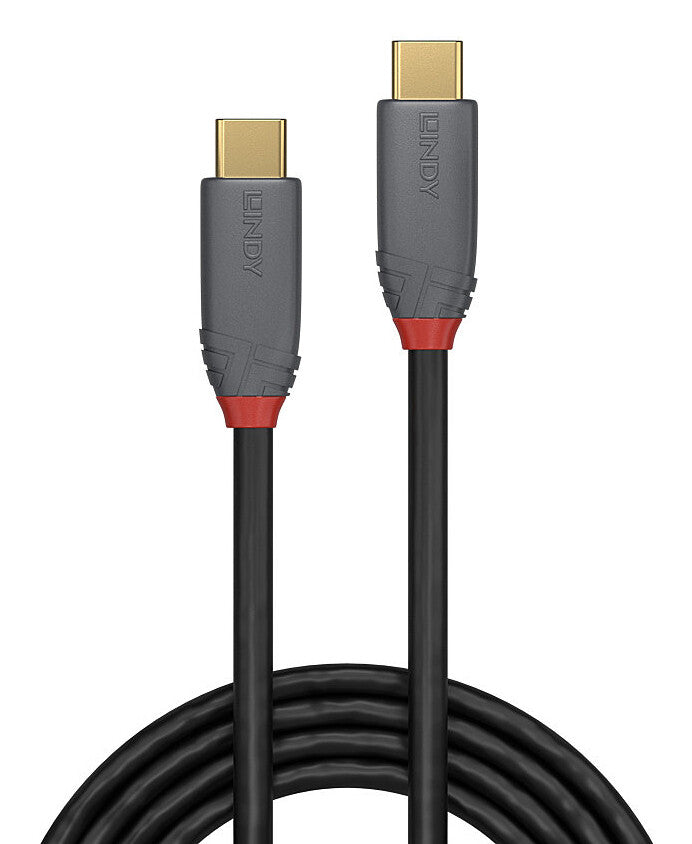

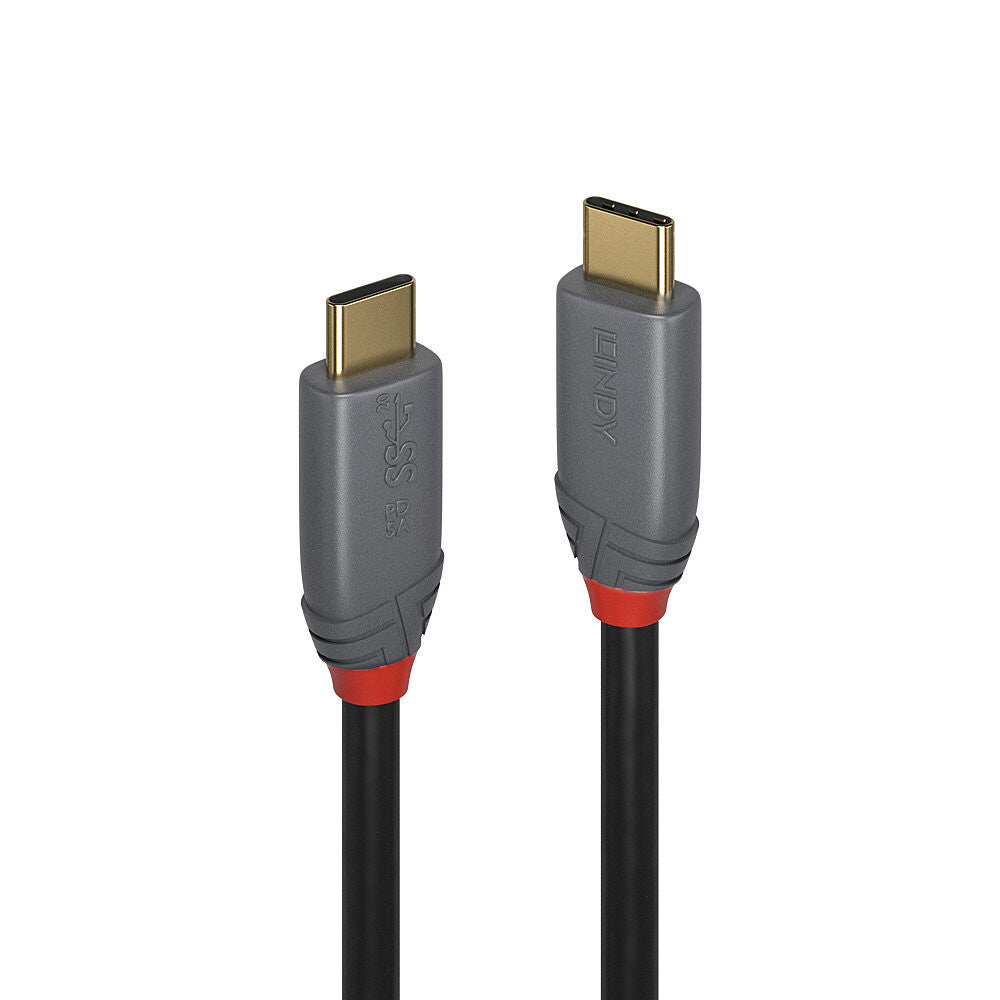

Lindy 1.5m USB 3.2 Type C to C Cable, 20Gbps, 100W PD, Anthra Line

LINDY  |  SKU : 36902  |  Condition: Brand New  |  Code-barres: 4002888369022
£27.99
£23.99 Save £4.00 £27.99
£19.99 excluding VAT @20%
iFrame
1.5m USB 3.2 Type C to C Cable, 20Gbps, 100W PD, Anthra Line

The Anthra Line USB 3.2 Type C to C, 5A, cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 20Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 100W (5A) of power to devices using the most efficient power delivery profiles. The cable supports DisplayPort Alternate mode at max. 4K 60Hz.

USB Type C features a new reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 3.2 Type C to C, 5A cables are available in the following lengths: 0.5m, 1m and 1.5m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Features
USB version USB 3.2 Gen 2x2
Connector 1 USB C
Connector 2 USB C
Connector 1 gender Male
Connector 2 gender Male
Connector 1 form factor Straight
Connector 2 form factor Straight
AWG wire size 24/30/32
Connector contacts plating Gold
Cable jacket material Polyvinyl chloride (PVC)
Connector shield material Copper
Conductor material Tinned copper
Maximum data transfer rate 20 Gbit/s
Product colour Black
Cable colour Black
USB Power Delivery revision 3.0
USB Power Delivery up to 100 W
USB Power Delivery Yes
E-Marker сhip Yes
Nominal attenuation 0.5Mhz-15Ghz < 40dB
Certification REACH, UL
Power
Output current (max) 5 A
Output voltage 20 V
Weight & dimensions
Cable length 1.5 m
Cable diameter 4.8 mm
Width 12.7 mm
Depth 30.8 mm
Height 7.3 mm
Bend radius (min) 4.8 cm
Packaging data
Package type Polybag
Package width 194 mm
Package depth 174 mm
Package height 10 mm
Packaging content
Quantity per pack 1 pc(s)
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) 0 - 70 °C
Technical details
Housing material Polyvinyl chloride (PVC)
Proposition 65 Yes
Replacement item number 41902
Logistics data
Products per master (outer) case 50 pc(s)
Harmonized System (HS) code 84733080
Other features
Connector(s) USB 3.2 C Male to C Male
Compliance certificates REACH, RoHS, UL
