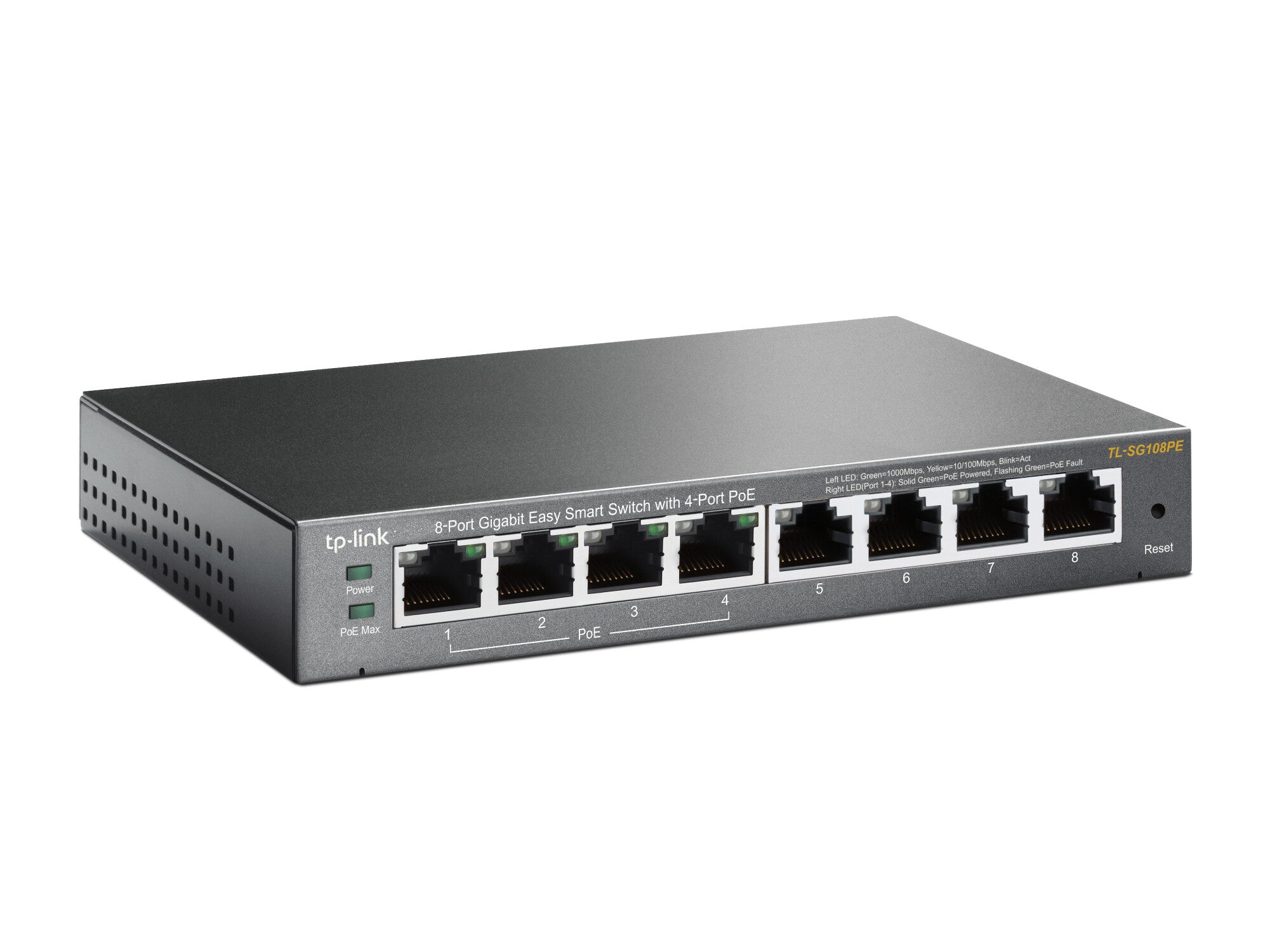

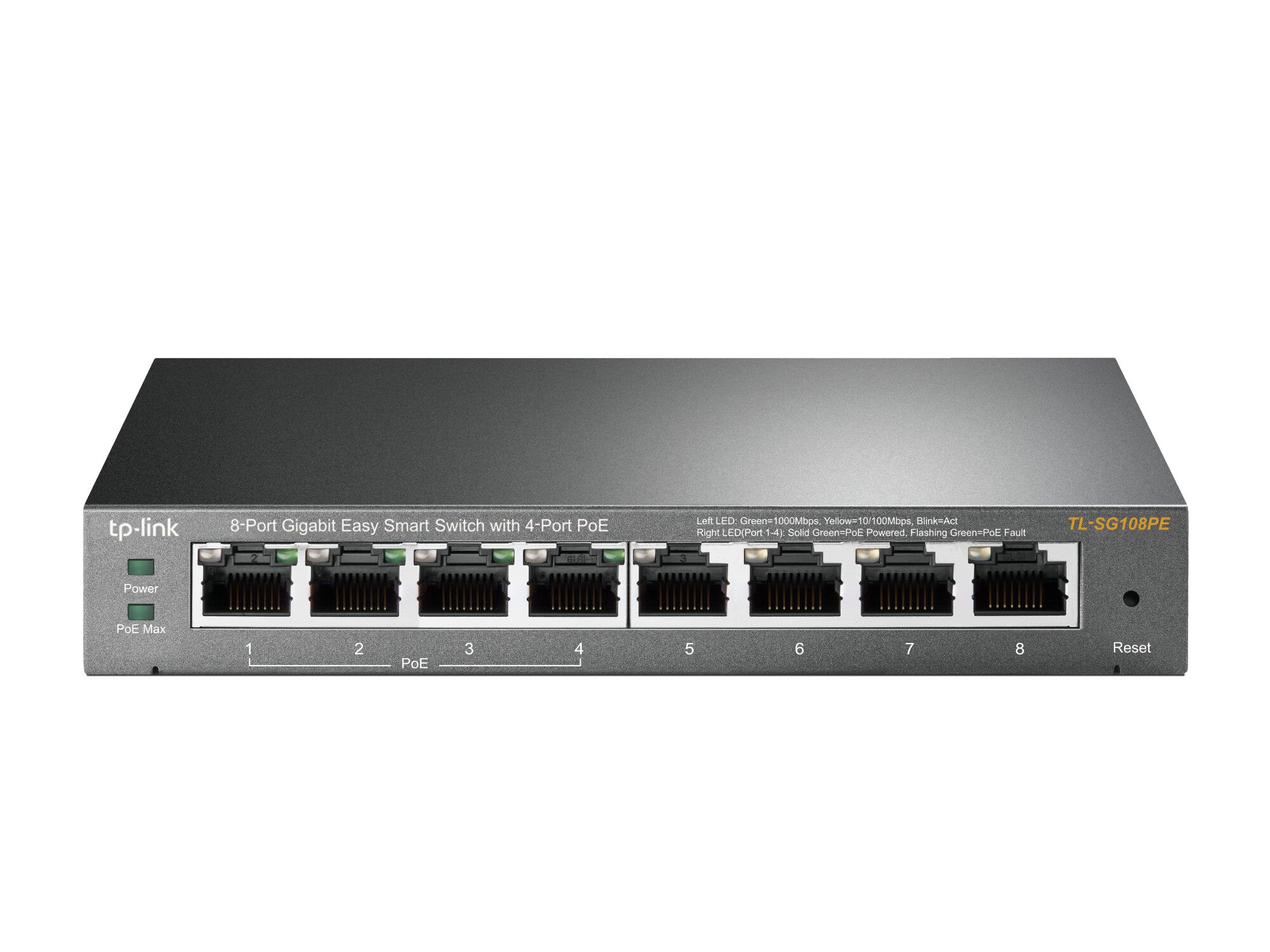

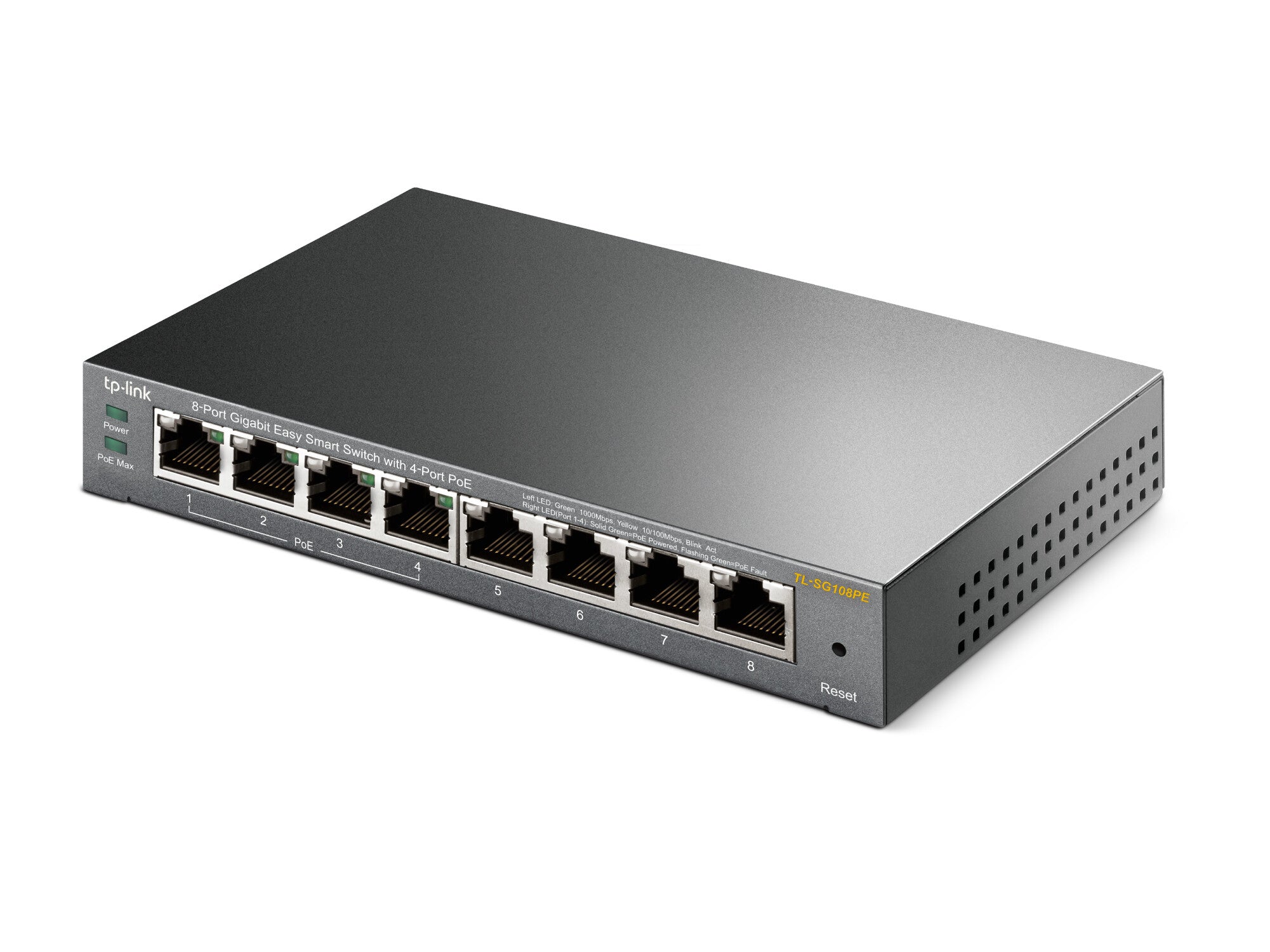

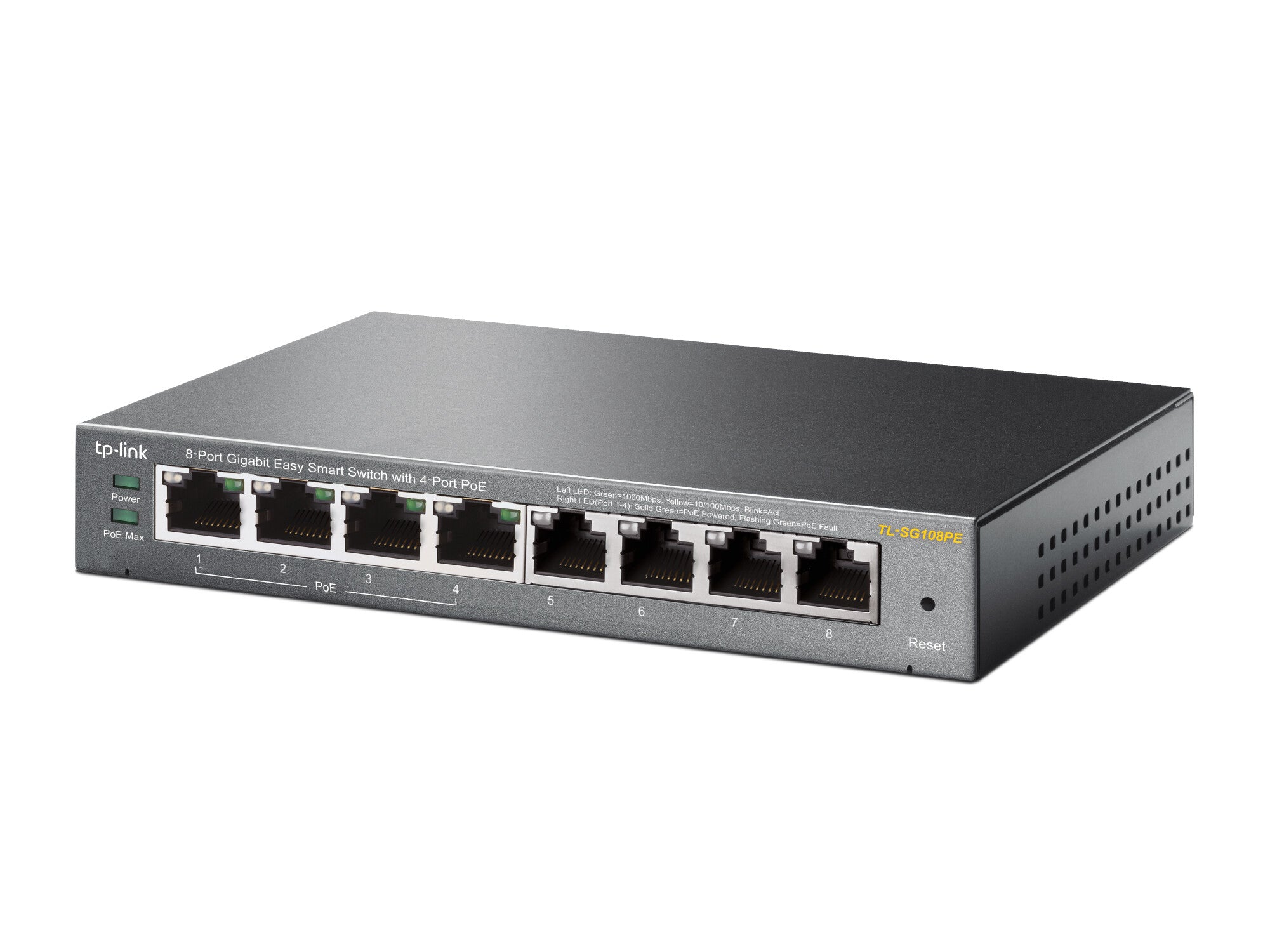

TP-Link 8-Port Gigabit Easy Smart Switch with 4-Port PoE

TP-LINK  |  SKU : TL-SG108PE  |  Condition: Brand New  |  Code-barres: 6935364094751

MORE INFO

£73.99
£71.99 Save £2.00 £73.99
£59.99 excluding VAT @20%
🔥 May Madness: 5% off sitewide with code MAY5
iFrame
8 10/100/1000Mbps RJ45 Ports, AUTO Negotiation/AUTO MDI/MDIX, IEEE 802.3i/u/ab/af/x, IEEE 802.1q/p, 158 x 101 x 25 mm

PoE Switches for Your Ultra Convenience
8-Port Gigabit Easy Smart Switch with 4-Port PoE

Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs

Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Intelligent Power Management
When total power consumption excels 55W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Management Made Easy
TL-SG108PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Management features
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 8
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 8
Network
Networking standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
10G support No
Cable types supported Cat3, Cat4, Cat5, Cat5e, Cat6
Port mirroring Yes
Auto-negotiation Yes
Auto MDI/MDI-X Yes
Rate limiting Yes
Broadcast storm control Yes
Link aggregation Yes
VLAN support Yes
Virtual LAN features Port-based VLAN
Number of VLANs 32
Data transmission
MAC address table 4000 entries
Switching capacity 16 Gbit/s
Forwarding rate 11.9 Mpps
Store-and-forward Yes
Jumbo frames support Yes
Jumbo frames 15000
Packet forwarding rate (1 Gbps) 11900000 pps
Packet buffer memory 1.5 MB
Security
IGMP snooping Yes
Loop protection Yes
Design
Product colour Black
LED indicators Activity, Link, PoE, Power, Speed, Status
Certification FCC, CE, RoHS
Power
Power source DC
Power supply included Yes
AC input voltage 220 V
AC input frequency 50 Hz
Input current 1.25 A
Input voltage 48 V
Power consumption (max) 65.2 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) ports quantity 4
Power over Ethernet plus (PoE+) ports quantity 4
Power over Ethernet (PoE) power per port 15.4 W
Total Power over Ethernet (PoE) budget 64 W
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 10 - 90%
Storage relative humidity (H-H) 5 - 95%
Heat dissipation 256.19 BTU/h
Weight & dimensions
Width 158 mm
Depth 101 mm
Height 25 mm
Packaging data
Cables included AC
Package type Box
User guide Yes
Package width 131 mm
Package depth 196 mm
Package height 121 mm
Package weight 860 g
Logistics data
Harmonized System (HS) code 85176990
