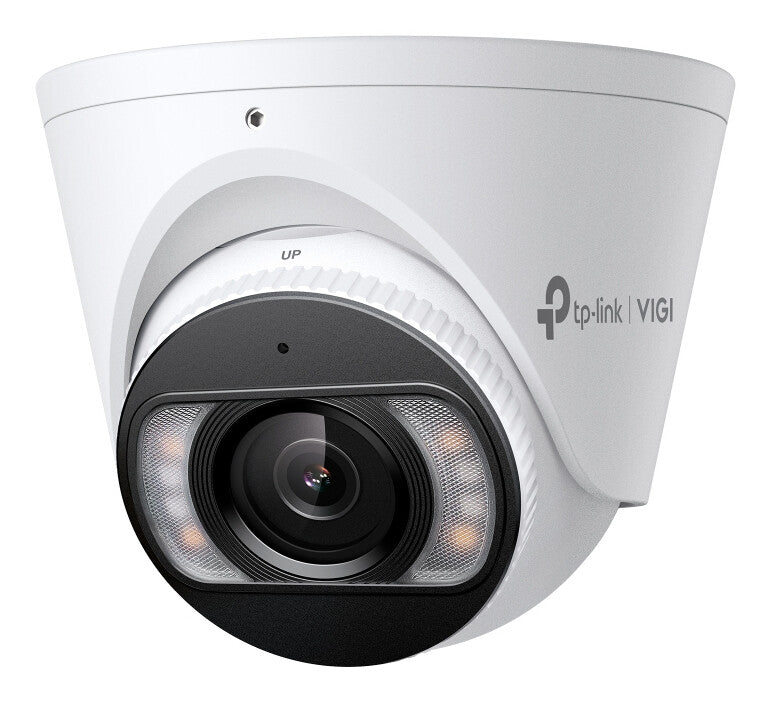

VIGI 8MP Full-Color Turret Network Camera, 1/2.7”, 1/3 to 1/10000 s, F1.6, 3840 x 2160, CBR, VBR, BLC/3D DNR/HLC/SmartIR, 120 dB, 12V DC ± 5%, Max. 11.5 W, 5.5 mm Coaxial Power Plug, PoE: 802.3af/at, class 0, Max. 12.5 W, IP67, 111 x 111 x 83.7 mm, 0.48 kg, White
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.△
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Performance |
|---|
| Type |
IP security camera |
| Placement supported |
Outdoor |
| Connectivity technology |
Wired |
| Maximum operating distance |
107 m |
| Wide Dynamic Range (WDR) |
Yes |
| Infrared (IR) cut-off filter |
Yes |
| Day/night mode |
Yes |
| Remote viewing |
Yes |
| Dynamic range |
120 dB |
| Design |
|---|
| Form factor |
Turret |
| Mounting type |
Ceiling |
| Product colour |
White |
| Housing material |
Metal |
| Protection features |
Waterproof |
| International Protection (IP) code |
IP67 |
| Weatherproof |
Yes |
| Camera |
|---|
| Lens viewing angle, horizontal |
91.5° |
| Lens viewing angle, vertical |
46.1° |
| Lens viewing angle, diagonal |
109.6° |
| Tilt angle range |
0 - 90° |
| Camera shutter speed |
1/3 to 1/10000 |
| Image sensor |
|---|
| Sensor type |
CMOS |
| Optical sensor size |
25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan |
Yes |
| Lens system |
|---|
| Detect distance |
107 m |
| Observe distance |
44 m |
| Recognize distance |
21 m |
| Fixed focus |
Yes |
| Identify distance |
11 m |
| Maximum aperture number |
1.6 |
| Fixed focal length |
4 mm |
| Night vision |
|---|
| Night vision |
Yes |
| LED type |
IR/White |
| Video |
|---|
| Maximum resolution |
3840 x 2160 pixels |
| Total megapixels |
8 MP |
| Video compression formats |
H.264, H.264+, H.265, H.265+ |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440, 3840 x 2160 |
| Video recording |
Yes |
| Digital Wide Dynamic Range (DWDR) |
Yes |
| Highlight Compensation (HLC) |
Yes |
| Back Light Compensation (BLC) |
Yes |
| Bit rate |
Main Stream: 256 Kbps to 8 Mbps, Sub-Stream: 64 Kbps to 512 Kbps |
| Bit rate control |
Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Image quality adjustment |
Brightness, Contrast, Mirror, Saturation, Sharpness |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| Audio system |
2-way |
| Audio input channels |
1.0 channels |
| Audio output channels |
1.0 channels |
| Audio formats supported |
G.711 A-law |
| Sample rate |
8 kHz |
| Number of microphones |
1 |
| Built-in microphone |
Yes |
| Bit rate range |
0 - 64 Kbit/s |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Bluetooth |
No |
| Networking standards |
IEEE 802.3af, IEEE 802.3at |
| Supported network protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Live view |
Yes |
| Storage |
|---|
| Compatible memory cards |
MicroSD (TransFlash) |
| Maximum memory card size |
512 GB |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Yes |
| Security |
|---|
| Built-in siren |
Yes |
| Password protection |
Yes |
| Mirror |
Yes |
| HTTPS encryption |
Yes |
| IP address filtering |
Yes |
| Motion sensor |
Yes |
| Alert notification type |
Push notification |
| Video motion detection |
Yes |
| Management features |
|---|
| Web-based management |
Yes |
| Web browser |
Yes |
| Cloud-managed |
Yes |
| Reset button |
Yes |
| Power |
|---|
| Power source type |
DC, PoE |
| Power consumption (max) |
11.5 W |
| Power consumption (Power over Ethernet (PoE)) |
12.5 W |
| DC output voltage |
12 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 60 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
|---|
| Width |
111 mm |
| Height |
83.7 mm |
| Length |
111 mm |
| Weight |
480 g |
| Packaging data |
|---|
| Package type |
Box |
| Packaging content |
|---|
| Number of cameras |
1 |
| Mounting kit |
Yes |
| Screws included |
Yes |
| Drilling template included |
Yes |
| Manual |
Yes |
