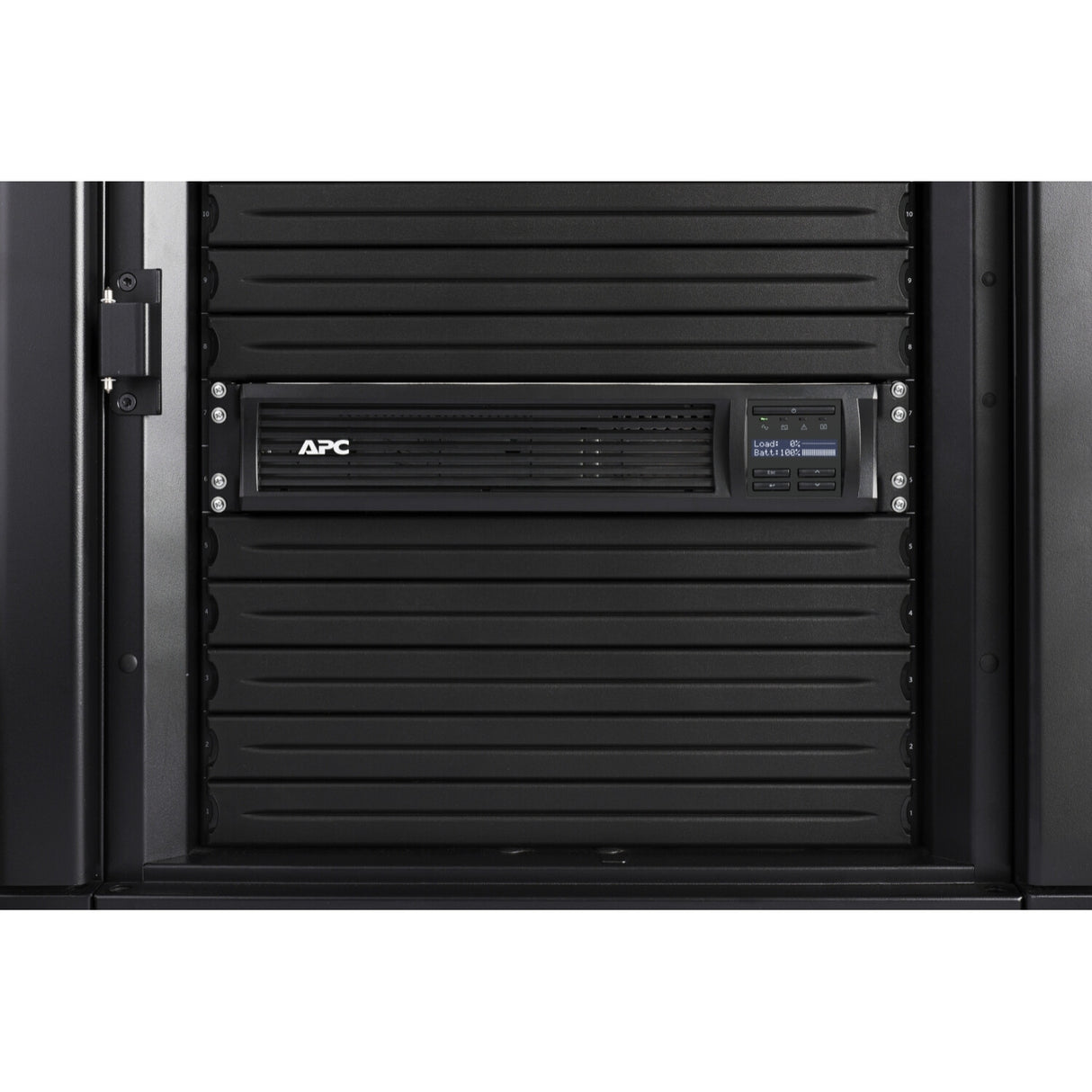

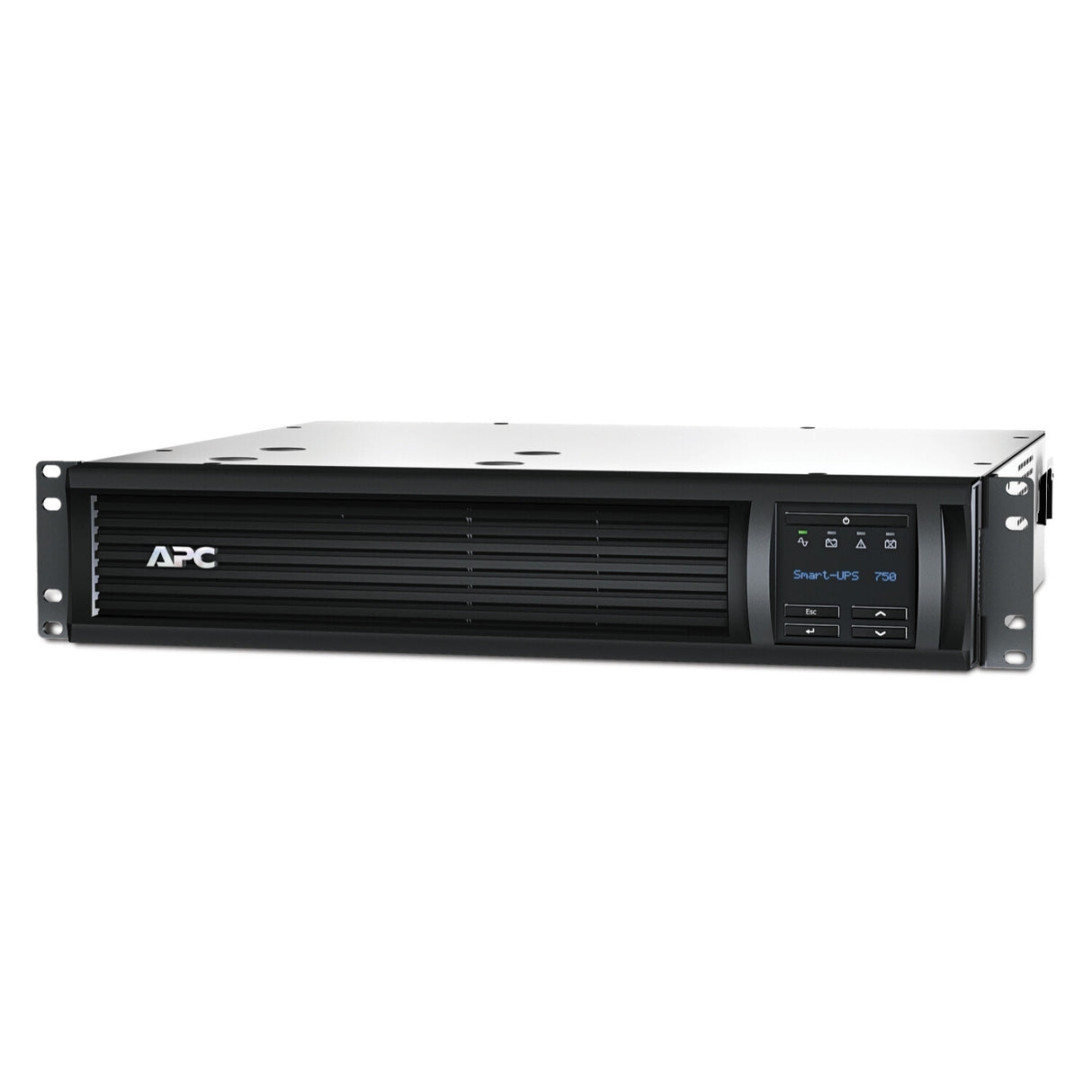

APC Smart-UPS, Line Interactive, 750VA, Rackmount 2U, 230V, 4x IEC ...
Description
Description

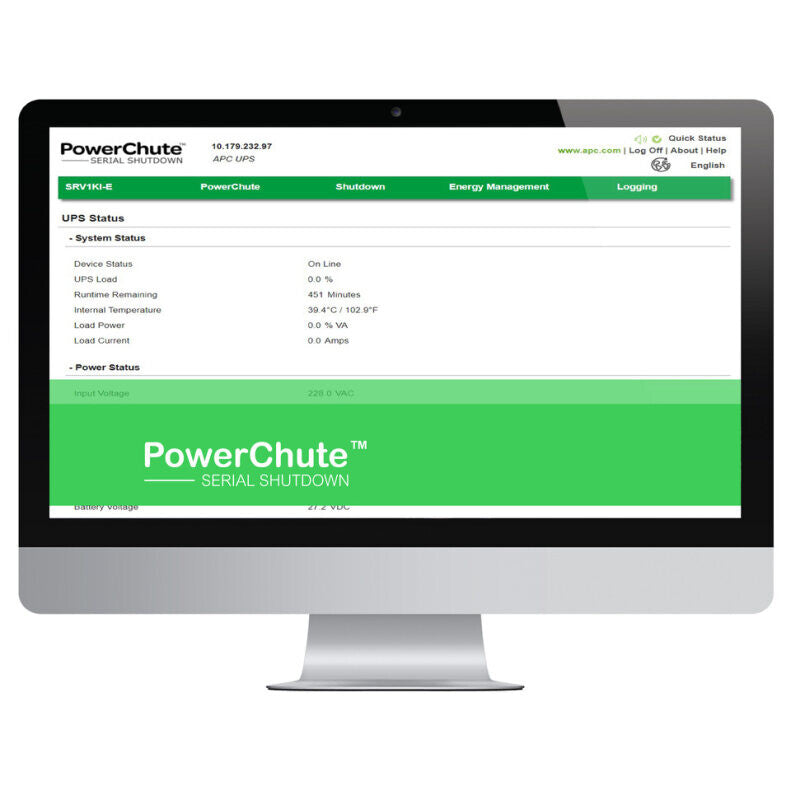

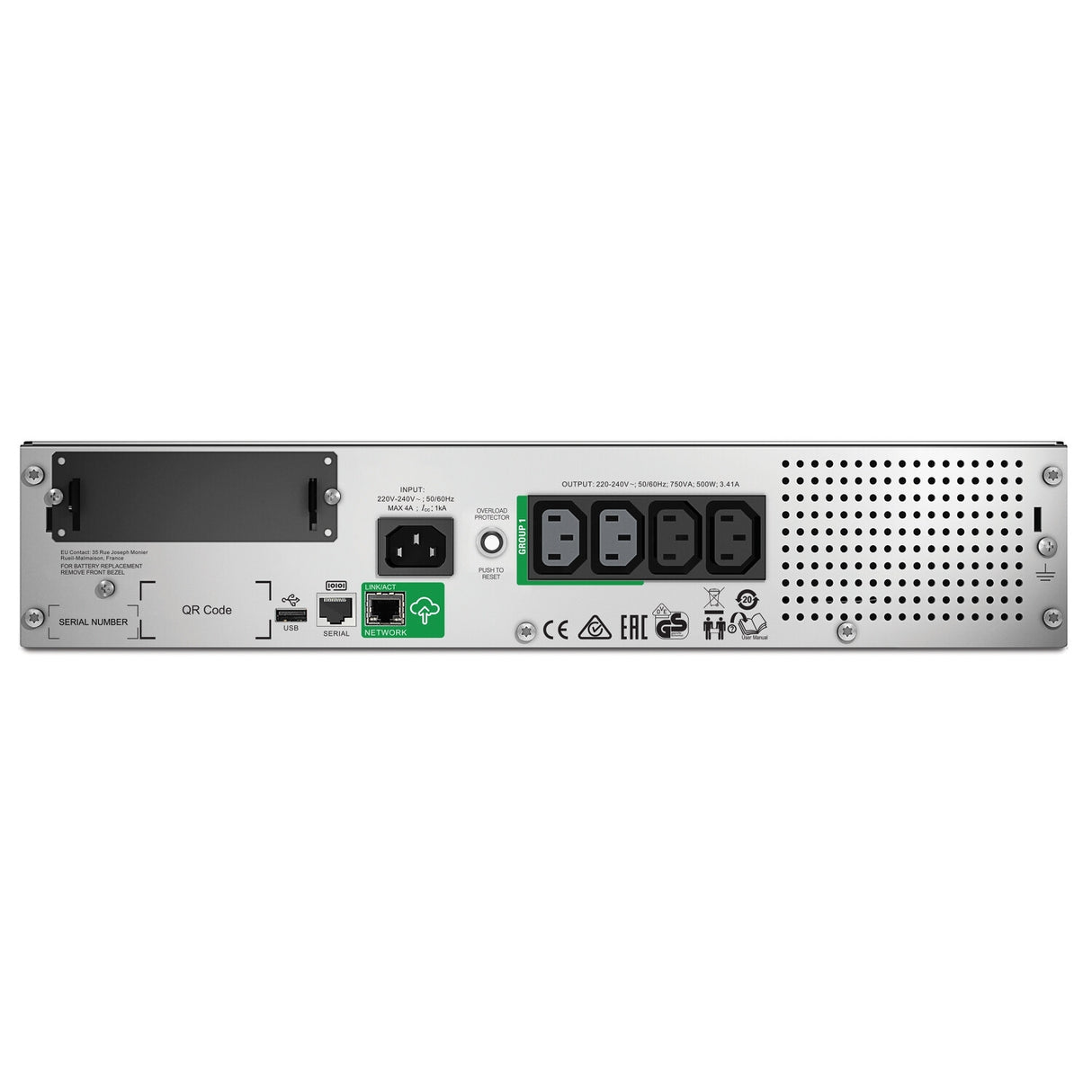

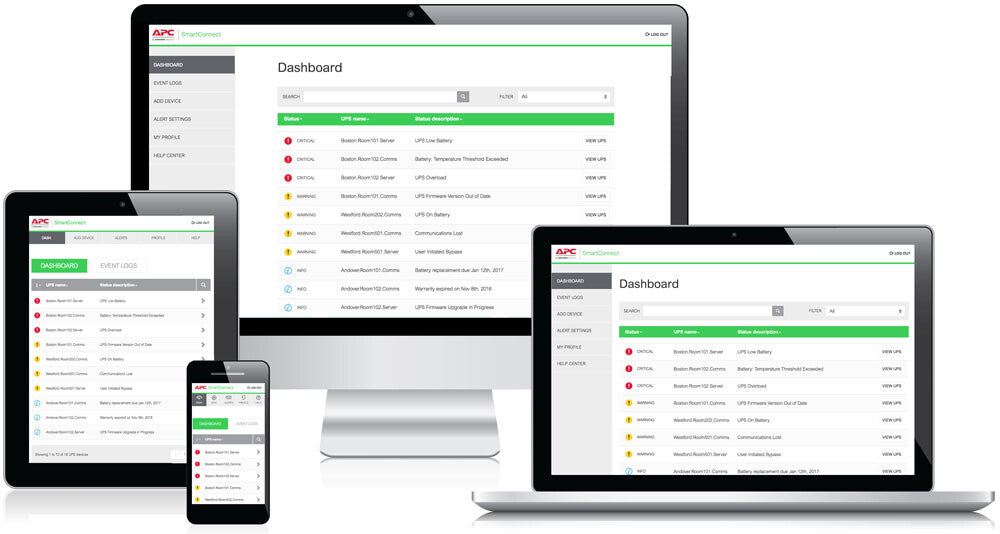

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with IEC 320 C14 input, 4x IEC 320 C13 outlets, and 2x IEC jumper cables. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| Features | |
|---|---|
| Auto-restart | Yes |
| Audible alarm(s) | Yes |
| Surge protection | Yes |
| Noise level | 42 dB |
| Efficiency | 97.7% |
| Hold time (max) | 2 ms |
| Surge energy rating | 459 J |

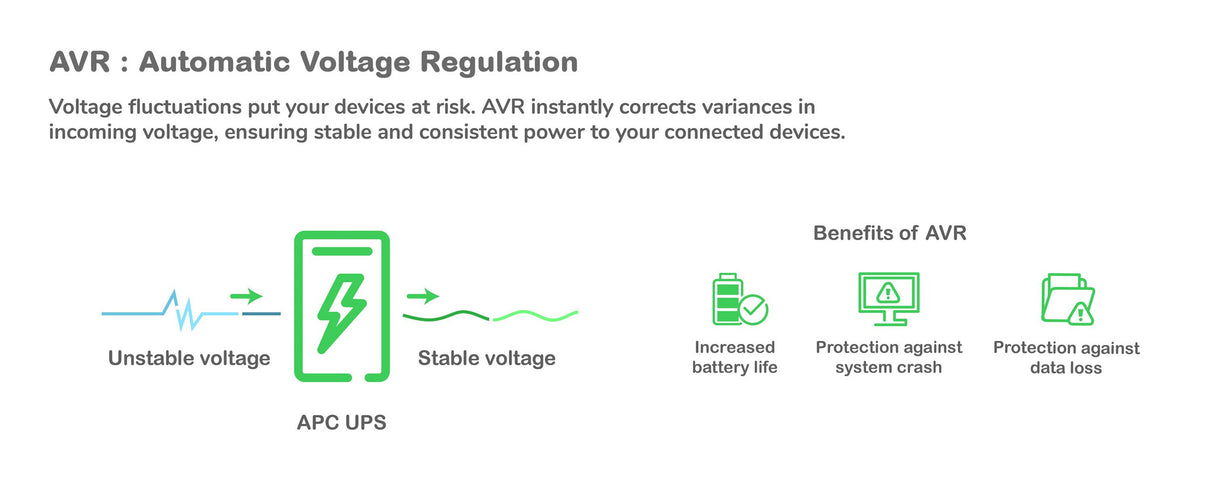

| Automatic Voltage Regulation (AVR) | Yes |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 220 V |
| Input frequency | 50/60 Hz |
| Input operation voltage (max) | 302 V |
| Input operation voltage (min) | 151 V |
| Waveform | Pure sine |
| Output power | 500 W |
| Output power capacity | 0.75 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| SmartSlot | Yes |

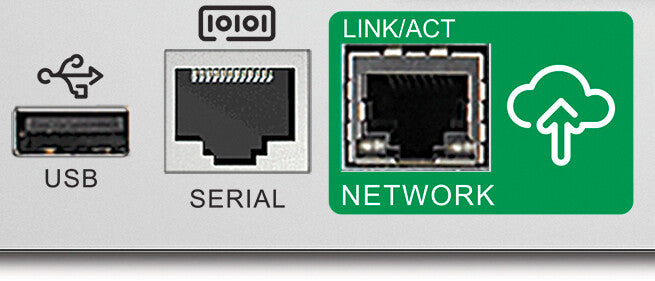

| Serial interface type | RJ-45 |
| Serial interface | Yes |
| USB port | Yes |
| Number of output IEC jumpers | 2 |
| AC outlets quantity | 4 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Cold start | Yes |
| Automatic battery test | Yes |
| Hot-swap battery | Yes |
| Battery recharge time | 3 h |
| Battery life (max) | 5 year(s) |

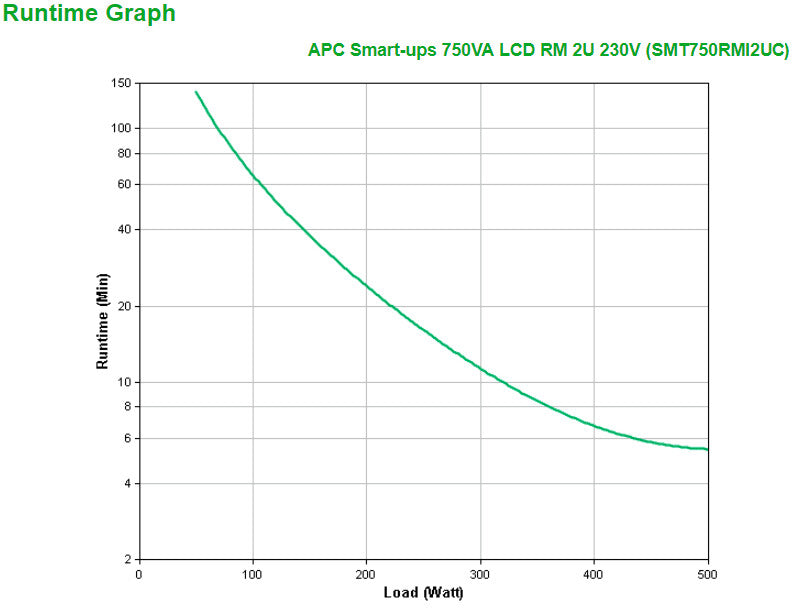

| Typical backup time at half load | 16 min |
| Typical backup time at full load | 5.5 min |
| Battery capacity | 168 VAh |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Certification | CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, TUV, UL 1778, VDE, REACH, PEP, EOLI |

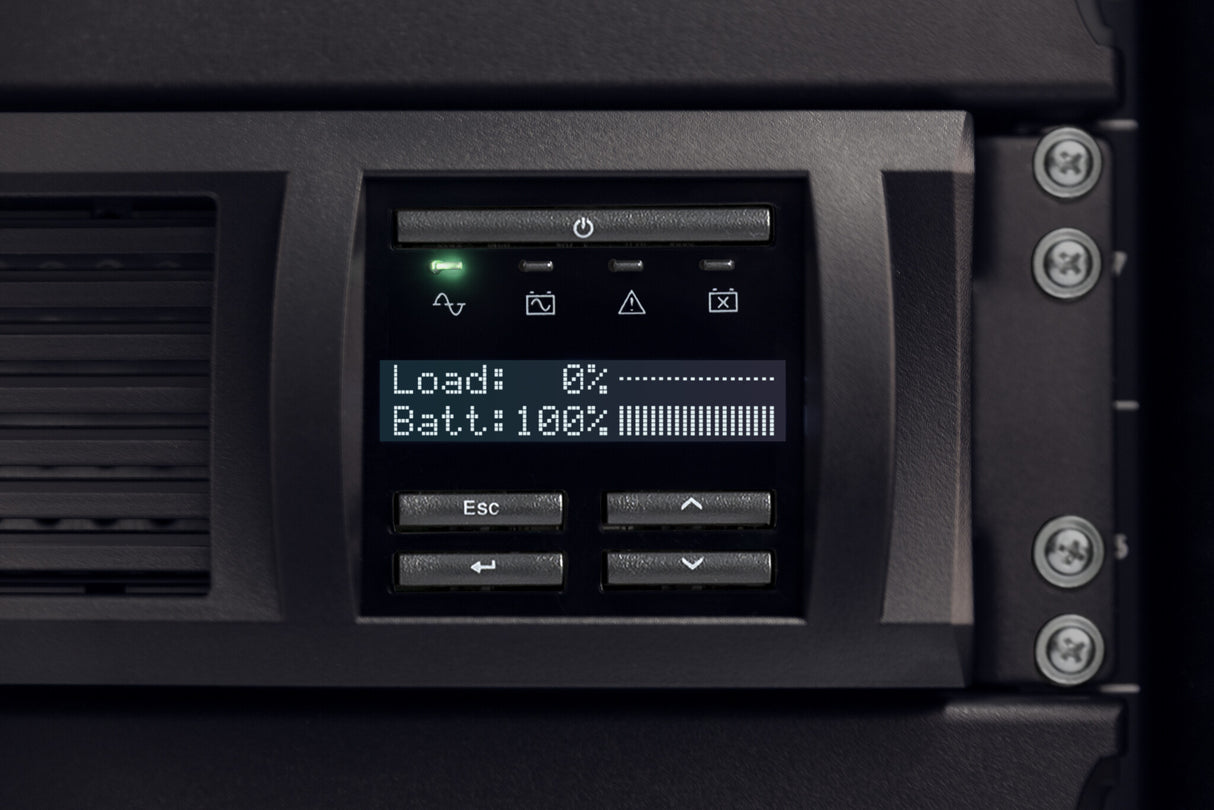

| LED indicators | Battery replacement |

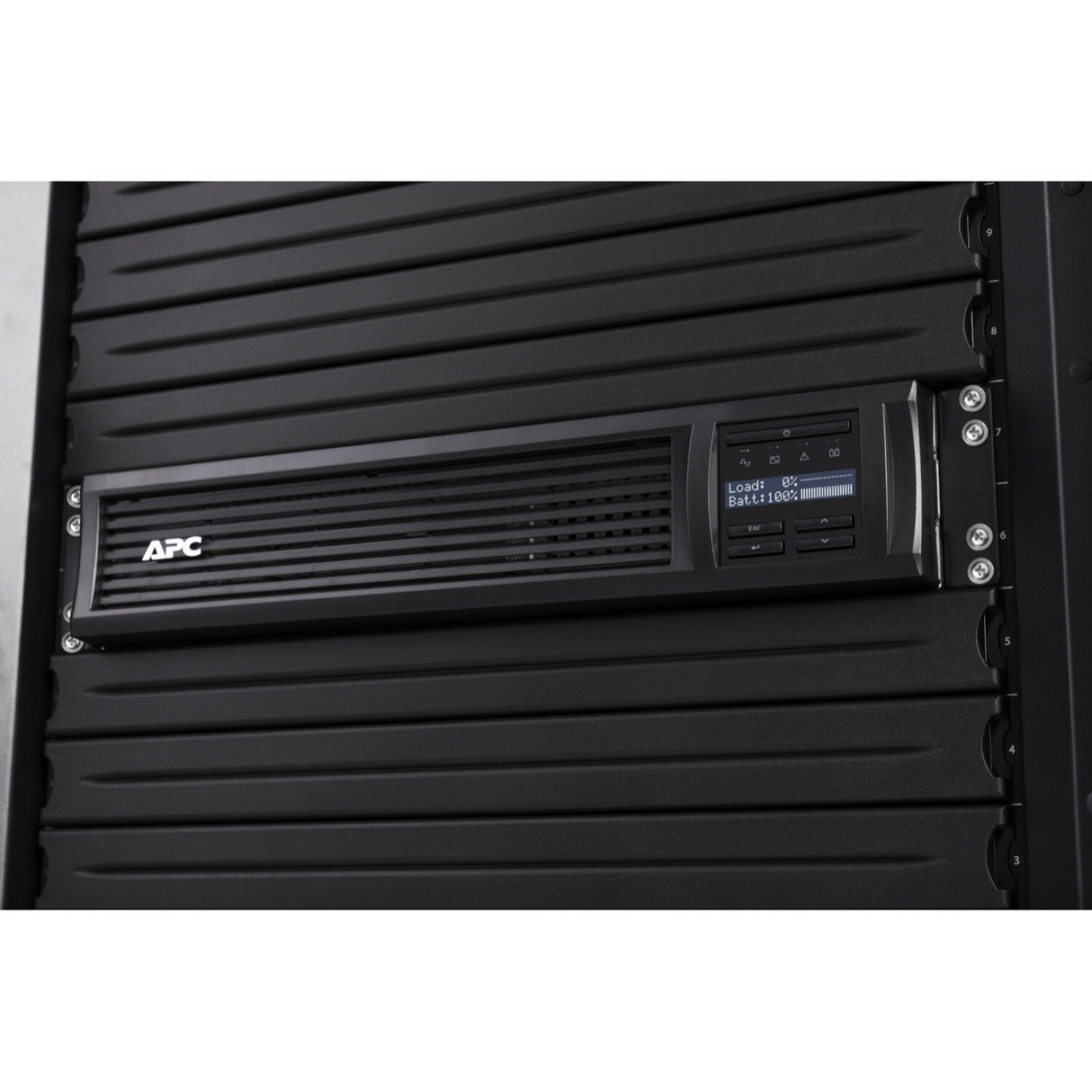

| Rack capacity | 2U |
| Product colour | Black |
| Form factor | Rackmount |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
|---|---|
| Sustainability certificates | Green Premium |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Package weight | 21.2 kg |
| Package height | 241 mm |
| Package depth | 584 mm |
| Package width | 546 mm |
| Weight | 17.3 kg |
| Height | 89 mm |
| Depth | 406 mm |
| Width | 432 mm |
| Packaging data | |
|---|---|
| Software CD | Yes |
| Quick installation guide | Yes |
| Cables included | RS-232, USB cable |
| Rack mount kit | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Products per pallet | 16 pc(s) |
