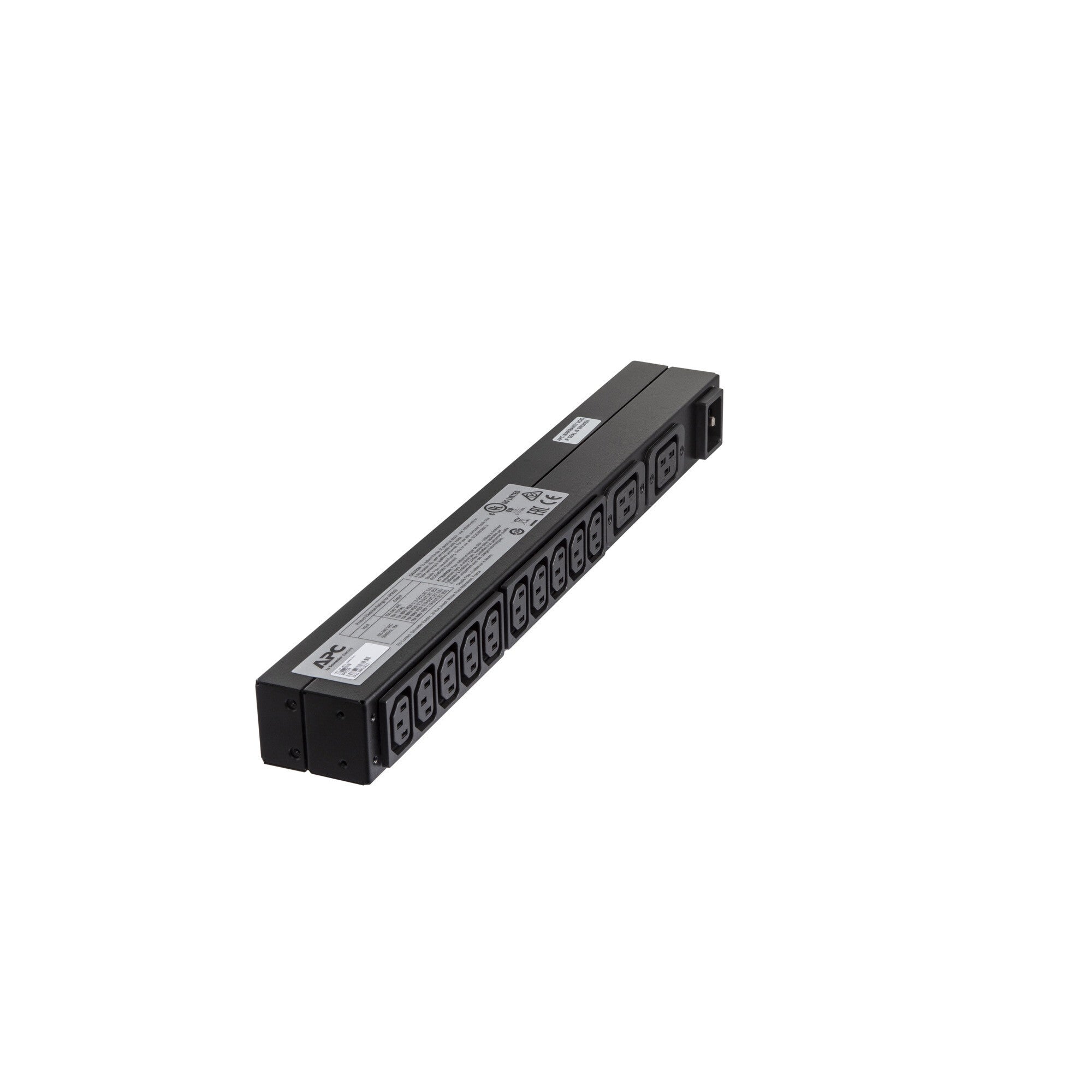

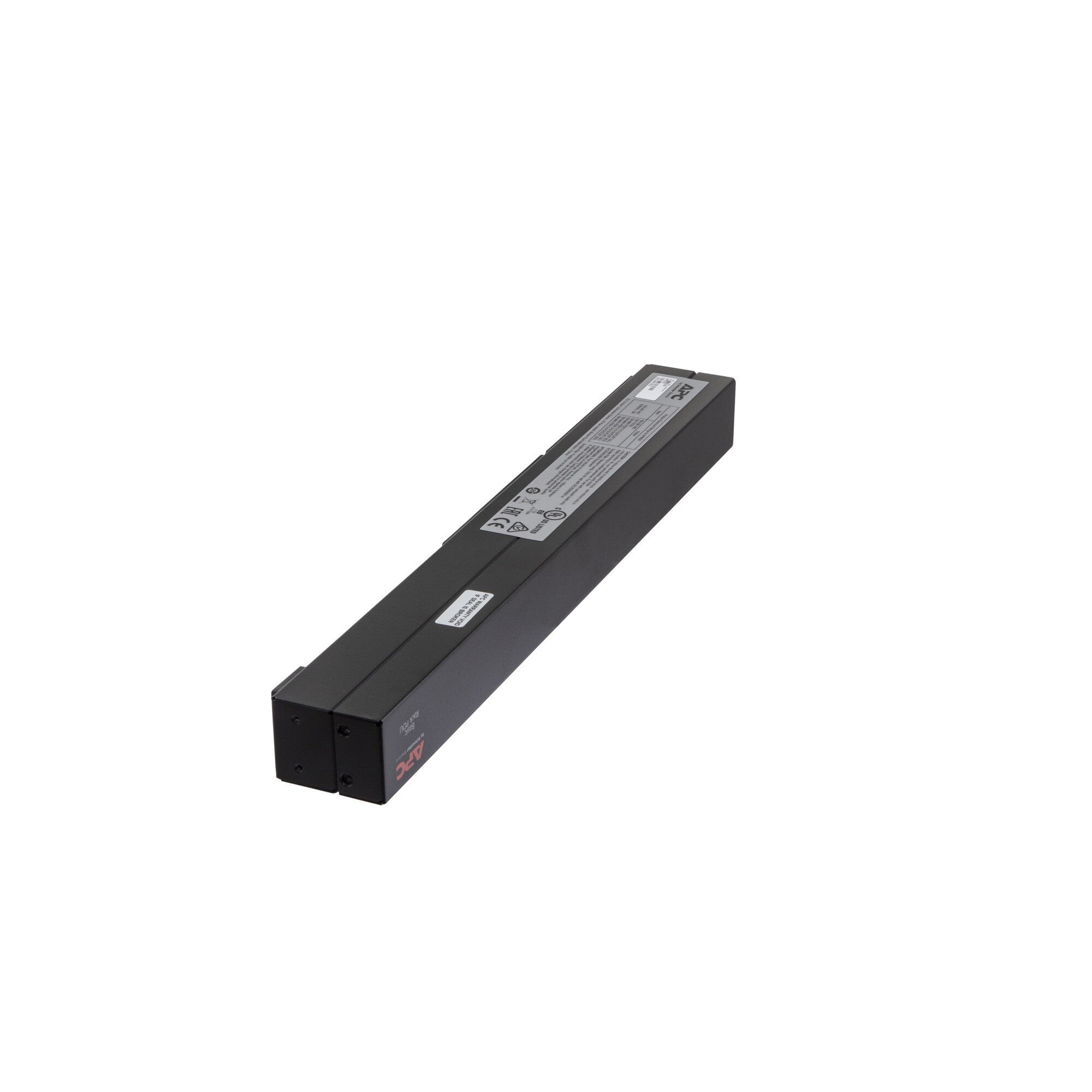

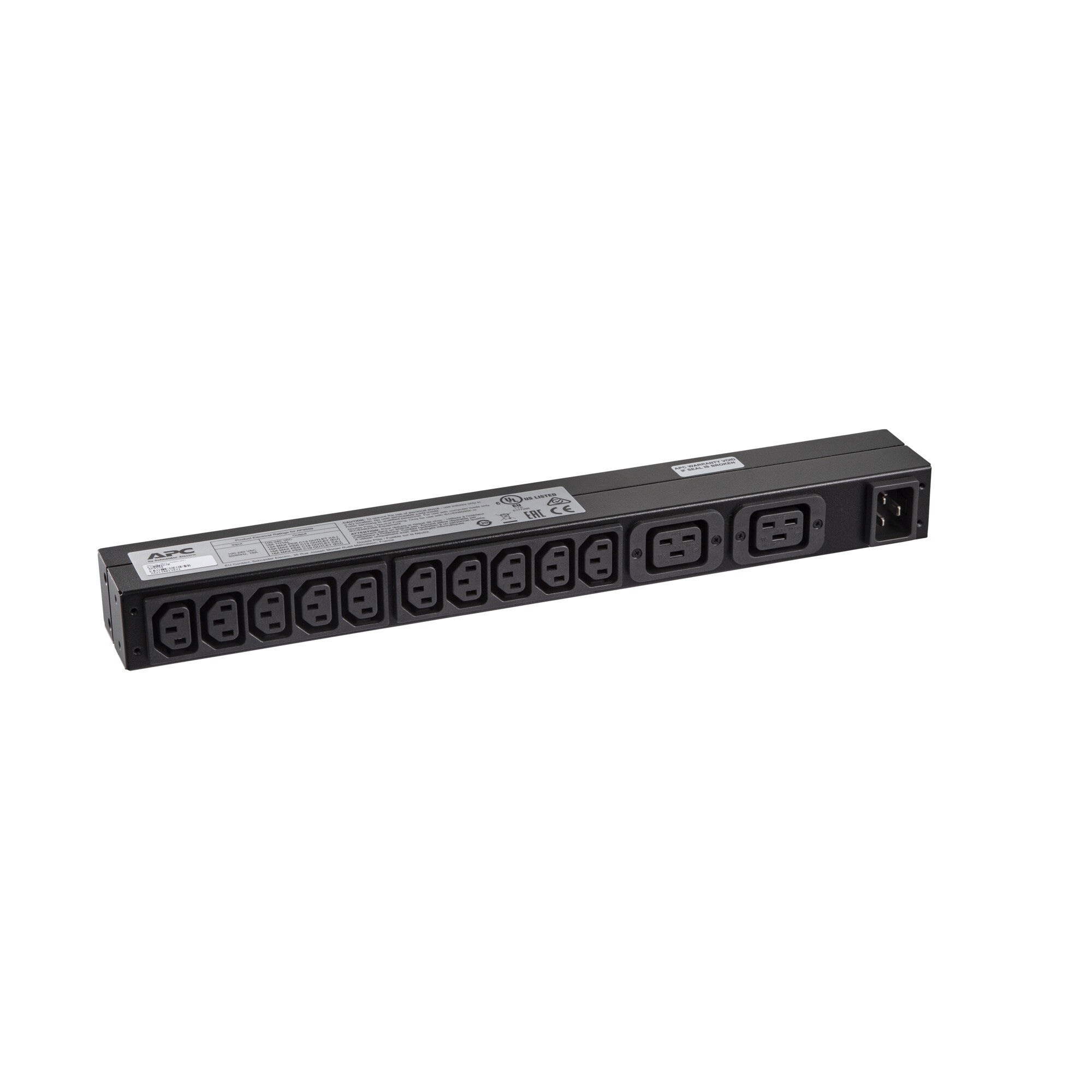

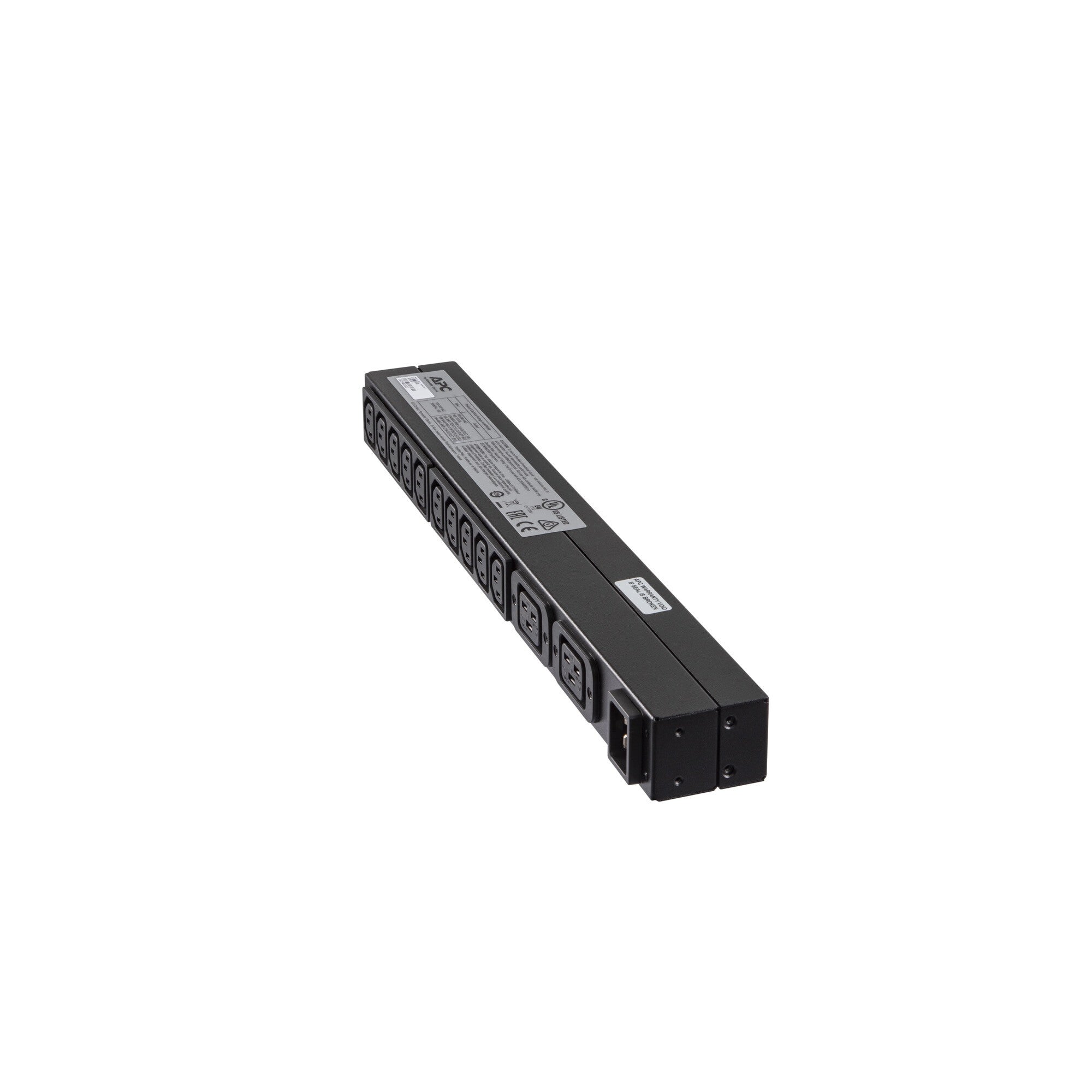

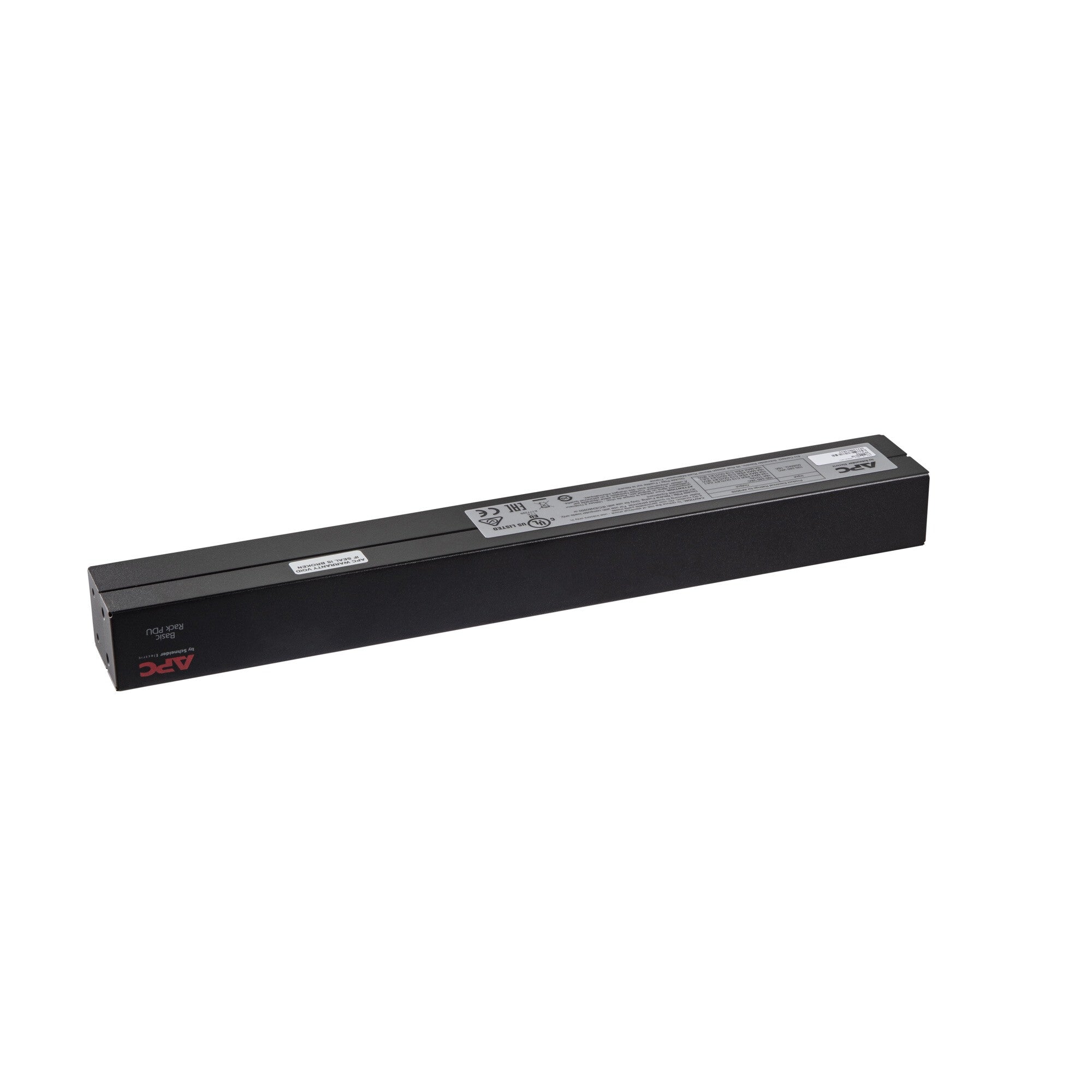

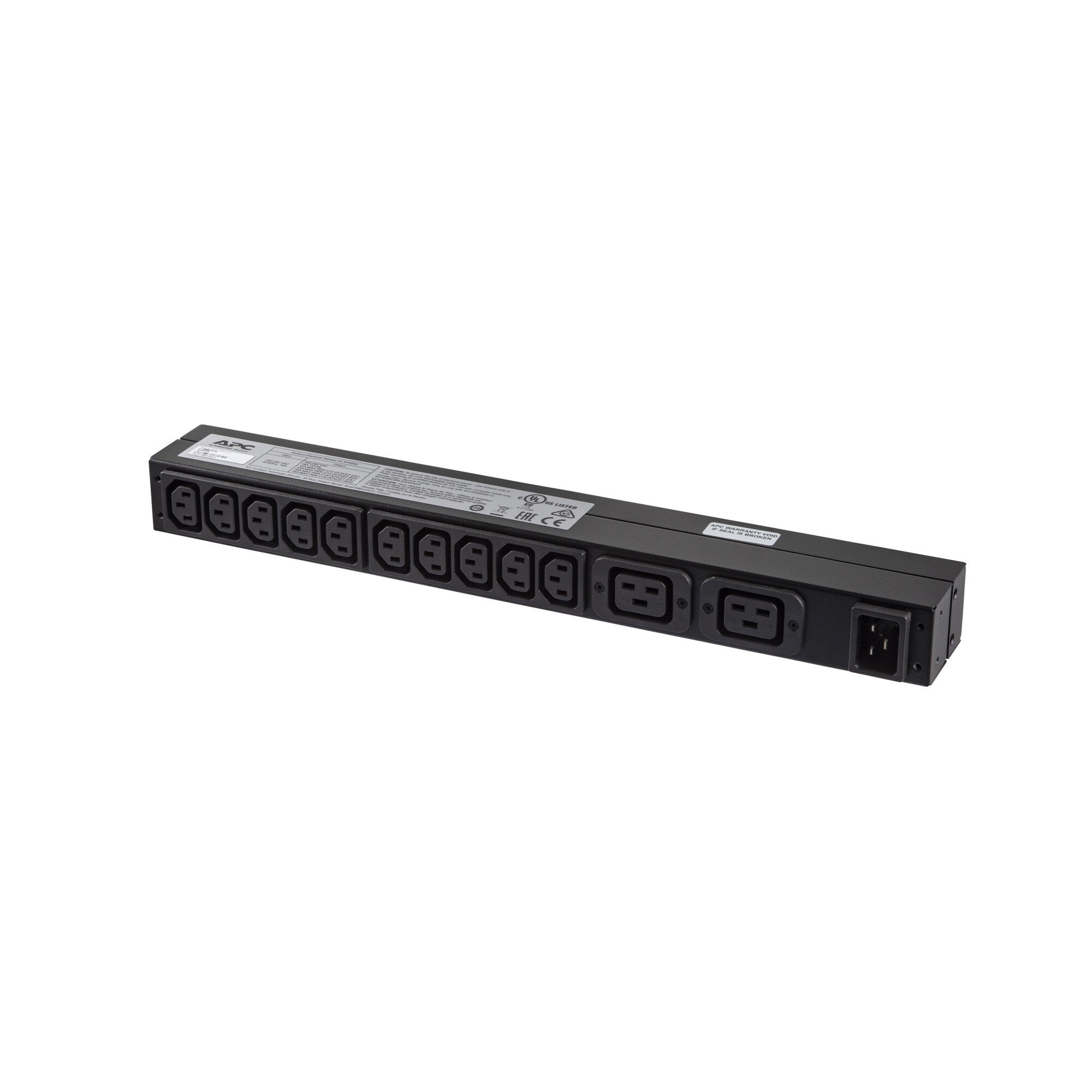

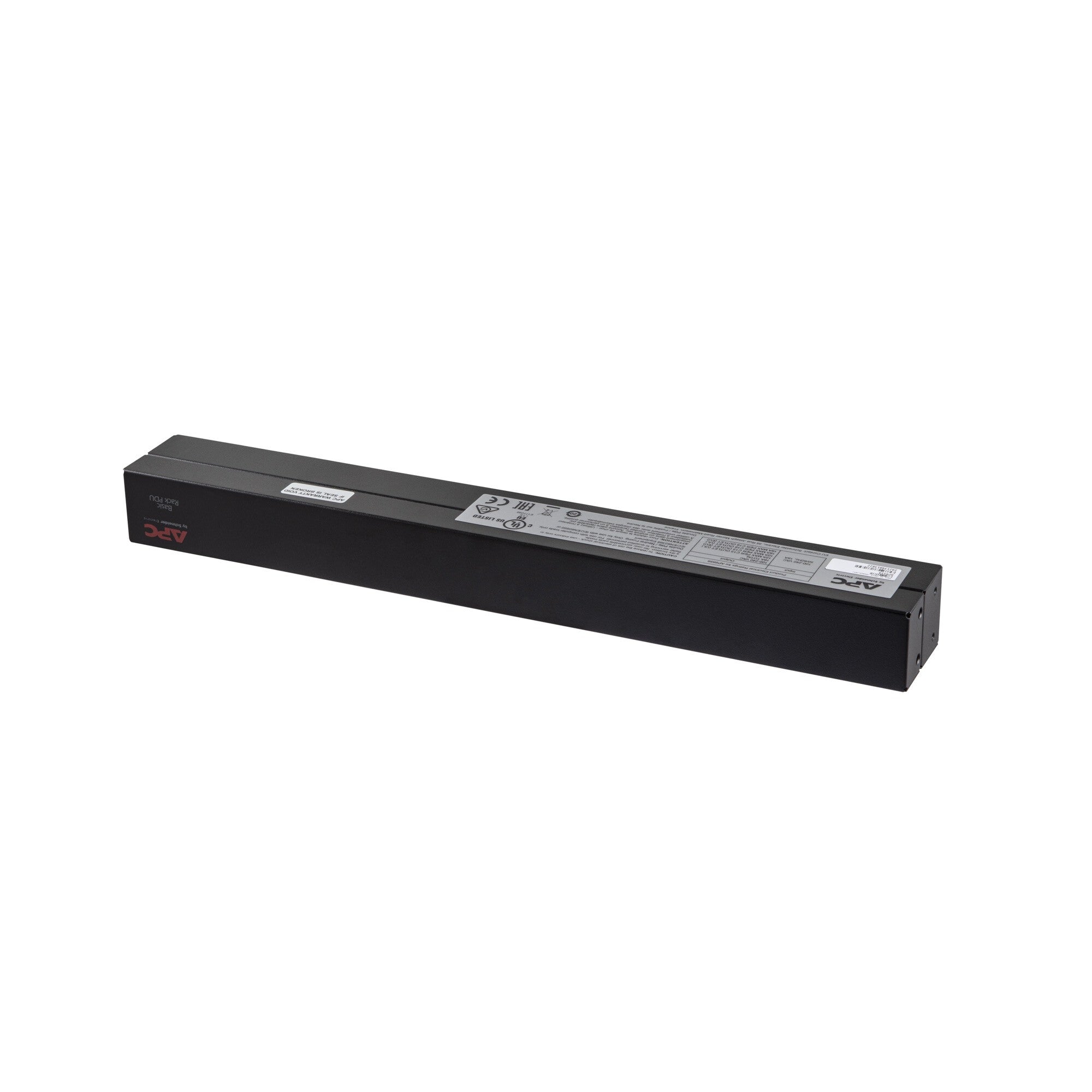

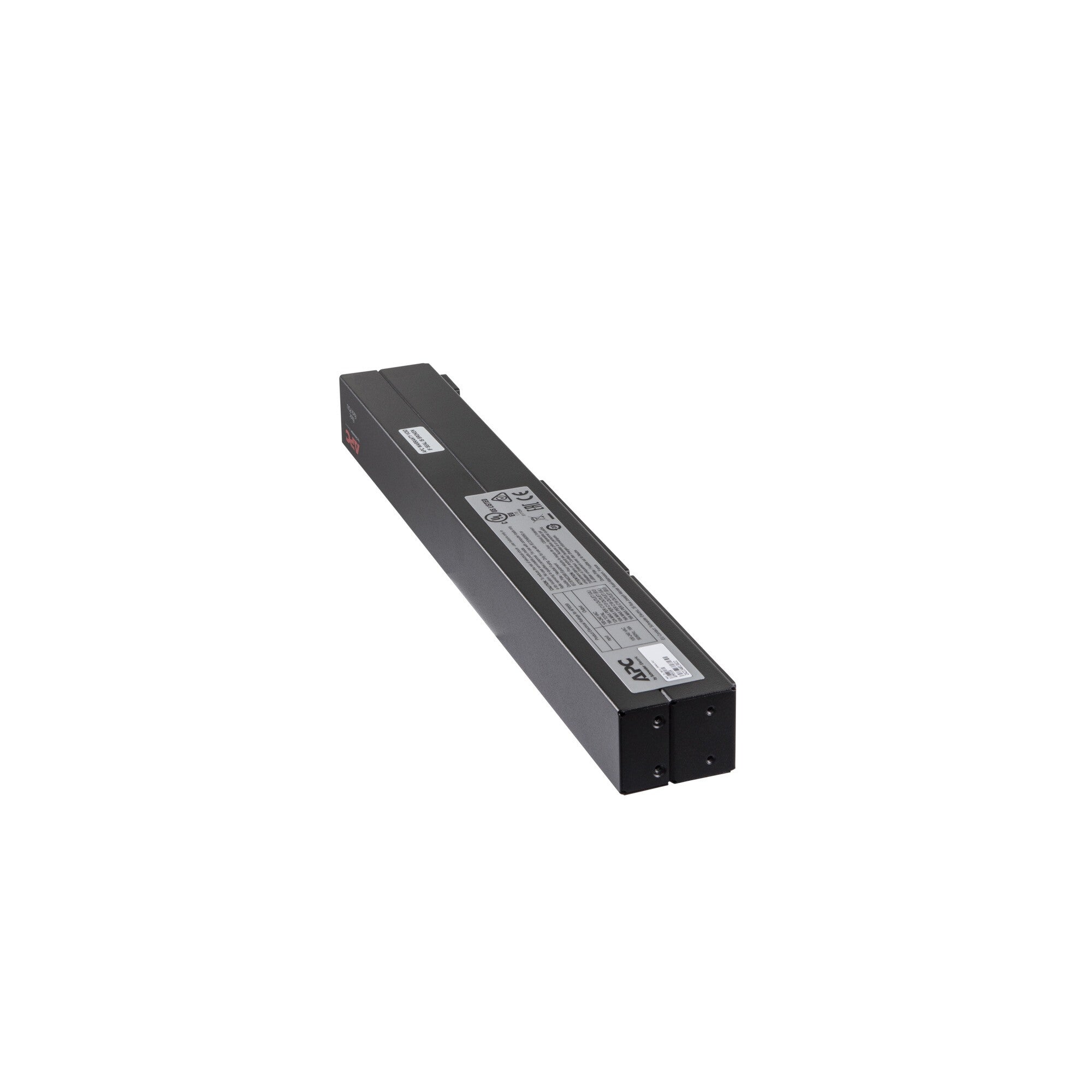

APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC outlet(s) 0U/1U Black

APC  |  SKU : AP9559  |  Condition: Brand New  |  Code-barres: 5051749233384
£369.99
£360.99 Save £9.00 £369.99
£300.83 excluding VAT @20%
iFrame
Rack PDU,Basic, 1U, 16A,208&230V, (10)C13 & (2)C19

Description:

APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19

Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities

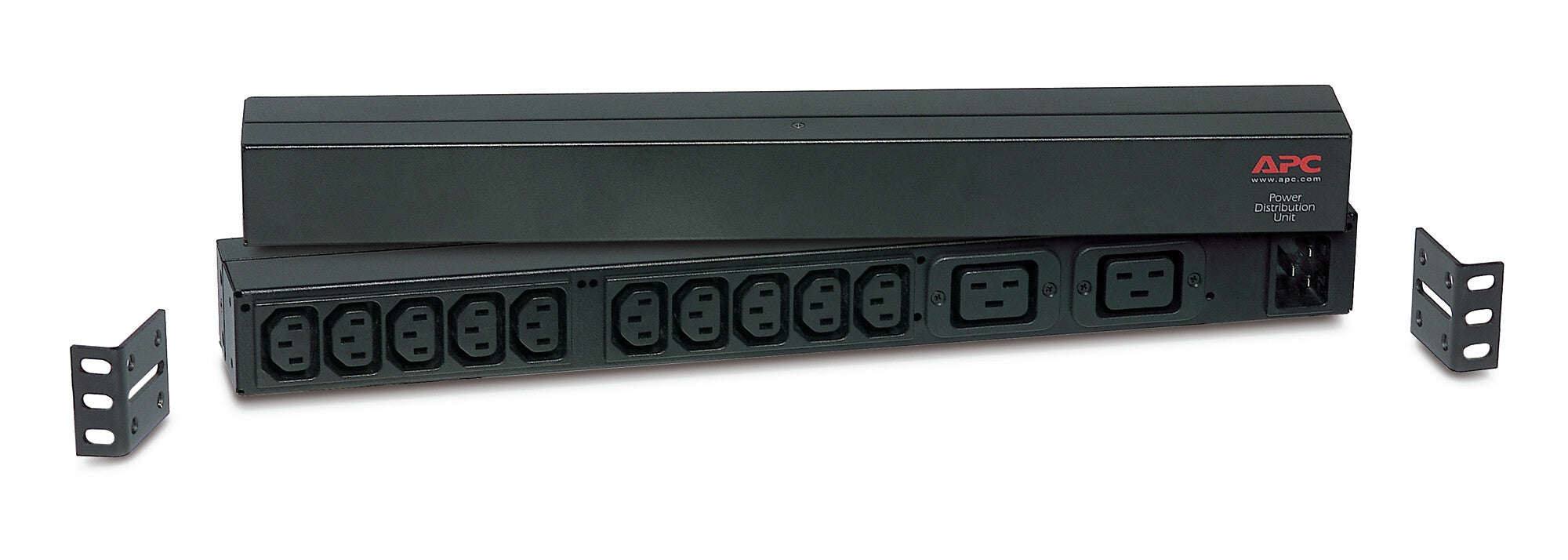

Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual


Output Voltage(s) (main only) - 120, 208, 230 V

Maximum Total Current Draw per Phase - 16 A

Output Connections - (10)IEC 320 C13; (2)IEC 320 C19

Always on Outlets - 12
Overload Protection

Input:

Nominal input voltage - 120, 208, 230

Input frequency (Hz) - 50/60 Hz

Input Connection Type - IEC-320 C20

Cord Length 8.2 feet ( 2.5 meters )

Acceptable Input Voltage - 90-250 VAC

Maximum Line Current per phase - 16.0 A

Maximum Input Current per phase - 16.0 A

Load Capacity - 3680

Design
PDU types Basic
Type Single-phase
Rack capacity 0U/1U
Mounting Horizontal/Vertical
Product colour Black
Ports & interfaces
AC outlets quantity 12 AC outlet(s)
Power plug C20 coupler
AC outlet types C13 coupler, C19 coupler
I/O ports Output Connections - (10)IEC 320 C13; (2)IEC 320 C19

Input Connection Type - IEC-320 C20
Features
Cable length 2.5 m
Power
Load capacity 3680 VA
Maximum input current per phase 16 A
Maximum power 3680 W
Weight & dimensions
Width 447 mm
Depth 57.2 mm
Height 44.5 mm
Weight 980 g
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -25 - 65 °C
Storage relative humidity (H-H) 0 - 95%
Operating relative humidity (H-H) 0 - 95%
