ASUS PRIME B760M-A WIFI II Intel B760 LGA 1700 micro ATX
ASUS PRIME B760M-A WIFI II Intel B760 LGA 1700 micro ATX est en rupture de stock et sera expédié dès qu’il sera de retour en stock.
ASUS PRIME B760M-A WIFI II Intel B760 LGA 1700 micro ATX
PRIME B760M-A WIFI II
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 14th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI II provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. This platform delivers the power and connectivity that advanced AI PC applications demand.
| Processor | |
|---|---|
| Supported processor sockets | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| Supported memory clock speed (max) | 7200 MHz |
| Supported memory clock speeds | 7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz |
| ECC сompatibility | Non-ECC |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Storage controllers | |
|---|---|
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Internal I/O | |
|---|---|
| RGB LED pin header | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| EPS power connector (8-pin) | Yes |
| Number of chassis fan connectors | 2 |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Front panel connector | Yes |
| Front panel audio connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| USB 2.0 connectors | 3 |

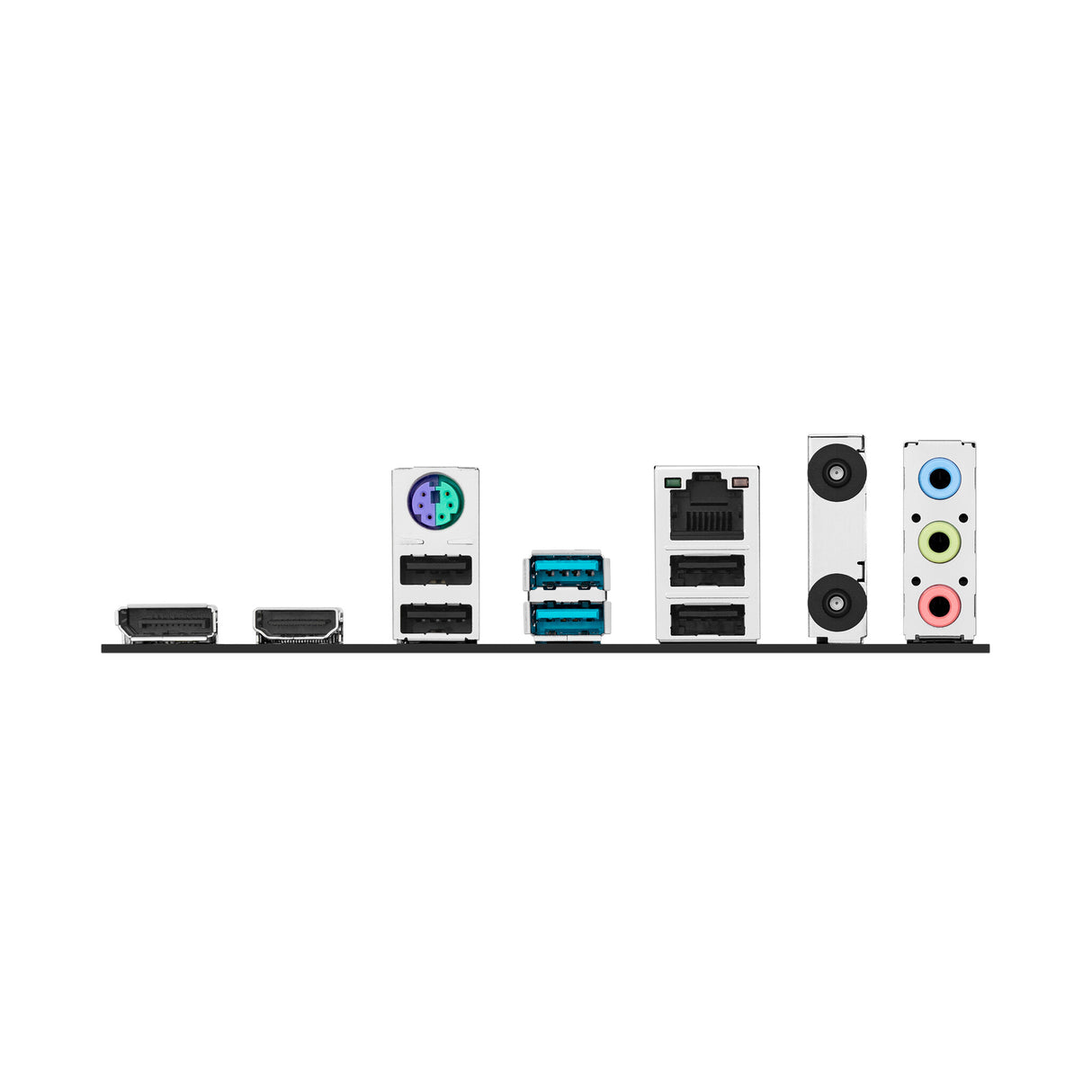

| Rear panel I/O ports | |
|---|---|
| WiFi-AP antenna jack | 1 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Network | |
|---|---|
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Features | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Audio output channels | 7.1 channels |
| Motherboard chipset | Intel B760 |
| Motherboard chipset family | Intel |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
|---|---|
| 3rd M.2 highest PCI Express generation | 3.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 1st M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| BIOS | |
|---|---|
| BIOS memory size | 128 Mbit |
| BIOS type | UEFI AMI |
| Packaging data | |
|---|---|
| Package weight | 1.4 kg |
| Package height | 67.5 mm |
| Package depth | 275 mm |
| Package width | 275 mm |
| Weight & dimensions | |
|---|---|
| Depth | 244 mm |
| Width | 244 mm |
| Packaging content | |
|---|---|
| Screws included | Yes |
| Cables included | SATA |
| Antenna included | Yes |
-
