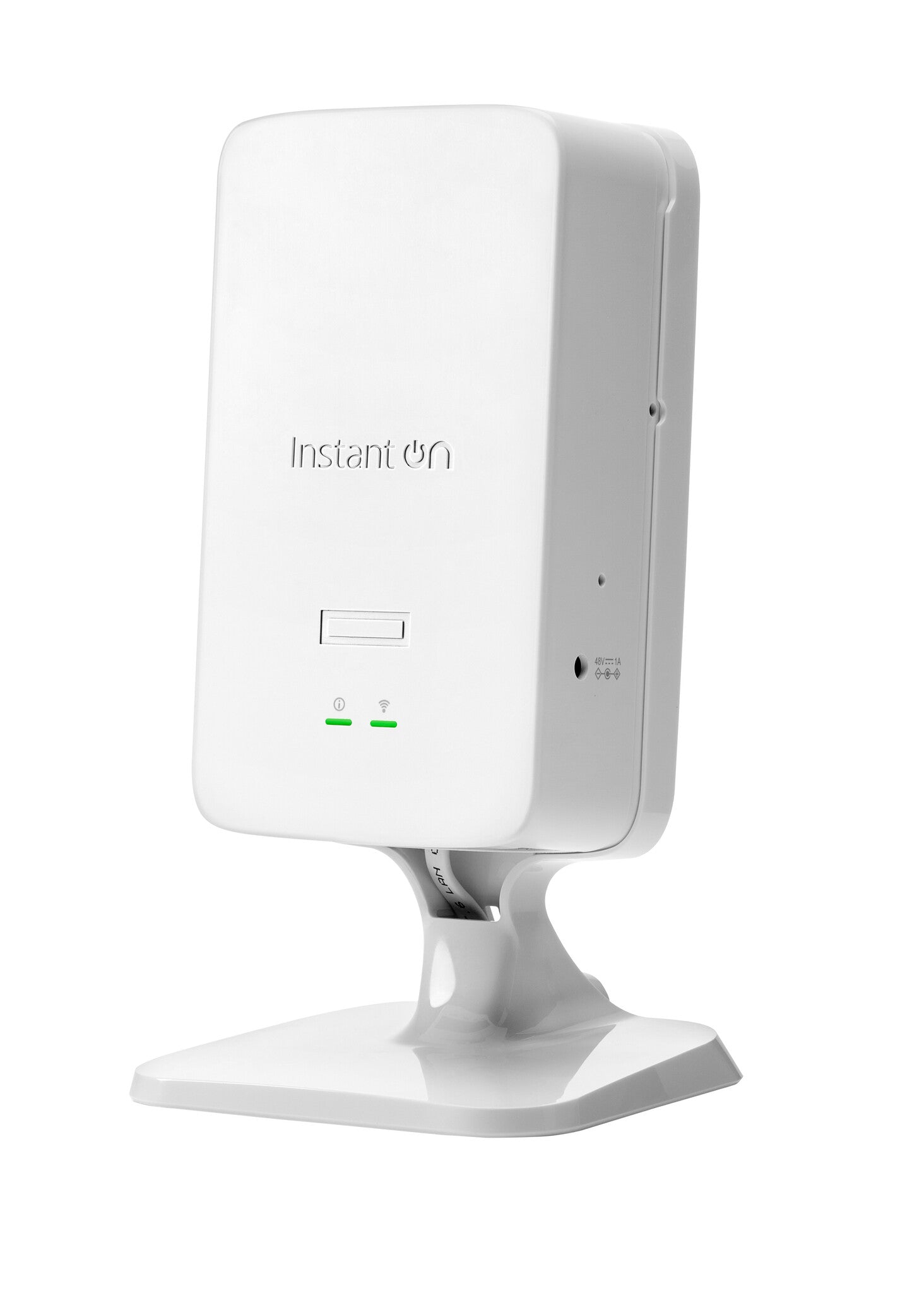

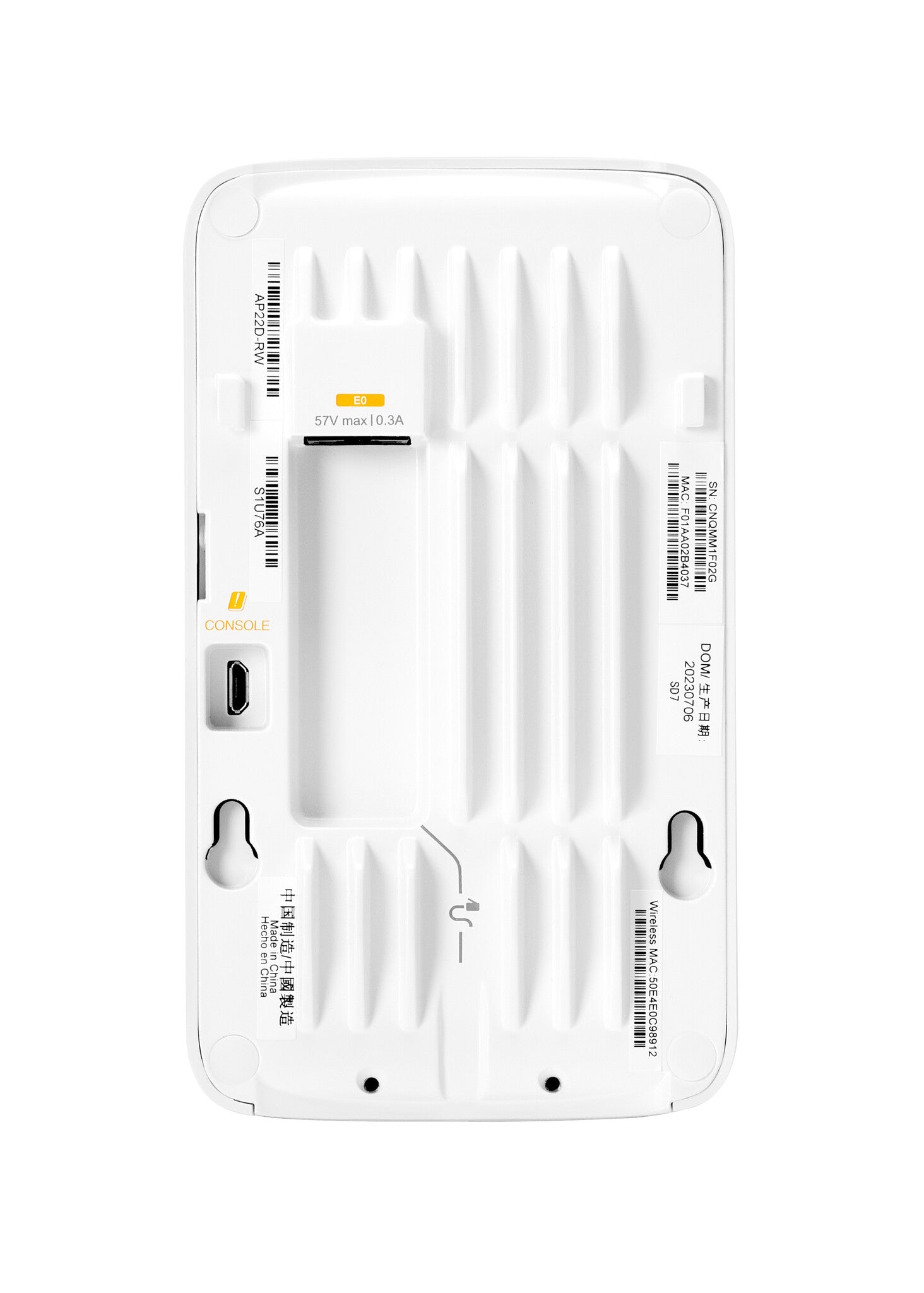

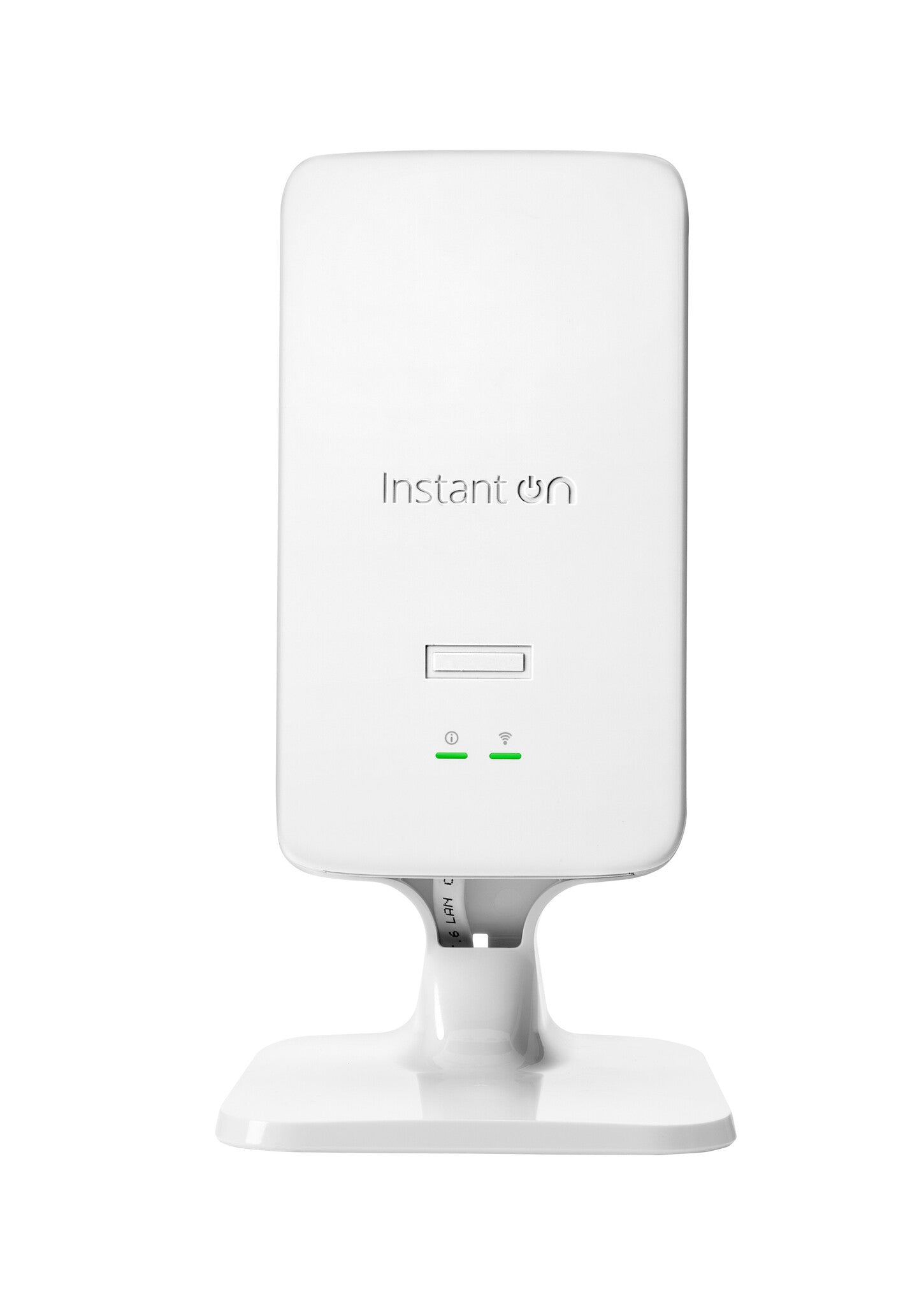

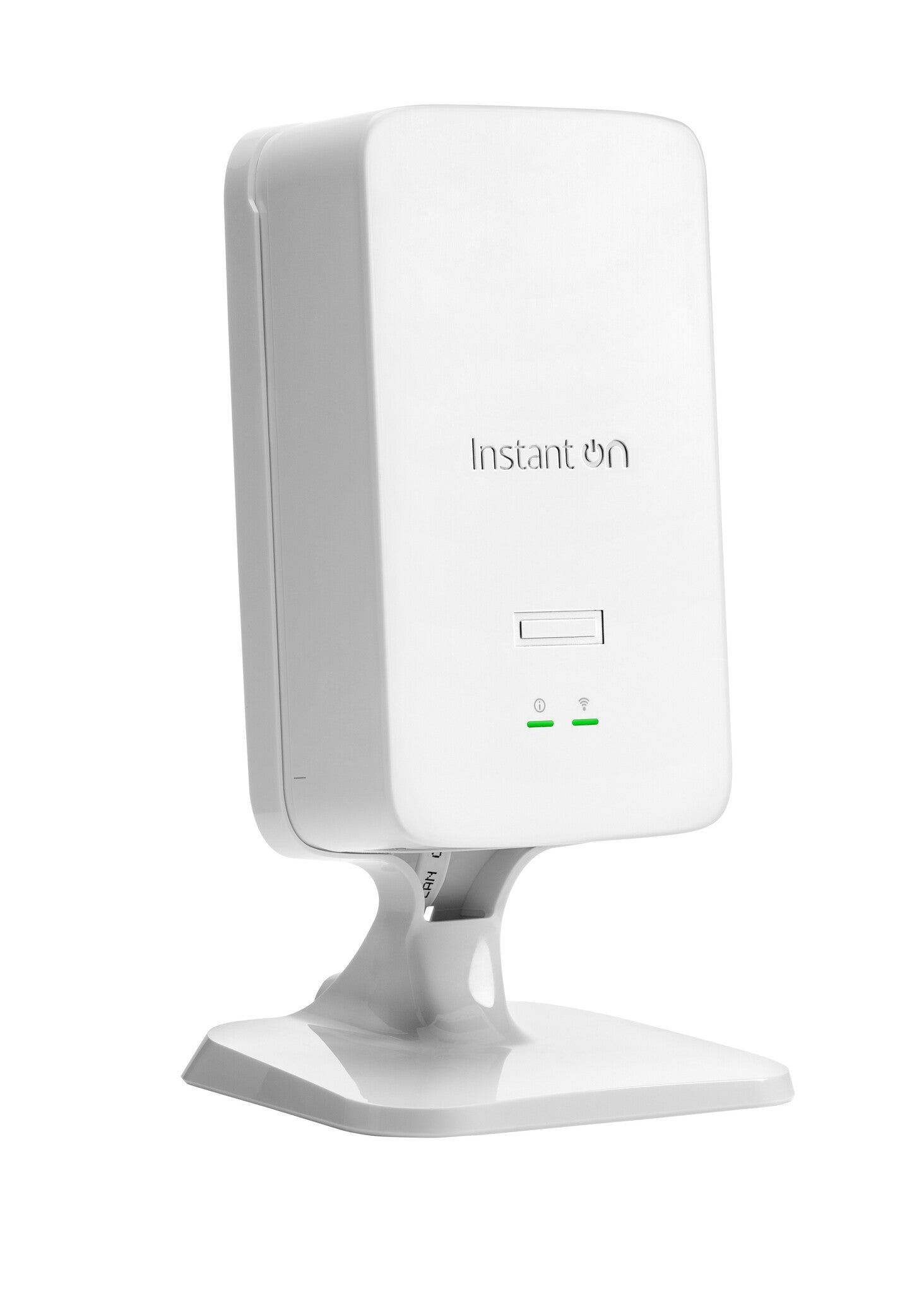

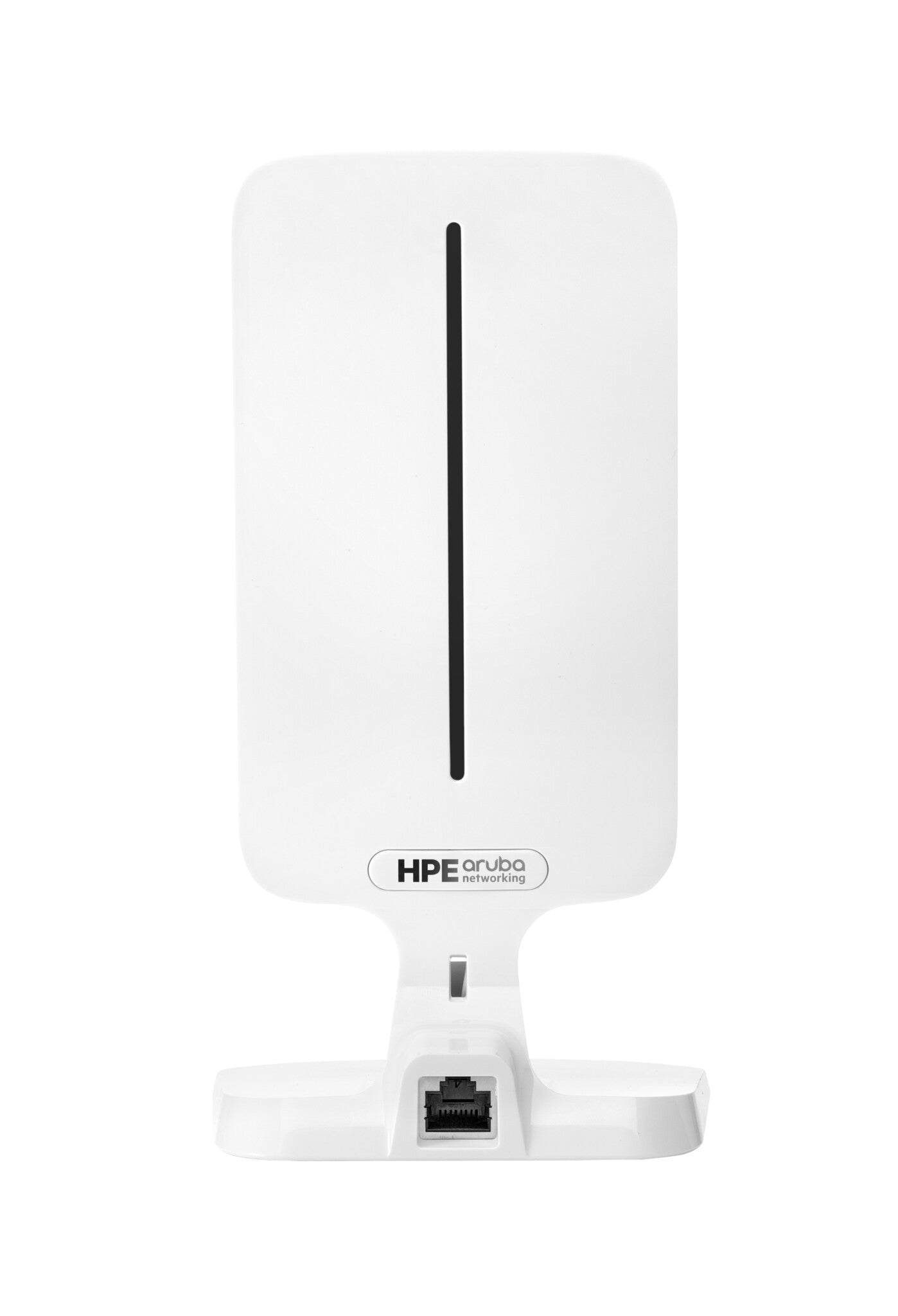

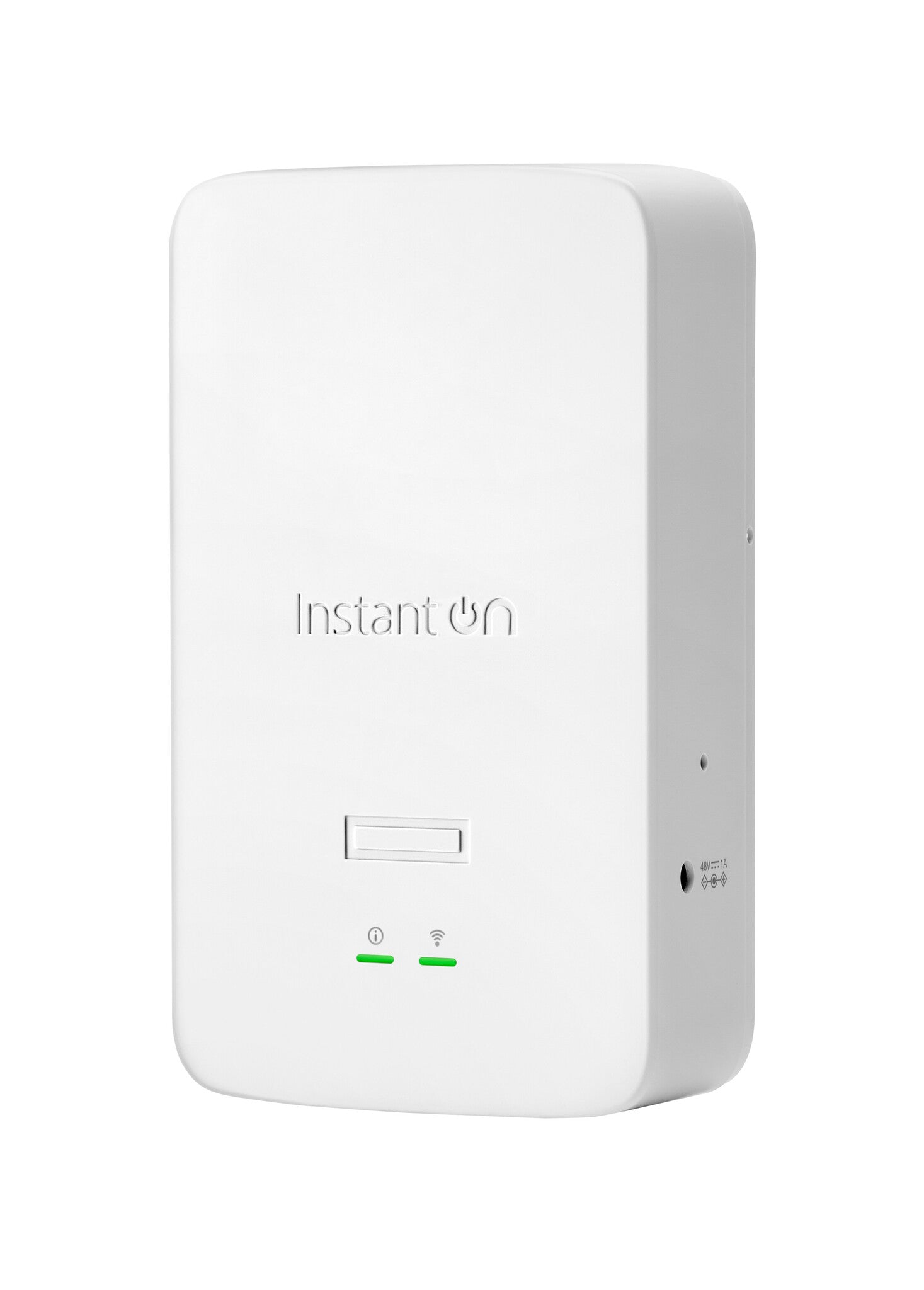

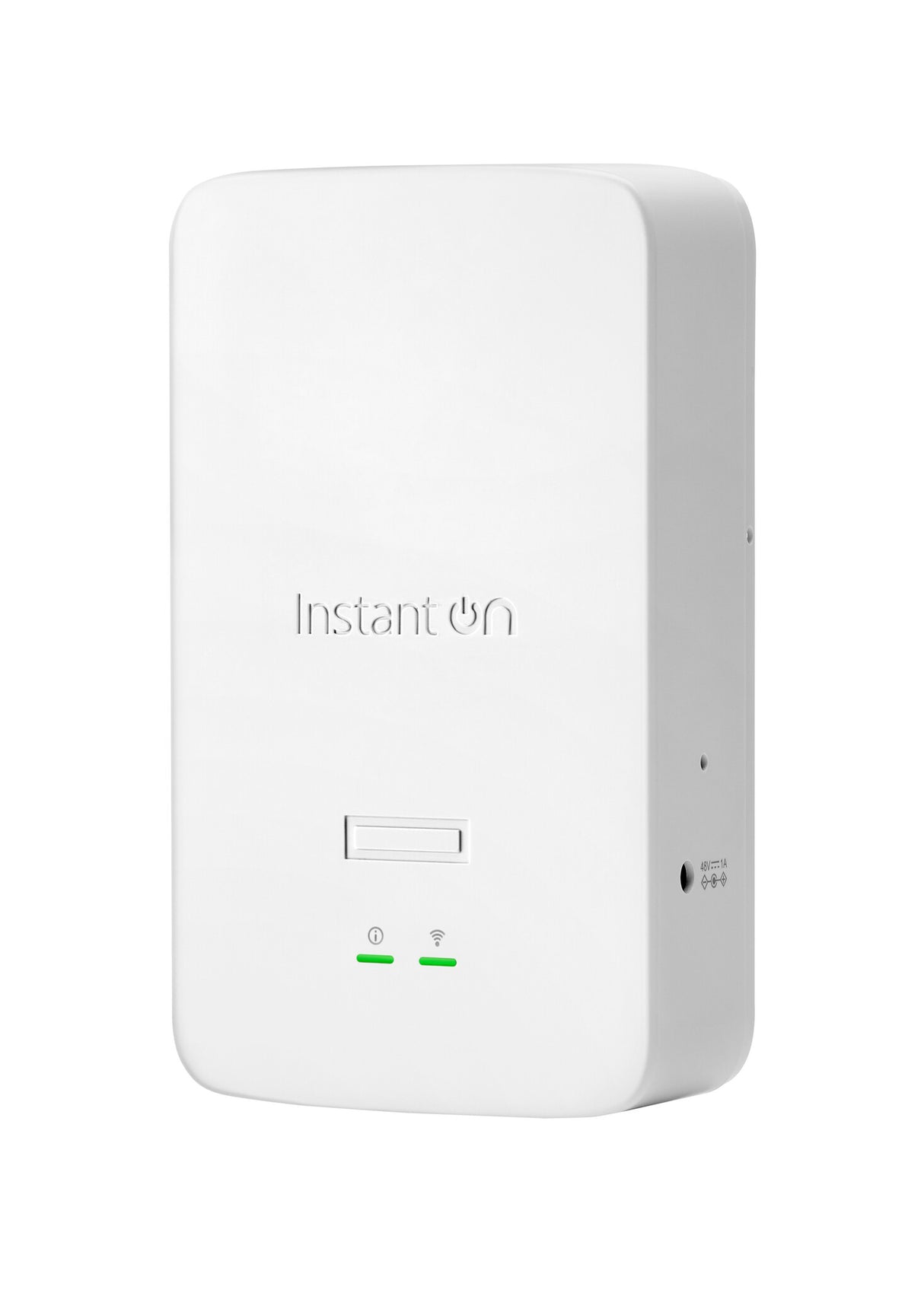

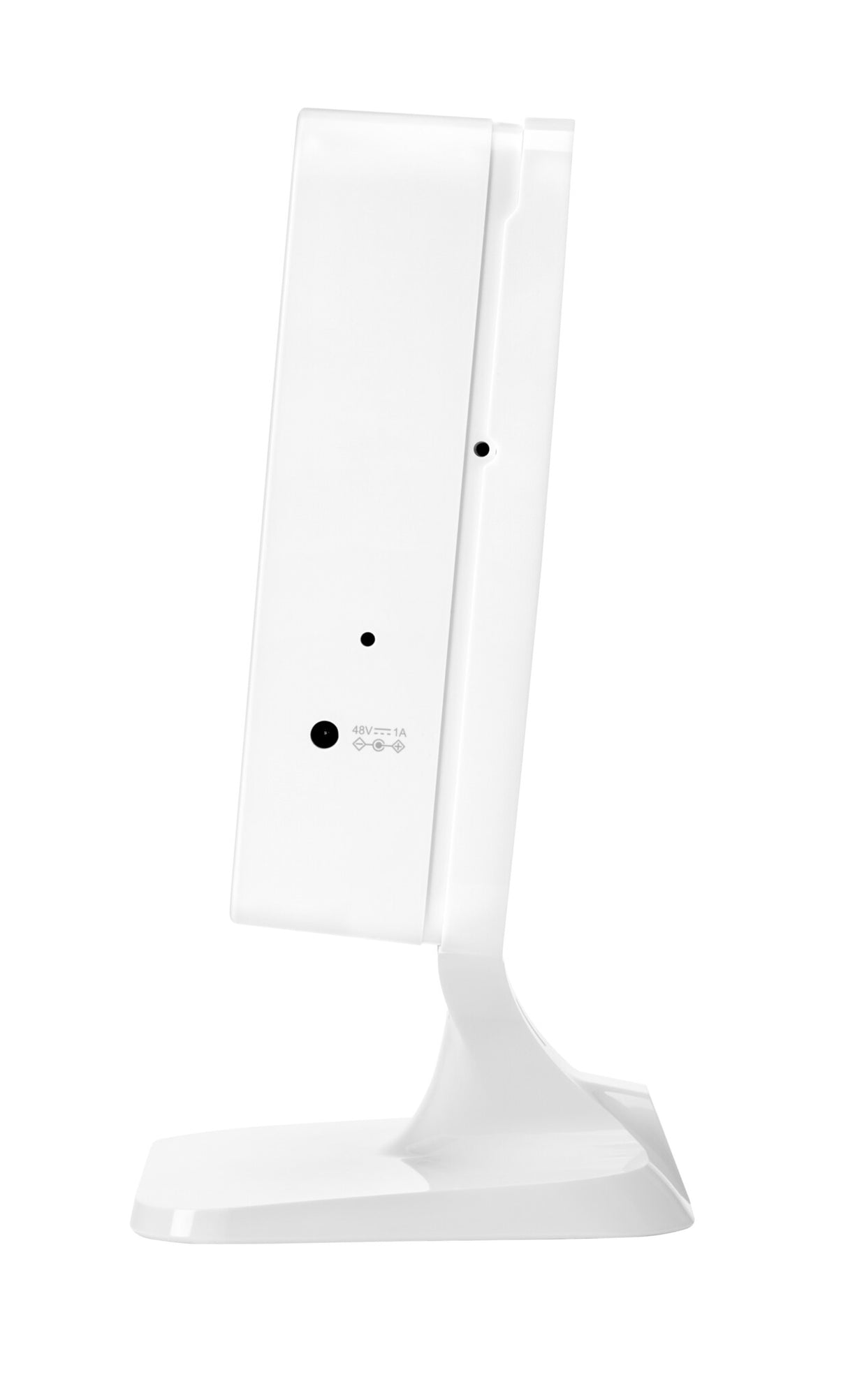

HPE Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D

HPE  |  SKU : S1U76A  |  Condition: Brand New

MORE INFO

£217.99
£206.99 Save £11.00 £217.99
£172.49 excluding VAT @20%
iFrame
Networking Instant On Access Point Dual Radio 2x2 Wi-Fi 6 (RW) AP22D

The HPE Networking Instant On Access Points AP22D is an SMB-focused Wi-Fi CERTIFIED 6™ access point that provides reliable wired and wireless connectivity over a 2.5 GbE uplink port with a minimal device footprint. This access point can reduce device clutter while powering downlink devices such as IP Phones or receipt printers with 2x 15W of PoE (802.3af) and supporting 75+ wireless devices over 802.11ax Wi-Fi 6 with an aggregate wireless throughput of 1.7 Gbps. Easily manage the Instant On AP22D with the Instant On mobile app or portal to create guest and employee networks, govern access control lists, and set PoE schedules to customize power use. Make the most of your limited space in your small business by mounting the Instant On AP22D to a desk or wall with included mounting kits.

What is new supporting point:
Wi-Fi CERTIFIED 6™ wireless access point, with 2.5 GbE uplink port
2.5 GbE uplink port provides up to 2x more bandwidth than 1 GbE ports without the need for new Cat5/6(a) cables to be installed.
Four 1 GbE downlink ports that supply up to 2x 15W of PoE (802.3af).
Up to 1.7 Gbps aggregate wireless throughput.

Features
2.4 GHz Yes
6 GHz No
5 GHz Yes
Maximum data transfer rate 1200 Mbit/s
Maximum data transfer rate (2.4 GHz) 574 Mbit/s
Maximum data transfer rate (5 GHz) 1200 Mbit/s
Ethernet LAN data rates 1000,2500 Mbit/s
Networking standards IEEE 802.11ax
Cabling technology 10/100/1000Base-T(X)
Number of users 75 user(s)
MIMO Yes
MIMO type Multi User MIMO
Security
Security algorithms OWE, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports 5
USB 2.0 ports quantity 1
DC-in jack Yes
Power
Power over Ethernet (PoE) Yes
DC voltage range 48 V
Power consumption (typical) 50 W
Power consumption (max) 51 W
Design
Placement Desk, Wall
Product colour White
Cable lock slot Yes
Cable lock slot type Kensington
Reset button Yes
Certification Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3
Antenna
Antenna type Internal
Antenna direction type Semi-directional
Antennas quantity 2
Antenna gain level (max) 5.4 dBi
Weight & dimensions
Width 86 mm
Depth 47 mm
Height 150 mm
Weight 360 g
Other features
Mounting Gang wall box-mount kit or Desk-mount kit
I/O ports 1x 2.5 GbE Base-T PoE Class 4/6 uplink 2x 1 GbE Base-T PoE Class 3 downlink 2x 1 GbE Base-T downlink DC power connector LED status indicators Reset/LED control button Kensington security slot
Operational conditions
Operating temperature (T-T) 0 - 40 °C
