Seasonic Focus GX power supply unit 750 W 20+4 pin ATX ATX Black

SEASONIC  |  SKU : FOCUS-GX-750-V4  |  Condition: Brand New  |  Code-barres: 4711173878445

MORE INFO

£139.99
£134.99 Save £5.00 £139.99
£112.49 excluding VAT @20%
iFrame
Focus GX 750W, 80 PLUS Gold, 120mm, 100-240 V, 10-5 A, 50-60 Hz

The newly upgraded FOCUS PX and GX series are the successors to the FOCUS PLUS Series, which became an instant top seller in the power supply market after its launch in 2017. In 2019, Seasonic engineers have made improvements to the popular series such as removing the inline capacitors on the supplied cables. Besides the small change in the series naming, the PSU housing and its packaging are also updated to be in line with the concept of the OneSeasonic Initiative.

S3FC - Fanless until 30 % load
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.

When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.

As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

Power
Total power 750 W
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Input current 10 - 5 A
Combined power (+3.3V) 100 W
Combined power (+12V) 744 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 62 A
Max output current (+5V) 20 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 3 A
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector 20+4 pin ATX
Motherboard power cable length 61 cm
SATA power cable length 450,810,860 mm
Peripheral (Molex) power cable length 470,690 mm
PCI Express power connectors (6+2 pin) 2
PCI Express power cable length 75 cm
CPU power connector (4+4 pin) Yes
CPU power cable length 65 cm
PCI Express connector Yes
Cabling type Fully-Modular
Performance
Purpose PC
Power supply unit (PSU) form factor ATX
80 PLUS certification 80 PLUS Gold
ATX version 3.0
Silent mode Yes
Bearing technology FDB
Mean time between failures (MTBF) 100000 h
Certification cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Design
Product colour Black
Cooling type Active
Fan diameter 12 cm
Number of fans 1 fan(s)
On/off switch Yes
Operational conditions
Operating temperature (T-T) 0 - 50 °C
General
Product family Focus

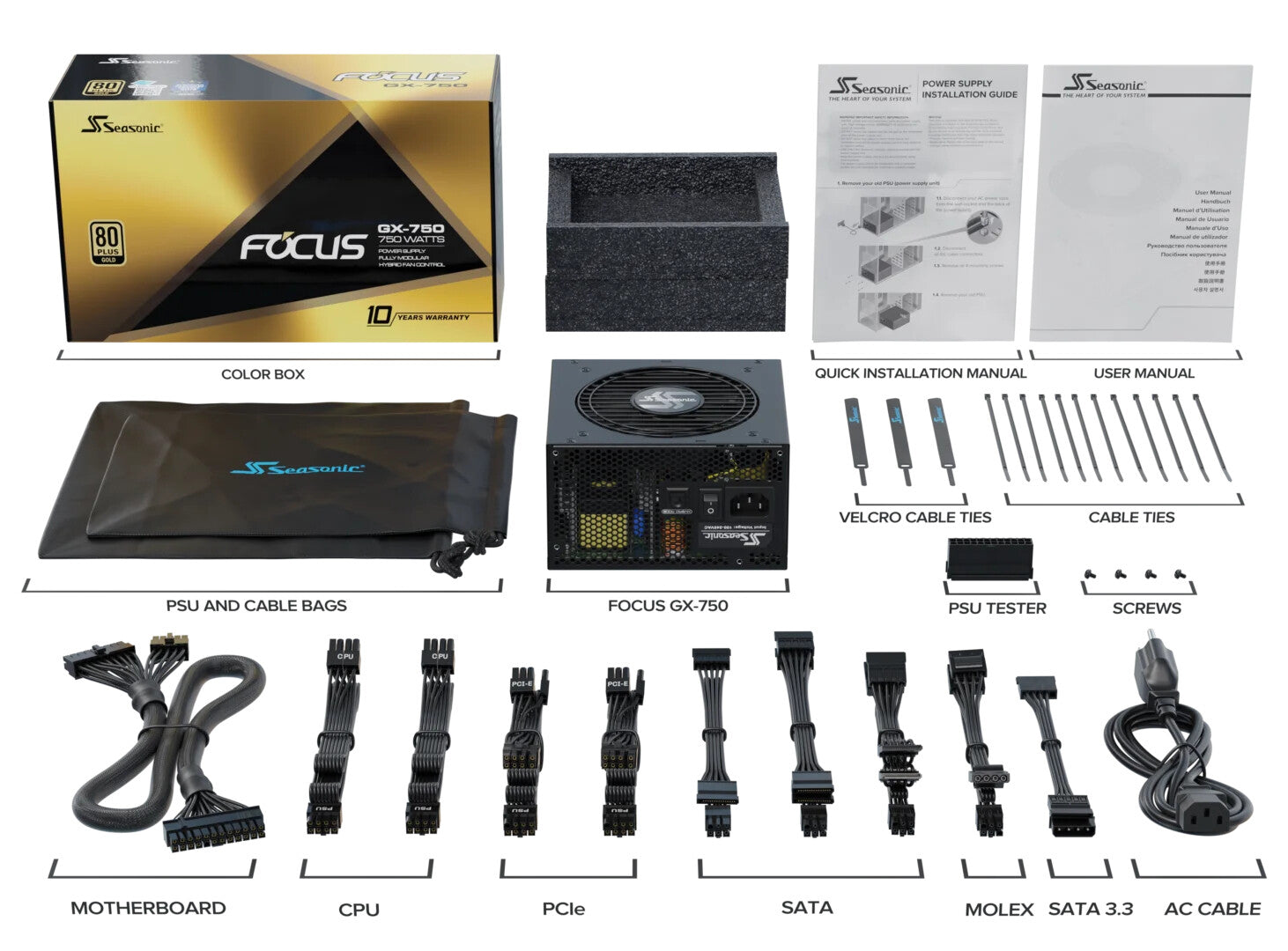

Packaging content
Cables included AC, CPU, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA
Cable tie(s) included Yes
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Technical details
Compliance certificates BSMI, CB, CCC, CE, EAC, REACH, RoHS, cTUVus, WEEE
Warranty period 10 year(s)
Sustainability certificates ENERGY STAR, ErP
Sustainability compliance Yes
