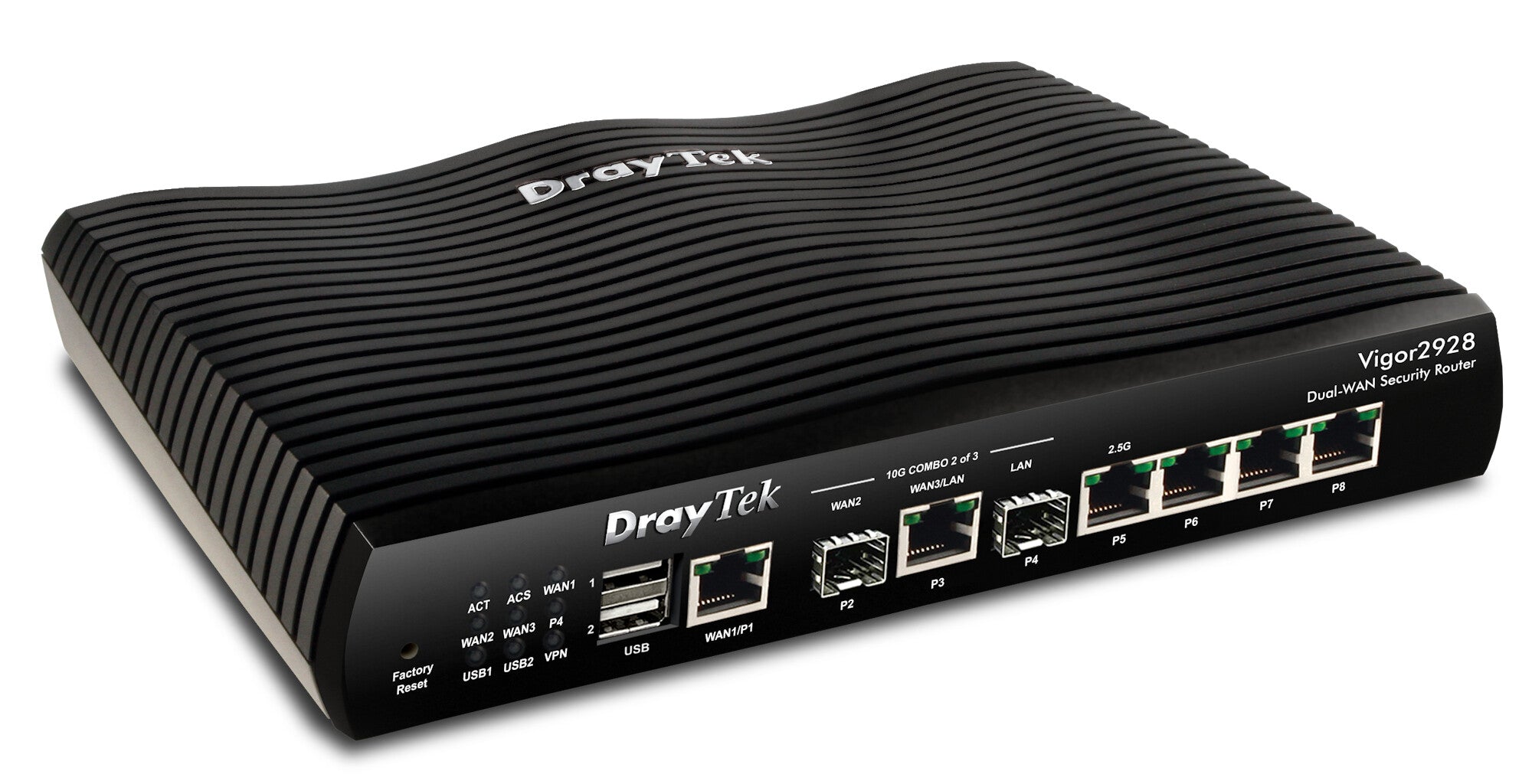

DrayTek Vigor 2928 Multi-Gigabit Multi-WAN Wired FTTP Router
A highspeed 2.5GbE / 10GbE multi speed 2.5GbE / 10GbE multi-WAN business router firewall designed for demanding fibre WAN business router firewall designed for demanding fibre-based networks. It delivers powerful routing performance, dependable failover, secure VPN access for remote teams, and flexible high based networks. An ideal next generation FTTP gateway for SMBs, branch offices, and organisations that need a reliable generation FTTP gateway for SMBs, branch offices, and organisations that need a fast, secure, and flexible network foundation.
| WAN connection | |
|---|---|
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | Yes |
| SFP WAN | Yes |
| Network | |
|---|---|
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Ethernet interface type | Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2500,10000 Mbit/s |
| Throughput | 9.3 Gbit/s |
| Full duplex | Yes |
| VLAN support | Yes |
| Static route | Yes |
| Multicast support | Yes |
| Flow control support | Yes |
| Traffic control | Yes |
| Port forwarding | Yes |
| Policy-based routing | Yes |
| Concurrent connections | 2 |
| Differentiated services (DiffServ) supported | Yes |
| Management features | |
|---|---|
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Wake-on-LAN ready | Yes |
| Priority mapping | Yes |
| Traffic shaping | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| Gigabit Ethernet (copper) ports quantity | 3 |
| WAN/Ethernet LAN ports quantity | 1 |
| SFP+ module slots quantity | 2 |
| USB version | 2.0 |
| USB ports quantity | 2 |
| DC-in jack | Yes |
| Protocols | |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
| DMZ support | Yes |
| Routing protocols | BGP, OSPF, RIP, OSPFv2, RIPng |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Security | |
|---|---|
| Security algorithms | 3DES, AES, SSH, HTTPS, WPA2, SSH-2, IPSec, SSID, WPA2-AES, SSL/TLS, MD5, WPA2-Enterprise, DES, OWE, TKIP, WPA3, WPS, SHA-1, SHA-256, WPA-Personal, WPA-RADIUS, WPA2-RADIUS, WPA3-Enterprise |
| Firewall | Yes |
| MAC address filtering | Yes |
| URL filtering | Yes |
| IP address filtering | Yes |
| DoS attack prevention | Yes |
| ICMP attack prevention | Yes |
| ARP attack prevention | Yes |
| Access Control List (ACL) | Yes |
| Network address translation (NAT) | Yes |
| Guest access | Yes |
| System event log | Yes |
| VPN tunnels quantity | 50 |
| VPN support | IPsec IKEv1, IKEv2, IKEv2 EAP, IPsec-XAuth, OpenVPN, WireGuard, EasyVPN |
| Packaging content | |
|---|---|
| Packaging content | Vigor 2928 series router Quick Start Guide Cat-5e RJ-45 Network Cable DC 12V Power Supply with UK Plug |
| Design | |
|---|---|
| Housing material | Plastic |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Wall mountable | Yes |
| LED indicators | WAN, SFP, ACS |
| On/off switch | Yes |
| Country of origin | Taiwan |
| Power | |
|---|---|
| Power consumption (typical) | 18 W |
| Power consumption (max) | 18 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 241 mm |
| Depth | 165 mm |
| Height | 43 mm |
| Weight | 590.6 g |
| Packaging data | |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Package type | Box |
-
Grade
-
Part Number
Brand New – This product is Brand New and in it’s original
packaging.
New - Open Box - This product is unused but the box has been opened.
New – No Box – This product is unused but doesn’t come with
the original box/packaging.
Refurbished – This product has been refurbished by ourselves
or by the manufacturer.
Excellent Used – This item is used, tested and fully working
but in like new condition. It may come with it’s original packaging or not,
please check the product description.
Good Used – This item is used, tested and fully working but
will show signs of cosmetic wear and tear. It may come with it’s original packaging
or not, please check the product description.
Parts – This item is sold just for parts, meaning it is
unworking or unable to serve it’s purpose. It may come with it’s original packaging
or not, please check the product description.
Brand New Products: All our Brand New products come with Manufaturer warranty. These can vary in length and it's important to check with the manufaturer of the product what warranty they provide and what is covered.
Used Products: All our used products come with 1 years warranty provided by us and some products may have manufaturer warranty.
Refurbished Products: With our refurbished products, we offer a free 3-month warranty which covers all software and hardware issues, that have not been influenced by the customer. There is also Manufactured Refurbished products which they will specify how long their warranty is.
Custom Gaming PCs: All our Custom PCs by default come with 3 years warranty. This includes parts and labour. You can also upgrade to 5 years warranty. Our warranty includes all hardware issues relating to the machine. If there is any faults, we will attempt to solve this remotely and if needed get the PC collected and back to base for repair.
Read more - Warranty Information
