StarTech.com 4-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant - OS Independent, Metal Housing

STARTECH  |  SKU : D86A2-4-PORT-8K-KVM  |  Condition: Brand New  |  Code-barres: 0065030893206

MORE INFO

£488.99
£407.49 excluding VAT @20%
iFrame
StarTech.com 4-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant (D86A2-4-PORT-8K-KVM)

Share a mouse, keyboard, USB 5Gbps Hub, and 8K 60Hz DisplayPort monitor between four DisplayPort-enabled computers

Share and switch between four USB-A and DisplayPort-enabled computers, using this DisplayPort KVM Switch. Share an 8K 60Hz DisplayPort monitor, a keyboard and mouse, two USB 5Gbps devices, and two additional USB 2.0 devices.

High-Resolution 8K 60Hz Video

This KVM supports resolutions up to 8K 60Hz or 4K 144Hz/120Hz. Daisy chain additional monitors via MST pass-through. The KVM supports ultrawide resolutions of up to 5120x1440 at 60Hz. Ideal for applications such as CAD/CAM, video editing, and content creation. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and greater luminosity.

Customizable Switching

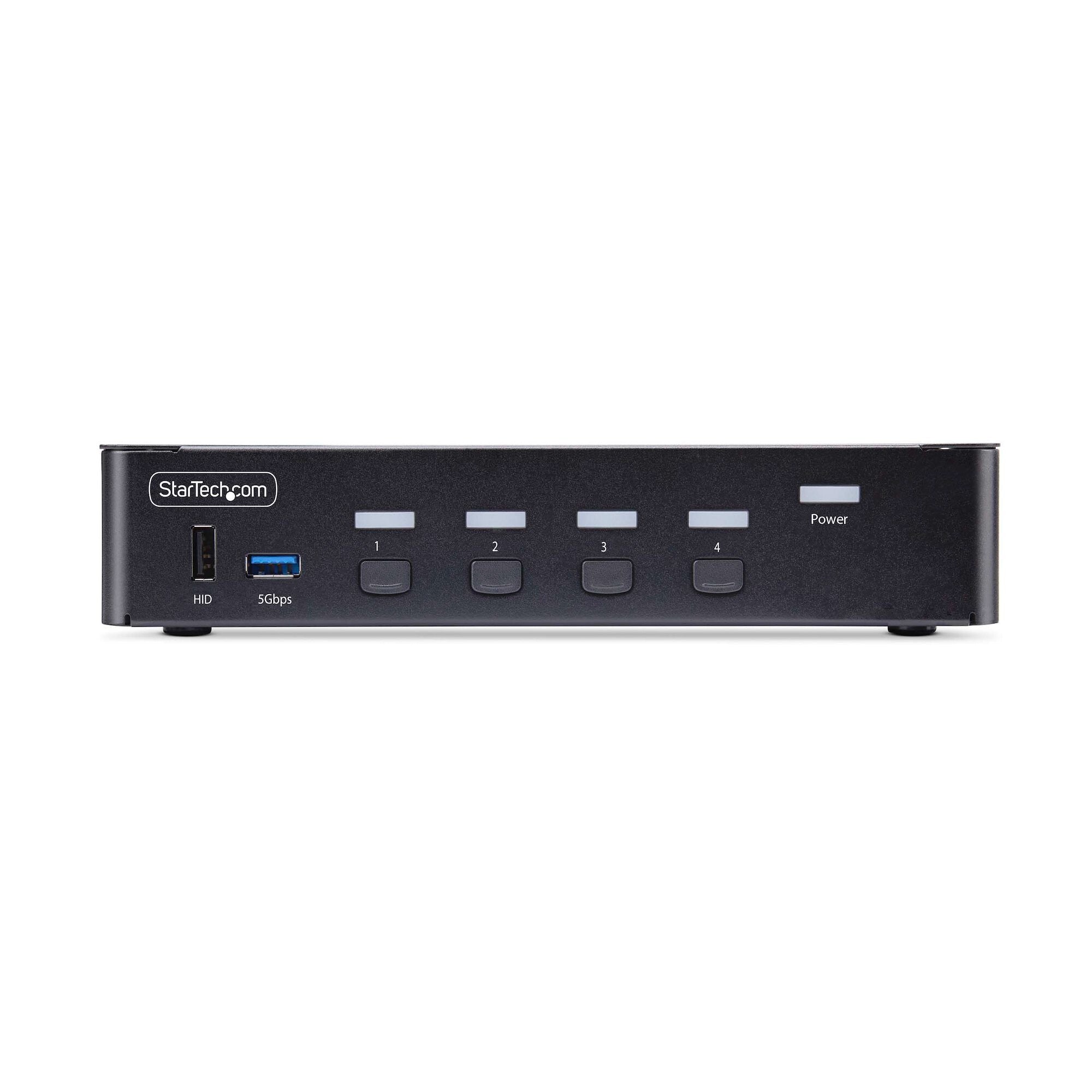

This Universal KVM Switch provides various switching options, including hotkey or push-button switching. Hotkeys allow for independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey input, and LEDs provide a visual status of the selected host.

Universal Compatibility

The TAA-Compliant KVM Switch offers universal compatibility, working with all operating systems, including Windows, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms, including Intel and AMD.

Reliable Performance

The durable metal housing helps prevent Electro-magnetic Interference (EMI). Overcurrent Protection (OCP) ensures peripherals don't overdraw power, reducing the occurrence of device dropouts or shutdowns.

The StarTech.com Advantage

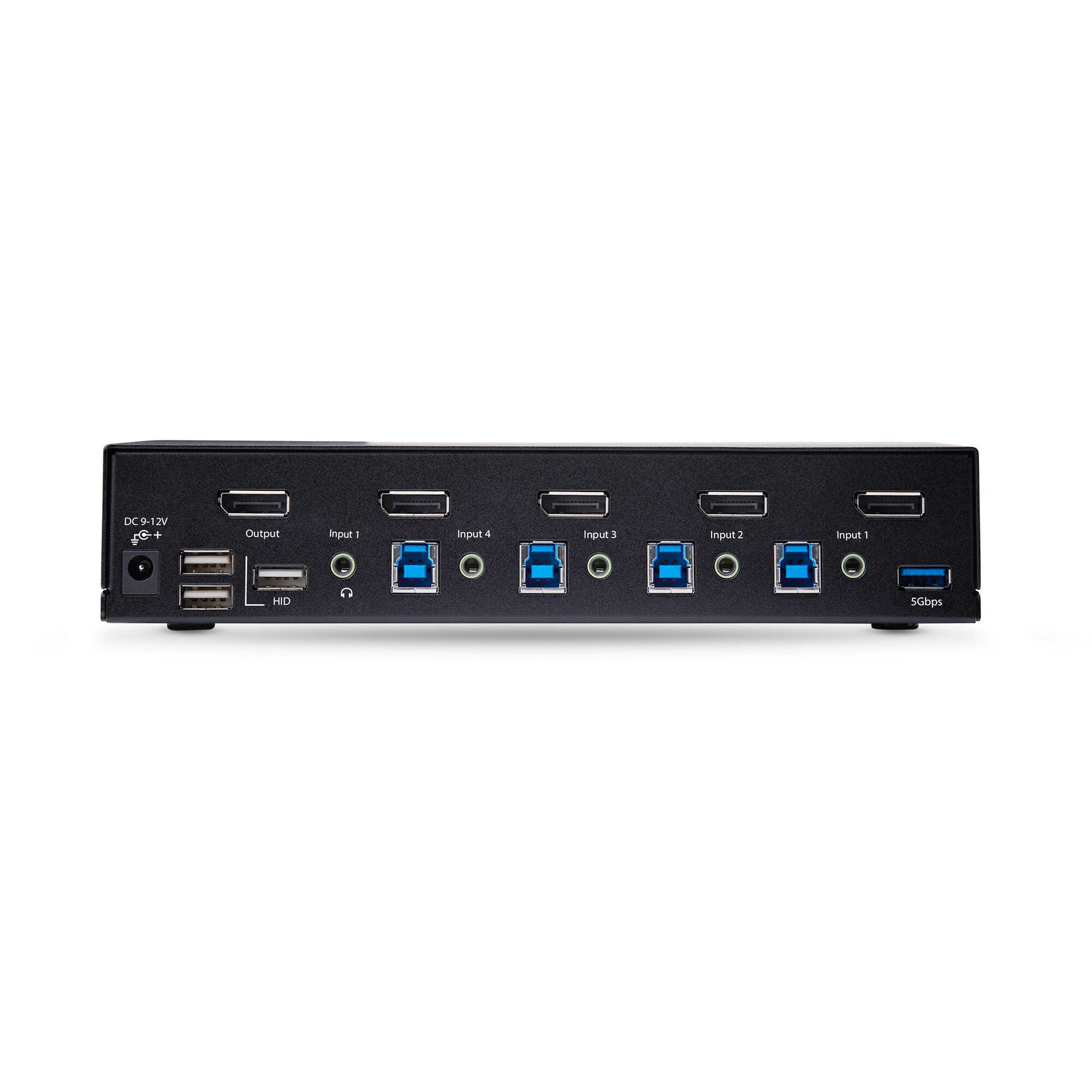

Ports & interfaces
DC-in jack Yes
Headphone outputs 4
Audio connections Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity 2
USB 2.0 Type-A hub ports quantity 4
Console DisplayPorts ports quantity 1
Console ports 3.5mm headphone, DisplayPort, USB A
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 4
DisplayPort version 1.4
DisplayPorts quantity 4
Video port type DisplayPort
Mouse port type USB
Keyboard port type USB
Number of computers controlled 4
Performance
HDCP version 1.4/2.2
Chipset GL-3523
Daisy chain No
HDCP Yes
High Dynamic Range (HDR) supported Yes
Scan interval 3,8,15,30 s
Data transfer rate (max) 5000 Gbit/s
Maximum resolution 7680 x 4320 pixels
HD type 8K Ultra HD
Design
Mean time between failures (MTBF) 130000 h
Hot keys Yes
Push button Yes
LED indicators Yes
Housing material Steel
Product colour Black
Rack mounting No
Display
Built-in display No
Power
Power consumption (typical) 36 W
Power plug type Type M
Compatible power plug types EU, JP, UK, US
Output current 3 A
Output voltage 12 V
Input current 1 A
Input voltage 100 - 240 V
Power source DC
Sustainability
Sustainability compliance Yes
Compliance certificates CE, RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating relative humidity (H-H) 0 - 85%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 1 kg
Height 44 mm
Depth 220 mm
Width 130 mm
Packaging data
Package weight 1.6 kg
Package height 87 mm
Package depth 212 mm
Package width 409 mm
Packaging content
Quick installation guide Yes
Rubber feet Yes
Other features
IP control No
Logistics data
Products per master (outer) case 60 pc(s)
Master (outer) case height 245 mm
Master (outer) case length 427 mm
Master (outer) case width 545 mm
